5.3.2. When CD in the tray

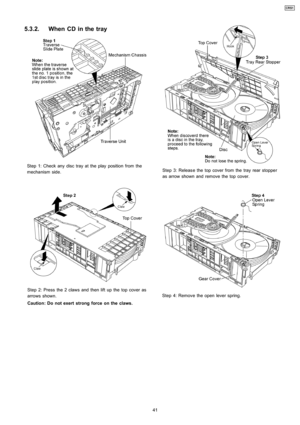

Step 1: Check any disc tray at the play positionfrom the
mechanism side.
Step 2: Press the 2 claws and then lift up the top cover as
arrows shown.
Caution: Do not exert strong force on the claws.
Step 3: Releas e the top cover from thetray rear stopper
as arrow shown and remove the top cover.
Step 4: Remove the open lever spring.
41
CRS1

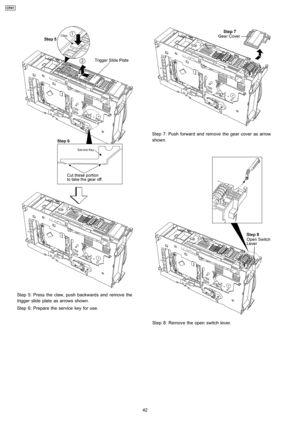

Step 5: Press the claw, push backwards and remove the
trigger slide plate as arrows shown.
Step 6: Prepare the service key for use.
Step 7: Push forward and remove the gear cover as arrow
shown.
Step 8: Remove the open switch lever.
42
CRS1

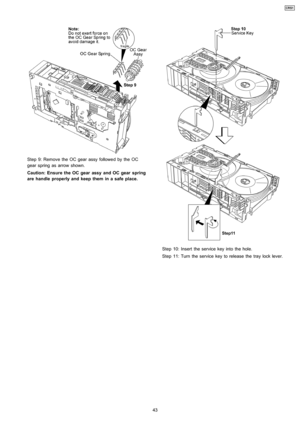

Step 9: Remove the OC gear assy followe d by the OC
gear spring as arrow shown.
Caution: Ensure the OC gearassy and OCgear spring
are handle properly and keep them in a safe place.
Step 10: Insert the service key into the hole.
Step 11: Turn the service key to release the tray lock lever.
43
CRS1

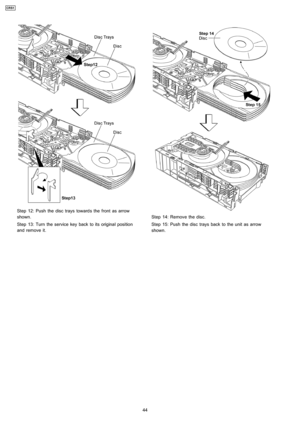

Step 12: Push the disc trays towards the front as arrow
shown.
Step 13: Turn the service key back to its original position
and remove it.
Step 14: Remove the disc.
Step 15: Push the disc trays back to the unit as arrow
shown.
44
CRS1

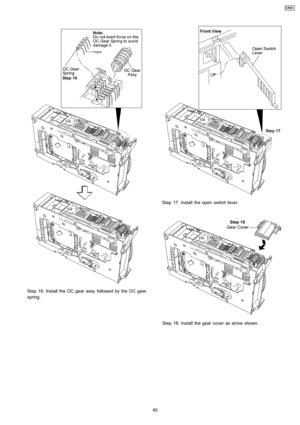

Step 16: Install the OC gear assy followe d by the OC gear
spring.
Step 17: Install the open switch lever.
Step 18: Install the gear cover as arrow shown.
45
CRS1

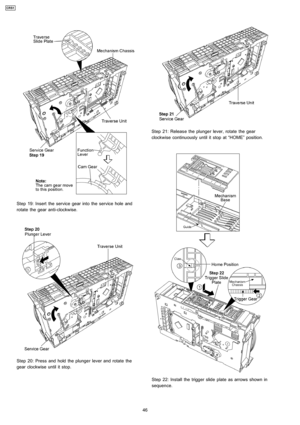

Step 19: Insert the service gear into the service hole and
rotate the gear anti-clockwise.
Step 20: Press and hold the plunger lever and rotate the
gear clockwise until it stop.
Step 21: Releas e the plunger lever, rotate the gear
clockwise continuously until it stop at “HOME” position.
Step 22: Install the trigger slide plate as arrows shown in
sequence.
46
CRS1

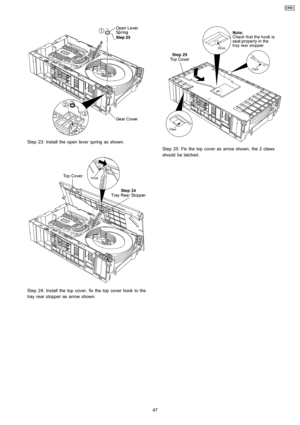

Step 23: Install the open lever spring as shown.
Step 24: Install the top cover, fix the top cover hook to the
tray rear stopper as arrow shown.
Step 25: Fix the top cover as arrow shown, the 2 claws
should be latched.
47
CRS1

48
CRS1

6 Flow Chart6.1. Disassembly Flow ChartThe following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing.












	 !











!









#	!


$



%






...

6.2. AssemblyFlow ChartThe following chart is the procedure for assembling the casing and inside parts for internal inspection when carrying out the servicing.

 	,
