6.3. Disassembly Flow
44. Limit Spring
43. Play Lever Spring 42. Mech Base
41. Plunger Lever
40. CD Loading
PCB
38. Function Lever
37. Play Switch Lever
36. Play Gear 1
35. Main Drive Gear
34. Function Gear
33. Relay Gear 2
32. Switching Gear
31. UD Gear 1
30. Cam Gear
29. Relay Gear 1
28. Relay Gear 3
27 UD Gear 2
26. Long Gear
25. Play Gear 2
24. Tray Relay Gear
23. Pulley Gear
22. Belt
21. Change Spring
20. Pitch Plate
19. Screw
39. Screw
18. Lock Lever 2
17. Trigger Gear
16.UD Rack R
15. UD Rack L...

CRS1
52

7.1.1. Disassembly of UD BaseAssembly

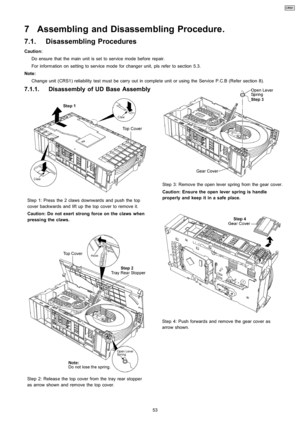

Step 1: Press the 2 claws downwards and push the top
cover backwards and lift up the top cover to remove it.
Caution: Do not exert strong force on the claws when
pressing the claws.
Step 2: Releas e the top cover from thetray rear stopper
as arrow shown and remove the top cover.
Step 3: Remove the open lever spring from the gear cover.
Caution: Ensure the open lever spring is handle
properly and keep it in a safe place.
Step 4: Push forwards and remove the gear cover...

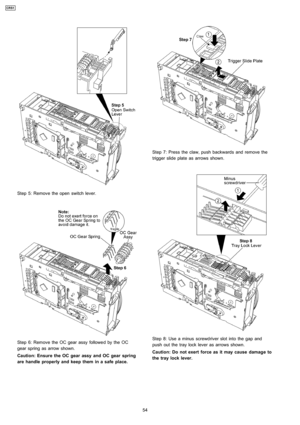

Step 5: Remove the open switch lever.
Step 6: Remove the OC gear assy followe d by the OC
gear spring as arrow shown.
Caution: Ensure the OC gearassy and OCgear spring
are handle properly and keep them in a safe place.
Step 7: Press the claw, push backwards and remove the
trigger slide plate as arrows shown.
Step 8: Use a minus screwdriver slot into the gap and
push out the tray lock lever as arrows shown.
Caution: Do not exert force as it may cause damage to
the tray lock lever.
54
CRS1

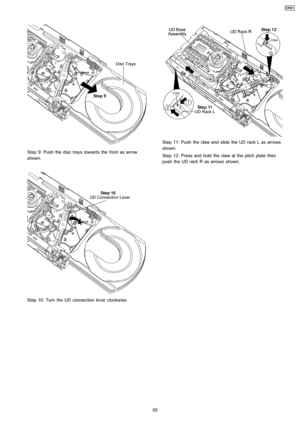

Step 9: Push the disc trays towards the front as arrow
shown.
Step 10: Turn the UD connection lever clockwise.
Step 11: Push the claw and slide the UD rack L as arrows
shown.
Step 12: Press and hold the claw at the pitch plate then
push the UD rack R as arrows shown.
55
CRS1

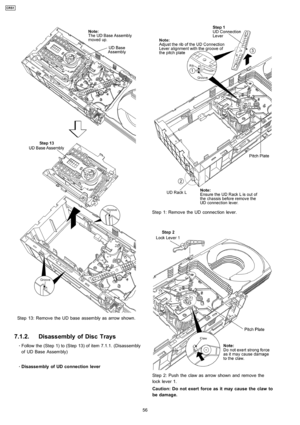

Step 13: Remove the UD base assembly as arrow shown.
7.1.2. Disassembly of Disc Trays

    ·
    Follow the (Step 1) to (Step 13) of item 7.1.1. (Disassembly
of UD Base Assembly)

    ·
    Disasse mbly of UD connection lever
Step 1: Remove the UD connection lever.
Step 2: Push the claw as arrow shown and remove the
lock lever 1.
Caution: Do not exert force as it may cause the claw to
be damage.
56
CRS1

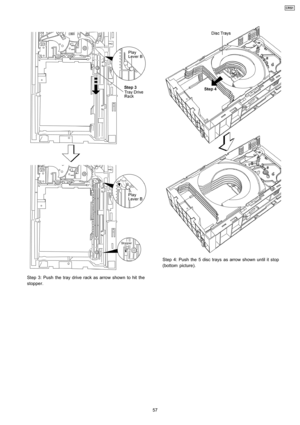

Step 3: Push the tray drive rack as arrow shown to hit the
stopper.
Step 4: Push the 5 disc trays as arrow shown until it stop
(bottom picture).
57
CRS1

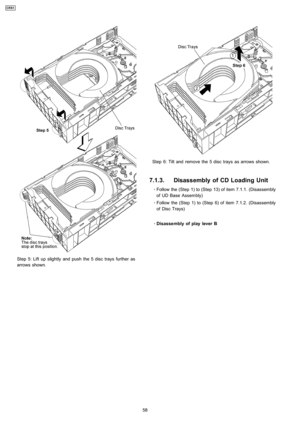

Step 5: Lift up slightly and push the 5 disc trays further as
arrows shown.
Step 6: Tilt and remove the 5 disc trays as arrows shown.
7.1.3. Disassembly of CD Loading Unit

    ·
    Follow the (Step 1) to (Step 13) of item 7.1.1. (Disassembly
of UD Base Assembly)

    ·
    Follow the (Step 1) to (Step 6) of item 7.1.2. (Disassembly
of Disc Trays)

    ·
    Disasse mbly ofplay lever B
58
CRS1

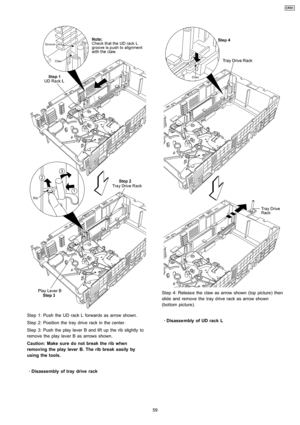

Step 1: Push the UD rack L forwards as arrow shown.
Step 2: Position the tray drive rack in the center.
Step 3: Push the play lever B and lift up the rib slightly to
remove theplay lever B as arrows shown.
Caution: Make sure do not break the rib when
removing the play lever B. The ribbreak easily by
using the tools.

    ·
    Disasse mbly of tray drive rack
Step 4: Releas e the claw as arrow shown (top picture) then
slide and remove the tray drive rack as arrow shown
(bottom picture).

    ·...

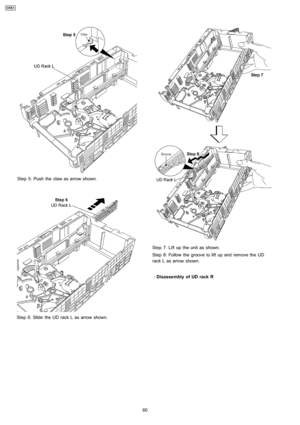

Step 5: Push the claw as arrow shown.
Step 6: Slide the UD rack L as arrow shown.
Step 7: Lift up the unit as shown.
Step 8: Follow the groove to lift up and remove the UD
rack L as arrow shown.

    ·
    Disasse mbly of UD rack R
60
CRS1
