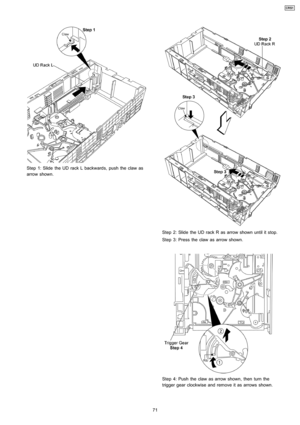

Step 1: Slide the UD rack L backwards, push the claw as
arrow shown.
Step 2: Slide the UD rack R as arrow shown until it stop.
Step 3: Press the claw as arrow shown.
Step 4: Push the claw as arrow shown, then turn the
trigger gear clockwise and remove it as arrows shown.
71
CRS1

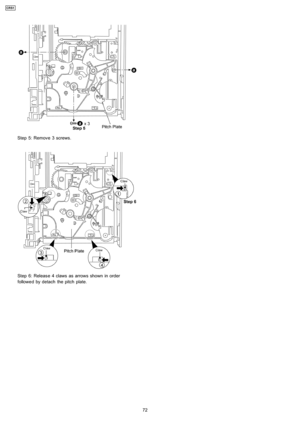

Step 5: Remove 3 screws.
Step 6: Releas e 4 claws as arrows shown in order
followe d by detach the pitch plate.
72
CRS1

7.2.1. Assembly of CD Loading Unit

    ·
    Assembly of Plunge r Lever

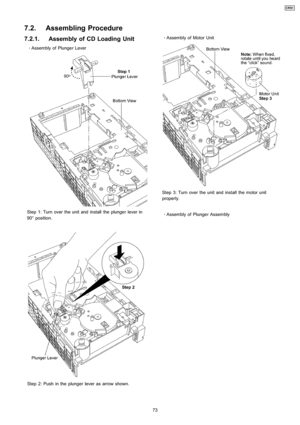

Step 1: Turn over the unit and install the plunger lever in
90° position.
Step 2: Push in the plunger lever as arrow shown.
    ·
    Assembly of Motor Unit
Step 3: Turn over the unit and install the motor unit
properly.

    ·
    Assembly of Plunge r Assembly
7.2. Assembling Procedure
73
CRS1

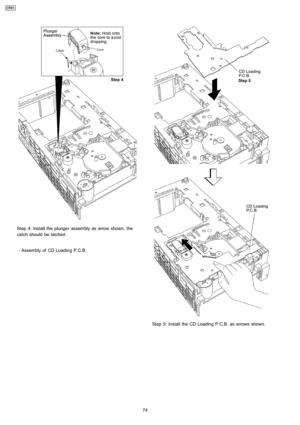

Step 4: Install the plunger assembly as arrow shown, the
catch should be latched.

    ·
    Assembly of CD Loadin g P.C.B.
Step 5: Install the CD Loadin g P.C.B. as arrows shown.
74
CRS1

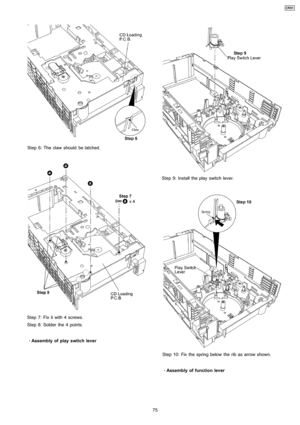

Step 6: The claw should be latched.
Step 7: Fix it with 4 screws.
Step 8: Solder the 4 points.

    ·
    Assembly ofplayswtichlever
Step 9: Install the play switch lever.
Step 10: Fix the spring below the rib as arrow shown.

    ·
    Assembly of function lever
75
CRS1

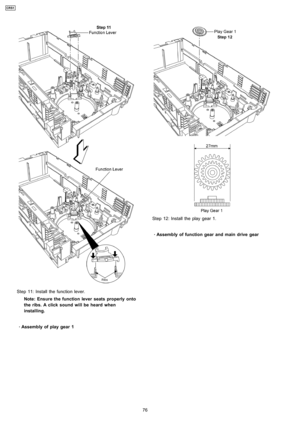

Step 11: Install the function lever.
Note: Ensure the function lever seats properly onto
the ribs. A click soundwill beheard when
installing.

    ·
    Assembly ofplaygear 1
Step 12: Install the play gear 1.

    ·
    Assembly of function gear and main drive gear
76
CRS1

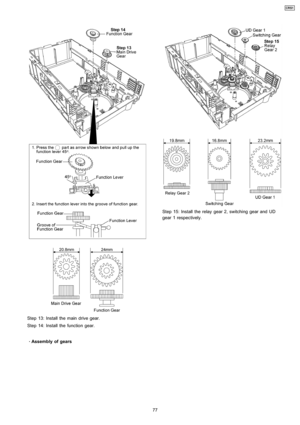

Step 13: Install the main drive gear.
Step 14: Install the function gear.

    ·
    Assembly of gears
Step 15: Install the relay gear 2, switching gear and UD
gear 1 respectively.
77
CRS1

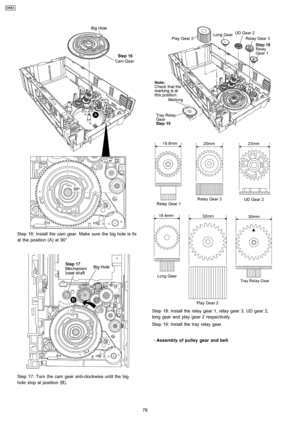

Step 16: Install the cam gear. Make sure the big hole is fix
at the position (A) at 90°
Step 17: Turn the cam gear anti-clockwise until the big
hole stop at position (B).
Step 18: Install the relay gear 1, relay gear 3, UD gear 2,
long gear and play gear 2 respectively.
Step 19: Install the tray relay gear.

    ·
    Assembly of pulley gear and belt
78
CRS1

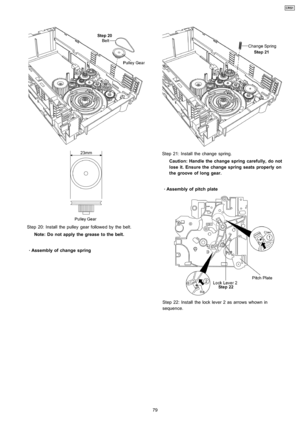

Step 20: Install the pulley gear followe d by the belt.
Note: Do not apply the grease to the belt.

    ·
    Assembly of change spring
Step 21: Install the change spring.
Caution: Handle the change spring carefully, do not
lose it. Ensure the change spring seats properly on
the groove of long gear.

    ·
    Assembly of pitch plate
Step 22: Install the lock lever 2 as arrows whown in
sequence.
79
CRS1

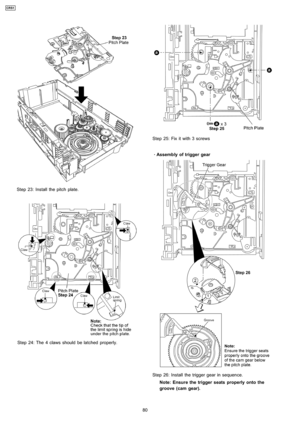

Step 23: Install the pitch plate.
Step 24: The 4 claws should be latched properly.
Step 25: Fix it with 3 screws

    ·
    Assembly of trigger gear
Step 26: Install the trigger gear in sequence.
Note: Ensure the trigger seats properly onto the
groove (cam gear).
80
