Panasonic Crs 1 Service Manual

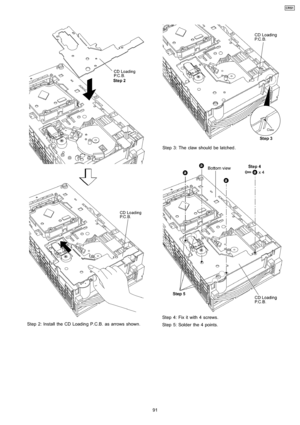

Step 2: Install the CD Loadin g P.C.B. as arrows shown.
Step 3: The claw should be latched.
Step 4: Fix it with 4 screws.
Step 5: Solder the 4 points.
91
CRS1

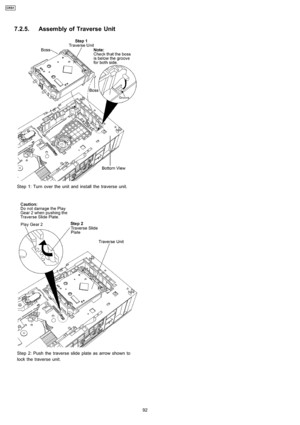

7.2.5. Assembly of Traverse Unit
Step 1: Turn over the unit and install the traverse unit.
Step 2: Push the traverse slide plate as arrow shown to
lock the traverse unit.
92
CRS1

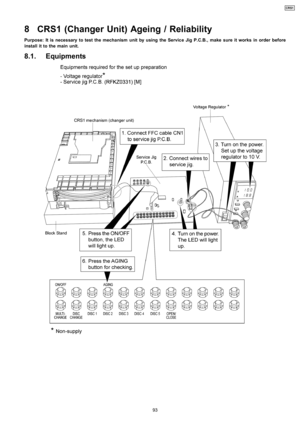

8 CRS1 (Changer Unit) Ageing / Reliability
Purpose: It is necessary totest the mechanism unit by using the Service Jig P.C.B., make sure itworks in order before
install it to the main unit.
8.1. Equipments
93
CRS1

(All schematic diagrams may be modified at any timewith
the develo pment of new technology)
Note :
SW1 Open switch
SW2 Stock switch
SW3 Home switch
SW4 Top switch
SW5 Play switch

    ·
    The voltage value and waveforms are the reference voltage
of this unit measured by DC electronic voltmeter (high
impedance) and oscilloscope on the basis of chassis.
Accordingly, there may arise some error in voltage values
and waveforms depending upon the internal impedance of
the tester or the measuring unit....

10 Schematic Diagram
10.1. CD Loading Circuit








































 





















 



!

!








 #


 $%








95
CRS1

11 Printed Circuit Board
11.1. CD Loading P.C.B.

























!





#







$








$
%
&















96
CRS1

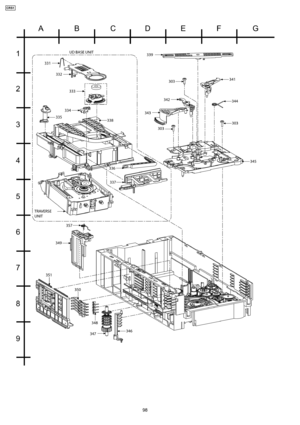

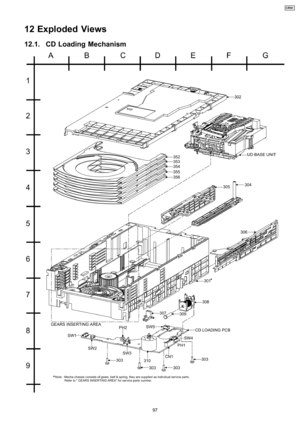

12 Exploded Views
12.1. CD Loading Mechanism
97
CRS1

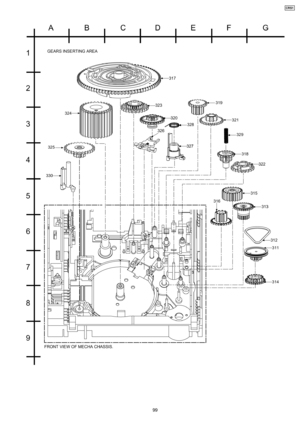

98
CRS1

99
CRS1

Notes:
13 Replacement Parts List

    ·
    Important safety notice:
Components identified by
mark have special characteristics important for safety.
Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise
(resistors), etc. are used.
Whenreplacing any of these components, be sure to use onlymanufacturers’s specified parts shown in the parts list.

    ·
    Capacitor values are in microfarad (µF) unless specified otherwise, P=Pico...
