    Assembly of UD rack R

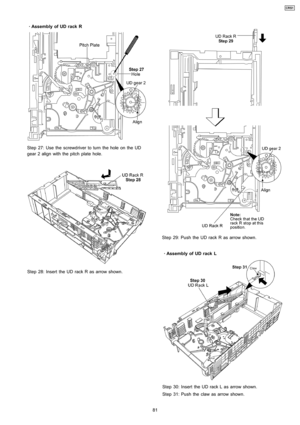

Step 27: Use the screwdriver to turn the hole on the UD
gear 2 align with the pitch plate hole.
Step 28: Insert the UD rack R as arrow shown.
Step 29: Push the UD rack R as arrow shown.

    ·

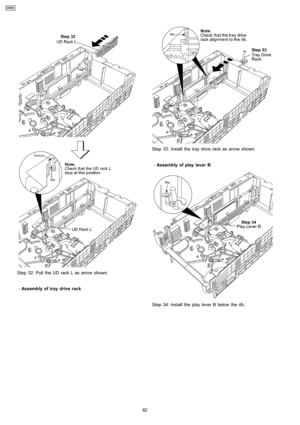

    Assembly of UD rack L
Step 30: Insert the UD rack L as arrow shown.
Step 31: Push the claw as arrow shown.
81
CRS1

Step 32: Pull the UD rack L as arrow shown.

    ·
    Assembly of tray drive rack
Step 33: Install the tray drive rack as arrow shown.

    ·
    Assembly ofplay lever B
Step 34: Install the play lever B below the rib.
82
CRS1

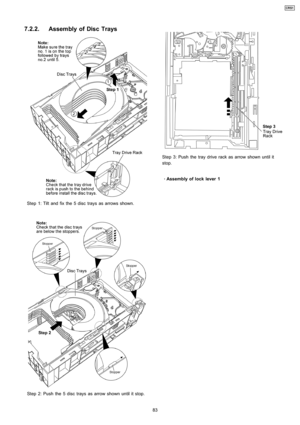

7.2.2. Assembly of Disc Trays
Step 1: Tilt and fix the 5 disc trays as arrows shown.
Step 2: Push the 5 disc trays as arrow shown until it stop.
Step 3: Push the tray drive rack as arrow shown until it
stop.

    ·
    Assembly of lock lever 1
83
CRS1

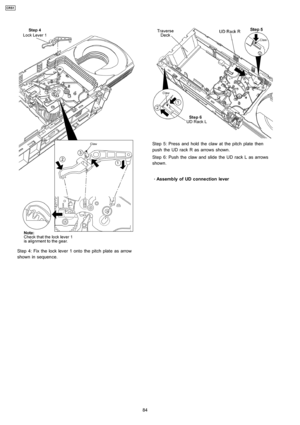

Step 4: Fix the lock lever 1 onto the pitch plate as arrow
shown in sequence.
Step 5: Press and hold the claw at the pitch plate then
push the UD rack R as arrows shown.
Step 6: Push the claw and slide the UD rack L as arrows
shown.

    ·
    Assembly of UD connection lever
84
CRS1

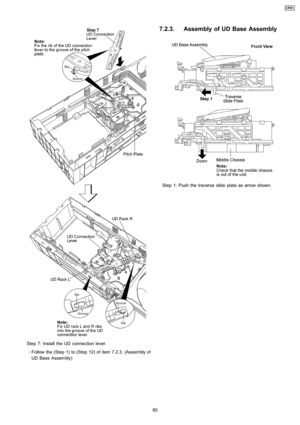

Step 7: Install the UD connection lever.

    ·
    Follow the (Step 1) to (Step 12) of item 7.2.3. (Assembly of
UD Base Assembly)
7.2.3. Assembly of UD Base Assembly
Step 1: Push the traverse slide plate as arrow shown.
85
CRS1

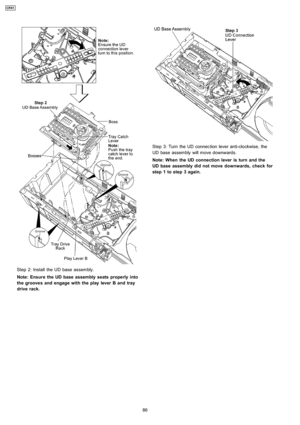

Step 2: Install the UD base assembly.
Note: Ensure the UD base assembly seats properly into
the groove s and engagewith theplay lever B and tray
drive rack.
Step 3: Turn the UD connection lever anti-clockwise, the
UD base assembly will move downwards.
Note: When the UD connection lever is turn and the
UD base assembly did not movedownwards, check for
step 1 to step 3 again.
86
CRS1

Step 4: Install the tray lock lever to the mechanism base
and push the tray lock lever with a hand to fix it.
Step 5: Push the disc trays back to the unit as arrow
shown.

    ·
    Assembly of Trigger Slide Plate
87
CRS1

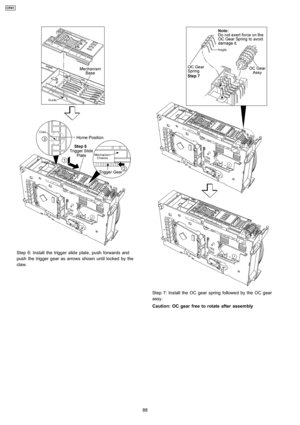

Step 6: Install the trigger slide plate, push forwards and
push the trigger gear as arrows shown until locked by the
claw.
Step 7: Install the OC gear spring followe d by the OC gear
assy.
Caution: OC gear free to rotate after assembly
88
CRS1

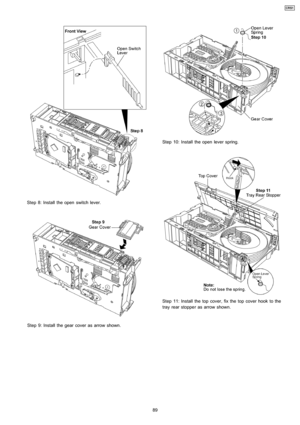

Step 8: Install the open switch lever.
Step 9: Install the gear cover as arrow shown.
Step 10: Install the open lever spring.
Step 11: Install the top cover, fix the top cover hook to the
tray rear stopper as arrow shown.
89
CRS1

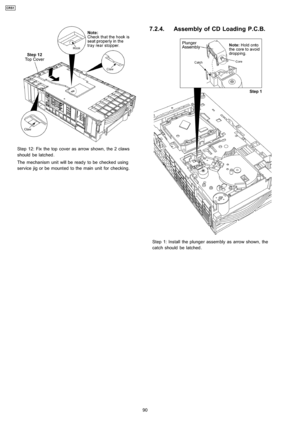

Step 12: Fix the top cover as arrow shown, the 2 claws
should be latched.
The mechanism unit will be ready to be checked using
service jig or be mounted to the main unit for checking.
7.2.4. Assembly of CD Loading P.C.B.
Step 1: Install the plunger assembly as arrow shown, the
catch should be latched.
90
CRS1
