Panasonic Crs 1 Service Manual

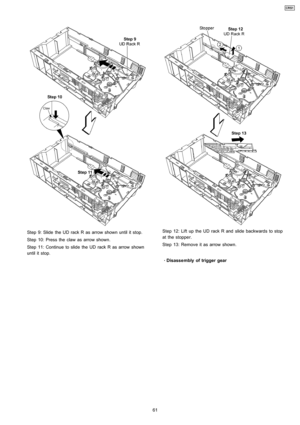

Step 9: Slide the UD rack R as arrow shown until it stop.
Step 10: Press the claw as arrow shown.
Step 11: Continue to slide the UD rack R as arrow shown
until it stop.Step 12: Lift up the UD rack R and slide backwards to stop
at the stopper.
Step 13: Remove it as arrow shown.

    ·
    Disasse mbly of trigger gear
61
CRS1

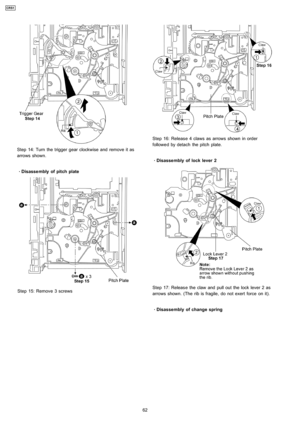

Step 14: Turn the trigger gear clockwise and remove it as
arrows shown.

    ·
    Disasse mbly of pitch plate
Step 15: Remove 3 screws
Step 16: Releas e 4 claws as arrows shown in order
followe d by detach the pitch plate.

    ·
    Disasse mbly of lock lever 2
Step 17: Releas e the claw and pull out the lock lever 2 as
arrows shown. (The rib is fragile, do not exert force on it).

    ·
    Disasse mbly of change spring
62
CRS1

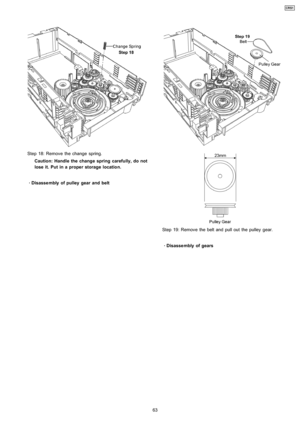

Step 18: Remove the change spring.
Caution: Handle the change spring carefully, do not
lose it. Put in a proper storage location.

    ·
    Disasse mbly of pulley gear and belt
Step 19: Remove the belt and pull out the pulley gear.

    ·
    Disasse mbly of gears
63
CRS1

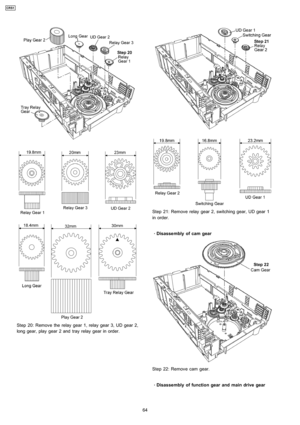

Step 20: Remove the relay gear 1, relay gear 3, UD gear 2,
long gear, play gear 2 and tray relay gear in order.
Step 21: Remove relay gear 2, switching gear, UD gear 1
in order.

    ·
    Disasse mbly of cam gear
Step 22: Remove cam gear.

    ·
    Disasse mbly of function gear and main drive gear
64
CRS1

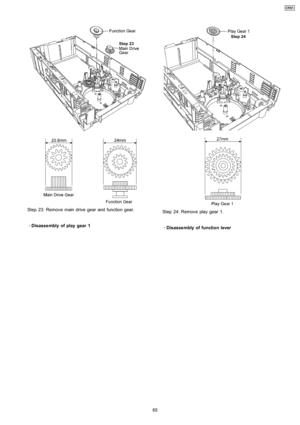

Step 23: Remove main drive gear and function gear.

    ·
    Disasse mbly ofplaygear 1Step 24: Remove play gear 1.

    ·
    Disasse mbly of function lever
65
CRS1

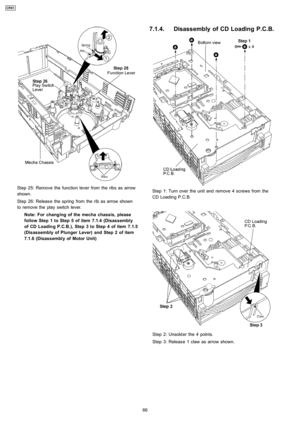

Step 25: Remove the function lever from the ribs as arrow
shown.
Step 26: Releas e the spring from the rib as arrow shown
to remove theplay switch lever.
Note: For changing of the mecha chassis, please
follow Step 1 to Step 5 of item 7.1.4 (Disassembly
of CD Loading P.C.B.), Step 3 to Step 4 of item 7.1.5
(Disassembly of Plunger Lever) and Step 2 of item
7.1.6 (Disassembly of Motor Unit)
7.1.4. Disassembly of CD Loading P.C.B.

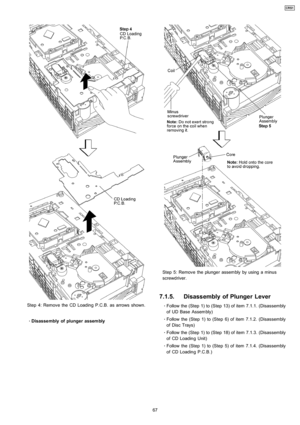

Step 1: Turn over the unit and remove 4 screws from the
CD Loadin g P.C.B....

Step 4: Remove the CD Loadin g P.C.B. as arrows shown.

    ·
    Disasse mbly of plunger assembly
Step 5: Remove the plunger assembly by using a minus
screwdriver.
7.1.5. Disassembly of Plunger Lever

    ·
    Follow the (Step 1) to (Step 13) of item 7.1.1. (Disassembly
of UD Base Assembly)

    ·
    Follow the (Step 1) to (Step 6) of item 7.1.2. (Disassembly
of Disc Trays)

    ·
    Follow the (Step 1) to (Step 18) of item 7.1.3. (Disassembly
of CD Loadin g Unit)

    ·
    Follow the...

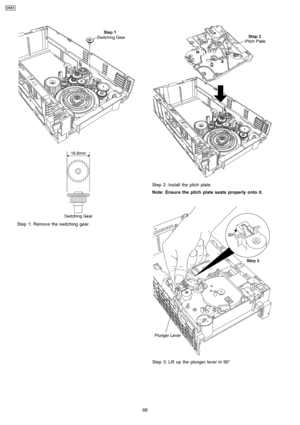

Step 1: Remove the switching gear.
Step 2: Install the pitch plate.
Note: Ensure the pitch plate seats properly onto it.
Step 3: Lift up the plunger lever in 90°
68
CRS1

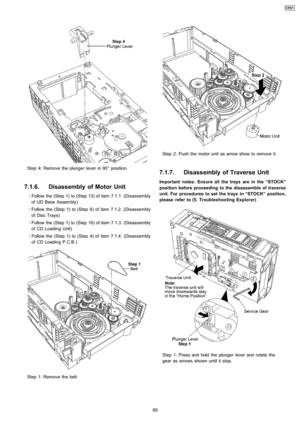

Step 4: Remove the plunger lever in 90° position.
7.1.6. Disassembly of Motor Unit

    ·
    Follow the (Step 1) to (Step 13) of item 7.1.1. (Disassembly
of UD Base Assembly)

    ·
    Follow the (Step 1) to (Step 6) of item 7.1.2. (Disassembly
of Disc Trays)

    ·
    Follow the (Step 1) to (Step 16) of item 7.1.3. (Disassembly
of CD Loadin g Unit)

    ·
    Follow the (Step 1) to (Step 4) of item 7.1.4. (Disassembly
of CD Loadin g P.C.B.)
Step 1: Remove the belt.
Step 2: Push the motor unit...

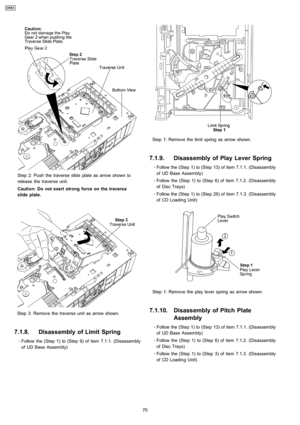

Step 2: Push the traverse slide plate as arrow shown to
release the traverse unit.
Caution: Do not exert strong force on the traverse
slide plate.
Step 3: Remove the traverse unit as arrow shown.
7.1.8. Disassembly of Limit Spring

    ·
    Follow the (Step 1) to (Step 9) of item 7.1.1. (Disassembly
of UD Base Assembly)
Step 1: Remove the limit spring as arrow shown.
7.1.9. Disassembly of Play Lever Spring

    ·
    Follow the (Step 1) to (Step 13) of item 7.1.1. (Disassembly
of UD Base Assembly)...
