Panasonic Digital AV Mixer Agmx70 Operating Instructions

91

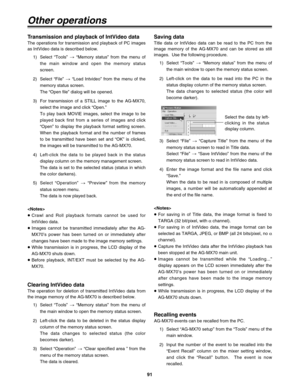

Other operations
3) Select “File” >
“Capture Title” from the menu of the
memory status screen to read in Title data.
Select “File” >
“Save IntVideo” from the menu of the
memory status screen to read in IntVideo data.
4) Enter the image format and the file name and click
“Save.”
When the data to be read in is composed of multiple
images, a number will be automatically appended at
the end of the file name.

≥For saving in of Title data, the image format is fixed to
TARGA (32 bit/pixel, with αchannel)....

92
Other operations
Setting the initial properties
The initial values for the properties to be used with new data can be set on the “Initial set of Property Data” setting screen.
1) Select “Initial set of Property Data” from the Tools menu of the main window.
The “Initial set of Property Data” setting screen is displayed.
2) Set the individual items and click the “OK” button to change the settings.
All settings can be returned to the initial value by pressing the “Cancel” button.
Still Duration
The...

93
Other operations

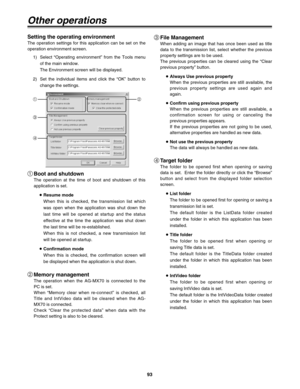

Setting the operating environment
The operation settings for this application can be set on the
operation environment screen.
1) Select “Operating environment” from the Tools menu
of the main window.
The Environment screen will be displayed.
2) Set the individual items and click the “OK” button to
change the settings.
Boot and shutdown
The operation at the time of boot and shutdown of this
application is set.
≥Resume mode
When this is checked, the transmission list which
was open when...

94

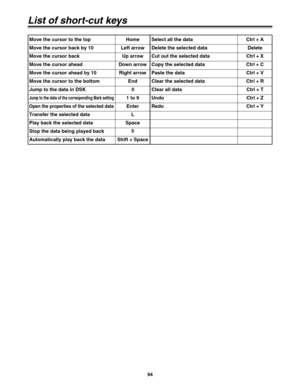

List of short-cut keys
Move the cursor to the topHome
Move the cursor back by 10 Left arrow
Move the cursor back Up arrow
Move the cursor ahead Down arrow
Move the cursor ahead by 10 Right arrow
Jump to the data in DSK 0
Jump to the data of the corresponding Mark setting1 to 9
Move the cursor to the bottom End
Open the properties of the selected dataEnter
Transfer the selected data L
Play back the selected data Space
Stop the data being played backS
Automatically play back the data Shift + SpaceSelect...

95

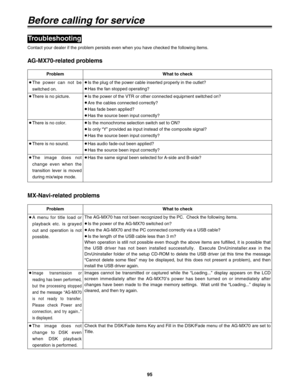

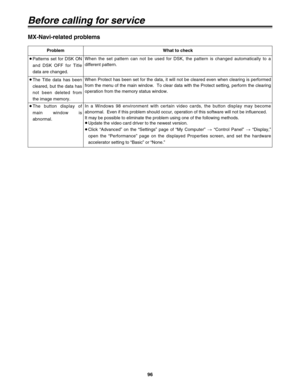

Before calling for service
Troubleshooting
Contact your dealer if the problem persists even when you have checked the following items.
Problem What to check
≥
The power can not be
switched on.≥
Is the plug of the power cable inserted properly in the outlet?
≥
Has the fan stopped operating?
≥
There is no picture.≥
Is the power of the VTR or other connected equipment switched on?
≥
Are the cables connected correctly?
≥
Has fade been applied?
≥
Has the source been input correctly?
≥
There is no color.≥...

96
Before calling for service
Problem What to check
≥
The Title data has been
cleared, but the data has
not been deleted from
the image memory.When Protect has been set for the data, it will not be cleared even when clearing is performed
from the menu of the main window.  To clear data with the Protect setting, perform the clearing
operation from the memory status window.
≥
The button display of
main window is
abnormal.In a Windows 98 environment with certain video cards, the button display may become...

97

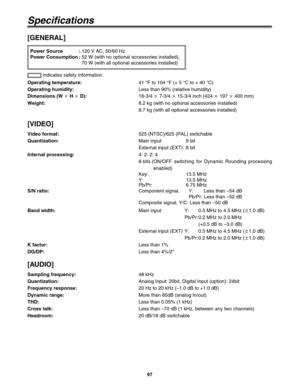

Specifications
[GENERAL]
Power Source :120 V AC, 50/60 Hz
Power Consumption :52 W (with no optional accessories installed),
70 W (with all optional accessories installed)
Operating temperature:41 °F to 104 °F (+ 5 °C to + 40 °C)
Operating humidity:Less than 90% (relative humidity)
Dimensions (W k
H k
D):16-3/4 k
7-3/4 k
15-3/4 inch (424 k
197 k
400 mm)
Weight:8.2 kg (with no optional accessories installed)
8.7 kg (with all optional accessories installed) indicates safety information.
[VIDEO]
Video...

98

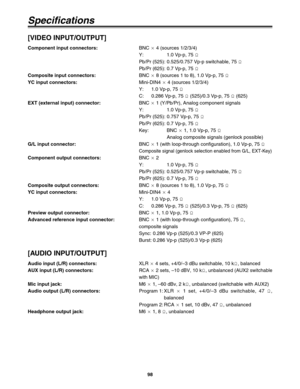

Specifications
[VIDEO INPUT/OUTPUT]
Component input connectors:BNC a4 (sources 1/2/3/4)
Y: 1.0 Vp-p, 75 h
Pb/Pr (525): 0.525/0.757 Vp-p switchable, 75 h
Pb/Pr (625): 0.7 Vp-p, 75 h
Composite input connectors:BNC a8 (sources 1 to 8), 1.0 Vp-p, 75 h
YC input connectors:Mini-DIN4 a4 (sources 1/2/3/4)
Y: 1.0 Vp-p, 75 h
C: 0.286 Vp-p, 75 h(525)/0.3 Vp-p, 75 h(625)
EXT (external input) connector:BNC a1 (Y/Pb/Pr), Analog component signals
Y: 1.0 Vp-p, 75 h
Pb/Pr (525): 0.757 Vp-p, 75 h
Pb/Pr (625): 0.7 Vp-p,...

99

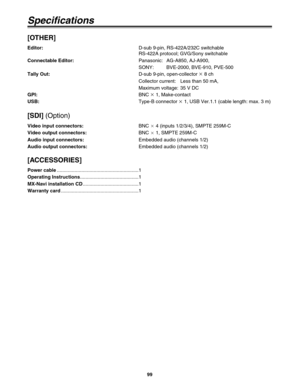

Specifications
[OTHER]
Editor:D-sub 9-pin, RS-422A/232C switchable
RS-422A protocol; GVG/Sony switchable
Connectable Editor:Panasonic: AG-A850, AJ-A900,
SONY: BVE-2000, BVE-910, PVE-500
Tally Out:D-sub 9-pin, open-collector k
8 ch
Collector current: Less than 50 mA,
Maximum voltage: 35 V DC
GPI:BNC k
1, Make-contact
USB:Type-B connector k
1, USB Ver.1.1 (cable length: max. 3 m)
[SDI](Option)
Video input connectors:BNC a
4 (inputs 1/2/3/4), SMPTE 259M-C
Video output connectors:BNC a
1, SMPTE 259M-C...

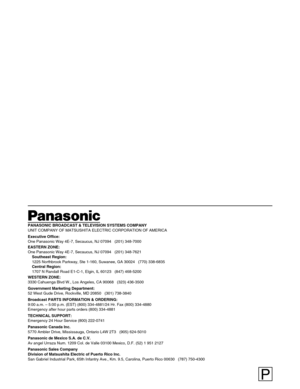

PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY
