Panasonic Digital AV Mixer Agmx70 Operating Instructions

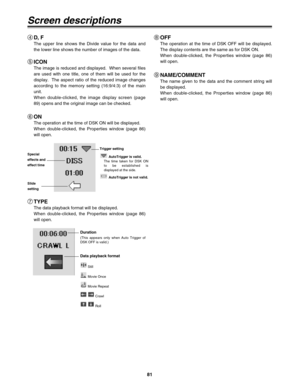

81
TYPE
The data playback format will be displayed.
When double-clicked, the Properties window (page 86)
will open.
7OFF
The operation at the time of DSK OFF will be displayed.
The display contents are the same as for DSK ON.
When double-clicked, the Properties window (page 86)
will open.
8
NAME/COMMENT
The name given to the data and the comment string will
be displayed.
When double-clicked, the Properties window (page 86)
will open.
9
Duration
(This appears only when Auto Trigger of
DSK OFF is valid.)...

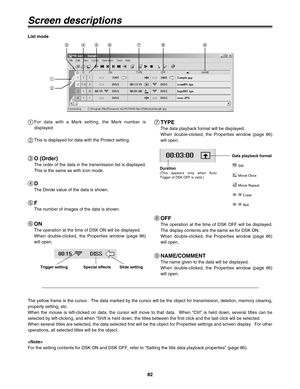

82
OFF
The operation at the time of DSK OFF will be displayed.
The display contents are the same as for DSK ON.
When double-clicked, the Properties window (page 86)
will open.
8
NAME/COMMENT
The name given to the data will be displayed.
When double-clicked, the Properties window (page 86)
will open.
9
Screen descriptions
TYPE
The data playback format will be displayed.
When double-clicked, the Properties window (page 86)
will open.
7
Duration(This appears only when Auto
Trigger of DSK OFF is valid.)
Data...

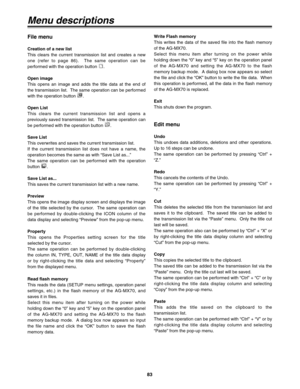

83
Menu descriptions
File menu
Creation of a new list
This clears the current transmission list and creates a new
one (refer to page 86).  The same operation can be
performed with the operation button  .
Open image
This opens an image and adds the title data at the end of
the transmission list.  The same operation can be performed
with the operation button  .
Open List
This clears the current transmission list and opens a
previously saved transmission list.  The same operation can
be performed with the...

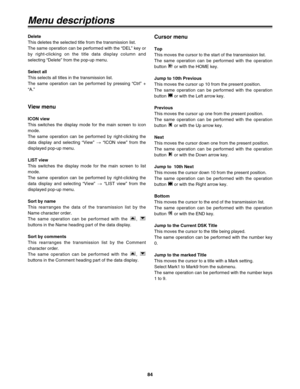

84
Menu descriptions
Delete
This deletes the selected title from the transmission list.
The same operation can be performed with the “DEL” key or
by right-clicking on the title data display column and
selecting “Delete” from the pop-up menu.
Select all
This selects all titles in the transmission list.
The same operation can be performed by pressing “Ctrl” +
“A.”
View menu
ICON view
This switches the display mode for the main screen to icon
mode.
The same operation can be performed by right-clicking the...

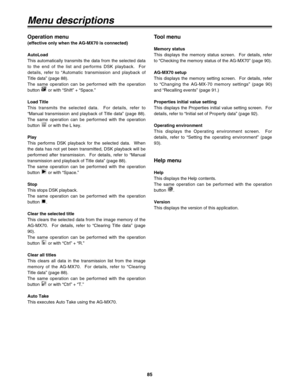

85
Menu descriptions
Tool menu
Memory status
This displays the memory status screen.  For details, refer
to “Checking the memory status of the AG-MX70” (page 90).
AG-MX70 setup
This displays the memory setting screen.  For details, refer
to “Changing the AG-MX-70 memory settings” (page 90)
and “Recalling events” (page 91.)
Properties initial value setting
This displays the Properties initial value setting screen.  For
details, refer to “Initial set of Property data” (page 92).
Operating environment
This...

86
Title data operations
Flow until Title data playback
The procedure for transmission of PC images as Title data
and DSK playback is as follows.
1) Register the image in the list of Title data for
transmission to the AG-MX70 (transmission list).
2) Perform data playback settings.
3) Play back and transmit data manually or
automatically.
Registering Title data in the transmission list
The transmission list is a list of Title data to be transmitted
to the AG-MX70.  Up to 99 Title data items can be...

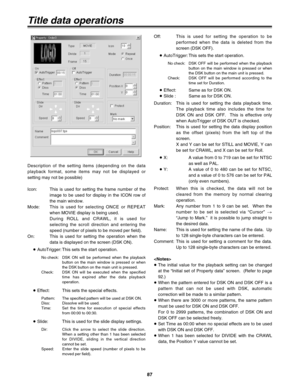

87
Off: This is used for setting the operation to be
performed when the data is deleted from the
screen (DSK OFF).
≥AutoTrigger: This sets the start operation.
No check: DSK OFF will be performed when the playback
button on the main window is pressed or when
the DSK button on the main unit is pressed.
Check:DSK OFF will be performed according to the
time set for Duration.
≥Effect: Same as for DSK ON.
≥Slide : Same as for DSK ON.
Duration: This is used for setting the data playback time.
The playback time...

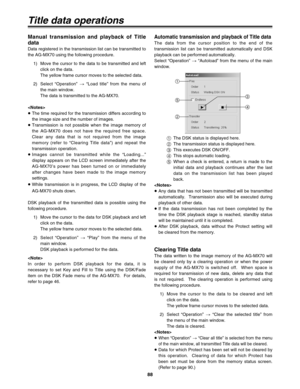

88
Automatic transmission and playback of Title data
The data from the cursor position to the end of the
transmission list can be transmitted automatically and DSK
playback can be performed automatically.
Select “Operation” >“Autoload” from the menu of the main
window.
Manual transmission and playback of Title
data
Data registered in the transmission list can be transmitted to
the AG-MX70 using the following procedure.
1) Move the cursor to the data to be transmitted and left
click on the data.
The...

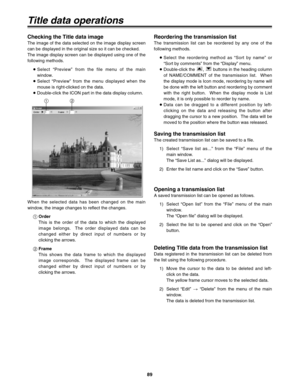

89
Reordering the transmission list
The transmission list can be reordered by any one of the
following methods.
≥Select the reordering method as “Sort by name” or
“Sort by comments” from the “Display” menu.
≥Double-click the  ,  buttons in the heading column
of NAME/COMMENT of the transmission list.  When
the display mode is Icon mode, reordering by name will
be done with the left button and reordering by comment
with the right button.  When the display mode is List
mode, it is only possible to reorder...

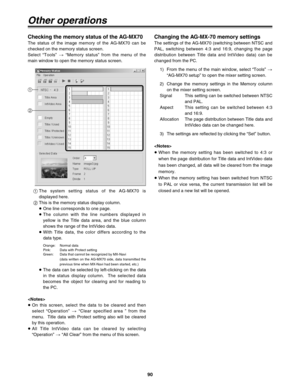

90
Checking the memory status of the AG-MX70
The status of the image memory of the AG-MX70 can be
checked on the memory status screen.
Select “Tools” >“Memory status” from the menu of the
main window to open the memory status screen.
Other operations
1
2
1The system setting status of the AG-MX70 is
displayed here.
2This is the memory status display column.
≥One line corresponds to one page.
≥The column with the line numbers displayed in
yellow is the Title data area, and the blue column
shows the range...
