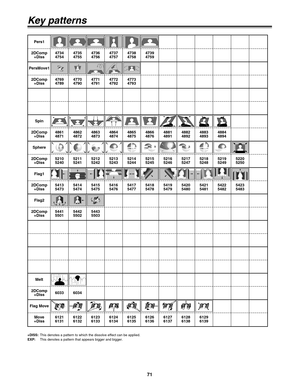

Page 71
71 Key patterns Flag1 2DComp +Diss5413 54735414 54745415 54755416 54765417 54775418 54785419 54795420 54805421 54815422 54825423 5483 Melt 2DComp +Diss6033 6034 Sphere 2DComp +Diss5210 52405211 52415212 52425213 52435214 52445215 52455216 52465217 52475218 52485219 52495220 5250 Flag Move Move +Diss6121 61316122 61326123 61336124 61346125 61356126 61366127 61376128 61386129 6139 Spin 2DComp +Diss4861 48714862 48724863 48734864 48744865 48754866 48764881 48914882 48924883 48934884 4894 PersMove1 2DComp...

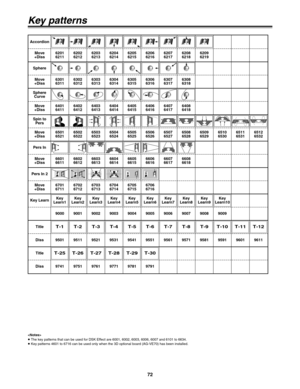

Page 72
72 Key patterns Pers In 2 Move +Diss6701 67116702 67126703 67136704 67146705 67156706 6716 Pers In Move +Diss6601 66116602 66126603 66136604 66146605 66156606 66166607 66176608 6618 Sphere Curve Move +Diss6401 64116402 64126403 64136404 64146405 64156406 64166407 64176408 6418 Spin to Pers Move +Diss6501 65216502 65226503 65236504 65246505 65256509 6529 6506 65266510 65306507 65276511 6531 6508 65286512 6532 Title Diss9501 9511 9521 T-1T-2T-3 9531 9541 9551 T-4T-5T-6 9561 9571 9581 T-7T-8T-9 9591 9601...

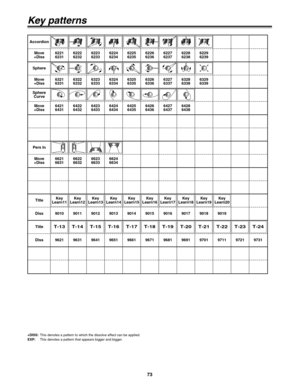

Page 73
73 Key patterns Pers In Move +Diss6621 66316622 66326623 66336624 6634 Sphere Curve Move +Diss6421 64316422 64326423 64336424 64346425 64356426 64366427 64376428 6438 Title Diss9621 9631 9641 T-13T-14T-15 9651 9661 9671 T-16T-17T-18 9681 9691 9701 T-19T-20T-21 9711 9721 9731 T-22T-23T-24 Title Diss9010 9011 9012Key Learn11 Key Learn12Key Learn13 9013 9014 9015Key Learn14 Key Learn15Key Learn16 9016 9017 9018Key Learn17 Key Learn18Key Learn19 9019Key Learn20 Accordion Move +Diss6221 62316222 62326223...

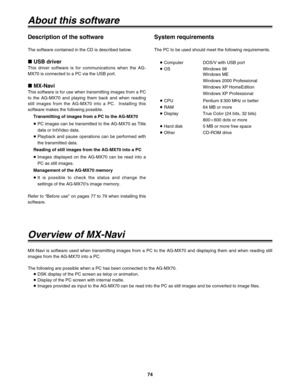

Page 74
74 Overview of MX-Navi MX-Navi is software used when transmitting images from a PC to the AG-MX70 and displaying them and when reading still images from the AG-MX70 into a PC. The following are possible when a PC has been connected to the AG-MX70. ≥DSK display of the PC screen as telop or animation. ≥Display of the PC screen with internal matte. ≥Images provided as input to the AG-MX70 can be read into the PC as still images and be converted to image files. About this software Description of the...
Page 75
75 Processing of image data ∫ By data type Image data is processed by the AG-MX70 either as Title data or IntVideo data, depending on the application. When image data is transmitted to the AG-MX70, it is necessary to first select one of these 2 data types. ≥Title data Data to be used for DSK playback should be transmitted as Title data. RGB data and αchannel data are used by Title data. When an image having an αchannel is used, the image is subjected to transparency processing corresponding to the...

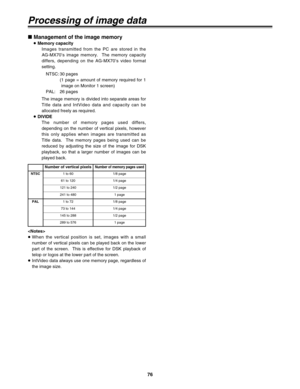

Page 76
76 Processing of image data ∫ Management of the image memory ≥Memory capacity Images transmitted from the PC are stored in the AG-MX70’s image memory. The memory capacity differs, depending on the AG-MX70’s video format setting. NTSC: 30 pages (1 page = amount of memory required for 1 image on Monitor 1 screen) PAL: 26 pages The image memory is divided into separate areas for Title data and IntVideo data and capacity can be allocated freely as required. ≥DIVIDE The number of memory pages used differs,...

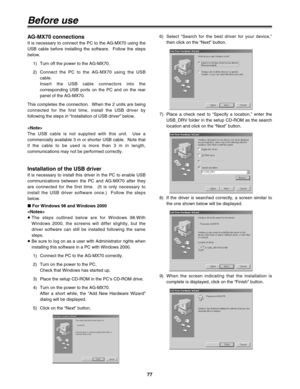

Page 77
77 Before use AG-MX70 connections It is necessary to connect the PC to the AG-MX70 using the USB cable before installing the software. Follow the steps below. 1) Turn off the power to the AG-MX70. 2) Connect the PC to the AG-MX70 using the USB cable. Insert the USB cable connectors into the corresponding USB ports on the PC and on the rear panel of the AG-MX70. This completes the connection. When the 2 units are being connected for the first time, install the USB driver by following the steps in...

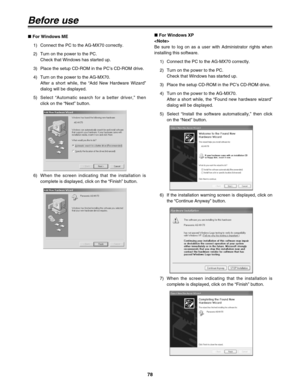

Page 78
78 Before use ∫ For Windows XP Be sure to log on as a user with Administrator rights when installing this software. 1) Connect the PC to the AG-MX70 correctly. 2) Turn on the power to the PC. Check that Windows has started up. 3) Place the setup CD-ROM in the PC’s CD-ROM drive. 4) Turn on the power to the AG-MX70. After a short while, the “Found new hardware wizard” dialog will be displayed. 5) Select “Install the software automatically,” then click on the “Next” button. ∫ For Windows ME 1) Connect the...

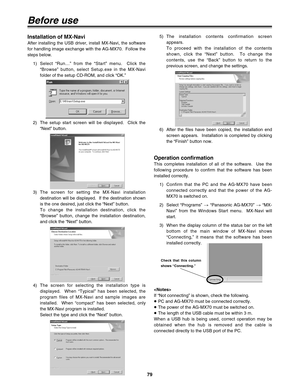

Page 79
79 Before use Operation confirmation This completes installation of all of the software. Use the following procedure to confirm that the software has been installed correctly. 1) Confirm that the PC and the AG-MX70 have been connected correctly and that the power of the AG- MX70 is switched on. 2) Select “Programs” >“Panasonic AG-MX70” >“MX- Navi” from the Windows Start menu. MX-Navi will start. 3) When the display column of the status bar on the left bottom of the main window of MX-Navi shows...

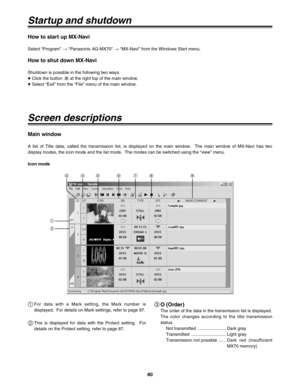

Page 80
80 Startup and shutdown Screen descriptions How to start up MX-Navi Select “Program” >“Panasonic AG-MX70” >“MX-Navi” from the Windows Start menu. How to shut down MX-Navi Shutdown is possible in the following two ways. ≥Click the button at the right top of the main window. ≥Select “Exit” from the “File” menu of the main window. 1 2 3456789 For data with a Mark setting, the Mark number is displayed. For details on Mark settings, refer to page 87.1 This is displayed for data with the Protect setting....
