Panasonic Digital Color Imaging Systems Dp C354 Scanner And Email Operating Instructions

31
 Chapter 2    Scan/Email Operations

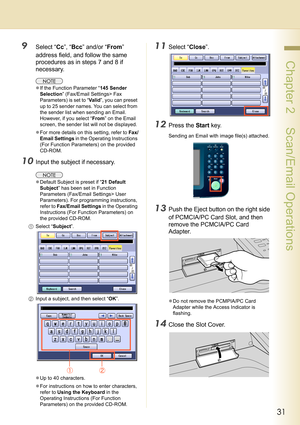

9Select “Cc”, “Bcc” and/or “From”
address field, and follow the same
procedures as in steps 7 and 8 if
necessary.
zIf the Function Parameter “145 Sender
Selection” (Fax/Email Settings> Fax
Parameters) is set to “Valid”, you can preset
up to 25 sender names. You can select from
the sender list when sending an Email.
However, if you select “From” on the Email
screen, the sender list will not be displayed.
zFor more details on this setting, refer to Fax/
Email...

32
 Chapter 2    Scan/Email Operations

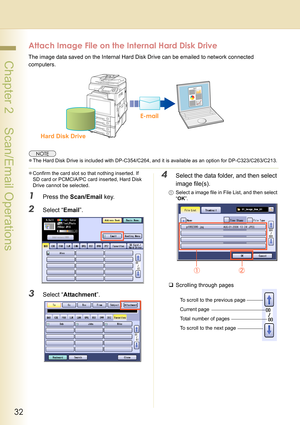

Attach Image File on the Internal Hard Disk Drive
The image data saved on the Internal Hard Disk Drive can be emailed to network connected
computers.
zThe Hard Disk Drive is included with DP-C354/C264, and it is available as an option for DP-C323/C263/C213.
zConfirm the card slot so that nothing inserted. If
SD card or PCMCIA/PC card inserted, Hard Disk
Drive cannot be selected.
1Press the Scan/Email key.
2Select “Email”.
3Select “Attachment”.
4Select the data...

33
 Chapter 2    Scan/Email Operations

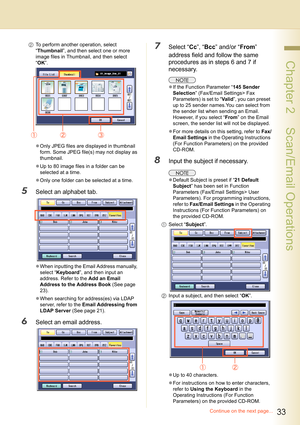

2To perform another operation, select
“Thumbnail”, and then select one or more
image files in Thumbnail, and then select
“OK”.
zOnly JPEG files are displayed in thumbnail
form. Some JPEG file(s) may not display as
thumbnail.
zUp to 80 image files in a folder can be
selected at a time.
zOnly one folder can be selected at a time.
5Select an alphabet tab.
zWhen inputting the Email Address manually,
select “Keyboard”, and then input an
address. Refer to the Add...

34
 Chapter 2    Scan/Email Operations

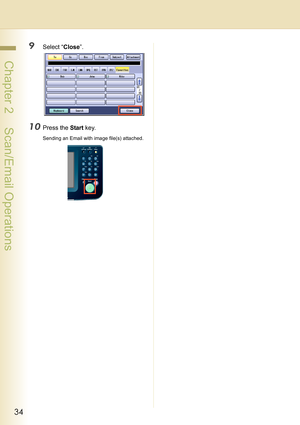

9Select “Close”.
10Press the Start key.
Sending an Email with image file(s) attached.

35
 Chapter 2    Scan/Email Operations

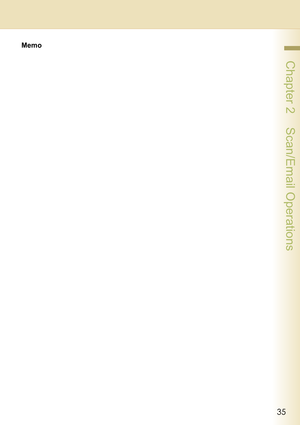

Memo

36
 Chapter 2    Scan/Email Operations

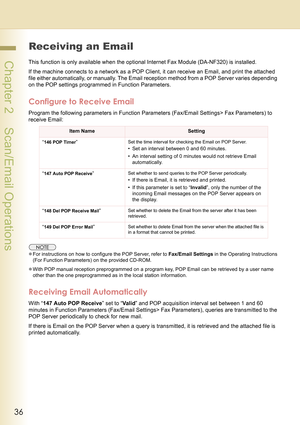

Receiving an Email
This function is only available when the optional Internet Fax Module (DA-NF320) is installed.
If the machine connects to a network as a POP Client, it can receive an Email, and print the attached
file either automatically, or manually. The Email reception method from a POP Server varies depending
on the POP settings programmed in Function Parameters.
Configure to Receive Email
Program the following parameters in Function Parameters (Fax/Email...

37
 Chapter 2    Scan/Email Operations

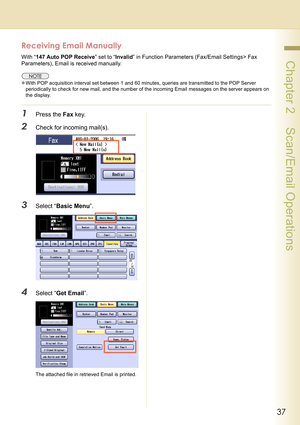

Receiving Email Manually
With “147 Auto POP Receive” set to “Invalid” in Function Parameters (Fax/Email Settings> Fax
Parameters), Email is received manually.
zWith POP acquisition interval set between 1 and 60 minutes, queries are transmitted to the POP Server
periodically to check for new mail, and the number of the incoming Email messages on the server appears on
the display.
1Press the Fax key.
2Check for incoming mail(s).
3Select “Basic Menu”.
4Select “Get...

38
 Chapter 3    Scanner Settings
Chapter 3
Scanner Settings

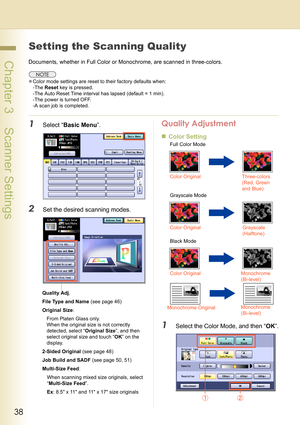

Setting the Scanning Quality
Documents, whether in Full Color or Monochrome, are scanned in three-colors.
zColor mode settings are reset to their factory defaults when:
-The Reset key is pressed.
-The Auto Reset Time interval has lapsed (default = 1 min).
-The power is turned OFF.
-A scan job is completed.
1Select “Basic Menu”.
2Set the desired scanning modes.
Quality Adjustment
„Color Setting
1Select the Color Mode, and then “OK”.
Quality...

39
 Chapter 3    Scanner Settings

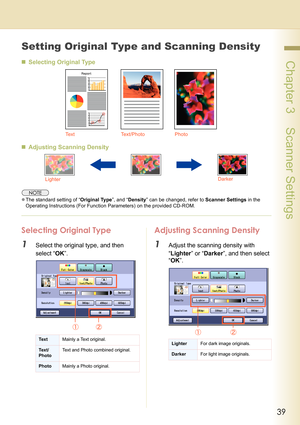

Setting Original Type and Scanning Density
„Selecting Original Type
„Adjusting Scanning Density
zThe standard setting of “Original Type”, and “Density” can be changed, refer to Scanner Settings in the
Operating Instructions (For Function Parameters) on the provided CD-ROM.
Selecting Original Type
1Select the original type, and then
select “OK”.
Adjusting Scanning Density
1Adjust the scanning density with
“Lighter” or “Darker”, and then select
“OK”.
Text Text/Photo...

40
 Chapter 3    Scanner Settings

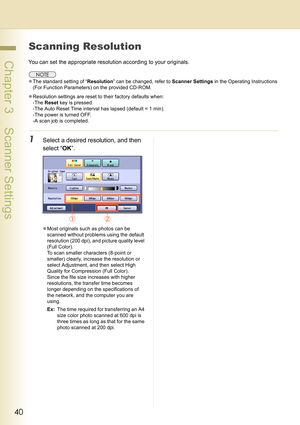

Scanning Resolution
You can set the appropriate resolution according to your originals.
zThe standard setting of “Resolution” can be changed, refer to Scanner Settings in the Operating Instructions
(For Function Parameters) on the provided CD-ROM.
zResolution settings are reset to their factory defaults when:
-The Reset key is pressed.
-The Auto Reset Time interval has lapsed (default = 1 min).
-The power is turned OFF.
-A scan job is completed.
1Select a desired...
