Panasonic Digital Color Imaging Systems Dp C354 Scanner And Email Operating Instructions

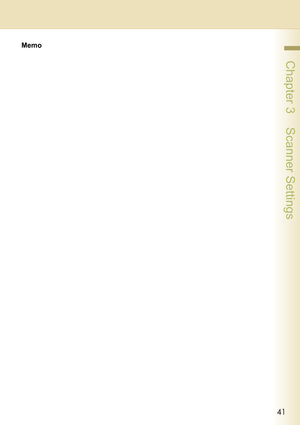

41
 Chapter 3    Scanner Settings
Memo

42
 Chapter 3    Scanner Settings

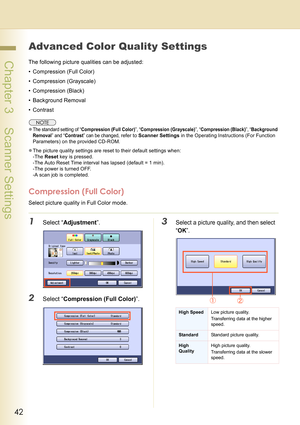

Advanced Color Quality Settings
The following picture qualities can be adjusted:
• Compression (Full Color)
• Compression (Grayscale)
• Compression (Black)
• Background Removal
• Contrast
zThe standard setting of “Compression (Full Color)”, “Compression (Grayscale)”, “Compression (Black)”, “Background
Removal
” and “Contrast” can be changed, refer to Scanner Settings in the Operating Instructions (For Function
Parameters) on the provided CD-ROM.
zThe picture quality...

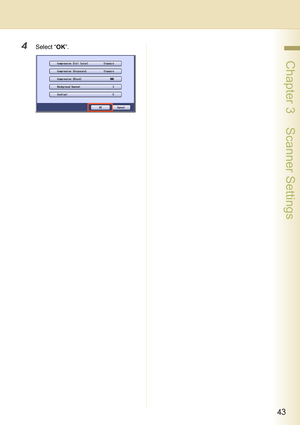

43
 Chapter 3    Scanner Settings
4Select “OK”.

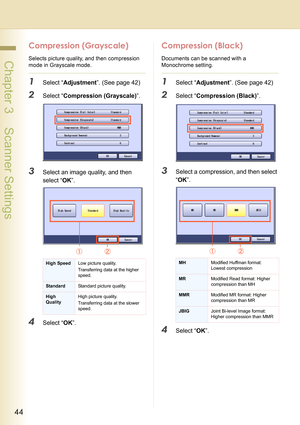

44
 Chapter 3    Scanner Settings
Compression (Grayscale)
Selects picture quality, and then compression
mode in Grayscale mode.
1Select “Adjustment”. (See page 42)
2Select “Compression (Grayscale)”.
3Select an image quality, and then
select “OK”.
4Select “OK”.
Compression (Black)
Documents can be scanned with a
Monochrome setting.
1Select “Adjustment”. (See page 42)
2Select “Compression (Black)”.
3Select a compression, and then select
“OK”.
4Select “OK”.
High SpeedLow picture quality.
Transferring...

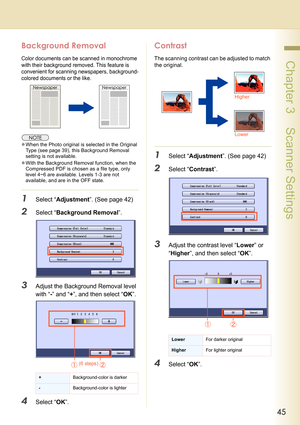

45
 Chapter 3    Scanner Settings
Background Removal
Color documents can be scanned in monochrome
with their background removed. This feature is
convenient for scanning newspapers, background-
colored documents or the like.
zWhen the Photo original is selected in the Original
Type (see page 39), this Background Removal
setting is not available.
zWith the Background Removal function, when the
Compressed PDF is chosen as a file type, only
level 4~6 are available. Levels 1-3 are not
available, and...

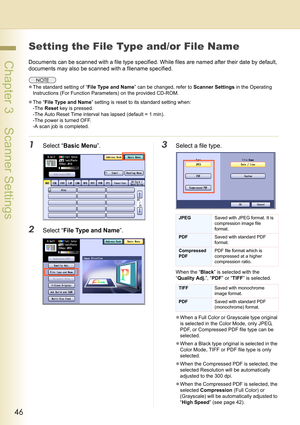

46
 Chapter 3    Scanner Settings
Setting the File Type and/or File Name
Documents can be scanned with a file type specified. While files are named after their date by default,
documents may also be scanned with a filename specified.
zThe standard setting of “File Type and Name” can be changed, refer to Scanner Settings in the Operating
Instructions (For Function Parameters) on the provided CD-ROM.
zThe “File Type and Name” setting is reset to its standard setting when:
-The Reset key is pressed.
-The...

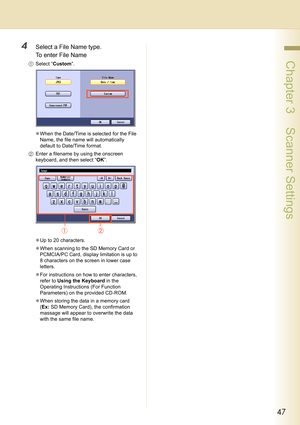

47
 Chapter 3    Scanner Settings
4Select a File Name type.
To enter File Name
1Select “Custom”.
zWhen the Date/Time is selected for the File
Name, the file name will automatically
default to Date/Time format.
2Enter a filename by using the onscreen
keyboard, and then select “OK”.
zUp to 20 characters.
zWhen scanning to the SD Memory Card or
PCMCIA/PC Card, display limitation is up to
8 characters on the screen in lower case
letters.
zFor instructions on how to enter characters,
refer to Using the...

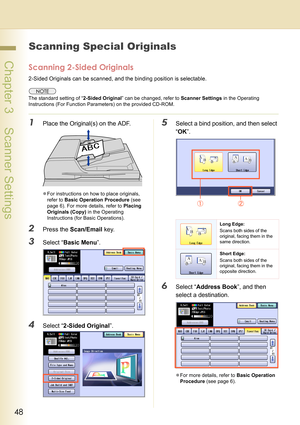

48
 Chapter 3    Scanner Settings
Scanning Special Originals
Scanning 2-Sided Originals
2-Sided Originals can be scanned, and the binding position is selectable.
The standard setting of “2-Sided Original” can be changed, refer to Scanner Settings in the Operating
Instructions (For Function Parameters) on the provided CD-ROM.
1Place the Original(s) on the ADF.
zFor instructions on how to place originals,
refer to Basic Operation Procedure (see
page 6). For more details, refer to Placing
Originals...

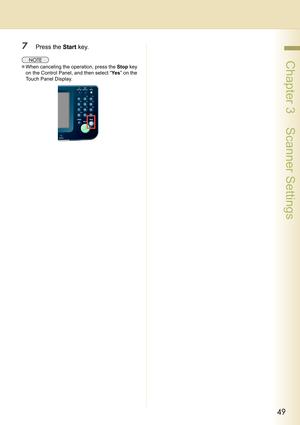

49
 Chapter 3    Scanner Settings
7Press the Start key.
zWhen canceling the operation, press the Stop key
on the Control Panel, and then select “Ye s” on the
Touch Panel Display.

50
 Chapter 3    Scanner Settings

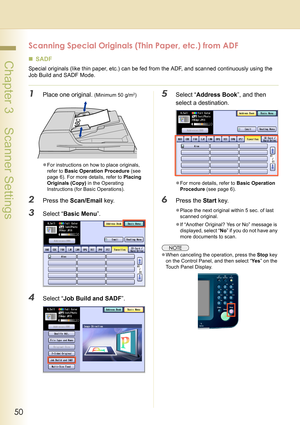

Scanning Special Originals (Thin Paper, etc.) from ADF
„SADF
Special originals (like thin paper, etc.) can be fed from the ADF, and scanned continuously using the
Job Build and SADF Mode.
1Place one original. (Minimum 50 g/m2)
zFor instructions on how to place originals,
refer to Basic Operation Procedure (see
page 6). For more details, refer to Placing
Originals (Copy) in the Operating
Instructions (for Basic Operations).
2Press the Scan/Email key.
3Select “Basic...
