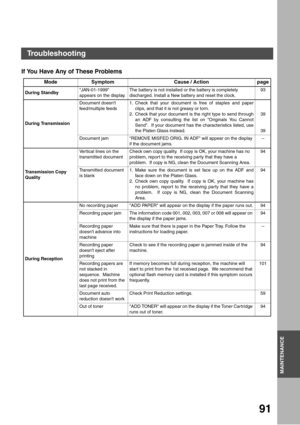

MAINTENANCE 91 MAINTENANCE If You Have Any of These Problems Mode Symptom Cause / Action page During StandbyJAN-01-1999 appears on the display.The battery is not installed or the battery is completely discharged. Install a New battery and reset the clock. 93 During TransmissionDocument doesnt feed/multiple feeds1. Check that your document is free of staples and paper clips, and that it is not greasy or torn. 2. Check that your document is the right type to send through an ADF by consulting the list on...
Page 92

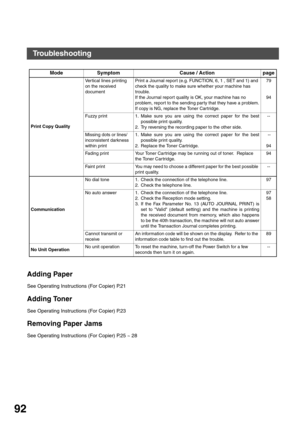

MAINTENANCE 92 Adding Paper See Operating Instructions (For Copier) P.21 Adding Toner See Operating Instructions (For Copier) P.23 Removing Paper Jams See Operating Instructions (For Copier) P.25 ~ 28 Print Copy QualityVer tical lines printing on the received documentPrint a Journal repor t (e.g. FUNCTION, 6, 1 , SET and 1) and check the quality to make sure whether your machine has trouble. If the Journal report quality is OK, your machine has no problem, report to the sending par ty that they have...
Page 93
MAINTENANCE 93 MAINTENANCE Replacing the Lithium Battery When JAN-01-1999 appears on the display, replace the Lithium Battery by following the procedure below. 1 1 Remove the Rear Access Cover. (1 Screw) 2 Turn the Power Switch to the O (OFF) position. 3 Discharge the static electricity by touching the parallel printer connector. 2 4 Remove the Lithium Battery from the battery holder. 3 5 Install a New Lithium Battery into the battery holder. CAUTION! denotes hazards that could result in minor injurie...
Page 94

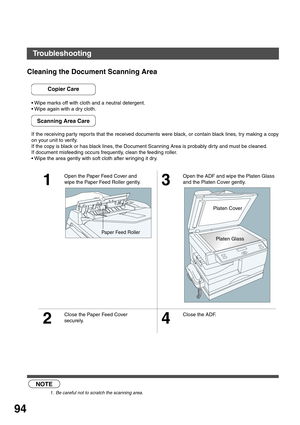

MAINTENANCE 94 Cleaning the Document Scanning Area Wipe marks off with cloth and a neutral detergent. Wipe again with a dry cloth. If the receiving par ty repor ts that the received documents were black, or contain black lines, try making a copy on your unit to verify. If the copy is black or has black lines, the Document Scanning Area is probably dir ty and must be cleaned. If document misfeeding occurs frequently, clean the feeding roller. Wipe the area gently with soft cloth after wringing it dry....
Page 95
MAINTENANCE 95 MAINTENANCE Cleaning the Printer Roller To clean the printer rollerIf you find toner on the back of the recording paper, the printer roller in the fuser unit is probably dirty. 1 2 The machine will print out 3 Cleaning Char ts. Then, return to standby. 12 45 78 03 6 9 abc..+ - FUNCTIONSET67 12 FUNCTION 76 SETCLEANING CHARTS 1:PRINT 2:CLEAN 1 HOW TO LOAD THE CLEANING CHARTS 1.OPEN THE PAPER TRAY (If multiple tray configuration, OPEN THE UPPER PAPER TRAY) 2.SET THESE 3 CLEANING...
Page 96
MAINTENANCE 96 (see Note 1) 3 Load the Cleaning Charts into the paper tray face down. (See Note 1) 4 5 The Machine will feed the charts and clean the printer roller. NOTE 1. If you have installed the optional paper tray(s), load the Cleaning Charts into the upper paper tray. FUNCTION 76 SETCLEANING CHARTS 1:PRINT 2:CLEAN 2* CLEANING * PRINTER ROLLER Troubleshooting
Page 97
MAINTENANCE 97 MAINTENANCE Checking the Telephone Line If you do not hear a dial tone when the key is pressed, nor through the telephone connected to the machine or when the telephone does not ring (No automatic receive). 1Unplug the Telephone Line Cable from the telephone jack that was supplied by the telephone company. 2Plug a different regular telephone into the same telephone jack. 3Check for dial tone through the handset. If there is still no dial tone, report it to your local telephone company....
Page 99

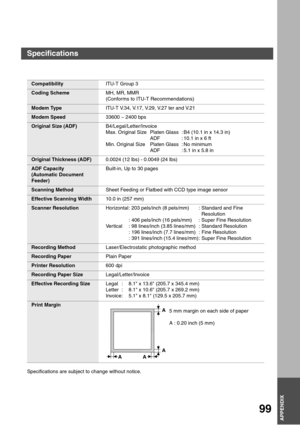

99 APPENDIX APPENDIX Specifications Compatibility ITU-T Group 3 Coding Scheme MH, MR, MMR (Conforms to ITU-T Recommendations) Modem Type ITU-T V.34, V.17, V.29, V.27 ter and V.21 Modem Speed 33600 ~ 2400 bps Original Size (ADF) B4/Legal/Letter/Invoice Max. Original Size Platen Glass : B4 (10.1 in x 14.3 in) ADF : 10.1 in x 6 ft Min. Original Size Platen Glass : No minimum ADF : 5.1 in x 5.8 in Original Thickness (ADF) 0.0024 (12 lbs) - 0.0049 (24 lbs) ADF Capacity (Automatic Document Feeder)Built-in,...
Page 100
APPENDIX 100 (see Note 1) Recording Paper Capacity 250 sheet paper tray, plus 50 sheet bypass Directory Search Dialing Memory Capacity100 stations (10 group dialing are included. Each group dialing can register up to 10 stations.) Each station can register up to 36 digits for each telephone number (including pauses, spaces, Flash, sub-address and tone) and up to 15 characters for each station name Image Memory Capacity Base Memory 60 pages with 1 MB Flash Memory Card 120 pages with 2 MB Flash Memory...
