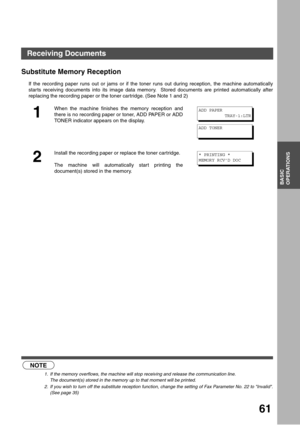

Page 61
61 BASIC OPERATIONS Substitute Memory Reception (see Note 1) (see Note 2) If the recording paper runs out or jams or if the toner runs out during reception, the machine automatically star ts receiving documents into its image data memory. Stored documents are printed automatically after replacing the recording paper or the toner cartridge. (See Note 1 and 2) NOTE 1. If the memory overflows, the machine will stop receiving and release the communication line. The document(s) stored in the memory up to...

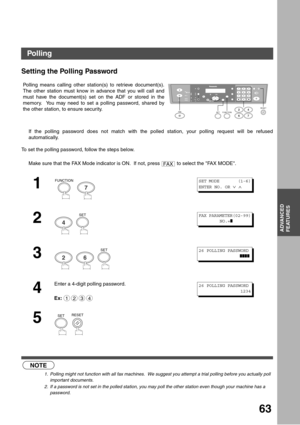

Page 63
63 ADVANCED FEATURES ADVANCED FEATURES Polling Setting the Polling Password If the polling password does not match with the polled station, your polling request will be refused automatically. (see Note 1) (see Note 2) To set the polling password, follow the steps below.Polling means calling other station(s) to retrieve document(s). The other station must know in advance that you will call and must have the document(s) set on the ADF or stored in the memory. You may need to set a polling password,...

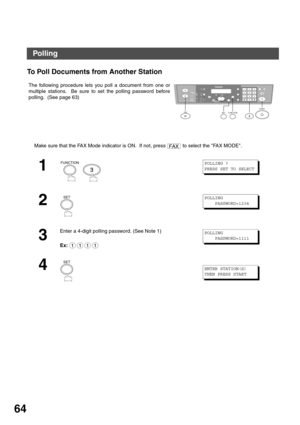

Page 64
ADVANCED FEATURES 64 To Poll Documents from Another Station The following procedure lets you poll a document from one or multiple stations. Be sure to set the polling password before polling. (See page 63) Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 Enter a 4-digit polling password. (See Note 1) Ex: 4 12 45 78 03 6 9 abc..+ - FUNCTIONSET3FA XSTART FAX FUNCTION 3 POLLING ? PRESS SET TO SELECT SETPOLLING PASSWORD=1234 1111 POLLING...
Page 65
ADVANCED FEATURES 65 ADVANCED FEATURES (see Note 1) (see Note 2) 5 Dial by any combination of the following methods (up to 10 stations): Manual Number Dialing, press after each station is entered (For datails, see pages 45 and 46) Directory Search Dialing, press after each station is entered (For details, see pages 47 to 48.) Ex: 6 Confirm the selected station(s) (See Note 2) 7 NOTE 1. If you have set the polling password in Fax Parameter No. 26, the password will appear on the display. You...
Page 66
ADVANCED FEATURES 66 Edit File Mode Deleting a File (see Note 1) (see Note 2)To delete the reserved file(s) in memory, follow the steps below. 1 2 3 Enter the file number or use or to select the file that you want to delete. Ex: (See Note 2) 4 5 Enter the next file number you want to delete or press to return to standby. NOTE 1. Your machine cannot delete the file while it is being sent. 2. Enter as the file number and press to delete all files (except the file in progress). The...
Page 67
ADVANCED FEATURES 67 ADVANCED FEATURES Receive To Memory Setting RCV To Memory Password/Setting RCV to Memory Setting the RCV To Memory Password This feature is used to secure all received documents by storing them into the memory. To print the document(s) received in memory, the authorized operator must enter the correct password. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 4 Enter a 4-digit RCV to Memory Password. Ex: 5 12 45 78 03 6 9...
Page 68
ADVANCED FEATURES 68 Setting RCV To Memory (see Note 1) (see Note 2)Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 4 NOTE 1. When the memory overflows, the machine will stop receiving and release the line. The machine will not answer the next incoming call until there is space available in memory. 2. We recommend that optional flash memory card is installed when this function is used. See page 100 on Image Memory Capacity. FAX FUNCTION 8 SELECT MODE...
Page 69
ADVANCED FEATURES 69 ADVANCED FEATURES Printing Out Documents To print the document(s), follow the steps below. (See Note 1 and 2) After receiving document(s) with the Receive To Memory feature, the following message will appear on the display. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 4 12 45 78 03 6 9 abc..+ - FUNCTIONSET2 38FA X MESSAGE IN MEMORY < RCV TO MEMORY > FAX FUNCTION 8 SELECT MODE (1-3) ENTER NO. OR ∨ ∧ 2 SETRCV TO MEMORY=ON...

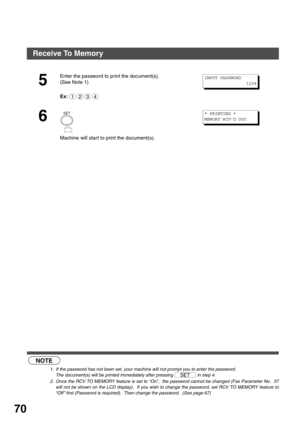

Page 70
ADVANCED FEATURES 70 (see Note 1) (see Note 2) 5 Enter the password to print the document(s). (See Note 1) Ex: 6 Machine will start to print the document(s). NOTE 1. If the password has not been set, your machine will not prompt you to enter the password. The document(s) will be printed immediately after pressing in step 4. 2. Once the RCV TO MEMORY feature is set to On, the password cannot be changed (Fax Parameter No. 37 will not be shown on the LCD display). If you wish to change the password,...
