71 NETWORK FEATURE Network Features Distinctive Ring Detector (DRD) Your machine has a special feature in conjunction with an optional service provided by many local telephone companies. It can distinguish up to 4 telephone numbers with a corresponding ring pattern identifying each number. DRD lets you provide multiple phone numbers, one for your fax, business or personal use with only one single phone line. Please check with your local telephone company on the availability of this service in your area....
Page 72
NETWORK FEATURE 72 PIN Code Access Selecting the Access Method (Prefix or Suffix) If your PBX requires a PIN (P ersonal I dentification N umber) code to get an outside line, your machine can be set to prompt the user to enter a PIN code before any dialing. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 4 for suffix code. or for prefix code. 5 12 45 78 03 6 9 abc..+ - FUNCTIONSET97 342FA XRESET FAX FUNCTION 7 SET MODE (1-6) ENTER NO....
Page 73
NETWORK FEATURE 73 NETWORK FEATURE Dialing with a PIN Code Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1a Set the original(s) face up on the ADF. 1b Place a book or an original face down on the Platen Glass. 2 Dial by any combination of the following methods (up to 10 stations): Manual Number Dialing, press after each station is entered Directory Search Dialing, press after each station is entered (For details, see pages 45 to 48.) Ex: If...
Page 74
NETWORK FEATURE 74 (see Note 1) (see Note 2)(See (see Note 3) 5 ADF Scanning 6a All document(s) are stored into memory with a file number. Then the machine starts dialing the telephone numbers in sequence. Platen Glass (Flatbed) Scanning 6b When an original is placed on the Platen Glass, the display is as shown to the right. (1) Press or to select the size of the original on the Platen Glass and press to store the document. (2) To store another original into memory, press 1 to select YES. If...
Page 75

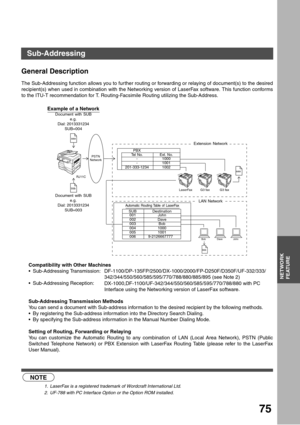

NETWORK FEATURE 75 NETWORK FEATURE Sub-Addressing General Description The Sub-Addressing function allows you to fur ther routing or forwarding or relaying of document(s) to the desired recipient(s) when used in combination with the Networking version of LaserFax software. This function conforms to the ITU-T recommendation for T. Routing-Facsimile Routing utilizing the Sub-Address. Compatibility with Other Machines Sub-Addressing Transmission:...
Page 76
NETWORK FEATURE 76 Setting the Sub-Address into the Directory Search Dialing Numbers (see Note 1)Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 ↓3.0 sec. later 4 Enter the station name. 5 Enter the telephone number, press then enter the Sub-Address. (Up to 20 digits) (Up to 36 digits including telephone number, pauses, spaces, FLASH and Sub-Address) Ex: Telephone number = 5551234, Sub-Address = 2762 Enter as: 6 NOTE 1. separates the...
Page 77

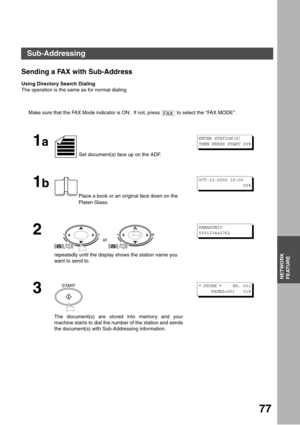

NETWORK FEATURE 77 NETWORK FEATURE Sending a FAX with Sub-Address Using Directory Search Dialing The operation is the same as for normal dialing Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1a Set document(s) face up on the ADF. 1b Place a book or an original face down on the Platen Glass. 2 or repeatedly until the display shows the station name you want to send to. 3 The document(s) are stored into memory and your machine starts to dial the number of the...
Page 78
NETWORK FEATURE 78 Using Manual Number Dialing Use to separate the Telephone number and the Sub-Address (see Note 1) (see Note 2) (see Note 3)Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1a Set the original(s) face up on the ADF. 1b Place a book or an original face down on the Platen Glass. 2 Enter the telephone number, press then enter the Sub-Address (up to 20 digits). (Up to 36 digits including telephone number, pauses, spaces, FLASH and Sub-address) Ex:...
Page 79
79 PRINTING JOURNALS AND LISTS PRINTOUT JOURNALS AND LISTS Journals and Lists Transaction Journal The Journal is a record of the last 40 transactions (a transaction is recorded each time you send or receive a document). It prints automatically after every 40 transactions (See Note 1) or you can print or view it manually by using the following procedure: To help you maintain records of the documents you sent and received, as well as lists of the numbers you record, your facsimile machine is equipped to...
Page 80

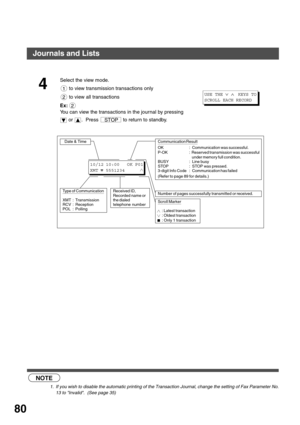

PRINTING JOURNALS AND LISTS 80 (see Note 1) 4 Select the view mode. to view transmission transactions only to view all transactions Ex: You can view the transactions in the journal by pressing or . Press to return to standby. NOTE 1. If you wish to disable the automatic printing of the Transaction Journal, change the setting of Fax Parameter No. 13 to Invalid. (See page 35) 1 2 2 STOP USE THE ∨ ∧ KEYS TO SCROLL EACH RECORD Type of Communication XMT : Transmission RCV : Reception POL : Polling...
