Page 31
PROGRAMMING YOUR MACHINE 31 PROGRAMMING YOUR MACHINE Changing Group Dialing If you have to change the Group Dialing, follow the steps below. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 ↓ 3.0 sec. later 4 Use or to search the Group you wish to change. 5 then enter a new Group name. (See Note 1) Ex: 6 12 45 78 03 6 9 abc..+ - FUNCTIONSET3 7 2FA XSTART FAX FUNCTION 73 SETDIR.GROUP DIAL (1-3) ENTER NO. OR ∨ ∧ 22:MODIFY GROUP PRESS SET TO...

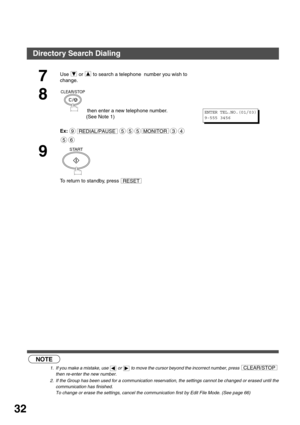

Page 32
PROGRAMMING YOUR MACHINE 32 (see Note 1) (see Note 2) 7 Use or to search a telephone number you wish to change. 8 then enter a new telephone number. (See Note 1) Ex: 9 To return to standby, press NOTE 1. If you make a mistake, use or to move the cursor beyond the incorrect number, press then re-enter the new number. 2. If the Group has been used for a communication reservation, the settings cannot be changed or erased until the communication has finished. To change or erase the settings,...
Page 33
PROGRAMMING YOUR MACHINE 33 PROGRAMMING YOUR MACHINE Erasing Group Dialing (see Note 1) If you have to erase a Group, follow the steps below. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 ↓ 3.0 sec. later 4 Use or to search the Group name you wish to change. 5 To delete another Group, repeat steps 4 to 5.↓ 3.0 sec. later (When all stations were deleted) NOTE 1. If the Group has been used for a communication reservation, the settings cannot...
Page 34
PROGRAMMING YOUR MACHINE 34 Fax Parameters Setting the Fax Parameters (see Note 1) (see Note 2)Your facsimile machine has a variety of adjustable Fax Parameters. These parameters, listed in the Parameter Table, are preset for you and do not need to be changed. If you do want to make a change, read the table carefully. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 Enter Fax Parameter number from the Parameter Table. (See pages 35 to 37) Ex: for...
Page 35
PROGRAMMING YOUR MACHINE 35 PROGRAMMING YOUR MACHINE Fax Parameter Table No. ParameterSetting NumberSetting Comments 02 RESOLUTION *1 Standard Setting the home position for the RESOLUTION. 2Fine 3S-Fine 05 MEMORY 1 Off Setting the home position for the MEMORY. *2 On 06 DIALING METHOD 1 Pulse Selecting the dialing method. *2 Tone 07 HEADER PRINT *1 Inside Selecting the printing position of the header. Inside : Inside TX copy area. Outside : Outside TX copy area. No print : Header is not printed. 2...
Page 36
PROGRAMMING YOUR MACHINE 36 34 ENERGY SAVE TIMER 1 5 min. To reduce the power consumption in standby, your machine is designed to power down to the Energy Saver Mode and Sleep Mode after a specified period of inactivity. You may change the delay time to enter into each mode as required. Energy Saver Mode: Saves energy by consuming less power than when in standby mode by turning off the fuser unit after a specified time. Sleep Mode: This is the lowest power state the machine enters after the specified...
Page 37
PROGRAMMING YOUR MACHINE 37 PROGRAMMING YOUR MACHINE (see Note 1) (see Note 2) 58 LANGUAGE *1 A-English Selecting the language to be shown on the display and reports. 2 C-French 3 Spanish 61 FAX/COPY MODE 1 Fax Setting the home position to either FAX or COPY Mode during standby. The “Remain” setting means continuation of the last mode used (either FAX or COPY Mode). *2 Copy 3 Remain 63 PC-FAX RCV MODE *1 Print Selecting how to the machine will execute the receiving Fax document(s). Print: Print the...
Page 39
39 BASIC OPERATIONS BASIC OPERATIONS Loading Documents (1) On the ADF (2) On the Platen Glass (Flatbed) Place the original(s) Face Up on the ADF until the leading edge placed into the machine stops. Adjust the Original Width Guides to center the original(s) on the ADF.Place a book or an original Face Down on the Platen Glass, aligning it with the arrow mark on the Original Size Guides. Face Up Original Width Guide Face Down Original Size Guides ADF Original Size: Invoice, Letter, and Legal ADF...

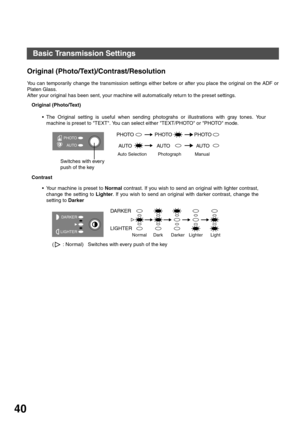

Page 40
40 Basic Transmission Settings Original (Photo/Text)/Contrast/Resolution You can temporarily change the transmission settings either before or after you place the original on the ADF or Platen Glass. After your original has been sent, your machine will automatically return to the preset settings. PHOTO AUTO DARKER LIGHTER DARKER Normal Dark Darker Lighter Light LIGHTER PHOTO Manual Auto Selection Photograph AUTO PHOTO AUTO PHOTO AUTO Original (Photo/Text) The Original setting is useful when sending...
