Panasonic Digital Imaging System DP-3510/4510/6010 Copier & Network Scanner Operating Instructions

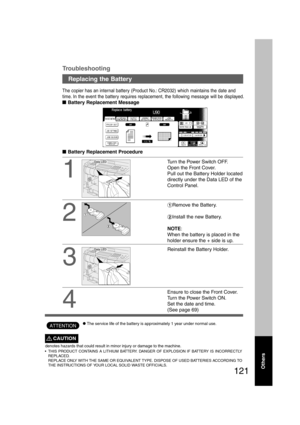

121
Troubleshooting
CThe service life of the battery is approximately 1 year under normal use.
1
Turn the Power Switch OFF.
Open the Front Cover.
Pull out the Battery Holder located
directly under the Data LED of the
Control Panel.
2
#Remove the Battery.
$Install the new Battery.
NOTE:
When the battery is placed in the
holder ensure the + side is up.
The copier has an internal battery (Product No.: CR2032) which maintains the date and
time. In the event the battery requires replacement, the following...

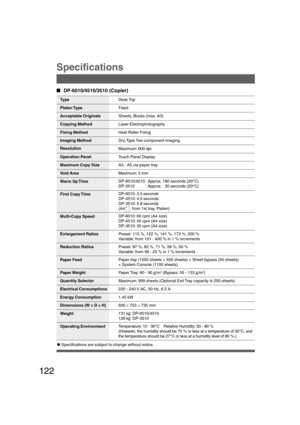

122
Specifications






DP-6010/4510/3510 (Copier)
Platen TypeFixed
Acceptable OriginalsSheets, Books (max. A3)
Copying MethodLaser Electrophotography
Fixing MethodHeat Roller Fixing
Resolution
Maximum: 600 dpi
Operation PanelTouch Panel Display
Maximum Copy SizeA3 - A5 via paper tray
Void Area
Maximum: 5 mm
Warm Up TimeDP-6010/4510 : Approx. 180 seconds (20°C)
DP-3510 : Approx.   30 seconds (20°C)
First Copy TimeDP-6010: 3.5 seconds
DP-4510: 4.5 seconds
DP-3510: 5.8 seconds
(A4 , from 1st tray,...

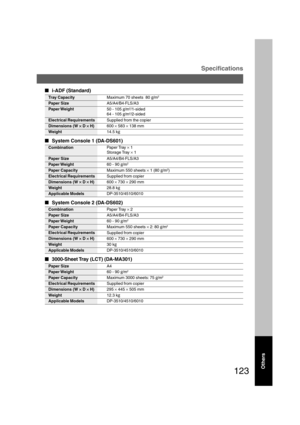

123
Specifications






i-ADF (Standard)
Weight14.5 kg
Dimensions (W
× ×× ×
× D
× ×× ×
× H)600 × 583 × 138 mm Tray CapacityMaximum 70 sheets  80 g/m
2
Paper SizeA5/A4/B4·FLS/A3
50 - 105 g/m
2/1-sided
64 - 105 g/m2/2-sided Paper Weight
Electrical RequirementsSupplied from the copier






3000-Sheet Tray (LCT) (DA-MA301)
Paper SizeA4
Paper Weight60 - 90 g/m
2
Paper Capacity
Dimensions (W
× ×× ×
× D
× ×× ×
× H)295 × 445 × 505 mm Electrical RequirementsSupplied from copier Maximum 3000 sheets: 75...

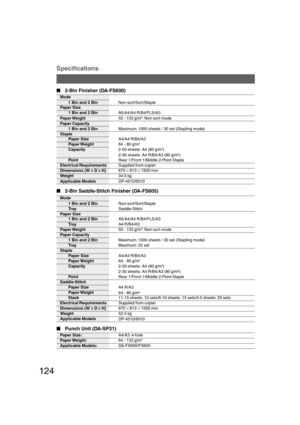

124






 2-Bin Saddle-Stitch Finisher (DA-FS605)
Paper Size
1 Bin and 2 BinA5/A4/A4 R/B4/FLS/A3
Tr a y
Paper Weight
1 Bin and 2 Bin
Tr a y
Staple
Paper SizeA4/A4 R/B4/A3
Paper Weight64 - 80 g/m
2
Maximum: 1000 sheets / 30 set (Stapling mode)
Capacity2-50 sheets: A4 (80 g/m
2)
Specifications
Mode
1 Bin and 2 Bin
Tr a yNon-sort/Sort/Staple
Saddle-Stitch
55 - 133 g/m2: Non-sort mode
Maximum: 25 set A4 R/B4/A3
Point
Paper SizeRear 1/Front 1/Middle 2-Point Staple
Paper Weight
64 - 80 g/m
2
Stack11-15...

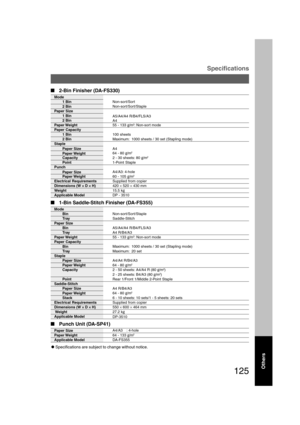

125
Specifications






 1-Bin Saddle-Stitch Finisher (DA-FS355)
Paper Size
A5/A4/A4 R/B4/FLS/A3
Paper Capacity
Maximum:  1000 sheets / 30 set (Stapling mode)
Staple
Paper Size
Paper Weight
CapacityA4/A4 R/B4/A3
2 - 25 sheets: B4/A3 (80 g/m
2)
PointRear 1/Front 1/Middle 2-Point Staple
2 - 50 sheets: A4/A4 R (80 g/m2)
Saddle-Stitch






 Punch Unit (DA-SP41)
Paper SizeA4/A3 : 4-hole
Applicable ModelDA-FS355
CSpecifications are subject to change without notice.
Mode
Non-sort/Sort/Staple...

126
Options and Supplies

The DP-6010/4510/3510 is a digital photocopier which can produce images with great clarity.
Furthermore, its copying functionality can also be greatly enhanced by the addition of the following
options and supplies.
We hope you find that the wide ranging capabilities will make your office-place more productive and
efficient.
Remarks
550 Sheet Paper Tray × 1
550 Sheet Paper Tray × 2
For DP-6010/4510
Part Name Part No.
DA-DS601 System Console 1
DA-DS602 System Console 2
DA-MA301...

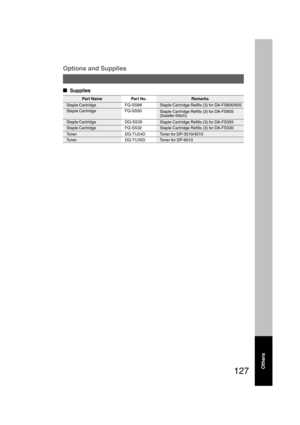

127
Options and Supplies






Supplies
Others
Staple Cartridge FQ-SS66 Staple Cartridge Refills (3) for DA-FS600/605
FQ-SS50 Staple Cartridge
DQ-SS35 Staple Cartridge
Staple Cartridge FQ-SS32Staple Cartridge Refills (3) for DA-FS605
(Saddle-Stitch)
Staple Cartridge Refills (3) for DA-FS355
Staple Cartridge Refills (3) for DA-FS330
DQ-TU24D Toner
Toner DQ-TU35DToner for DP-3510/4510
Toner for DP-6010Remarks Part Name Part No.
P127_dp4510(pb).p657/31/02, 10:51 AM 127

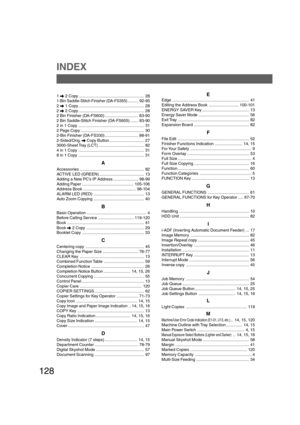

128
INDEX
1 \ 2 Copy ......................................................... 28
1-Bin Saddle-Stitch Finisher (DA-FS355)......... 92-95
2 \ 1 Copy ......................................................... 28
2 \ 2 Copy ......................................................... 28
2 Bin Finisher (DA-FS600) ............................. 83-90
2 Bin Saddle-Stitch Finisher (DA-FS605) ....... 83-90
2 in 1 Copy ......................................................... 31
2 Page Copy...

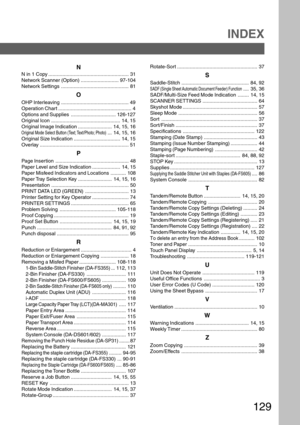

129
INDEX
N
N in 1 Copy ......................................................... 31
Network Scanner (Option) ........................... 97-104
Network Settings ................................................ 81
O
OHP Interleaving ................................................ 49
Operation Chart .................................................... 4
Options and Supplies ................................ 126-127
Original Icon ................................................. 14, 15
Original Image...

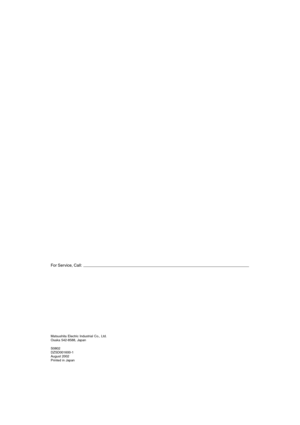

Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
S0802
DZSD001600-1
August 2002
Printed in Japan
