Panasonic Digital Imaging System DP-3510/4510/6010 Copier & Network Scanner Operating Instructions

101
5

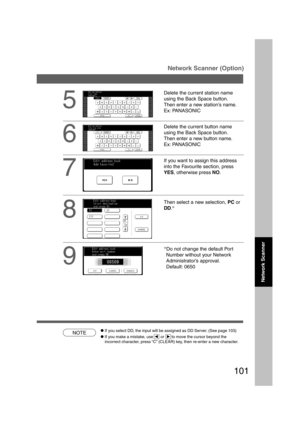

Delete the current station name
using the Back Space button.
Then enter a new station’s name.
Ex: PANASONIC
NOTECIf you select DD, the input will be assigned as DD Server. (See page 103)
CIf you make a mistake, use I  or  H to move the cursor beyond the
incorrect character, press “C” (CLEAR) key, then re-enter a new character.
Network Scanner (Option)
6
Delete the current button name
using the Back Space button.
Then enter a new button name.
Ex: PANASONIC
7
If you want to assign this address
into...

102
1
Address Book Network Scanner (Option)
2
Enter the station you wish to delete
and touch the OK button.
Ex: SALES DEPT
3
4

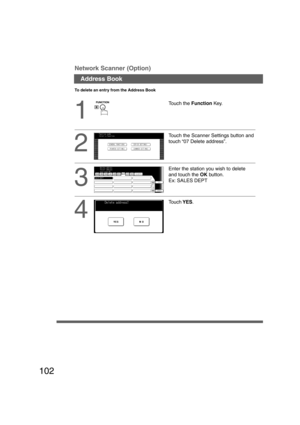

To delete an entry from the Address Book
Touch the Scanner Settings button and
touch “07 Delete address”.
Touch YES. Touch the Function Key.
P102-103_dp4510(pb).P657/31/02, 10:50 AM 102

103
1~ 6
Network Scanner (Option)
7
Enter the password by using the
QWERTY keyboard and then
touch the OK button.
(Up to 60 characters)
Ex: Jack
8

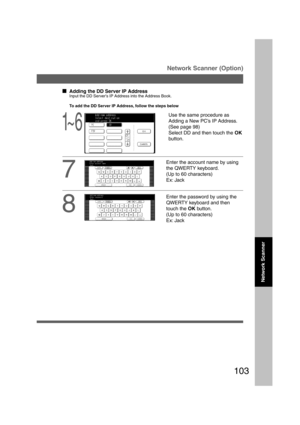

Adding the DD Server IP Address
Input the DD Server’s IP Address into the Address Book.
To add the DD Server IP Address, follow the steps below
Use the same procedure as
Adding a New PC’s IP Address.
(See page 98)
Select DD and then touch the OK
button.
Enter the account name by using
the QWERTY keyboard.
(Up to 60 characters)
Ex: Jack
Network Scanner...

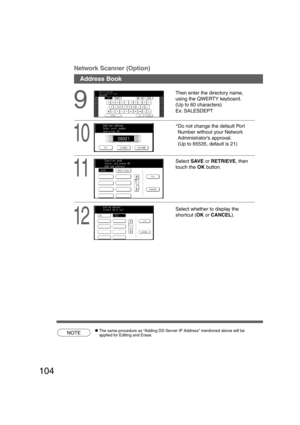

104
9
Then enter the directory name,
using the QWERTY keyboard.
(Up to 60 characters)
Ex: SALESDEPT
Address Book Network Scanner (Option)
10
*
Do not change the default Port
Number without your Network
Administrator’s approval.
(Up to 65535, default is 21)
11
Select SAVE or RETRIEVE, then
touch the OK button.
12
Select whether to display the
shor tcut (OK or CANCEL).
NOTECThe same procedure as “Adding DD Server IP Address” mentioned above will be
applied for Editing and Erase....

105

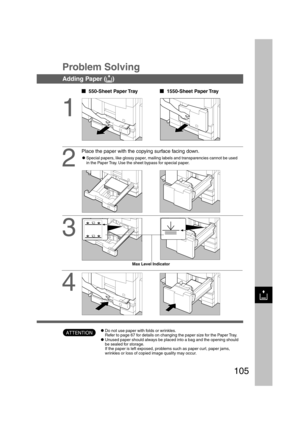

550-Sheet Paper Tray
Problem Solving
1
2
Place the paper with the copying surface facing down.
CSpecial papers, like glossy paper, mailing labels and transparencies cannot be used
in the Paper Tray. Use the sheet bypass for special paper.
Adding Paper (
k kk k
k)
ATTENTIONCDo not use paper with folds or wrinkles.
Refer to page 67 for details on changing the paper size for the Paper Tray.
CUnused paper should always be placed into a bag and the opening should
be sealed for storage.
If the...

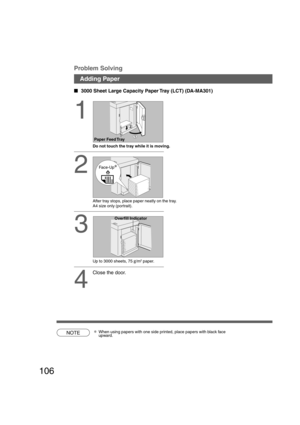

106
1
Do not touch the tray while it is moving.
2
After tray stops, place paper neatly on the tray.
A4 size only (portrait).
3
Up to 3000 sheets, 75 g/m2 paper.
4
Close the door.





3000 Sheet Large Capacity Paper Tray (LCT) (DA-MA301)
Adding Paper Problem Solving
NOTE∗When using papers with one side printed, place papers with black face
upward.
Paper Feed Tray
Face-Up
Overfill Indicator
P106_dp4510(pb).P657/31/02, 10:50 AM 106

107

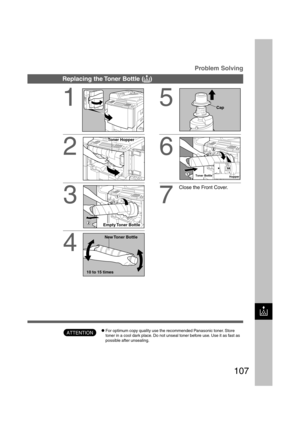

Replacing the Toner Bottle (
? ?? ?
?)
1
2
3
Problem Solving
ATTENTIONCFor optimum copy quality use the recommended Panasonic toner. Store
toner in a cool dark place. Do not unseal toner before use. Use it as fast as
possible after unsealing.
HopperToner Bottle
4
5
6
Close the Front Cover.
7
10 to 15 timesCap
?
New Toner  Bottle
Toner Hopper
Empty Toner  Bottle
P107_dp4510(pb).P657/31/02, 10:50 AM 107

108
NOTE

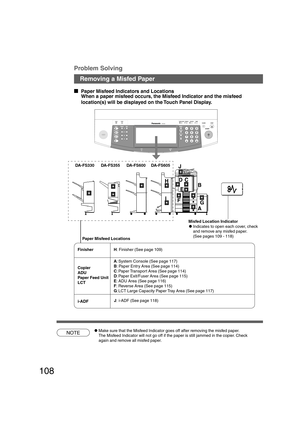

Removing a Misfed Paper
CMake sure that the Misfeed Indicator goes off after removing the misfed paper.
The Misfeed Indicator will not go off if the paper is still jammed in the copier. Check
again and remove all misfed paper.
B4·FLS
Problem Solving






Paper Misfeed Indicators and Locations
When a paper misfeed occurs, the Misfeed Indicator and the misfeed
location(s) will be displayed on the Touch Panel Display.
Paper Misfeed Locations
Finisher
Copier
ADU
Paper Feed Unit
LCT
i-ADFH:...

109
I
Problem Solving
1
2
When the Punch Unit is
installed:

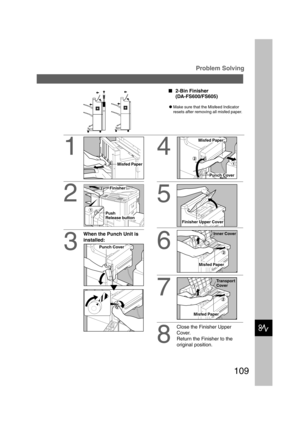

2-Bin Finisher
(DA-FS600/FS605)
CMake sure that the Misfeed Indicator
resets after removing all misfed paper.
3
Finisher
Misfed Paper
Push
Release button
Punch Cover
4
5
6
Inner Cover
7
Transport
Cover
Close the Finisher Upper
Cover.
Return the Finisher to the
original position.
8
Misfed Paper
Punch Cover
Finisher Upper Cover
Misfed Paper
Misfed Paper
P108-109_dp4510(pb).P657/31/02, 10:50 AM 109

110
Problem Solving

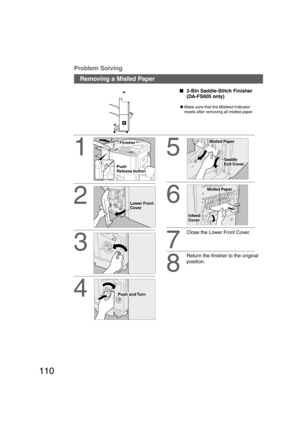

2-Bin Saddle-Stitch Finisher
(DA-FS605 only)
CMake sure that the Misfeed Indicator
resets after removing all misfed paper.
1
2
3
Finisher
Push
Release button
Lower Front
Cover
4
5
Push and Turn
Misfed Paper
Saddle
Exit Cover
6
Misfed Paper
Infeed
Cover
7
Close the Lower Front Cover.
8
Return the finisher to the original
position.
Removing a Misfed Paper
P110-111_dp4510(pb).P657/31/02, 10:50 AM 110
