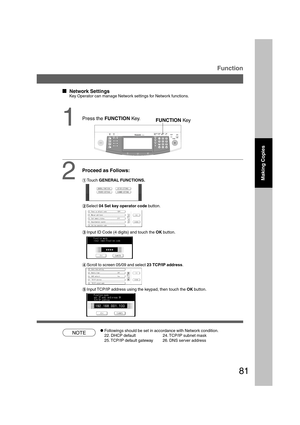

Network Settings
Key Operator can manage Network settings for Network functions.
Proceed as Follows:
NOTE
Function
CFollowings should be set in accordance with Network condition.
22. DHCP default 24. TCP/IP subnet mask
25. TCP/IP default gateway 26. DNS server address
Making Copies
FUNCTION Key
2#Touch GENERAL FUNCTIONS.
$Select 04 Set key operator code button.
%Input ID Code (4 digits) and touch the OK button.
&Scroll to screen 05/09 and select 23 TCP/IP address.
(Input TCP/IP...

82

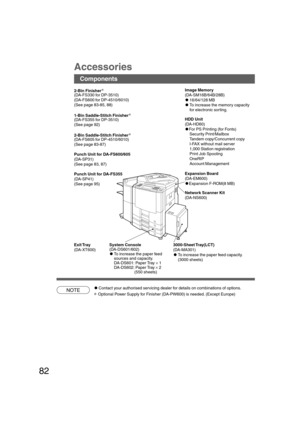

Accessories
NOTE
Components
2-Bin Finisher*
(DA-FS330 for DP-3510)
(DA-FS600 for DP-4510/6010)
(See page 83-85, 88)
1-Bin Saddle-Stitch Finisher
*
(DA-FS355 for DP-3510)
(See page 92)
2-Bin Saddle-Stitch Finisher
*
(DA-FS605 for DP-4510/6010)
(See page 83-87)Image Memory
(DA-SM16B/64B/28B)
C16/64/128 MB
CTo increase the memory capacity
for electronic sorting.
3000-Sheet Tray(LCT)
(DA-MA301)
CTo increase the paper feed capacity.
(3000 sheets)HDD Unit
(DA-HD60)
CFor PS Printing (for Fonts)
Security...

83
Options
Accessories
1. Operation
Punch Unit (DA-SP-31)
When punching the copies (4 holes).
1 Bin
2 Bin
Modes
Staple-sort
Non-sort
Shift-sort
Shift-groupPaper Size
A4
A4 R, B4, A3
A4, A5*
A4 R, B4, FLS*, A31 Bin 2 Bin
750 750
or (30 sets)
500 500
or (30 sets)
(1) Bin Capacity (sheets)
1000 1000
500 500
(2) Saddle Stitcher Tray Capacity
Item Description
Paper Size A3, B4, A4 R
Capacity W/out binding: 1 sheet
W/binding: 2 to 15 sheets(including single cover page)
Paper Capacity 10 sets (stack of 11 to 15...

84
B4·FLS

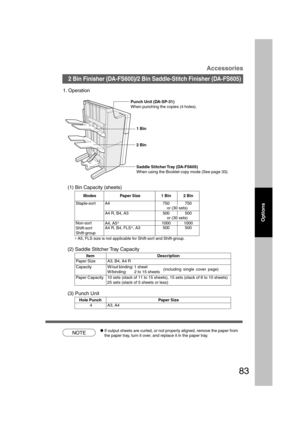

2 Bin Finisher (DA-FS600) / 2 Bin Saddle-Stitch Finisher (DA-FS605)
2. Features
CShift electronic sort copy
(A3, B4, A4, A4 R)CStaple electronic
sort copy
CUp to 50 sheets
(A4)/30 sheets
(A3, B4, A4 R)
CPaper weight:
64 - 80 g/m
2

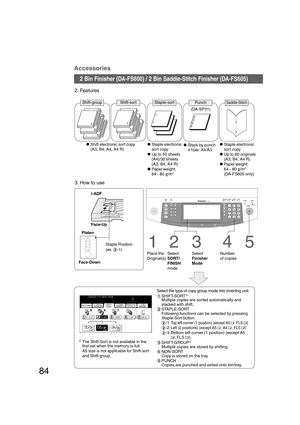

3. How to use
i-ADF
Face-Up
Platen
4
Number
of copies
5Staple Position
(ex. $-1)1
Place the
Original(s)
23
Select
SORT/
FINISH
modeSelect
Finisher
Mode
CStack by punch
4 hole: A4/A3
Staple-sortShift-sort
1
1
1
PunchShift-group
14
6 2
3
5
Select the type of copy group...

85
Options
Accessories
1
2

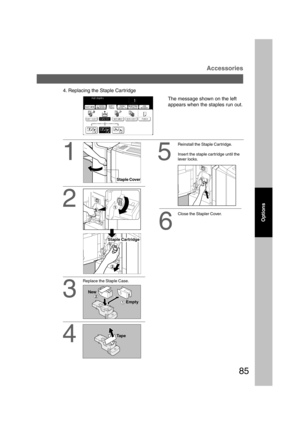

4. Replacing the Staple Car tridge
The message shown on the left
appears when the staples run out.
3
Replace the Staple Case.
4
1
Staple Cover
Staple Cartridge
Empty New
Tape
5
Reinstall the Staple Cartridge.
Insert the staple cartridge until the
lever locks.
6
Close the Stapler Cover.
P084-085_4510(pb).p657/31/02, 10:50 AM 85

86
Accessories

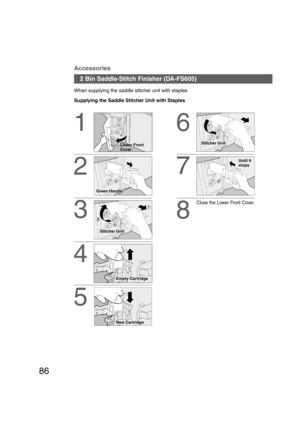

2 Bin Saddle-Stitch Finisher (DA-FS605)
When supplying the saddle stitcher unit with staples
1
2
3
4
Supplying the Saddle Stitcher Unit with Staples
5
6
7
Until it
stops
Close the Lower Front Cover.
8
Green Handle
Empty Cartridge
New Cartridge
Stitcher UnitLower Front
Cover
Stitcher Unit
P086_dp4510(pb).P657/31/02, 10:50 AM 86

87

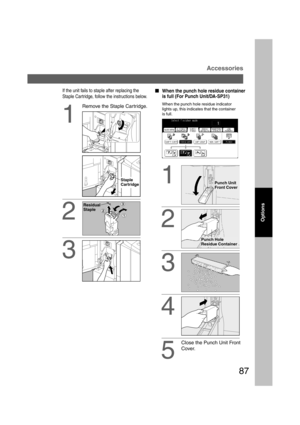

Accessories
1
Remove the Staple Cartridge.
2
If the unit fails to staple after replacing the
Staple Cartridge, follow the instructions below.
3
Options
Residual
Staple
Staple
Cartridge






When the punch hole residue container
is full (For Punch Unit/DA-SP31)
When the punch hole residue indicator
lights up, this indicates that the container
is full.
1
2
3
4
Close the Punch Unit Front
Cover.
5
Punch Unit
Front Cover
Punch Hole
Residue Container
P087_dp4510(pb).P657/31/02, 10:50 AM 87

88
Accessories

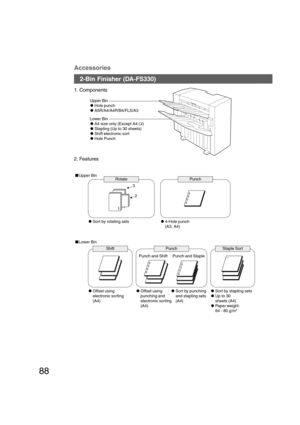

1. Components
Upper Bin
CHole punch
CA5R/A4/A4R/B4/FLS/A3
2. Features

Upper Bin
1
Rotate
CSort by rotating setsPunch
3
2

Lower Bin
COffset using
electronic sorting
(A4)Punch and Shift Punch and Staple
CSort by stapling sets
CUp to 30
sheets (A4)
CPaper weight:
64 - 80 g/m
2
COffset using
punching and
electronic sorting
(A4)CSort by punching
and stapling sets
(A4) Shift
Punch Staple Sort C4-Hole punch
(A3, A4) Lower Bin
CA4 size only (Except A4 C)
CStapling (Up to 30 sheets)
CShift...

89
Accessories
Options
B4·FLS

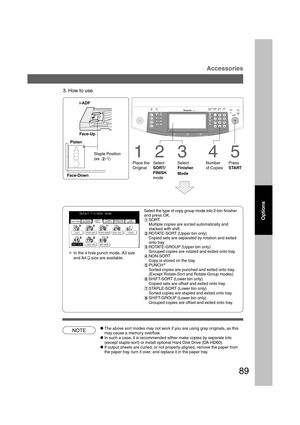

3. How to use
i-ADF
Face-Up
Platen
4
Number
of Copies
5Staple Position
(ex. $-1)
Face-Down1
Place the
Original
23
Select
SORT/
FINISH
modeSelect
Finisher
Mode
Select the type of copy group mode into 2-bin finisher
and press OK.
#SORT
Multiple copies are sorted automatically and
stacked with shift.
$ROTATE-SORT (Upper bin only)
Copied sets are separated by rotation and exited
onto tray.
%ROTATE-GROUP (Upper bin only)
Grouped copies are rotated and exited onto tray.
&NON-SORT...

90
Accessories

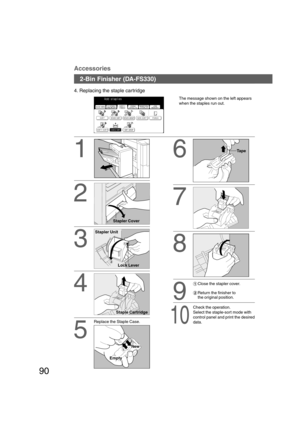

4. Replacing the staple cartridge
1
2
The message shown on the left appears
when the staples run out.
3
4
Stapler Cover
Stapler Unit
Lock Lever
5
Replace the Staple Case.
6
Tape
7
8
9
#Close the stapler cover.
$Return the finisher to
the original position.
10
Check the operation.
Select the staple-sort mode with
control panel and print the desired
data.
2-Bin Finisher (DA-FS330)
Empty
New
Staple Cartridge
P090_dp4510(pb).P657/31/02, 10:50 AM 90
