Panasonic Digital Imaging System DP-3510/4510/6010 Copier & Network Scanner Operating Instructions

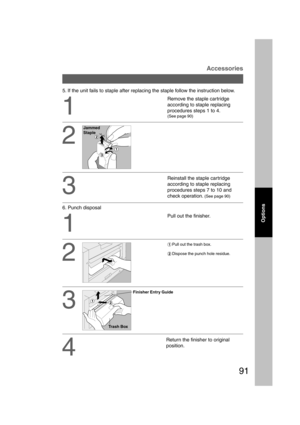

91
Options
Accessories
5. If the unit fails to staple after replacing the staple follow the instruction below.
2
3
Remove the staple cartridge
according to staple replacing
procedures steps 1 to 4.
(See page 90)
1
2
Reinstall the staple cartridge
according to staple replacing
procedures steps 7 to 10 and
check operation.
(See page 90)
Pull out the finisher.
#Pull out the trash box.
$Dispose the punch hole residue.
1
3
4
Return the finisher to original
position. 6. Punch disposal
Jammed
Staple
Trash Box...

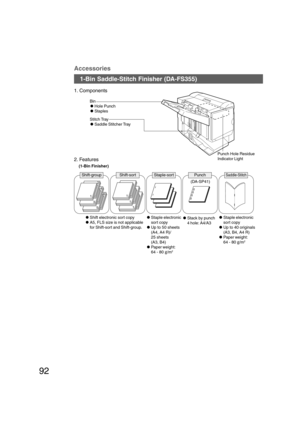

92
1-Bin Saddle-Stitch Finisher (DA-FS355) Accessories
1. Components
Bin
CHole Punch
CStaples
2. Features
Stitch Tray
CSaddle Stitcher Tray
(1-Bin Finisher)
CShift electronic sort copy
CA5, FLS size is not applicable
for Shift-sort and Shift-group.CStaple electronic
sort copy
CUp to 50 sheets
(A4, A4 R)/
25 sheets
(A3, B4)
CPaper weight:
64 - 80 g/m
2
CStack by punch
4 hole: A4/A3
Staple-sortShift-sort
1
1
1
PunchShift-group
14
6 2
3
5
(DA-SP41)
CStaple electronic
sort copy
CUp to 40 originals
(A3, B4,...

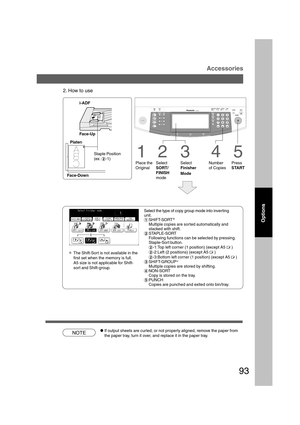

93
Accessories
B4·FLS
2. How to use
i-ADF
Face-Up
Platen
4
Number
of Copies
5Staple Position
(ex. $-1)
Face-Down1
Place the
Original
23
Select
SORT/
FINISH
modeSelect
Finisher
Mode
Select the type of copy group mode into inverting
unit.
#SHIFT-SORT
*
Multiple copies are sorted automatically and
stacked with shift.
$STAPLE-SORT
Following functions can be selected by pressing.
Staple-Sort button.
$-1:Top left corner (1 position) (except A5 C )
$-2:Left (2 positions) (except A5 C )
$-3:
Bottom left corner...

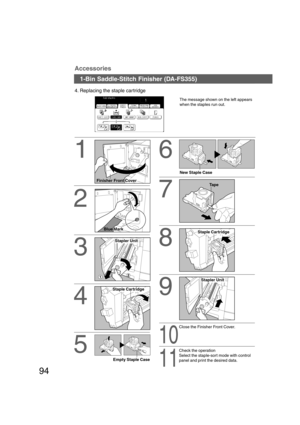

94
6
New Staple Case
7
8
9
10
Close the Finisher Front Cover.
11
Check the operation
Select the staple-sort mode with control
panel and print the desired data.
Accessories
4. Replacing the staple car tridge
1
3
The message shown on the left appears
when the staples run out.
4
5
Empty Staple Case
2
Tape
1-Bin Saddle-Stitch Finisher (DA-FS355)
Finisher Front Cover
Blue Mark
Stapler Unit
Staple Cartridge
Staple Cartridge
Stapler Unit
P094_dp4510(pb).P657/31/02, 10:50 AM 94

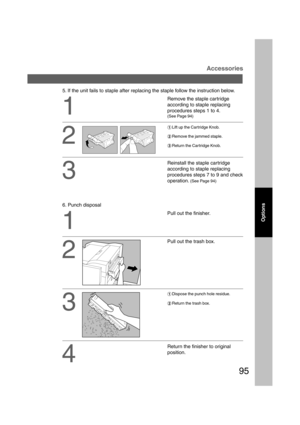

95
Options
Accessories
5. If the unit fails to staple after replacing the staple follow the instruction below.
2
3
Remove the staple cartridge
according to staple replacing
procedures steps 1 to 4.
(See Page 94)
1
#Lift up the Cartridge Knob.
$Remove the jammed staple.
%Return the Cartridge Knob.
2
Reinstall the staple cartridge
according to staple replacing
procedures steps 7 to 9 and check
operation.
(See Page 94)
Pull out the finisher.
Pull out the trash box.
1
3
#Dispose the punch hole residue....

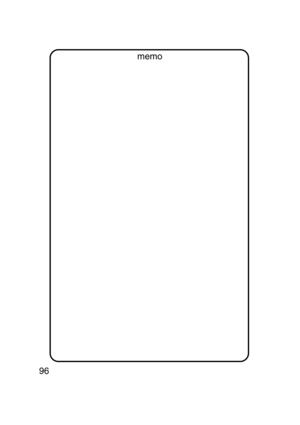

96
memo
P096-097_dp4510(pb).P657/31/02, 10:50 AM 96

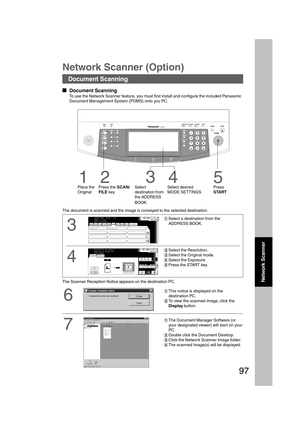

97
Network Scanner
B4·FLS
4
Select desired
MODE SETTINGS
5
Press
START
1
Place the
Original
23
Press the SCAN/
FILE keySelect
destination from
the ADDRESS
BOOK






Document Scanning
To use the Network Scanner feature, you must first install and configure the included Panasonic
Document Management System (PDMS) onto you PC.
Network Scanner (Option)
3
4
#Select a destination from the
ADDRESS BOOK.
$Select the Resolution.
%Select the Original mode.
&Select the Exposure.
(Press the START key.
Document...

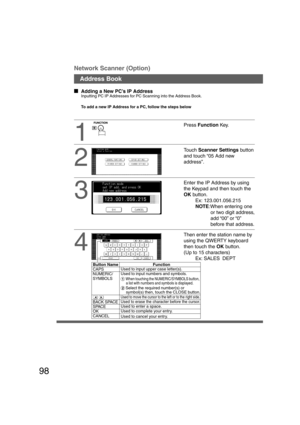

98
Network Scanner (Option)
Address Book
1
2
3






Adding a New PC’s IP Address
Inputting PC IP Addresses for PC Scanning into the Address Book.
To add a new IP Address for a PC, follow the steps below
4
Enter the IP Address by using
the Keypad and then touch the
OK button.
Ex: 123.001.056.215
NOTE:When entering one
or two digit address,
add “00” or “0”
before that address.
Then enter the station name by
using the QWERTY keyboard
then touch the OK button.
(Up to 15 characters)
Ex: SALES  DEPT
Touch...

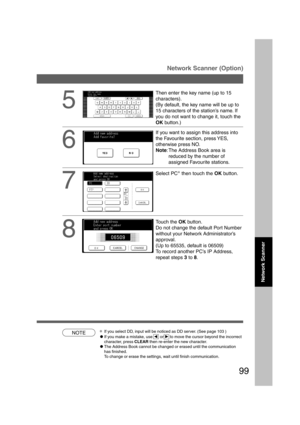

99
5
Then enter the key name (up to 15
characters).
(By default, the key name will be up to
15 characters of the station’s name. If
you do not want to change it, touch the
OK button.)
NOTE∗If you select DD, input will be noticed as DD server. (See page 103 )
CIf you make a mistake, use I  or H to move the cursor beyond the incorrect
character, press CLEAR then re-enter the new character.
CThe Address Book cannot be changed or erased until the communication
has finished.
To change or erase the settings,...

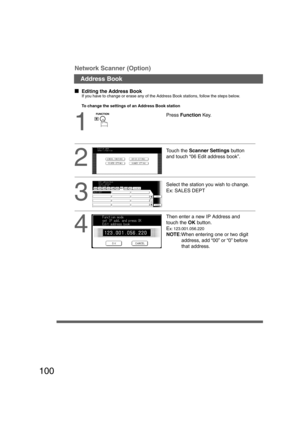

100
1
Address Book Network Scanner (Option)
2
Select the station you wish to change.
Ex: SALES DEPT
3
Then enter a new IP Address and
touch the OK button.
E
x: 123.001.056.220
NOTE:When entering one or two digit
address, add “00” or “0” before
that address.4






Editing the Address Book
If you have to change or erase any of the Address Book stations, follow the steps below.
To change the settings of an Address Book station
Touch the Scanner Settings button
and touch “06 Edit address book”. Press...
