Panasonic Digital Imaging System Dp1810f Internet Fax Operating Instructions

DP-1810F
Getting to Know
Your Machine
Installing Your
Machine Programming
Your Machine Basic Operations Advanced
Features Network Features Printout Journals
and Lists Problem Solving  Appendix
Operating Instructions
Digital Imaging System
Model No.
English
Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference.
(For Internet Fax)

IMPORTANT INFORMATION
Model No.                                                                                        Serial No.
Date of Purchase
Dealer...

3
Table of Contents
Safety Information .......................................................................................................... 6
Function Key...................................................................................................................9
Control Panel ..................................................................................................................10
Pre Installation Information...

Table of Contents
4
Sending Documents via LAN ........................................................................................ 59

General Description ....................................................................................... 59

Manual Email Addressing .............................................................................. 60

One-Touch Email Addressing ........................................................................ 62

Abbreviated Email Addressing...

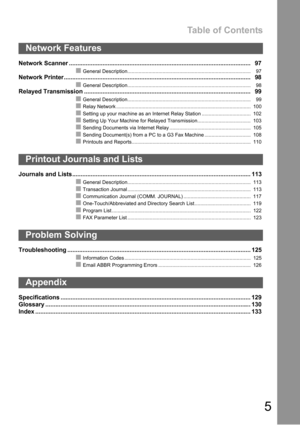

Table of Contents
5
Network Scanner ............................................................................................................ 97

General Description........................................................................................ 97
Network Printer............................................................................................................... 98

General Description........................................................................................ 98
Relayed...

6
Getting to Know Your Machine

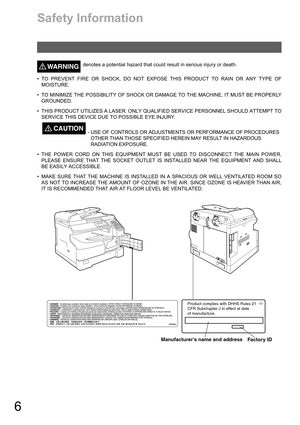

Safety Information
WARNING!denotes a potential hazard that could result in serious injury or death.
 TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR ANY TYPE OF
MOISTURE.
 TO MINIMIZE THE POSSIBILITY OF SHOCK OR DAMAGE TO THE MACHINE, IT MUST BE PROPERLY
GROUNDED.
 THIS PRODUCT UTILIZES A LASER. ONLY QUALIFIED SERVICE PERSONNEL SHOULD ATTEMPT TO
SERVICE THIS DEVICE DUE TO POSSIBLE EYE INJURY.
 - USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES...

Safety Information
7
Getting to Know
Your MachineGetting to Know
Your Machine

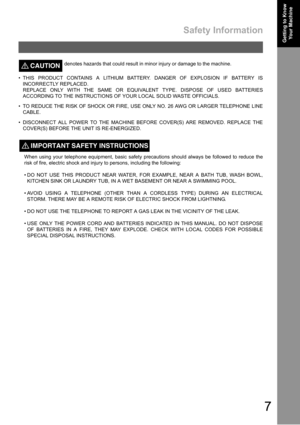

CAUTION!denotes hazards that could result in minor injury or damage to the machine.
 THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.
 TO REDUCE THE RISK OF SHOCK OR FIRE, USE ONLY NO. 26 AWG OR LARGER TELEPHONE LINE
CABLE.
 DISCONNECT...

Safety Information
8

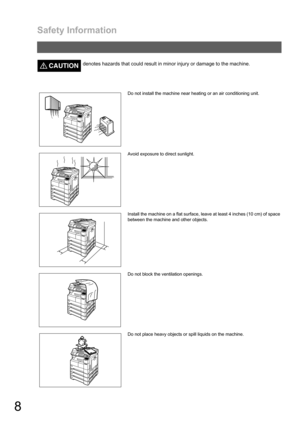

CAUTION!denotes hazards that could result in minor injury or damage to the machine.
Do not install the machine near heating or an air conditioning unit.
Avoid exposure to direct sunlight.
Install the machine on a flat surface, leave at least 4 inches (10 cm) of space
between the machine and other objects.
Do not block the ventilation openings.
Do not place heavy objects or spill liquids on the machine.

9
Getting to Know
Your MachineGetting to Know
Your Machine

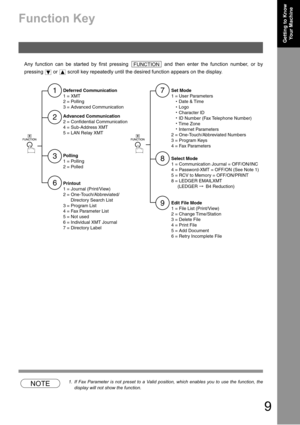

Function Key
Any function can be started by first pressing   and then enter the function number, or by
pressing   or   scroll key repeatedly until the desired function appears on the display.
NOTE1. If Fax Parameter is not preset to a Valid position, which enables you to use the function, the
display will not show the function.
FUNCTION
Deferred Communication
1 = XMT
2 = Polling
3 = Advanced Communication
Advanced Communication
2 = Confidential...

10

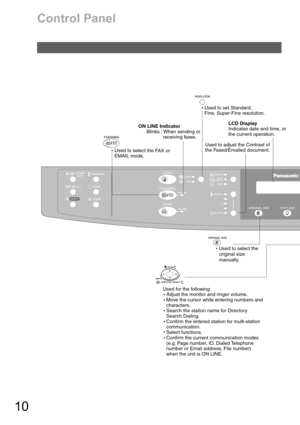

Control Panel
LCD Display
Indicates date and time, or
the current operation. ON LINE Indicator
      Blinks : When sending or
                  receiving faxes.
Used to select the FAX or
EMAIL mode.
Adjust the monitor and ringer volume.
Move the cursor while entering numbers and
characters.
Search the station name for Directory
Search Dialing.
Confirm the entered station for multi-station
communication.
Select functions.
Confirm the current communication modes
(e.g. Page number, ID, Dialed Telephone...
