Panasonic Digital Imaging System Dp1810f Internet Fax Operating Instructions

Programming Email Address and Telephone Numbers

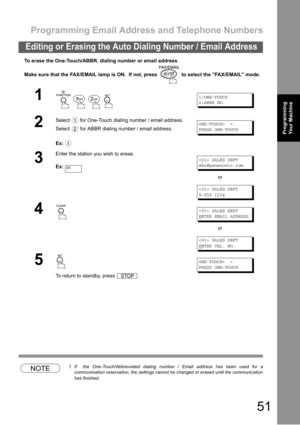

51
Editing or Erasing the Auto Dialing Number / Email Address
Programming
Your MachineProgramming
Your Machine
To erase the One-Touch/ABBR. dialing number or email address
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
NOTE1. If  the One-Touch/Abbreviated dialing number / Email address has been used for a
communication reservation, the settings cannot be changed or erased until the communication
has finished.
1...

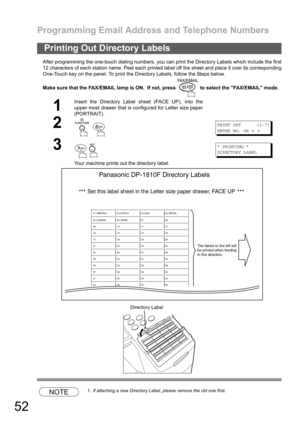

Programming Email Address and Telephone Numbers
52
After programming the one-touch dialing numbers, you can print the Directory Labels which include the first
12 characters of each station name. Peel each printed label off the sheet and place it over its corresponding
One-Touch key on the panel. To print the Directory Labels, follow the Steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
NOTE1. If attaching a new Directory Label, please remove the old one...

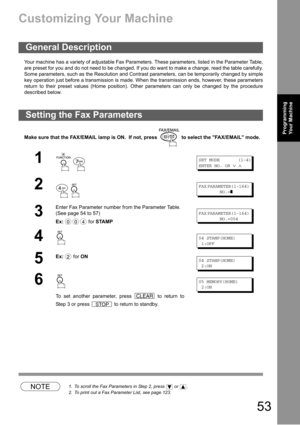

53
Programming
Your MachineProgramming
Your Machine
Customizing Your Machine
Your machine has a variety of adjustable Fax Parameters. These parameters, listed in the Parameter Table,
are preset for you and do not need to be changed. If you do want to make a change, read the table carefully.
Some parameters, such as the Resolution and Contrast parameters, can be temporarily changed by simple
key operation just before a transmission is made. When the transmission ends, however, these parameters
return to...

Customizing Your Machine

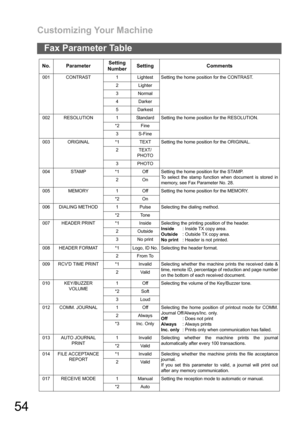

54
Fax Parameter Table
No. ParameterSetting
NumberSetting Comments
001 CONTRAST 1 Lightest Setting the home position for the CONTRAST.
2 Lighter
3Normal
4Darker
5 Darkest
002 RESOLUTION 1 Standard Setting the home position for the RESOLUTION.
*2 Fine
3S-Fine
003 ORIGINAL *1 TEXT Setting the home position for the ORIGINAL.
2 TEXT/
3PHOTO
004 STAMP *1 Off Setting the home position for the STAMP.
To select the stamp function when document is stored in
memory, see Fax...

Customizing Your Machine

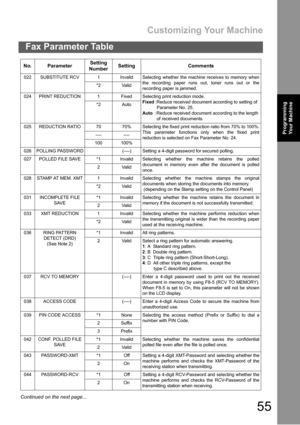

55
Fax Parameter Table
Programming
Your MachineProgramming
Your Machine
022 SUBSTITUTE RCV 1 Invalid Selecting whether the machine receives to memory when
the recording paper runs out, toner runs out or the
recording paper is jammed. *2 Valid
024 PRINT REDUCTION 1 Fixed Selecting print reduction mode.
Fixed:Reduce received document according to setting of
Parameter No. 25.
Auto:Reduce received document according to the length
of received documents. *2 Auto
025 REDUCTION RATIO...

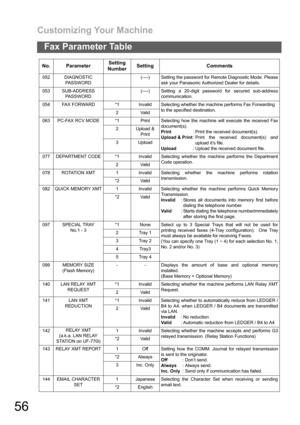

Customizing Your Machine
56
Fax Parameter Table
052 DIAGNOSTIC
PASSWORD(----) Setting the password for Remote Diagnostic Mode. Please
ask your Panasonic Authorized Dealer for details.
053 SUB-ADDRESS
PASSWORD(----) Setting a 20-digit password for secured sub-address
communication.
054 FAX FORWARD *1 Invalid Selecting whether the machine performs Fax Forwarding
to the specified destination.
2Valid
063 PC-FAX RCV MODE *1 Print Selecting how the machine will execute the received Fax
document(s).
Print:...

Customizing Your Machine

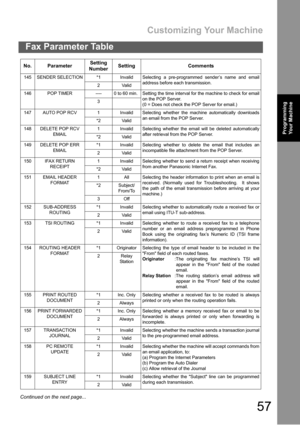

57
Fax Parameter Table
Programming
Your MachineProgramming
Your Machine
145 SENDER SELECTION *1 Invalid Selecting a pre-programmed sender’s name and email
address before each transmission.
2Valid
146 POP TIMER ---- 0 to 60 min. Setting the time interval for the machine to check for email
on the POP Server.
(0 = Does not check the POP Server for email.) 3
147 AUTO POP RCV 1 Invalid Selecting whether the machine automatically downloads
an email from the POP Server.
*2 Valid
148...

Customizing Your Machine

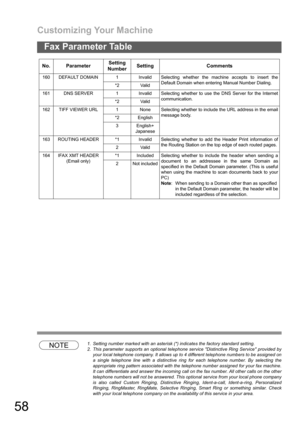

58
Fax Parameter Table
NOTE1. Setting number marked with an asterisk (*) indicates the factory standard setting.
2. This parameter supports an optional telephone service Distinctive Ring Service provided by
your local telephone company. It allows up to 4 different telephone numbers to be assigned on
a single telephone line with a distinctive ring for each telephone number. By selecting the
appropriate ring pattern associated with the telephone number assigned for your fax...

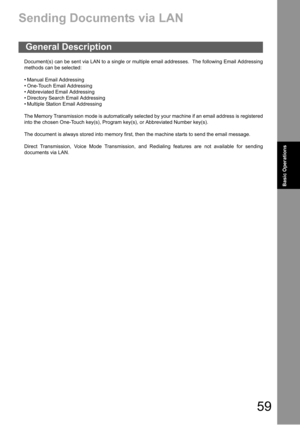

59
Basic
OperationsBasic Operations
Basic Operations
Sending Documents via LAN
Document(s) can be sent via LAN to a single or multiple email addresses.  The following Email Addressing
methods can be selected:
 Manual Email Addressing
 One-Touch Email Addressing
 Abbreviated Email Addressing
 Directory Search Email Addressing
 Multiple Station Email Addressing
The Memory Transmission mode is automatically selected by your machine if an email address is registered
into the chosen One-Touch key(s),...

Sending Documents via LAN

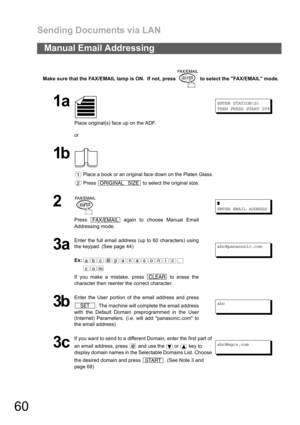

60
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Manual Email Addressing
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original size.
2
Press   again to choose Manual Email
Addressing mode.❚
ENTER EMAIL ADDRESS
3a
Enter the full email address (up to 60 characters) using
the keypad. (See page 44)
Ex:
If you make a...
