Control Panel
11
Getting to Know
Your MachineGetting to Know
Your Machine
.

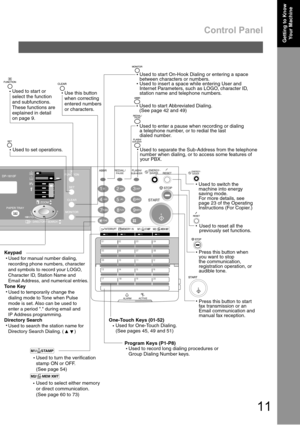

One-Touch Keys (01-52)
     Used for One-Touch Dialing.
     (See pages 45, 49 and 51)
Used to switch the
machine into energy
saving mode.
For more details, see
page 23 of the Operating
Instructions (For Copier.)
Used to start or
select the function
and subfunctions.
These functions are
explained in detail
on page 9.
Used to reset all the
previously set functions.
Use this button
when correcting
entered numbers
or characters....

12
Pre Installation Information

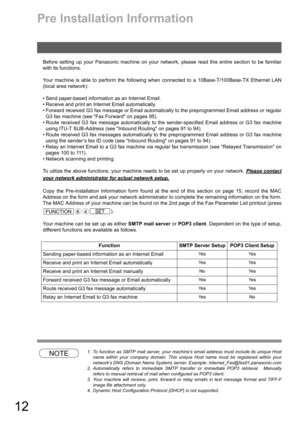

Before setting up your Panasonic machine on your network, please read this entire section to be familiar
with its functions.
Your machine is able to perform the following when connected to a 10Base-T/100Base-TX Ethernet LAN
(local area network):
 Send paper-based information as an Internet Email.
 Receive and print an Internet Email automatically.
 Forward received G3 fax message or Email automatically to the preprogrammed Email address or regular
G3 fax machine (see...

Pre Installation Information
13
Getting to Know
Your MachineGetting to Know
Your Machine

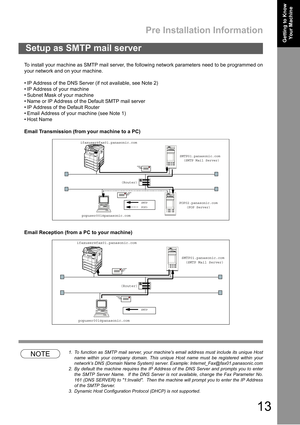

To install your machine as SMTP mail server, the following network parameters need to be programmed on
your network and on your machine.
 IP Address of the DNS Server (if not available, see Note 2)
 IP Address of your machine
 Subnet Mask of your machine
 Name or IP Address of the Default SMTP mail server
 IP Address of the Default Router
 Email Address of your machine (see Note 1)
Host Name
Email...

Pre Installation Information
14
To install your machine as POP3 Client, the following network parameters need to be programmed on your
network.
 IP Address of the DNS Server (if not available, see Note 2)
 IP Address of your machine
 Subnet Mask of your machine
 Name or IP Address of the Default SMTP mail server
 IP Address of the Default Router
 POP Server Name or IP Address
 POP User Account Name
POP Password
 Email Address of your machine (see Note 1)
Email Transmission (from your machine to...

Pre Installation Information
15
Getting to Know
Your MachineGetting to Know
Your Machine

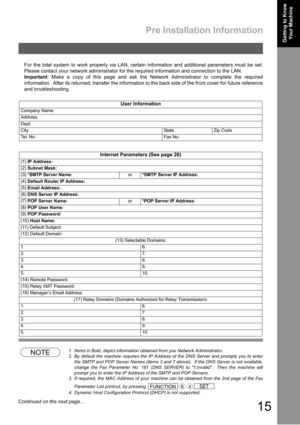

For the total system to work properly via LAN, certain information and additional parameters must be set.
Please contact your network administrator for the required information and connection to the LAN.
Important: Make a copy of this page and ask the Network Administrator to complete the required
information.  After its returned, transfer the information to the back side of the front cover for future reference
and...

Pre Installation Information
16

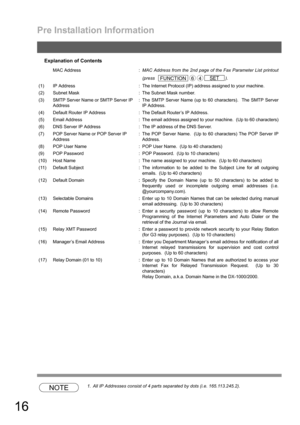

Explanation of Contents
NOTE1. All IP Addresses consist of 4 parts separated by dots (i.e. 165.113.245.2). MAC Address :MAC Address from the 2nd page of the Fax Parameter List printout
(press   ).
(1) IP Address : The Internet Protocol (IP) address assigned to your machine.
(2) Subnet Mask : The Subnet Mask number.
(3) SMTP Server Name or SMTP Server IP
Address: The SMTP Server Name (up to 60 characters).  The SMTP Server
IP Address.
(4) Default Router IP Address : The...

17
Getting to Know
Your MachineGetting to Know
Your Machine

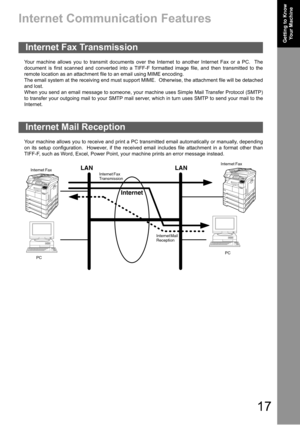

Internet Communication Features
Your machine allows you to transmit documents over the Internet to another Internet Fax or a PC.  The
document is first scanned and converted into a TIFF-F formatted image file, and then transmitted to the
remote location as an attachment file to an email using MIME encoding.
The email system at the receiving end must support MIME.  Otherwise, the attachment file will be detached
and lost.
When you send an email...

Internet Communication Features
18

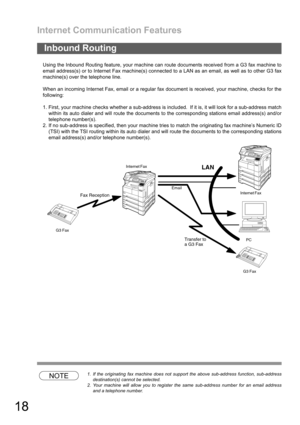

Using the Inbound Routing feature, your machine can route documents received from a G3 fax machine to
email address(s) or to Internet Fax machine(s) connected to a LAN as an email, as well as to other G3 fax
machine(s) over the telephone line.
When an incoming Internet Fax, email or a regular fax document is received, your machine, checks for the
following:
1. First, your machine checks whether a sub-address is included.  If it is, it will look for a sub-address match...

Internet Communication Features
19
Getting to Know
Your MachineGetting to Know
Your Machine

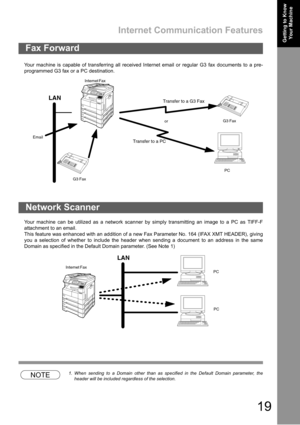

Your machine is capable of transferring all received Internet email or regular G3 fax documents to a pre-
programmed G3 fax or a PC destination.
Your machine can be utilized as a network scanner by simply transmitting an image to a PC as TIFF-F
attachment to an email.
This feature was enhanced with an addition of a new Fax Parameter No. 164 (IFAX XMT HEADER), giving
you a selection of whether to include the...

Internet Communication Features
20

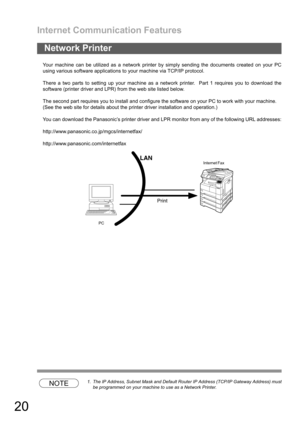

Your machine can be utilized as a network printer by simply sending the documents created on your PC
using various software applications to your machine via TCP/IP protocol.
There a two parts to setting up your machine as a network printer.  Part 1 requires you to download the
software (printer driver and LPR) from the web site listed below.
The second part requires you to install and configure the software on your PC to work with your machine.
(See the web site for...
