Panasonic Dmc Fx9 Operating Instructions Manual

Others
101VQT0S57

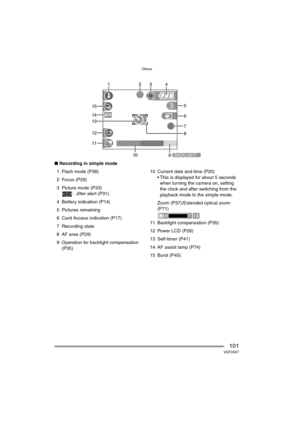

∫Recording in simple mode
1 Flash mode (P38)
2 Focus (P29)
3 Picture mode (P33)
: Jitter alert (P31)
4 Battery indication (P14)
5 Pictures remaining
6 Card Access indication (P17)
7 Recording state
8 AF area (P29)
9 Operation for backlight compensation
(P35)10 Current date and time (
P20)
 This is displayed for about 5 seconds
when turning the camera on, setting
the clock and after switching from the
playback mode to the simple mode.
Zoom (P37)/Extended optical zoom
(P71)
11...

Others

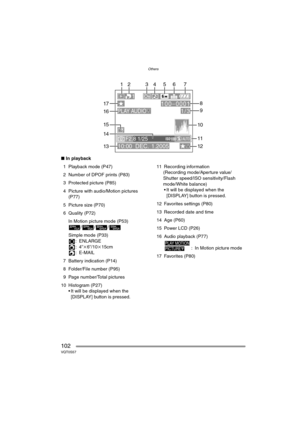

102VQT0S57
∫In playback
1 Playback mode (P47)
2 Number of DPOF prints (P83)
3 Protected picture (P85)
4 Picture with audio/Motion pictures
(P77)
5 Picture size (P70)
6 Quality (P72)
In Motion picture mode (P53)
///
Simple mode (P33)
:ENLARGE
:4qk6q/10k15cm
: E-MAIL
7 Battery indication (P14)
8 Folder/File number (P95)
9 Page number/Total pictures
10 Histogram (P27)
 It will be displayed when the
[DISPLAY] button is pressed.11 Recording information
(Recording mode/Aperture value/
Shutter...

Others

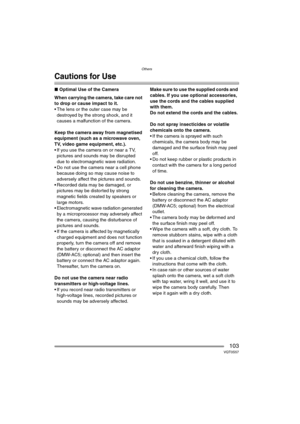

103VQT0S57
Cautions for Use
∫Optimal Use of the Camera
When carrying the camera, take care not
to drop or cause impact to it.
 The lens or the outer case may be
destroyed by the strong shock, and it
causes a malfunction of the camera.
Keep the camera away from magnetised
equipment (such as a microwave oven,
TV, video game equipment, etc.).
 If you use the camera on or near a TV,
pictures and sounds may be disrupted
due to electromagnetic wave radiation.
 Do not use the camera near a cell...

Others

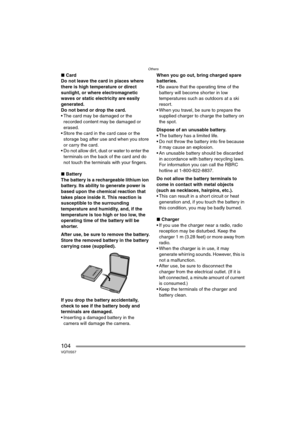

104VQT0S57
∫Card
Do not leave the card in places where
there is high temperature or direct
sunlight, or where electromagnetic
waves or static electricity are easily
generated.
Do not bend or drop the card.
 The card may be damaged or the
recorded content may be damaged or
erased.
 Store the card in the card case or the
storage bag after use and when you store
or carry the card.
 Do not allow dirt, dust or water to enter the
terminals on the back of the card and do
not touch the...

Others

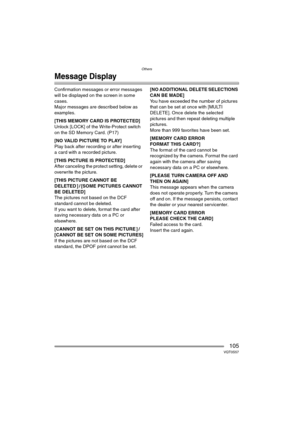

105VQT0S57
Message Display
Confirmation messages or error messages
will be displayed on the screen in some
cases.
Major messages are described below as
examples.
[THIS MEMORY CARD IS PROTECTED]
Unlock [LOCK] of the Write-Protect switch
on the SD Memory Card. (P17)
[NO VALID PICTURE TO PLAY]
Play back after recording or after inserting
a card with a recorded picture.
[THIS PICTURE IS PROTECTED]
After canceling the protect setting, delete or
overwrite the picture.
[THIS PICTURE CANNOT BE...

Others

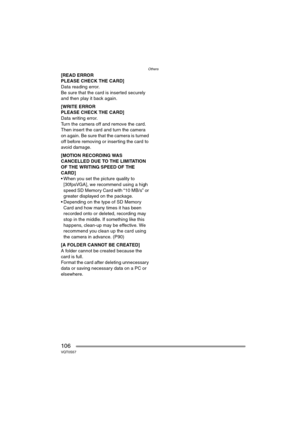

106VQT0S57
[READ ERROR
PLEASE CHECK THE CARD]
Data reading error.
Be sure that the card is inserted securely
and then play it back again.
[WRITE ERROR
PLEASE CHECK THE CARD]
Data writing error.
Turn the camera off and remove the card.
Then insert the card and turn the camera
on again. Be sure that the camera is turned
off before removing or inserting the card to
avoid damage.
[MOTION RECORDING WAS
CANCELLED DUE TO THE LIMITATION
OF THE WRITING SPEED OF THE
CARD]
 When you set the picture...

Others

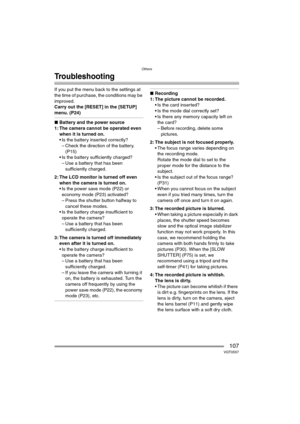

107VQT0S57
Troubleshooting
If you put the menu back to the settings at
the time of purchase, the conditions may be
improved.
Carry out the [RESET] in the [SETUP]
menu. (P24)
∫Battery and the power source
1: The camera cannot be operated even
when it is turned on.
 Is the battery inserted correctly?
– Check the direction of the battery.
(P15)
 Is the battery sufficiently charged?
– Use a battery that has been
sufficiently charged.
2: The LCD monitor is turned off even
when the camera is...

Others
108VQT0S57

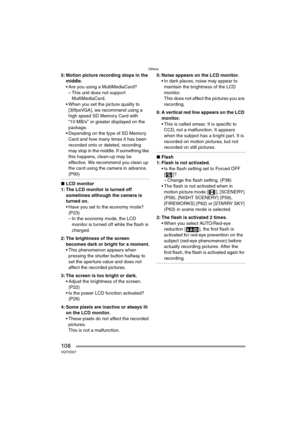

5: Motion picture recording stops in the
middle.
 Are you using a MultiMediaCard?
– This unit does not support
MultiMediaCard.
 When you set the picture quality to
[30fpsVGA], we recommend using a
high speed SD Memory Card with
“10 MB/s” or greater displayed on the
package.
 Depending on the type of SD Memory
Card and how many times it has been
recorded onto or deleted, recording
may stop in the middle. If something like
this happens, clean-up may be
effective. We...

Others

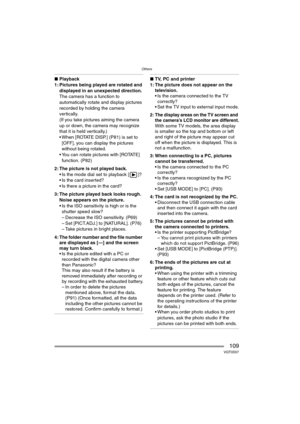

109VQT0S57
∫Playback
1: Pictures being played are rotated and
displayed in an unexpected direction.
The camera has a function to
automatically rotate and display pictures
recorded by holding the camera
vertically.
(If you take pictures aiming the camera
up or down, the camera may recognize
that it is held vertically.)
 When [ROTATE DISP.] (P81) is set to
[OFF], you can display the pictures
without being rotated.
 You can rotate pictures with [ROTATE]
function. (P82)
2: The picture is...

Others

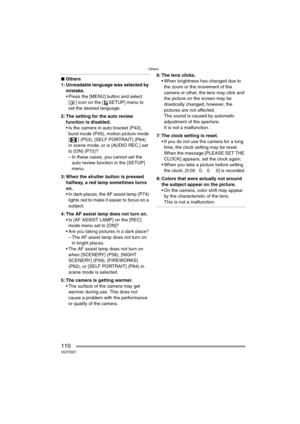

110VQT0S57
∫Others
1: Unreadable language was selected by
mistake.
 Press the [MENU] button and select
[ ] icon on the [ SETUP] menu to
set the desired language.
2: The setting for the auto review
function is disabled.
 Is the camera in auto bracket (P43),
burst mode (P45), motion picture mode
[ ] (P53), [SELF PORTRAIT] (P64)
in scene mode, or is [AUDIO REC.] set
to [ON] (P72)?
– In these cases, you cannot set the
auto review function in the [SETUP]
menu.
3: When the shutter button is...
