Panasonic Dmc Fx9 Operating Instructions Manual

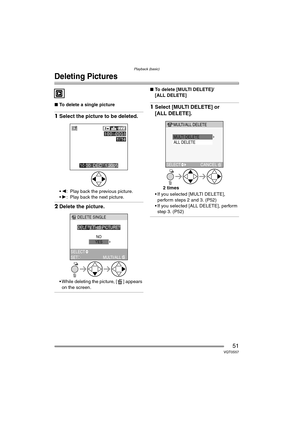

Playback (basic)
51VQT0S57
Deleting Pictures
∫To delete a single picture
1Select the picture to be deleted.
2 : Play back the previous picture.
 1 : Play back the next picture.
2Delete the picture.
 While deleting the picture, [ ] appears
on the screen.
∫ To delete [MULTI DELETE]/
[ALL DELETE]
1Select [MULTI DELETE] or
[ALL DELETE].
 If you selected [MULTI DELETE],
perform steps 2 and 3. (P52)
 If you selected [ALL DELETE], perform  step 3. (P52)
10:00  DEC.
100 _
00011/1
DELETE THIS
DELETE...

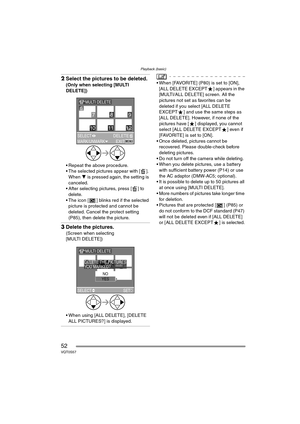

Playback (basic)
52VQT0S57
2Select the pictures to be deleted.
(Only when selecting [MULTI
DELETE])
 Repeat the above procedure.
 The selected pictures appear with [ ].
When  4 is pressed again, the setting is
canceled.
 After selecting pictures, press [ ] to  delete.
 The icon [ ] blinks red if the selected  picture is protected and cannot be
deleted. Cancel the protect setting
(P85), then delete the picture.
3 Delete the pictures.
(Screen when selecting
[MULTI DELETE])
 When using [ALL...

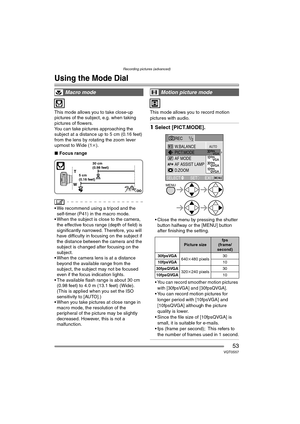

Recording pictures (advanced)
53VQT0S57
Recording pictures (advanced)
Using the Mode Dial
This mode allows you to take close-up
pictures of the subject, e.g. when taking
pictures of flowers.
You can take pictures approaching the
subject at a distance up to 5 cm (0.16 feet)
from the lens by rotating the zoom lever
upmost to Wide (1k).
∫Focus range
 We recommend using a tripod and the
self-timer (P41) in the macro mode.
 When the subject is close to the camera,
the effective focus range (depth of...

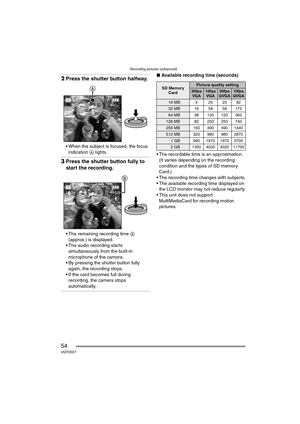

Recording pictures (advanced)
54VQT0S57
2Press the shutter button halfway.
 When the subject is focused, the focus
indication A lights.
3Press the shutter button fully to
start the recording.
 The remaining recording time B
(approx.) is displayed.
 The audio recording starts
simultaneously from the built-in
microphone of the camera.
 By pressing the shutter button fully
again, the recording stops.
 If the card becomes full during
recording, the camera stops
automatically.
∫Available...

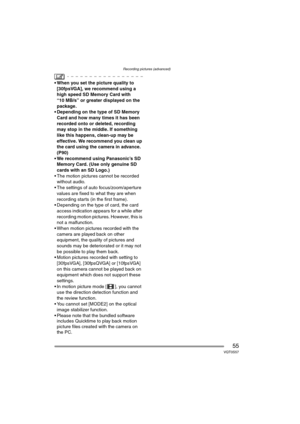

Recording pictures (advanced)
55VQT0S57
 When you set the picture quality to
[30fpsVGA], we recommend using a
high speed SD Memory Card with
“10 MB/s” or greater displayed on the
package.
 Depending on the type of SD Memory
Card and how many times it has been
recorded onto or deleted, recording
may stop in the middle. If something
like this happens, clean-up may be
effective. We recommend you clean up
the card using the camera in advance.
(P90)
 We recommend using Panasonic’s SD
Memory...

Recording pictures (advanced)

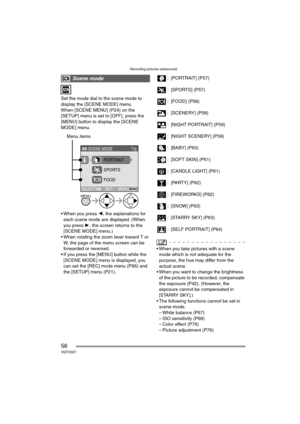

56VQT0S57
Set the mode dial to the scene mode to
display the [SCENE MODE] menu.
When [SCENE MENU] (P24) on the
[SETUP] menu is set to [OFF], press the
[MENU] button to display the [SCENE
MODE] menu.
 When you press 2, the explanations for
each scene mode are displayed. (When
you press 1, the screen returns to the
[SCENE MODE] menu.)
 When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
 If you press the [MENU]...

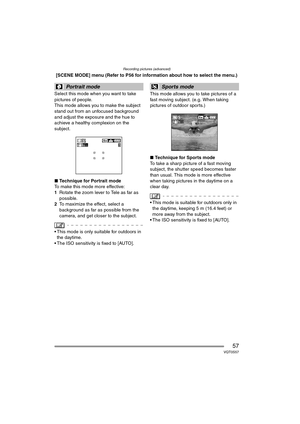

Recording pictures (advanced)
57VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
Select this mode when you want to take
pictures of people.
This mode allows you to make the subject
stand out from an unfocused background
and adjust the exposure and the hue to
achieve a healthy complexion on the
subject.
∫ Technique for Portrait mode
To make this mode more effective:
1 Rotate the zoom lever to Tele as far as
possible.
2 To maximize the effect, select a...

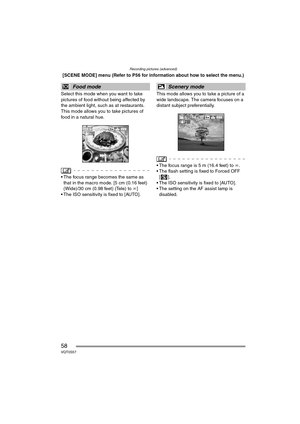

Recording pictures (advanced)
58VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
Select this mode when you want to take
pictures of food without being affected by
the ambient light, such as at restaurants.
This mode allows you to take pictures of
food in a natural hue.
 The focus range becomes the same as
that in the macro mode. [5 cm (0.16 feet)
(Wide)/30 cm (0.98 feet) (Tele) to ¶]
 The ISO sensitivity is fixed to [AUTO].This mode allows you to take a...

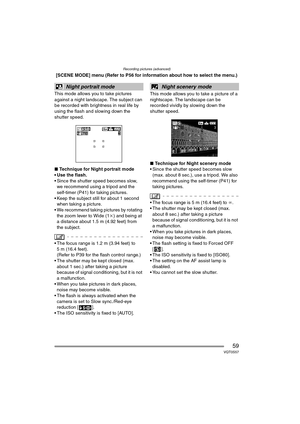

Recording pictures (advanced)
59VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
This mode allows you to take pictures
against a night landscape. The subject can
be recorded with brightness in real life by
using the flash and slowing down the
shutter speed.
∫ Technique for Night portrait mode
 Use the flash.
 Since the shutter speed becomes slow,  we recommend using a tripod and the
self-timer (P41) for taking pictures.
 Keep the subject still for about 1...

Recording pictures (advanced)

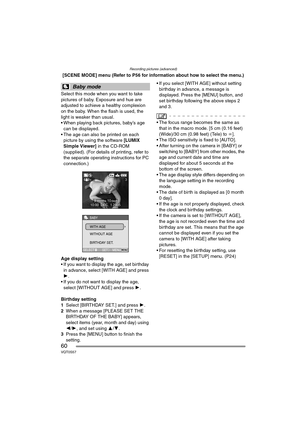

60VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
Select this mode when you want to take
pictures of baby. Exposure and hue are
adjusted to achieve a healthy complexion
on the baby. When the flash is used, the
light is weaker than usual.
 When playing back pictures, baby’s age
can be displayed.
 The age can also be printed on each
picture by using the software [LUMIX
Simple Viewer] in the CD-ROM
(supplied). (For details of...
