Panasonic Dmc Fx9 Operating Instructions Manual

Playback (advanced)
91VQT0S57

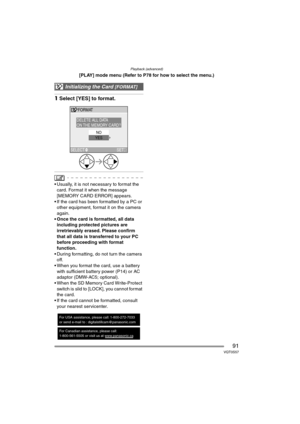

[PLAY] mode menu (Refer to P78 for how to select the menu.)
1Select [YES] to format.
 Usually, it is not necessary to format the
card. Format it when the message
[MEMORY CARD ERROR] appears.
 If the card has been formatted by a PC or
other equipment, format it on the camera
again.
 Once the card is formatted, all data
including protected pictures are
irretrievably erased. Please confirm
that all data is transferred to your PC
before proceeding with format...

Playback (advanced)
92VQT0S57

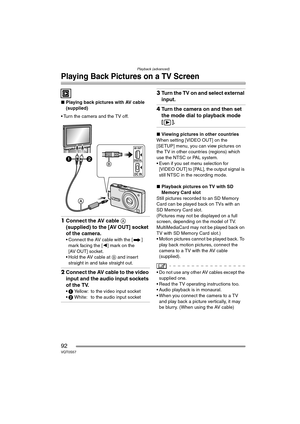

Playing Back Pictures on a TV Screen
∫Playing back pictures with AV cable
(supplied)
 Turn the camera and the TV off.
1Connect the AV cable A
(supplied) to the [AV OUT] socket
of the camera.
 Connect the AV cable with the [ ]
mark facing the [2] mark on the
[AV OUT] socket.
 Hold the AV cable at B and insert
straight in and take straight out.
2Connect the AV cable to the video
input and the audio input sockets
of the TV.
1 Yellow: to the video input socket
2...

Connecting to a PC or Printer
93VQT0S57

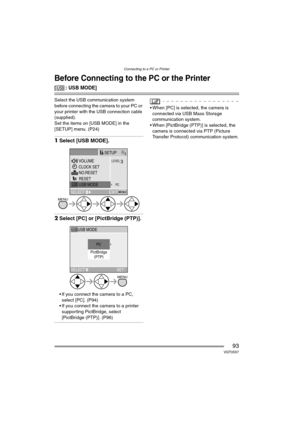

Connecting to a PC or Printer
Before Connecting to the PC or the Printer
[ : USB MODE]
Select the USB communication system
before connecting the camera to your PC or
your printer with the USB connection cable
(supplied).
Set the items on [USB MODE] in the
[SETUP] menu. (P24)
1Select [USB MODE].
2Select [PC] or [PictBridge (PTP)].
 If you connect the camera to a PC,
select [PC]. (P94)
 If you connect the camera to a printer
supporting PictBridge, select...

Connecting to a PC or Printer
94VQT0S57

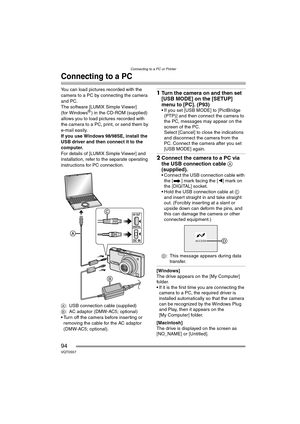

Connecting to a PC
You can load pictures recorded with the
camera to a PC by connecting the camera
and PC.
The software [LUMIX Simple Viewer]
(for Windows
®) in the CD-ROM (supplied)
allows you to load pictures recorded with
the camera to a PC, print, or send them by
e-mail easily.
If you use Windows
 98/98SE, install the
USB driver and then connect it to the
computer.
For details of [LUMIX Simple Viewer] and
installation, refer to the separate operating...

Connecting to a PC or Printer
95VQT0S57

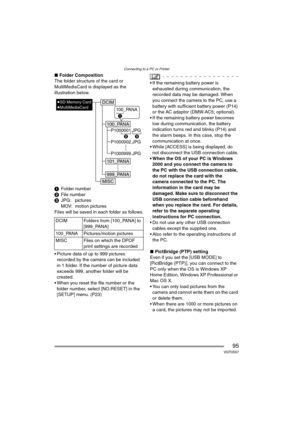

∫Folder Composition
The folder structure of the card or
MultiMediaCard is displayed as the
illustration below.
1Folder number
2File number
3JPG: pictures
MOV: motion pictures
Files will be saved in each folder as follows.
 Picture data of up to 999 pictures
recorded by the camera can be included
in 1 folder. If the number of picture data
exceeds 999, another folder will be
created.
 When you reset the file number or the
folder number, select [NO.RESET] in...

Connecting to a PC or Printer
96VQT0S57

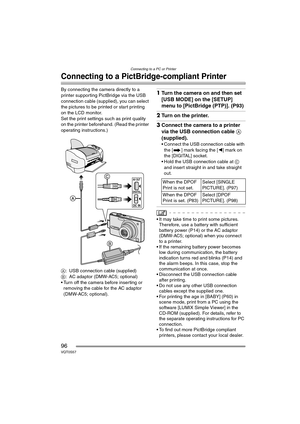

Connecting to a PictBridge-compliant Printer
By connecting the camera directly to a
printer supporting PictBridge via the USB
connection cable (supplied), you can select
the pictures to be printed or start printing
on the LCD monitor.
Set the print settings such as print quality
on the printer beforehand. (Read the printer
operating instructions.)
A: USB connection cable (supplied)
B: AC adaptor (DMW-AC5; optional)
 Turn off the camera before inserting or...

Connecting to a PC or Printer
97VQT0S57

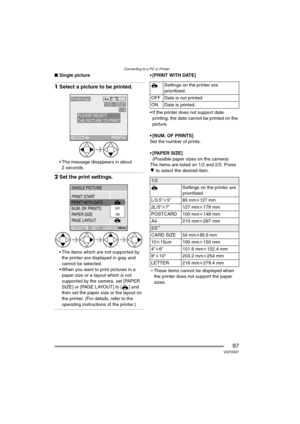

∫Single picture
1Select a picture to be printed.
 The message disappears in about
2 seconds.
2Set the print settings.
 The items which are not supported by
the printer are displayed in gray and
cannot be selected.
 When you want to print pictures in a
paper size or a layout which is not
supported by the camera, set [PAPER
SIZE] or [PAGE LAYOUT] to [ ] and
then set the paper size or the layout on
the printer. (For details, refer to the
operating...

Connecting to a PC or Printer
98VQT0S57

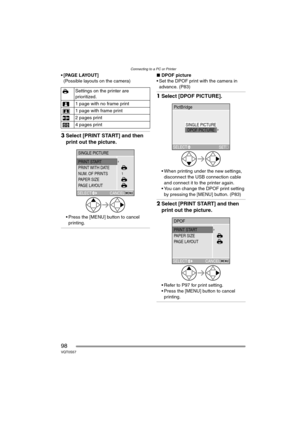

 [PAGE LAYOUT]
(Possible layouts on the camera)
3Select [PRINT START] and then
print out the picture.
 Press the [MENU] button to cancel
printing.
∫DPOF picture
 Set the DPOF print with the camera in
advance. (P83)
1Select [DPOF PICTURE].
 When printing under the new settings,
disconnect the USB connection cable
and connect it to the printer again.
 You can change the DPOF print setting
by pressing the [MENU] button. (P83)
2Select [PRINT START] and then...

Connecting to a PC or Printer
99VQT0S57

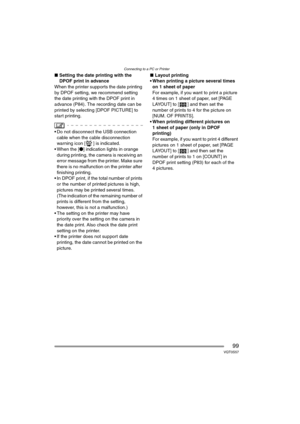

∫Setting the date printing with the
DPOF print in advance
When the printer supports the date printing
by DPOF setting, we recommend setting
the date printing with the DPOF print in
advance (P84). The recording date can be
printed by selecting [DPOF PICTURE] to
start printing.
 Do not disconnect the USB connection
cable when the cable disconnection
warning icon [ ] is indicated.
 When the [¥] indication lights in orange
during printing, the camera is...

Others
100VQT0S57
Others
Screen Display
∫In recording
1 Recording mode (P28)
2 Flash mode (P38)
3 Burst (P45)
: Audio recording (P54, 72)
4 White balance (P67)
5 ISO sensitivity (P69)
6 Focus (P29)
7 Picture size (P70)
8 Quality (P72)
In Motion picture mode (P53)
///
: Jitter alert (P31)
9 Battery indication (P14)
10 Color effect (P76)
11 Picture/Time remain
In Motion picture mode: e.g. 11S
12 Card access indication (P17)
13 Recording state
14 Histogram (P27)
15 Age (P60)
 This is displayed for about 5...
