Recording pictures (advanced)

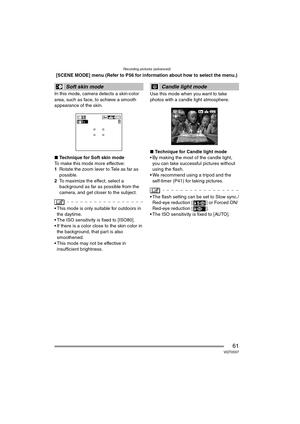

61VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
In this mode, camera detects a skin-color
area, such as face, to achieve a smooth
appearance of the skin.
∫ Technique for Soft skin mode
To make this mode more effective:
1 Rotate the zoom lever to Tele as far as
possible.
2 To maximize the effect, select a
background as far as possible from the
camera, and get closer to the subject.
 This mode is only suitable for outdoors in
the...

Recording pictures (advanced)

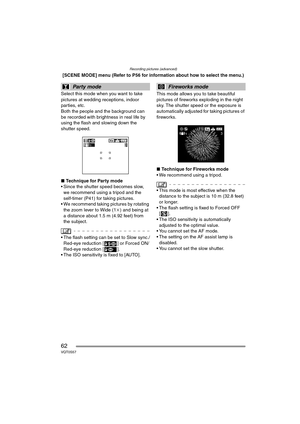

62VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
Select this mode when you want to take
pictures at wedding receptions, indoor
parties, etc.
Both the people and the background can
be recorded with brightness in real life by
using the flash and slowing down the
shutter speed.
∫ Technique for Party mode
 Since the shutter speed becomes slow,
we recommend using a tripod and the
self-timer (P41) for taking pictures.
 We recommend...

Recording pictures (advanced)

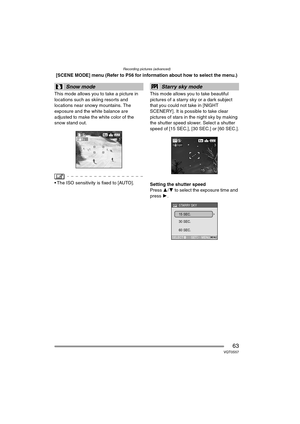

63VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
This mode allows you to take a picture in
locations such as skiing resorts and
locations near snowy mountains. The
exposure and the white balance are
adjusted to make the white color of the
snow stand out.
 The ISO sensitivity is fixed to [AUTO].This mode allows you to take beautiful
pictures of a starry sky or a dark subject
that you could not take in [NIGHT
SCENERY]. It is...

Recording pictures (advanced)

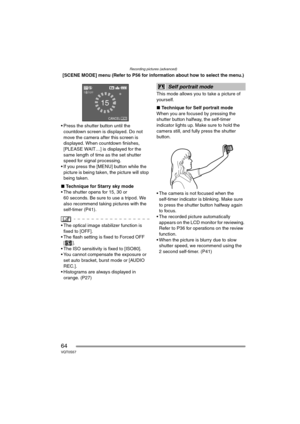

64VQT0S57
[SCENE MODE] menu (Refer to P56 for information about how to select the menu.)
 Press the shutter button until the
countdown screen is displayed. Do not
move the camera after this screen is
displayed. When countdown finishes,
[PLEASE WAIT…] is displayed for the
same length of time as the set shutter
speed for signal processing.
 If you press the [MENU] button while the
picture is being taken, the picture will stop
being taken.
∫Technique for Starry sky...

Recording pictures (advanced)

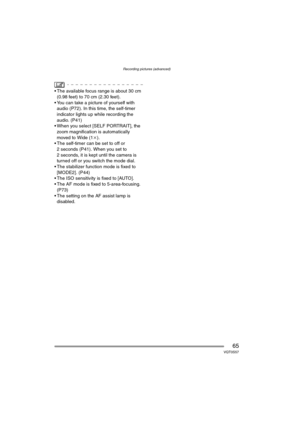

65VQT0S57
 The available focus range is about 30 cm
(0.98 feet) to 70 cm (2.30 feet).
 You can take a picture of yourself with
audio (P72). In this time, the self-timer
indicator lights up while recording the
audio. (P41)
 When you select [SELF PORTRAIT], the
zoom magnification is automatically
moved to Wide (1k).
 The self-timer can be set to off or
2 seconds (P41). When you set to
2 seconds, it is kept until the camera is
turned off or you switch the mode...

Recording Menu Settings

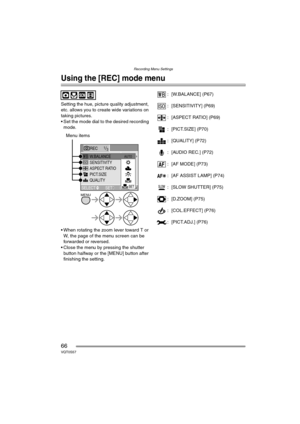

66VQT0S57
Recording Menu Settings
Using the [REC] mode menu
Setting the hue, picture quality adjustment,
etc. allows you to create wide variations on
taking pictures.
 Set the mode dial to the desired recording
mode.
 When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
 Close the menu by pressing the shutter
button halfway or the [MENU] button after
finishing the setting.: [W.BALANCE] (P67)
: [SENSITIVITY] (P69)
: [ASPECT...

Recording Menu Settings

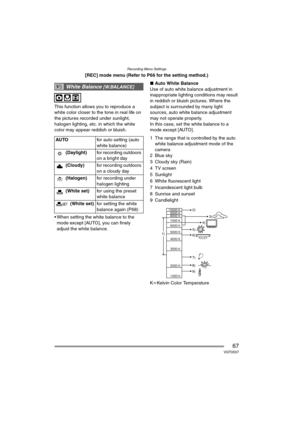

67VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
This function allows you to reproduce a
white color closer to the tone in real life on
the pictures recorded under sunlight,
halogen lighting, etc. in which the white
color may appear reddish or bluish.
 When setting the white balance to the
mode except [AUTO], you can finely
adjust the white balance.∫Auto White Balance
Use of auto white balance adjustment in
inappropriate lighting conditions may result
in...

Recording Menu Settings

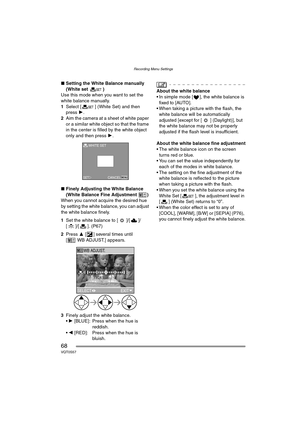

68VQT0S57
∫Setting the White Balance manually
(White set )
Use this mode when you want to set the
white balance manually.
1Select [ ] (White Set) and then
press 1.
2Aim the camera at a sheet of white paper
or a similar white object so that the frame
in the center is filled by the white object
only and then press 1.
∫Finely Adjusting the White Balance
(White Balance Fine Adjustment )
When you cannot acquire the desired hue
by setting the white balance, you can adjust
the...

Recording Menu Settings
69VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
ISO sensitivity represents the sensitivity to
light in values. If you set the ISO sensitivity
higher, the camera becomes more suitable
for recording in dark places.
 When [AUTO] is selected, the ISO  sensitivity automatically increases to a
maximum of [ISO200] (or [ISO400] when
the flash is activated) depending on the
brightness.
 In simple mode [ ], motion picture mode [ ] or scene mode, ISO sensitivity is...

Recording Menu Settings

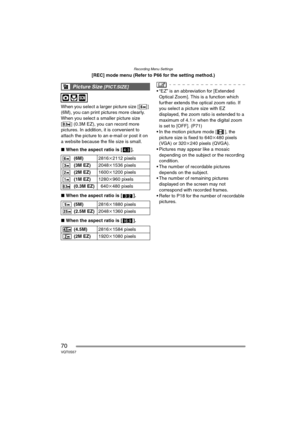

70VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
When you select a larger picture size [ ]
(6M), you can print pictures more clearly.
When you select a smaller picture size
[ ] (0.3M EZ), you can record more
pictures. In addition, it is convenient to
attach the picture to an e-mail or post it on
a website because the file size is small.
∫When the aspect ratio is [ ].
∫When the aspect ratio is [ ].
∫When the aspect ratio is [ ].
 “EZ” is an abbreviation for...
