Panasonic Dmc Fx9 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx9 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

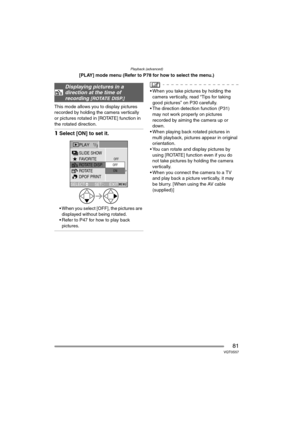

Page 81
![Page 81
Playback (advanced)
81VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
This mode allows you to display pictures
recorded by holding the camera vertically
or pictures rotated in [ROTATE] function in
the rotated direction.
1Select [ON] to set it.
When you select [OFF], the pictures are
displayed without being rotated.
Refer to P47 for how to play back
pictures.
When you take pictures by holding the
camera vertically, read “Tips for taking
good pictures” on P30 carefully.
...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-80.png "Page 81
Playback (advanced)
81VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
This mode allows you to display pictures
recorded by holding the camera vertically
or pictures rotated in [ROTATE] function in
the rotated direction.
1Select [ON] to set it.
When you select [OFF], the pictures are
displayed without being rotated.
Refer to P47 for how to play back
pictures.
When you take pictures by holding the
camera vertically, read “Tips for taking
good pictures” on P30 carefully.
...")
Playback (advanced) 81VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) This mode allows you to display pictures recorded by holding the camera vertically or pictures rotated in [ROTATE] function in the rotated direction. 1Select [ON] to set it. When you select [OFF], the pictures are displayed without being rotated. Refer to P47 for how to play back pictures. When you take pictures by holding the camera vertically, read “Tips for taking good pictures” on P30 carefully. ...

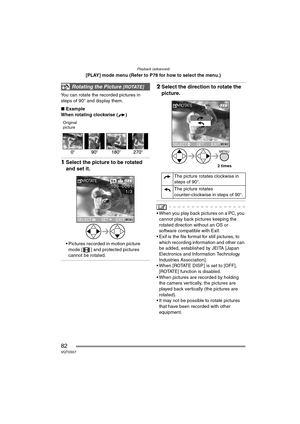

Page 82
![Page 82
Playback (advanced)
82VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can rotate the recorded pictures in
steps of 90° and display them.
∫Example
When rotating clockwise ( )
Original
1Select the picture to be rotated
and set it.
Pictures recorded in motion picture
mode [ ] and protected pictures
cannot be rotated.
2Select the direction to rotate the
picture.
When you play back pictures on a PC, you
cannot play back pictures keeping the
rotated direction without...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-81.png "Page 82
Playback (advanced)
82VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can rotate the recorded pictures in
steps of 90° and display them.
∫Example
When rotating clockwise ( )
Original
1Select the picture to be rotated
and set it.
Pictures recorded in motion picture
mode [ ] and protected pictures
cannot be rotated.
2Select the direction to rotate the
picture.
When you play back pictures on a PC, you
cannot play back pictures keeping the
rotated direction without...")
Playback (advanced) 82VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) You can rotate the recorded pictures in steps of 90° and display them. ∫Example When rotating clockwise ( ) Original picture 1Select the picture to be rotated and set it. Pictures recorded in motion picture mode [ ] and protected pictures cannot be rotated. 2Select the direction to rotate the picture. When you play back pictures on a PC, you cannot play back pictures keeping the rotated direction without...

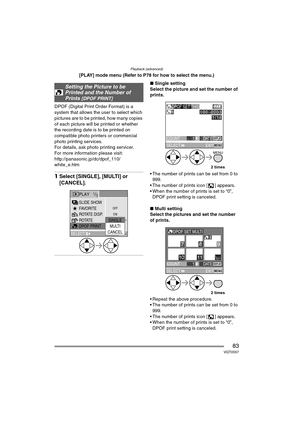

Page 83
![Page 83
Playback (advanced)
83VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
DPOF (Digital Print Order Format) is a
system that allows the user to select which
pictures are to be printed, how many copies
of each picture will be printed or whether
the recording date is to be printed on
compatible photo printers or commercial
photo printing services.
For details, ask photo printing servicer.
For more information please visit:
http://panasonic.jp/dc/dpof_110/
white_e.htm
1 Select...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-82.png "Page 83
Playback (advanced)
83VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
DPOF (Digital Print Order Format) is a
system that allows the user to select which
pictures are to be printed, how many copies
of each picture will be printed or whether
the recording date is to be printed on
compatible photo printers or commercial
photo printing services.
For details, ask photo printing servicer.
For more information please visit:
http://panasonic.jp/dc/dpof_110/
white_e.htm
1 Select...")
Playback (advanced) 83VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) DPOF (Digital Print Order Format) is a system that allows the user to select which pictures are to be printed, how many copies of each picture will be printed or whether the recording date is to be printed on compatible photo printers or commercial photo printing services. For details, ask photo printing servicer. For more information please visit: http://panasonic.jp/dc/dpof_110/ white_e.htm 1 Select...

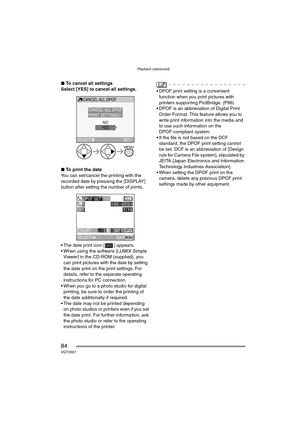

Page 84
![Page 84
Playback (advanced)
84VQT0S57
∫To cancel all settings
Select [YES] to cancel all settings.
∫ To print the date
You can set/cancel the printing with the
recorded date by pressing the [DISPLAY]
button after setting the number of prints.
The date print icon [ ] appears.
When using the software [LUMIX Simple Viewer] in the CD-ROM (supplied), you
can print pictures with the date by setting
the date print on the print settings. For
details, refer to the separate operating
instructions for PC...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-83.png "Page 84
Playback (advanced)
84VQT0S57
∫To cancel all settings
Select [YES] to cancel all settings.
∫ To print the date
You can set/cancel the printing with the
recorded date by pressing the [DISPLAY]
button after setting the number of prints.
The date print icon [ ] appears.
When using the software [LUMIX Simple Viewer] in the CD-ROM (supplied), you
can print pictures with the date by setting
the date print on the print settings. For
details, refer to the separate operating
instructions for PC...")
Playback (advanced) 84VQT0S57 ∫To cancel all settings Select [YES] to cancel all settings. ∫ To print the date You can set/cancel the printing with the recorded date by pressing the [DISPLAY] button after setting the number of prints. The date print icon [ ] appears. When using the software [LUMIX Simple Viewer] in the CD-ROM (supplied), you can print pictures with the date by setting the date print on the print settings. For details, refer to the separate operating instructions for PC...

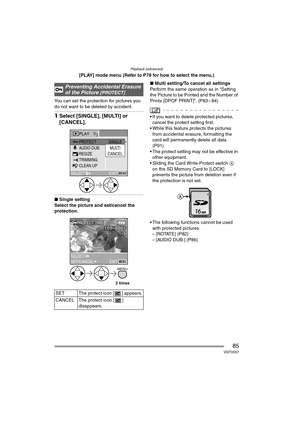

Page 85
![Page 85
Playback (advanced)
85VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can set the protection for pictures you
do not want to be deleted by accident.
1Select [SINGLE], [MULTI] or
[CANCEL].
∫Single setting
Select the picture and set/cancel the
protection.∫Multi setting/To cancel all settings
Perform the same operation as in “Setting
the Picture to be Printed and the Number of
Prints [DPOF PRINT]”. (P83 – 84)
If you want to delete protected pictures,
cancel the protect...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-84.png "Page 85
Playback (advanced)
85VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can set the protection for pictures you
do not want to be deleted by accident.
1Select [SINGLE], [MULTI] or
[CANCEL].
∫Single setting
Select the picture and set/cancel the
protection.∫Multi setting/To cancel all settings
Perform the same operation as in “Setting
the Picture to be Printed and the Number of
Prints [DPOF PRINT]”. (P83 – 84)
If you want to delete protected pictures,
cancel the protect...")
Playback (advanced) 85VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) You can set the protection for pictures you do not want to be deleted by accident. 1Select [SINGLE], [MULTI] or [CANCEL]. ∫Single setting Select the picture and set/cancel the protection.∫Multi setting/To cancel all settings Perform the same operation as in “Setting the Picture to be Printed and the Number of Prints [DPOF PRINT]”. (P83 – 84) If you want to delete protected pictures, cancel the protect...
Page 86

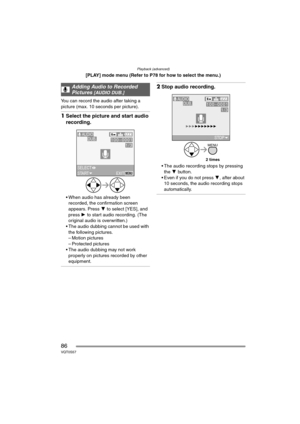

![Page 86
Playback (advanced)
86VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can record the audio after taking a
picture (max. 10 seconds per picture).
1Select the picture and start audio
recording.
When audio has already been
recorded, the confirmation screen
appears. Press 4 to select [YES], and
press 1 to start audio recording. (The
original audio is overwritten.)
The audio dubbing cannot be used with
the following pictures.
– Motion pictures
– Protected pictures
The...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-85.png "Page 86
Playback (advanced)
86VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can record the audio after taking a
picture (max. 10 seconds per picture).
1Select the picture and start audio
recording.
When audio has already been
recorded, the confirmation screen
appears. Press 4 to select [YES], and
press 1 to start audio recording. (The
original audio is overwritten.)
The audio dubbing cannot be used with
the following pictures.
– Motion pictures
– Protected pictures
The...")
Playback (advanced) 86VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) You can record the audio after taking a picture (max. 10 seconds per picture). 1Select the picture and start audio recording. When audio has already been recorded, the confirmation screen appears. Press 4 to select [YES], and press 1 to start audio recording. (The original audio is overwritten.) The audio dubbing cannot be used with the following pictures. – Motion pictures – Protected pictures The...
Page 87

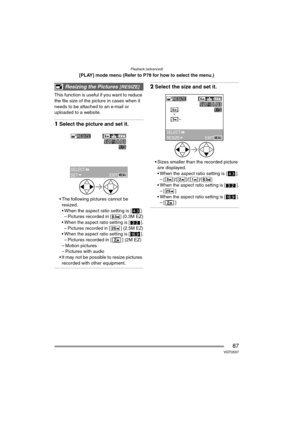

![Page 87
Playback (advanced)
87VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
This function is useful if you want to reduce
the file size of the picture in cases when it
needs to be attached to an e-mail or
uploaded to a website.
1 Select the picture and set it.
The following pictures cannot be
resized.
When the aspect ratio setting is [ ]. – Pictures recorded in [ ] (0.3M EZ)
When the aspect ratio setting is [ ].
– Pictures recorded in [ ] (2.5M EZ) When the aspect ratio setting...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-86.png "Page 87
Playback (advanced)
87VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
This function is useful if you want to reduce
the file size of the picture in cases when it
needs to be attached to an e-mail or
uploaded to a website.
1 Select the picture and set it.
The following pictures cannot be
resized.
When the aspect ratio setting is [ ]. – Pictures recorded in [ ] (0.3M EZ)
When the aspect ratio setting is [ ].
– Pictures recorded in [ ] (2.5M EZ) When the aspect ratio setting...")
Playback (advanced) 87VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) This function is useful if you want to reduce the file size of the picture in cases when it needs to be attached to an e-mail or uploaded to a website. 1 Select the picture and set it. The following pictures cannot be resized. When the aspect ratio setting is [ ]. – Pictures recorded in [ ] (0.3M EZ) When the aspect ratio setting is [ ]. – Pictures recorded in [ ] (2.5M EZ) When the aspect ratio setting...

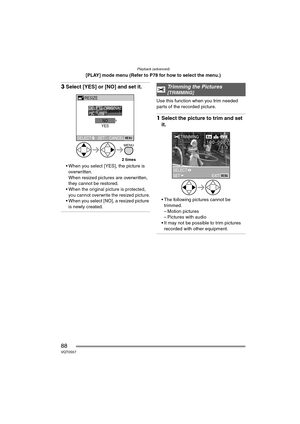

Page 88
![Page 88
Playback (advanced)
88VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
3Select [YES] or [NO] and set it.
When you select [YES], the picture is
overwritten.
When resized pictures are overwritten,
they cannot be restored.
When the original picture is protected,
you cannot overwrite the resized picture.
When you select [NO], a resized picture is newly created.
Use this function when you trim needed
parts of the recorded picture.
1 Select the picture to trim and set
it.
The...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-87.png "Page 88
Playback (advanced)
88VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
3Select [YES] or [NO] and set it.
When you select [YES], the picture is
overwritten.
When resized pictures are overwritten,
they cannot be restored.
When the original picture is protected,
you cannot overwrite the resized picture.
When you select [NO], a resized picture is newly created.
Use this function when you trim needed
parts of the recorded picture.
1 Select the picture to trim and set
it.
The...")
Playback (advanced) 88VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) 3Select [YES] or [NO] and set it. When you select [YES], the picture is overwritten. When resized pictures are overwritten, they cannot be restored. When the original picture is protected, you cannot overwrite the resized picture. When you select [NO], a resized picture is newly created. Use this function when you trim needed parts of the recorded picture. 1 Select the picture to trim and set it. The...

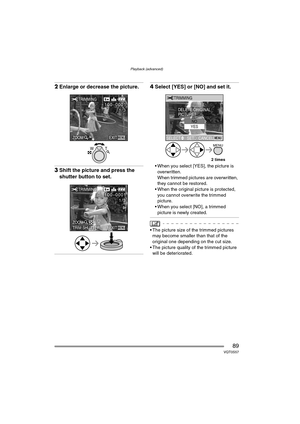

Page 89
![Page 89
Playback (advanced)
89VQT0S57
2Enlarge or decrease the picture.
3Shift the picture and press the
shutter button to set.
4Select [YES] or [NO] and set it.
When you select [YES], the picture is
overwritten.
When trimmed pictures are overwritten,
they cannot be restored.
When the original picture is protected,
you cannot overwrite the trimmed
picture.
When you select [NO], a trimmed
picture is newly created.
The picture size of the trimmed pictures
may become smaller than that of the...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-88.png "Page 89
Playback (advanced)
89VQT0S57
2Enlarge or decrease the picture.
3Shift the picture and press the
shutter button to set.
4Select [YES] or [NO] and set it.
When you select [YES], the picture is
overwritten.
When trimmed pictures are overwritten,
they cannot be restored.
When the original picture is protected,
you cannot overwrite the trimmed
picture.
When you select [NO], a trimmed
picture is newly created.
The picture size of the trimmed pictures
may become smaller than that of the...")
Playback (advanced) 89VQT0S57 2Enlarge or decrease the picture. 3Shift the picture and press the shutter button to set. 4Select [YES] or [NO] and set it. When you select [YES], the picture is overwritten. When trimmed pictures are overwritten, they cannot be restored. When the original picture is protected, you cannot overwrite the trimmed picture. When you select [NO], a trimmed picture is newly created. The picture size of the trimmed pictures may become smaller than that of the...

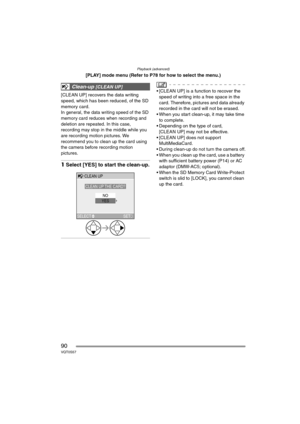

Page 90
![Page 90
Playback (advanced)
90VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
[CLEAN UP] recovers the data writing
speed, which has been reduced, of the SD
memory card.
In general, the data writing speed of the SD
memory card reduces when recording and
deletion are repeated. In this case,
recording may stop in the middle while you
are recording motion pictures. We
recommend you to clean up the card using
the camera before recording motion
pictures.
1Select [YES] to start the...](http://img.usermanuals.tech/thumb/58/65611/w300_dmc-fx9_en_om_d-89.png "Page 90
Playback (advanced)
90VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
[CLEAN UP] recovers the data writing
speed, which has been reduced, of the SD
memory card.
In general, the data writing speed of the SD
memory card reduces when recording and
deletion are repeated. In this case,
recording may stop in the middle while you
are recording motion pictures. We
recommend you to clean up the card using
the camera before recording motion
pictures.
1Select [YES] to start the...")
Playback (advanced) 90VQT0S57 [PLAY] mode menu (Refer to P78 for how to select the menu.) [CLEAN UP] recovers the data writing speed, which has been reduced, of the SD memory card. In general, the data writing speed of the SD memory card reduces when recording and deletion are repeated. In this case, recording may stop in the middle while you are recording motion pictures. We recommend you to clean up the card using the camera before recording motion pictures. 1Select [YES] to start the...
