Panasonic Dmc Fx9 Operating Instructions Manual

Recording Menu Settings

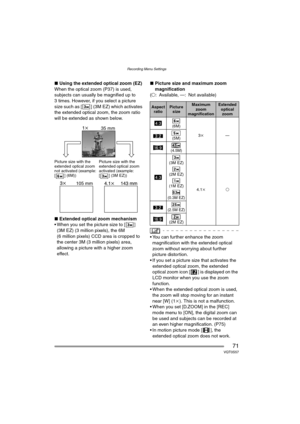

71VQT0S57
∫Using the extended optical zoom (EZ)
When the optical z oom (P37) is used,
subjects can usually be magnified up to
3 times. However, if you select a picture
size such as [ ] (3M EZ) which activates
the extended optical zoom, the zoom ratio
will be extended as shown below.
∫ Extended optical zoom mechanism
 When you set the picture size to [ ]
(3M EZ) (3 million pixels), the 6M
(6 million pixels) CCD area is cropped to
the center 3M (3 million pixels) area,...

Recording Menu Settings

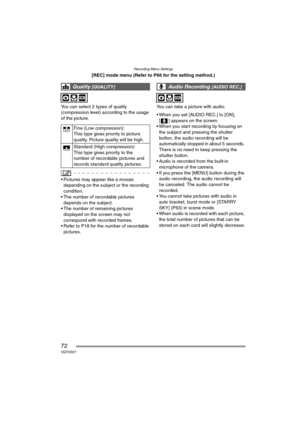

72VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
You can select 2 types of quality
(compression level) according to the usage
of the picture.
 Pictures may appear like a mosaic
depending on the subject or the recording
condition.
 The number of recordable pictures
depends on the subject.
 The number of remaining pictures
displayed on the screen may not
correspond with recorded frames.
 Refer to P18 for the number of recordable
pictures.You can take a...

Recording Menu Settings

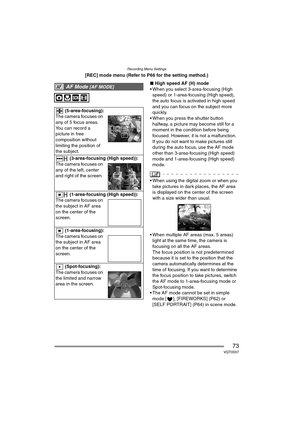

73VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)∫High speed AF (H) mode
 When you select 3-area-focusing (High  speed) or 1-area-focusing (High speed),
the auto focus is activated in high speed
and you can focus on the subject more
quickly.
 When you press the shutter button
halfway, a picture may become still for a
moment in the condition before being
focused. However, it is not a malfunction.
If you do not want to make pictures still
during the auto...

Recording Menu Settings

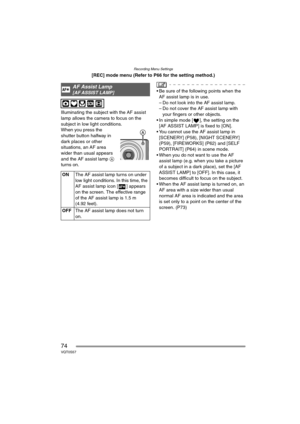

74VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
Illuminating the subject with the AF assist
lamp allows the camera to focus on the
subject in low light conditions.
When you press the
shutter button halfway in
dark places or other
situations, an AF area
wider than usual appears
and the AF assist lamp A
turns on.
 Be sure of the following points when the
AF assist lamp is in use.
– Do not look into the AF assist lamp.
– Do not cover the AF assist lamp...

Recording Menu Settings

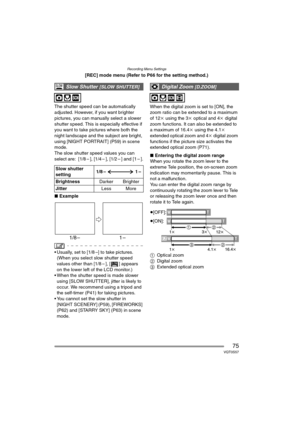

75VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
The shutter speed can be automatically
adjusted. However, if you want brighter
pictures, you can manually select a slower
shutter speed. This is especially effective if
you want to take pictures where both the
night landscape and the subject are bright,
using [NIGHT PORTRAIT] (P59) in scene
mode.
The slow shutter speed values you can
select are: [1/8 – ], [1/4 – ], [1/2 – ] and [1 – ].
∫ Example
 Usually,...

Recording Menu Settings

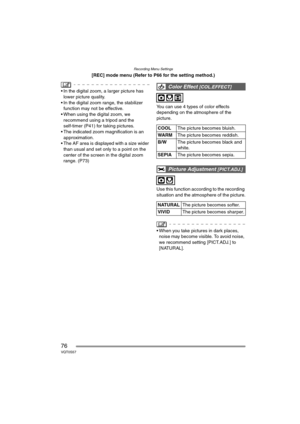

76VQT0S57
[REC] mode menu (Refer to P66 for the setting method.)
 In the digital zoom, a larger picture has
lower picture quality.
 In the digital zoom range, the stabilizer
function may not be effective.
 When using the digital zoom, we
recommend using a tripod and the
self-timer (P41) for taking pictures.
 The indicated zoom magnification is an
approximation.
 The AF area is displayed with a size wider
than usual and set only to a point on the
center of the screen in...

Playback (advanced)

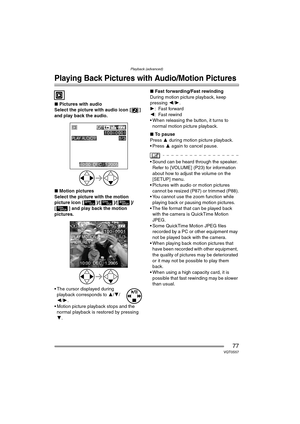

77VQT0S57
Playback (advanced)
Playing Back Pictures with Audio/Motion Pictures
∫Pictures with audio
Select the picture with audio icon [ ]
and play back the audio.
∫ Motion pictures
Select the picture with the motion
picture icon [ ]/[ ]/[ ]/
[ ] and play back the motion
pictures.
 The cursor displayed during  playback corresponds to  3/4/
2 /1 .
 Motion picture playback stops and the  normal playback is restored by pressing
4 . ∫
Fast forwarding/Fast rewinding
During motion...

Playback (advanced)

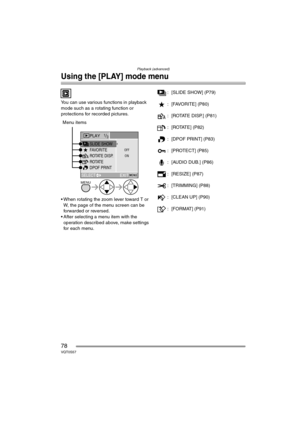

78VQT0S57
Using the [PLAY] mode menu
You can use various functions in playback
mode such as a rotating function or
protections for recorded pictures.

 When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
 After selecting a menu item with the
operation described above, make settings
for each menu.: [SLIDE SHOW] (P79)
:[FAVORITE] (P80)
: [ROTATE DISP.] (P81)
: [ROTATE] (P82)
: [DPOF PRINT] (P83)
: [PROTECT] (P85)
: [AUDIO DUB.]...

Playback (advanced)

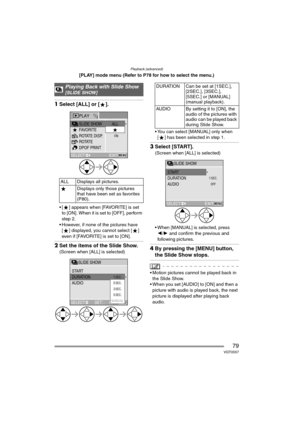

79VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
1Select [ALL] or [ ].
 [ ] appears when [FAVORITE] is set
to [ON]. When it is set to [OFF], perform
step 2.
 However, if none of the pictures have
[ ] displayed, you cannot select [ ]
even if [FAVORITE] is set to [ON].
2Set the items of the Slide Show.
(Screen when [ALL] is selected) You can select [MANUAL] only when
[ ] has been selected in step 1.
3Select [START].
(Screen when [ALL] is selected)
 When...

Playback (advanced)

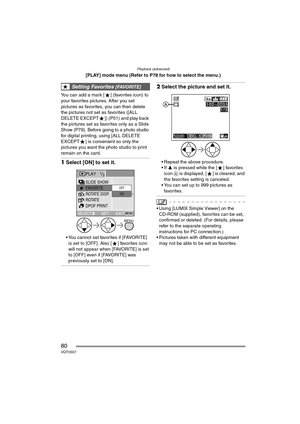

80VQT0S57
[PLAY] mode menu (Refer to P78 for how to select the menu.)
You can add a mark [ ] (favorites icon) to
your favorites pictures. After you set
pictures as favorites, you can then delete
the pictures not set as favorites ([ALL
DELETE EXCEPT ]) (P51) and play back
the pictures set as favorites only as a Slide
Show (P79). Before going to a photo studio
for digital printing, using [ALL DELETE
EXCEPT ] is convenient so only the
pictures you want the photo studio to print...
