Preparation
11VQT0S57

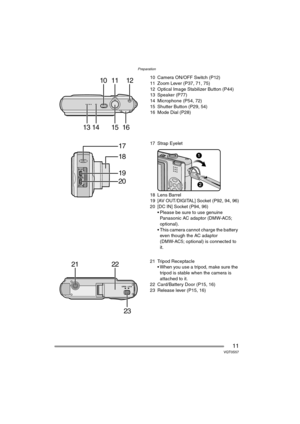

10 Camera ON/OFF Switch (P12)
11 Zoom Lever (P37, 71, 75)
12 Optical Image Stabilizer Button (P44)
13 Speaker (P77)
14 Microphone (P54, 72)
15 Shutter Button (P29, 54)
16 Mode Dial (P28)
17 Strap Eyelet
18 Lens Barrel
19 [AV OUT/DIGITAL] Socket (P92, 94, 96)
20 [DC IN] Socket (P94, 96)
 Please be sure to use genuine
Panasonic AC adaptor (DMW-AC5;
optional).
 This camera cannot charge the battery
even though the AC adaptor
(DMW-AC5; optional) is connected to
it.
21 Tripod...

Preparation
12VQT0S57

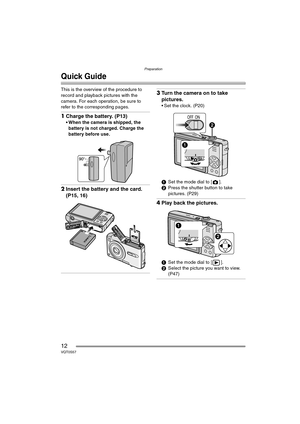

Quick Guide
This is the overview of the procedure to
record and playback pictures with the
camera. For each operation, be sure to
refer to the corresponding pages.
1Charge the battery. (P13)
 When the camera is shipped, the
battery is not charged. Charge the
battery before use.
2Insert the battery and the card.
(P15, 16)
3Turn the camera on to take
pictures.
 Set the clock. (P20)
1Set the mode dial to [ ].
2Press the shutter button to take
pictures. (P29)
4Play back the...

Preparation
13VQT0S57

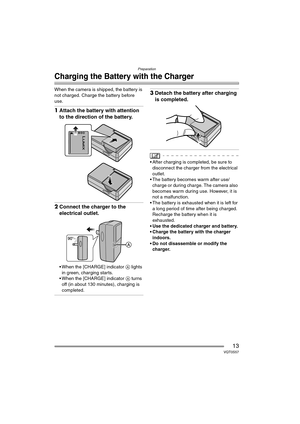

Charging the Battery with the Charger
When the camera is shipped, the battery is
not charged. Charge the battery before
use.
1Attach the battery with attention
to the direction of the battery.
2Connect the charger to the
electrical outlet.
 When the [CHARGE] indicator A lights
in green, charging starts.
 When the [CHARGE] indicator A turns
off (in about 130 minutes), charging is
completed.
3Detach the battery after charging
is completed.
 After charging is completed, be...

Preparation
14VQT0S57

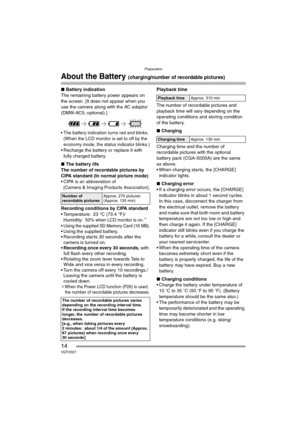

About the Battery (charging/number of recordable pictures)
∫Battery indication
The remaining battery power appears on
the screen. [It does not appear when you
use the camera along with the AC adaptor
(DMW-AC5; optional).]
 The battery indication turns red and blinks.
(When the LCD monitor is set to off by the
economy mode, the status indicator blinks.)
 Recharge the battery or replace it with
fully charged battery.
∫The battery life
The number of recordable pictures by
CIPA...

Preparation
15VQT0S57

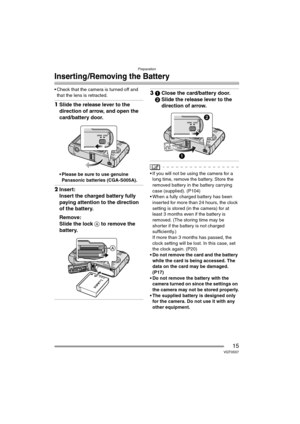

Inserting /Removing the Battery
 Check that the camera is turned off and
that the lens is retracted.
1Slide the release lever to the
direction of arrow, and open the
card/battery door.
 Please be sure to use genuine
Panasonic batteries (CGA-S005A).
2Insert:
Insert the charged battery fully
paying attention to the direction
of the battery.
Remove:
Slide the lock A to remove the
battery.
31Close the card/battery door.
2Slide the release lever to the
direction of arrow.
 If...

Preparation
16VQT0S57

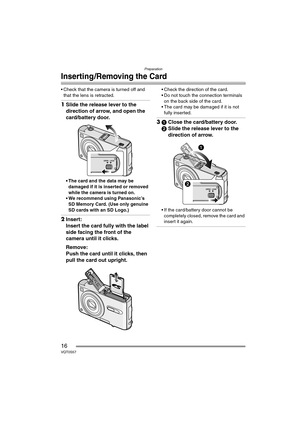

Inserting/Removing the Card
 Check that the camera is turned off and
that the lens is retracted.
1Slide the release lever to the
direction of arrow, and open the
card/battery door.
 The card and the data may be
damaged if it is inserted or removed
while the camera is turned on.
 We recommend using Panasonic’s
SD Memory Card. (Use only genuine
SD cards with an SD Logo.)
2Insert:
Insert the card fully with the label
side facing the front of the
camera until it clicks....

Preparation
17VQT0S57

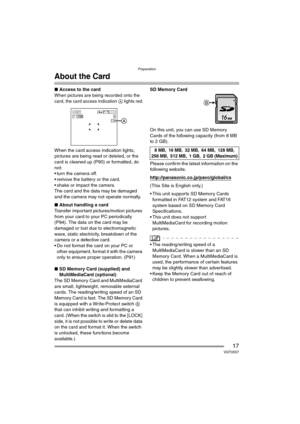

About the Card
∫Access to the card
When pictures are being recorded onto the
card, the card access indication A lights red.
When the card access indication lights,
pictures are being read or deleted, or the
card is cleaned up (P90) or formatted, do
not:
 turn the camera off.
 remove the battery or the card.
 shake or impact the camera.
The card and the data may be damaged
and the camera may not operate normally.
∫About handling a card
Transfer important pictures/motion...

Preparation
18VQT0S57

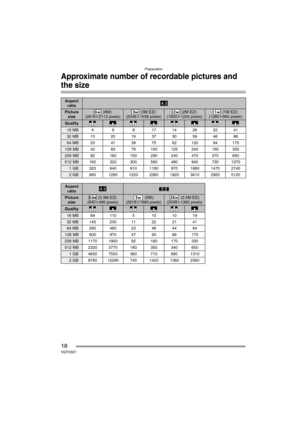

Approximate number of recordable pictures and
the size
Aspect
ratio
size (6M):
(2816k2112 pixels) (3M EZ):
(2048k1536 pixels) (2M EZ):
(1600k1200 pixels) (1M EZ):
(1280k960 pixels)
Quality
16 MB 4 9 9 17 14 28 22 41
32 MB 10 20 19 37 30 59 46 86
64 MB 20 41 39 75 62 120 94 175
128 MB 42 83 79 150 125 240 190 350
256 MB 82 160 150 290 240 470 370 690
512 MB 160 320 300 590 480 940 730 1370
1 GB 320 640 610 1180 970 1880 1470 2740
2 GB 660 1280 1220 2360 1920 3610 2920...

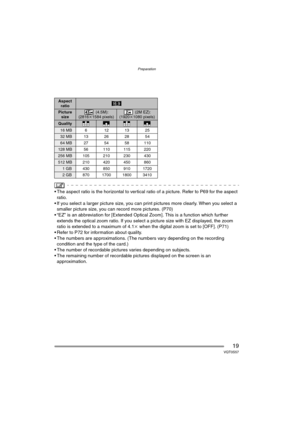

Preparation
19VQT0S57
 The aspect ratio is the horizontal to vertical ratio of a picture. Refer to P69 for the aspect
ratio.
 If you select a larger picture size, you can print pictures more clearly. When you select a
smaller picture size, you can record more pictures. (P70)
 “EZ” is an abbreviation for [Extended Optical Zoom]. This is a function which further
extends the optical zoom ratio. If you select a picture size with EZ displayed, the zoom
ratio is extended to a maximum of 4.1k when the...

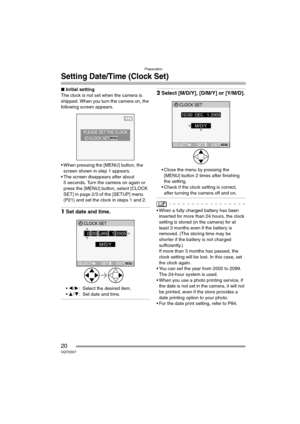

Preparation
20VQT0S57
Setting Date/Time (Clock Set)
∫Initial setting
The clock is not set when the camera is
shipped. When you turn the camera on, the
following screen appears.
 When pressing the [MENU] button, the
screen shown in step 1 appears.
 The screen disappears after about
5 seconds. Turn the camera on again or
press the [MENU] button, select [CLOCK
SET] in page 2/3 of the [SETUP] menu
(P21) and set the clock in steps 1 and 2.
1Set date and time.
2/1: Select the desired item.
3/4: Set...
