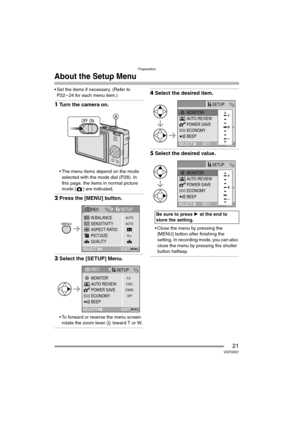

Preparation
21VQT0S57
About the Setup Menu
 Set the items if necessary. (Refer to
P22 – 24 for each menu item.)
1Turn the camera on.
 The menu items depend on the mode
selected with the mode dial (P28). In
this page, the items in normal picture
mode [ ] are indicated.
2Press the [MENU] button.
3Select the [SETUP] Menu.
 To forward or reverse the menu screen
rotate the zoom lever A toward T or W.
4Select the desired item.
5Select the desired value.
 Close the menu by pressing the
[MENU] button...

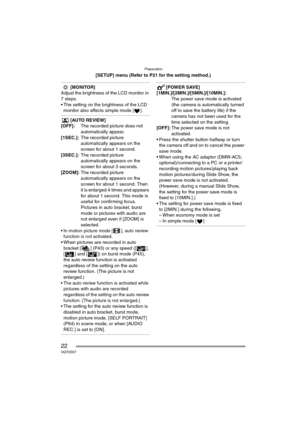

Preparation
22VQT0S57
[SETUP] menu (Refer to P21 for the setting method.)
[MONITOR]
Adjust the brightness of the LCD monitor in
7 steps.
 The setting on the brightness of the LCD
monitor also affects simple mode [ ].
[AUTO REVIEW]
[OFF]:The recorded picture does not
automatically appear.
[1SEC.]:The recorded picture
automatically appears on the
screen for about 1 second.
[3SEC.]:The recorded picture
automatically appears on the
screen for about 3 seconds.
[ZOOM]:The recorded picture...

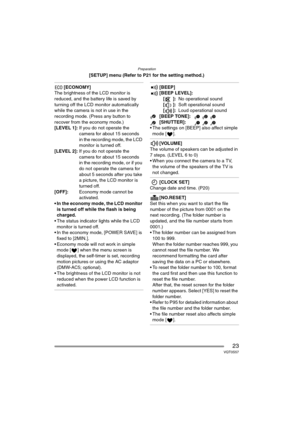

Preparation
23VQT0S57
[SETUP] menu (Refer to P21 for the setting method.)
[ECONOMY]
The brightness of the LCD monitor is
reduced, and the battery life is saved by
turning off the LCD monitor automatically
while the camera is not in use in the
recording mode. (Press any button to
recover from the economy mode.)
[LEVEL 1]:If you do not operate the
camera for about 15 seconds
in the recording mode, the LCD
monitor is turned off.
[LEVEL 2]:If you do not operate the
camera for about 15 seconds
in...

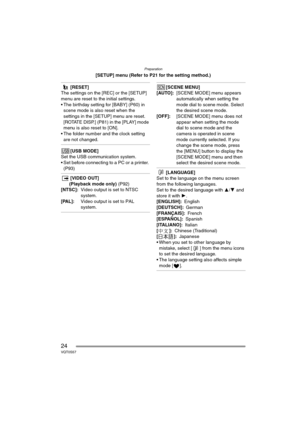

Preparation
24VQT0S57
[SETUP] menu (Refer to P21 for the setting method.)
[RESET]
The settings on the [REC] or the [SETUP]
menu are reset to the initial settings.
 The birthday setting for [BABY] (P60) in
scene mode is also reset when the
settings in the [SETUP] menu are reset.
[ROTATE DISP.] (P81) in the [PLAY] mode
menu is also reset to [ON].
 The folder number and the clock setting
are not changed.
[USB MODE]
Set the USB communication system.
 Set before connecting to a PC or a printer....

Preparation
25VQT0S57
About the LCD Monitor
ALCD monitor (LCD)
Press the [DISPLAY] button to change
the display.
 When the menu screen appears, the
[DISPLAY] button is not activated. During
multi playback (P48) or playback zoom
(P50), the indications on the screen can
be turned on and off.
In simple mode [ ] (P33)
BNormal display
CNo displayIn recording mode (P29)
DNormal display
EDisplay with histogram
FNo display (Recording guide line)
GNo display
¢1 Histogram
In playback mode (P47)
HNormal...

Preparation
26VQT0S57
∫To view the LCD monitor outdoors on
a bright sunny day (Power LCD
function)
When you press and hold the [PWR LCD]
button for 1 second, the power LCD
function is activated. The LCD monitor
becomes brighter than usual and easier to
see outdoors.
 The power LCD icon [ ] appears on the  screen.
 When you take pictures, the LCD monitor  automatically rever ts back to the normal
brightness 30 seconds after the
[PWR LCD] button is pressed. If you press
any button, the LCD...

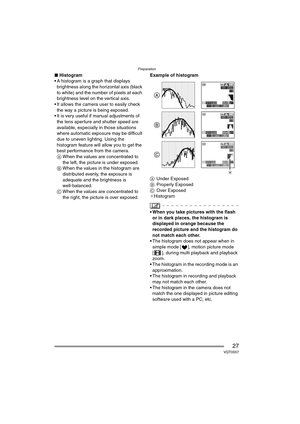

Preparation
27VQT0S57
∫Histogram
 A histogram is a graph that displays  brightness along the horizontal axis (black
to white) and the number of pixels at each
brightness level on the vertical axis.
 It allows the camera user to easily check
the way a picture is being exposed.
 It is very useful if manual adjustments of  the lens aperture and shutter speed are
available, especially in those situations
where automatic exposure may be difficult
due to uneven lighting. Using the
histogram feature...

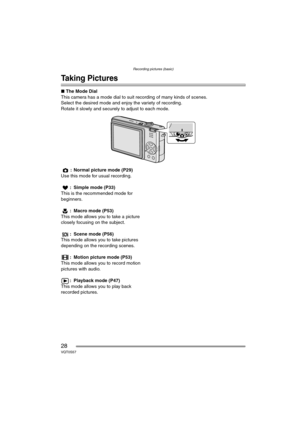

Recording pictures (basic)
28VQT0S57
Recording pictures (basic)
Taking Pictures
∫The Mode Dial
This camera has a mode dial to suit recording of many kinds of scenes.
Select the desired mode and enjoy the variety of recording.
Rotate it slowly and securely to adjust to each mode.
: Normal picture mode (P29)
Use this mode for usual recording.
: Simple mode (P33)
This is the recommended mode for
beginners.
: Macro mode (P53)
This mode allows you to take a picture
closely focusing on the subject.
: Scene...

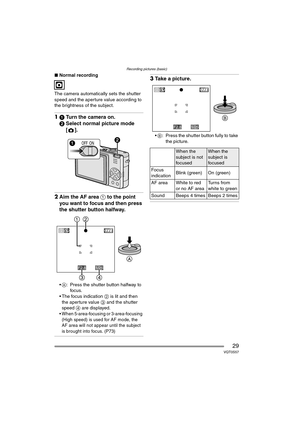

Recording pictures (basic)
29VQT0S57
∫Normal recording
The camera automatically sets the shutter
speed and the aperture value according to
the brightness of the subject.
1 1 Turn the camera on.
2 Select normal picture mode
[].
2Aim the AF area  1 to the point
you want to focus and then press
the shutter button halfway.
 A : Press the shutter button halfway to
foc us.
 The focus indication  2 is lit and then
the aperture value  3 and the shutter
speed  4 are displayed.
 When 5-area-focusing or...

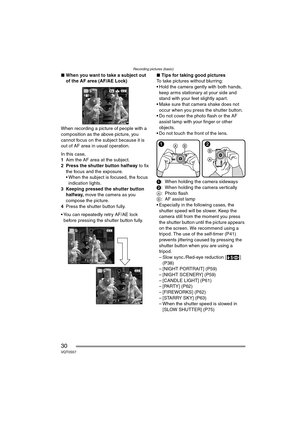

Recording pictures (basic)
30VQT0S57
∫When you want to take a subject out
of the AF area (AF/AE Lock)
When recording a picture of people with a
composition as the above picture, you
cannot focus on the subject because it is
out of AF area in usual operation.
In this case,
1Aim the AF area at the subject.
2 Press the shutter button halfway to fix
the focus and the exposure.
 When the subject is focused, the focus
indication lights.
3 Keeping pressed the shutter button
halfway, move the camera as...
