Recording pictures (basic)
41VQT0S57

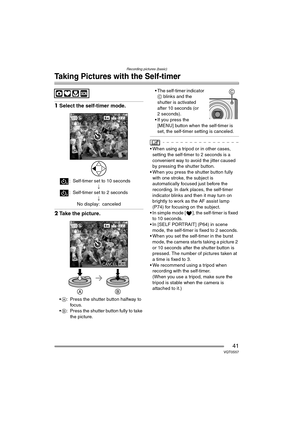

Taking Pictures with the Self-timer
1Select the self-timer mode.
: Self-timer set to 10 seconds
;
: Self-timer set to 2 seconds
;
No display: canceled
2Take the picture.
A: Press the shutter button halfway to
foc us.
B: Press the shutter button fully to take
the picture. The self-timer indicator
C blinks and the
shutter is activated
after 10 seconds (or
2 seconds).
 If you press the
[MENU] button when the self-timer is
set, the self-timer setting is...

Recording pictures (basic)
42VQT0S57

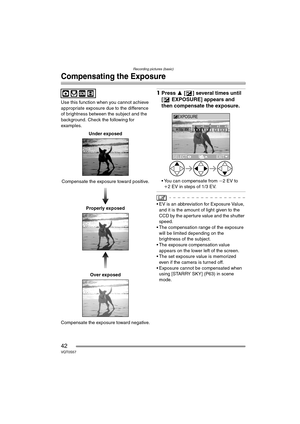

Compensating the Exposure
Use this function when you cannot achieve
appropriate exposure due to the difference
of brightness between the subject and the
background. Check the following for
examples.
Under exposed
Compensate the exposure toward positive.
Properly exposed
Over exposed
Compensate the exposure toward negative.
1Press 3 [ ] several times until
[ EXPOSURE] appears and
then compensate the exposure.
 You can compensate from j2EV to
i2 EV in steps of...

Recording pictures (basic)
43VQT0S57

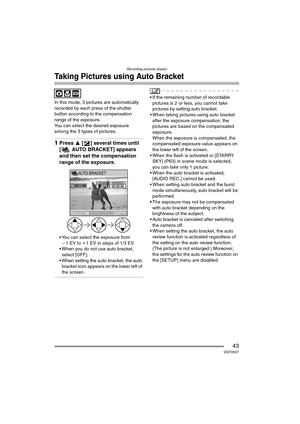

Taking Pictures using Auto Bracket
In this mode, 3 pictures are automatically
recorded by each press of the shutter
button according to the compensation
range of the exposure.
You can select the desired exposure
among the 3 types of pictures.
1Press 3 [ ] several times until
[ AUTO BRACKET] appears
and then set the compensation
range of the exposure.
 You can select the exposure from
j1EV to i1 EV in steps of 1/3 EV.
 When you do not use auto bracket,...

Recording pictures (basic)
44VQT0S57

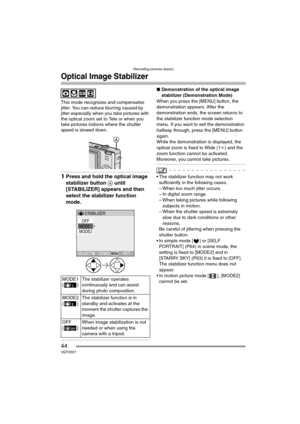

Optical Image Stabilizer
This mode recognizes and compensates
jitter. You can reduce blurring caused by
jitter especially when you take pictures with
the optical zoom set to Tele or when you
take pictures indoors where the shutter
speed is slowed down.
1Press and hold the optical image
stabilizer button A until
[STABILIZER] appears and then
select the stabilizer function
mode.
∫Demonstration of the optical image
stabilizer (Demonstration Mode)
When you press...

Recording pictures (basic)
45VQT0S57

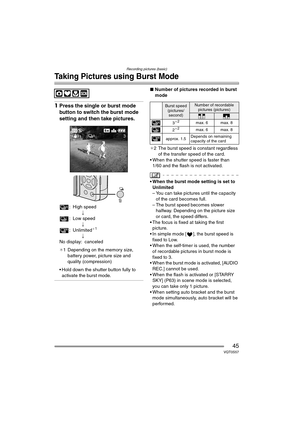

Taking Pictures using Burst Mode
1Press the single or burst mode
button to switch the burst mode
setting and then take pictures.
: High speed
;
: Low speed
;
: Unlimited
¢1
;
No display: canceled
¢1 Depending on the memory size,
battery power, picture size and
quality (compression)
 Hold down the shutter button fully to
activate the burst mode.
∫Number of pictures recorded in burst
mode
¢2 The burst speed is constant regardless
of the transfer speed of the...

Recording pictures (basic)
46VQT0S57

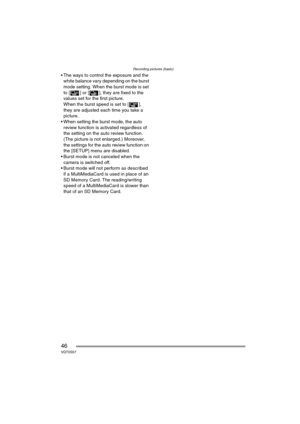

 The ways to control the exposure and the
white balance vary depending on the burst
mode setting. When the burst mode is set
to [ ] or [ ], they are fixed to the
values set for the first picture.
When the burst speed is set to [ ],
they are adjusted each time you take a
picture.
 When setting the burst mode, the auto
review function is activated regardless of
the setting on the auto review function.
(The picture is not enlarged.) Moreover,
the settings for...

Playback (basic)
47VQT0S57
Playback (basic)

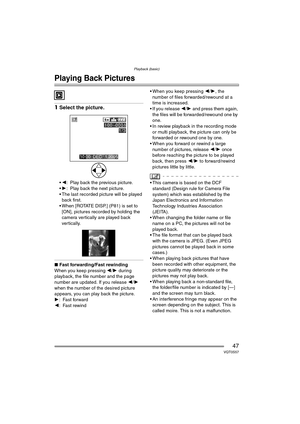

Playing Back Pictures
1Select the picture.
2 : Play back the previous picture.
 1 : Play back the next picture.
 The last recorded picture will be played  back first.
 When [ROTATE DISP.] (P81) is set to
[ON], pictures recorded by holding the
camera vertically are played back
vertically.
∫ Fast forwarding/Fast rewinding
When you keep pressing  2/1  during
playback, the file number and the page
number are updated. If you release  2/1
when the number of...

Playback (basic)
48VQT0S57

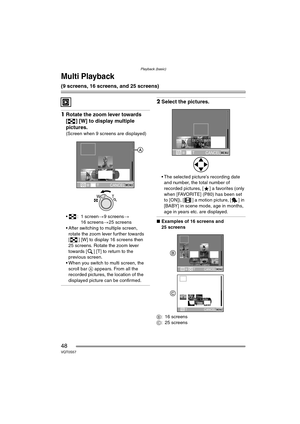

Multi Playback
(9 screens, 16 screens, and 25 screens)
1Rotate the zoom lever towards
[ ] [W] to display multiple
pictures.
(Screen when 9 screens are displayed)
 : 1 screen >9 screens >
16 screens >25 screens
 After switching to multiple screen,  rotate the zoom lever further towards
[ ] [W] to display 16 screens then
25 screens. Rotate the zoom lever
towards [ ] [T] to return to the
previous screen.
 When you switch to multi screen, the  scroll bar  A appears. From...

Playback (basic)
49VQT0S57

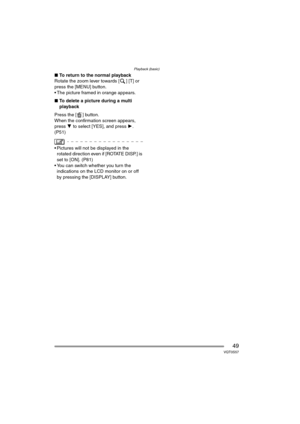

∫To return to the normal playback
Rotate the zoom lever towards [ ] [T] or
press the [MENU] button.
 The picture framed in orange appears.
∫To delete a picture during a multi
playback
Press the [ ] button.
When the confirmation screen appears,
press 4 to select [YES], and press 1.
(P51)
 Pictures will not be displayed in the
rotated direction even if [ROTATE DISP.] is
set to [ON]. (P81)
 You can switch whether you turn the
indications on the LCD monitor on or off
by...

Playback (basic)
50VQT0S57

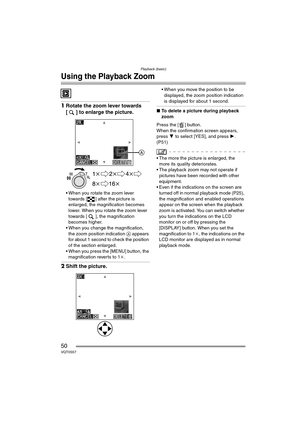

Using the Playback Zoom
1Rotate the zoom lever towards
[ ] to enlarge the picture.
 When you rotate the zoom lever
towards [ ] after the picture is
enlarged, the magnification becomes
lower. When you rotate the zoom lever
towards [ ], the magnification
becomes higher.
 When you change the magnification,
the zoom position indication  A appears
for about 1 second to check the position
of the section enlarged.
 When you press the [MENU] button, the  magnification...
