Recording pictures (basic)

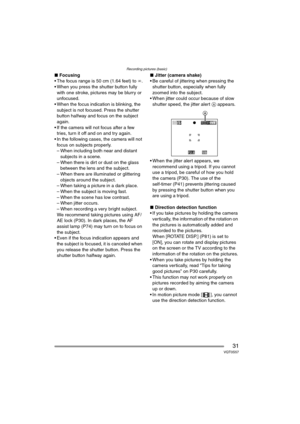

31VQT0S57
∫Focusing
 The focus range is 50 cm (1.64 feet) to  ¶.
 When you press the shutter button fully
with one stroke, pictures may be blurry or
unfocused.
 When the focus indication is blinking, the
subject is not focused. Press the shutter
button halfway and focus on the subject
again.
 If the camera will not focus after a few  tries, turn it off and on and try again.
 In the following cases, the camera will not
focus on subjects properly.
– When including both...

Recording pictures (basic)

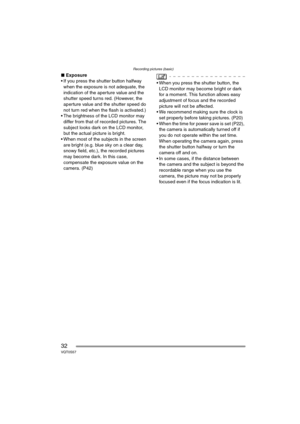

32VQT0S57
∫Exposure
 If you press the shutter button halfway
when the exposure is not adequate, the
indication of the aperture value and the
shutter speed turns red. (However, the
aperture value and the shutter speed do
not turn red when the flash is activated.)
 The brightness of the LCD monitor may
differ from that of recorded pictures. The
subject looks dark on the LCD monitor,
but the actual picture is bright.
 When most of the subjects in the screen
are bright...

Recording pictures (basic)

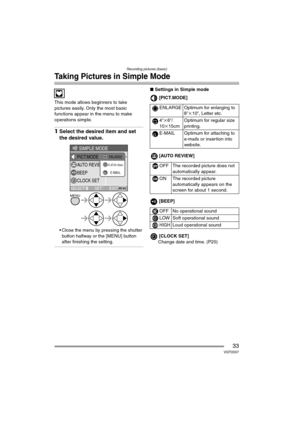

33VQT0S57
Taking Pictures in Simple Mode
This mode allows beginners to take
pictures easily. Only the most basic
functions appear in the menu to make
operations simple.
1Select the desired item and set
the desired value.
 Close the menu by pressing the shutter
button halfway or the [MENU] button
after finishing the setting.
∫Settings in Simple mode
[PICT.MODE]
[AUTO REVIEW]
[BEEP]
[CLOCK SET]
Change date and time. (P20)
SIMPLE MODE
A
BEEP
CLOCK SET
EXITMENUSELECT...

Recording pictures (basic)

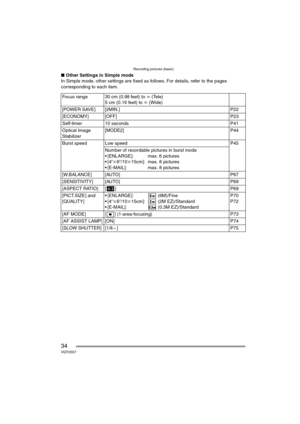

34VQT0S57
∫Other Settings in Simple mode
In Simple mode, other settings are fixed as follows. For details, refer to the pages
corresponding to each item.
Focus range 30 cm (0.98 feet) to ¶ (Tele)
5 cm (0.16 feet) to ¶ (Wide)
[POWER SAVE] [2MIN.] P22
[ECONOMY] [OFF] P23
Self-timer 10 seconds P41
Optical Image
Stabilizer[MODE2] P44
Burst speed Low speed P45
Number of recordable pictures in burst mode
 [ENLARGE]: max. 6 pictures
[4qk6q/10k15cm]: max. 8 pictures
 [E-MAIL]:...

Recording pictures (basic)
35VQT0S57

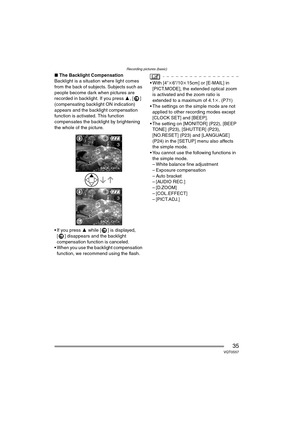

∫The Backlight Compensation
Backlight is a situation where light comes
from the back of subjects. Subjects such as
people become dark when pictures are
recorded in backlight. If you press 3, [ ]
(compensating backlight ON indication)
appears and the backlight compensation
function is activated. This function
compensates the backlight by brightening
the whole of the picture.
 If you press 3 while [ ] is displayed,
[ ] disappears and the backlight...

Recording pictures (basic)

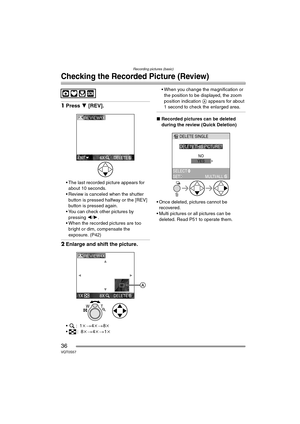

36VQT0S57
Checking the Recorded Picture (Review)
1Press  4 [REV].
 The last recorded picture appears for
about 10 seconds.
 Review is canceled when the shutter
button is pressed halfway or the [REV]
button is pressed again.
 You can check other pictures by
pressing  2/1 .
 When the recorded pictures are too  bright or dim, compensate the
exposure. (P42)
2 Enlarge and shift the picture.
:1 k> 4k> 8k
:8 k>4k> 1k  When you change the magnification or
the position to...

Recording pictures (basic)

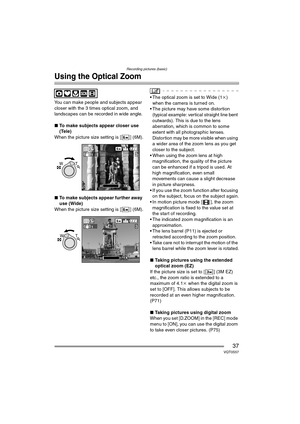

37VQT0S57
Using the Optical Zoom
You can make people and subjects appear
closer with the 3 times optical zoom, and
landscapes can be recorded in wide angle.
∫To make subjects appear closer use
(Tele)
When the picture size setting is [ ] (6M).
∫To make subjects appear further away
use (Wide)
When the picture size setting is [ ] (6M). The optical zoom is set to Wide (1k)
when the camera is turned on.
 The picture may have some distortion
(typical example: vertical...

Recording pictures (basic)
38VQT0S57

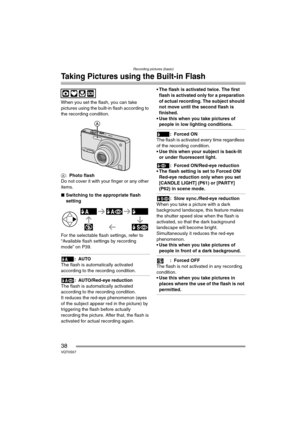

Taking Pictures using the Built-in Flash
When you set the flash, you can take
pictures using the built-in flash according to
the recording condition.
A:Photo flash
Do not cover it with your finger or any other
items.
∫Switching to the appropriate flash
setting
For the selectable flash settings, refer to
“Available flash settings by recording
mode” on P39.
:AUTO
The flash is automatically activated
according to the recording condition.
: AUTO/Red-eye reduction...

Recording pictures (basic)

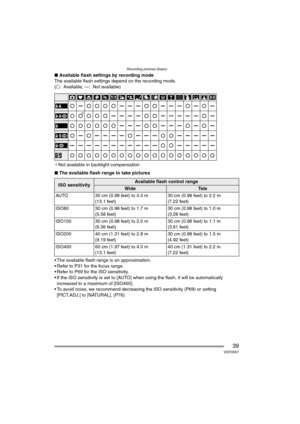

39VQT0S57
∫Available flash settings by recording mode
The available flash settings depend on the recording mode.
(±: Available, —: Not available)
¢Not available in backlight compensation
∫The available flash range to take pictures
 The available flash range is an approximation.
 Refer to P31 for the focus range.
 Refer to P69 for the ISO sensitivity.
 If the ISO sensitivity is set to [AUTO] when using the flash, it will be automatically
increased to a maximum of [ISO400]....

Recording pictures (basic)

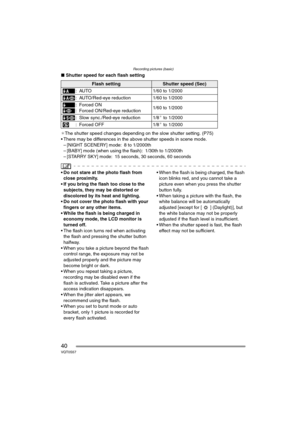

40VQT0S57
∫Shutter speed for each flash setting
¢The shutter speed changes depending on the slow shutter setting. (P75)
 There may be differences in the above shutter speeds in scene mode.
– [NIGHT SCENERY] mode: 8 to 1/2000th
– [BABY] mode (when using the flash): 1/30th to 1/2000th
– [STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds
 Do not stare at the photo flash from
close proximity.
 If you bring the flash too close to the
subjects, they may be distorted or...
