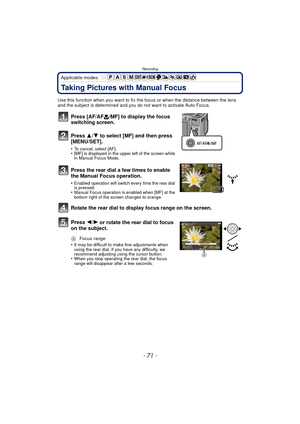

- 71 -
Recording
Applicable modes:
Taking Pictures with Manual Focus
Use this function when you want to fix the focus or when the distance between the lens
and the subject is determined and you do not want to activate Auto Focus.
Press [AF/AF #/MF] to display the focus
switching screen.
Press  3/4 to select [MF] and then press
[MENU/SET].
•To cancel, select [AF].•[MF] is displayed in the upper left of the screen while
in Manual Focus Mode.
Press the rear dial a few times to enable
the Manual Focus...

Recording
- 72 -

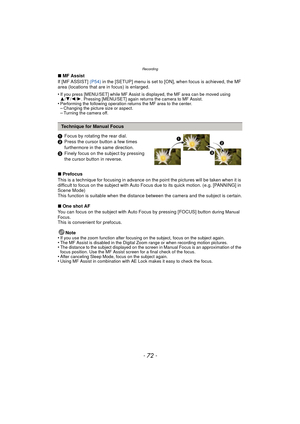

∫MF Assist
If [MF ASSIST]  (P54) in the [SETUP] menu is set to [ON], when focus is achieved, the MF
area (locations that are in focus) is enlarged.
•
If you press [MENU/SET] while MF Assist is displayed, the MF area can be moved using
3/ 4/2 /1. Pressing [MENU/SET] again returns the camera to MF Assist.
•Performing the following operation returns the MF area to the center.–Changing the picture size or aspect.–Turning the camera off.
1 Focus by rotating the rear dial.
2 Press the cursor...

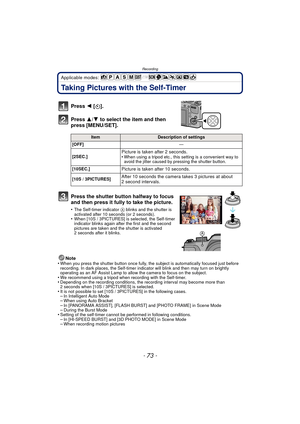

- 73 -
Recording
Applicable modes:
Taking Pictures with the Self-Timer
Note
•When you press the shutter button once fully, the subject is automatically focused just before
recording. In dark places, the Self-timer indi cator will blink and then may turn on brightly
operating as an AF Assist Lamp to allow the camera to focus on the subject.
•We recommend using a tripod when recording with the Self-timer.•Depending on the recording conditions, the recording interval may become more than
2 seconds when...

Recording

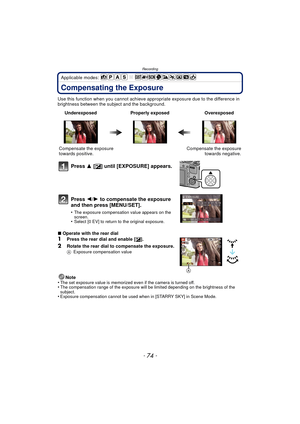

- 74 -
Applicable modes:
Compensating the Exposure
Use this function when you cannot achieve appropriate exposure due to the difference in
brightness between the subject and the background.
∫ Operate with the rear dial
1Press the rear dial and enable [ È].
2Rotate the rear dial to compensate the exposure.A Exposure compensation value
Note
•The set exposure value is memorized even if the camera is turned off.•The compensation range of the exposure will be limited depending on the brightness of...

- 75 -
Recording
Applicable modes:

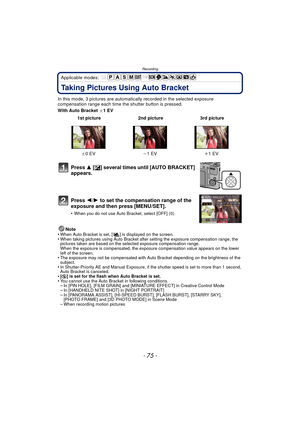

Taking Pictures Using Auto Bracket
In this mode, 3 pictures are automatically recorded in the selected exposure
compensation range each time the shutter button is pressed.
With Auto Bracket  d1EV
Note
•
When Auto Bracket is set, [ ] is displayed on the screen.•When taking pictures using Auto Bracket after setting the exposure compensation range, the
pictures taken are based on the selected exposure compensation range.
When the exposure is compensated, the exposure...

Recording

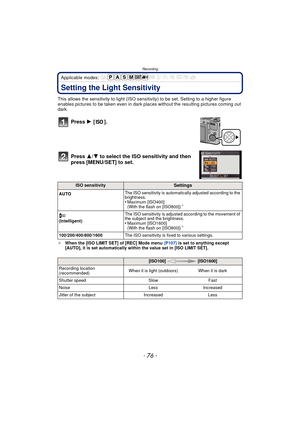

- 76 -
Applicable modes:
Setting the Light Sensitivity
This allows the sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure
enables pictures to be taken even in dark plac es without the resulting pictures coming out
dark.
Press  1 [].
Press  3/4 to select the ISO sensitivity and then
press [MENU/SET] to set.
¢ When the [ISO LIMIT SET] of [REC] Mode menu  (P107) is set to anything except
[AUTO], it is set automatically within the value set in [ISO LIMIT SET].
ISO...

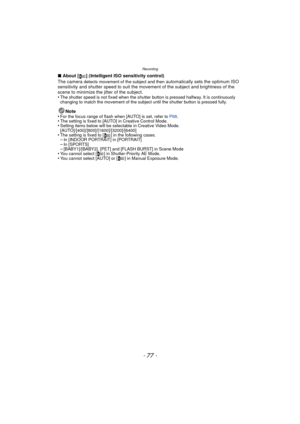

- 77 -
Recording
∫About [ ] (Intelligent ISO sensitivity control)
The camera
detects movement of the subject and then automatically sets the optimum ISO
sensitivity and shutter speed to suit the movement of the subject and brightness of the
scene to minimize the jitter of the subject.
•
The shutter speed is not fixed when the shutter button is pressed halfway. It is continuously
changing to match the movement of the subject until the shutter button is pressed fully.
Note
•For the focus range of flash...

Recording

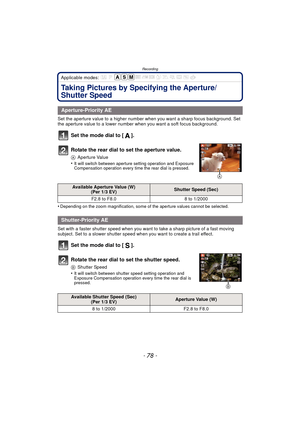

- 78 -
Applicable modes:
Taking Pictures by Specifying the Aperture/
Shutter Speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture value.
AAperture Value
•
It will switch between aperture setting operation and Exposure
Compensation operation every time the rear dial is pressed.
•Depending on the zoom...

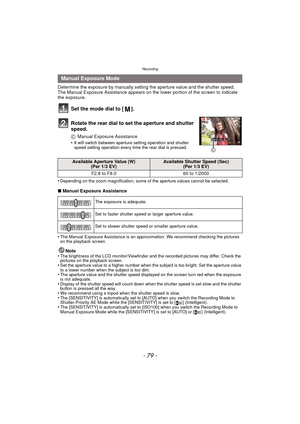

- 79 -
Recording
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture and shutter
speed.
CManual Exposure Assistance
•
It will switch between aperture setting operation and shutter
speed setting operation every time the rear dial is pressed.
•Depending on the zoom magnification, some of  the aperture...

Recording

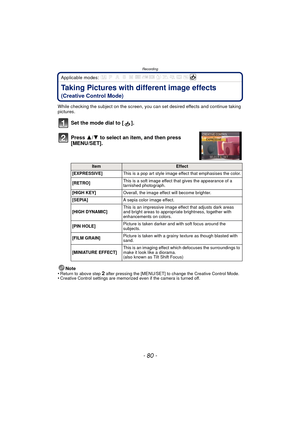

- 80 -
Applicable modes:
Taking Pictures with different image effects
(Creative Control Mode)
While checking the subject on the screen, you can set desired effects and continue taking
pictures.
Set the mode dial to [ ].
Press 3/4 to select an item, and then press
[MENU/SET].
Note
•Return to above step 2 after pressing the [MENU/SET] to change the Creative Control Mode.•Creative Control settings are memorized even if the camera is turned off.
ItemEffect
[EXPRESSIVE] This is a pop art style...
