Panasonic Dmc Fz5 Operating Instructions Manual

Others
111VQT0Q09

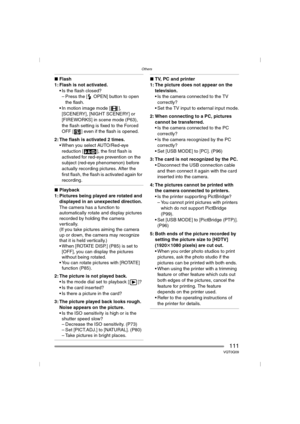

∫Flash
1: Flash is not activated.
 Is the flash closed?
– Press the [ OPEN] button to open
the flash.
 In motion image mode [ ],
[SCENERY], [NIGHT SCENERY] or
[FIREWORKS] in scene mode (P63),
the flash setting is fixed to the Forced
OFF [ ] even if the flash is opened.
2: The flash is activated 2 times.
 When you select AUTO/Red-eye
reduction [ ], the first flash is
activated for red-eye prevention on the
subject (red-eye phenomenon) before
actually recording pictures. After...

Others
112VQT0Q09

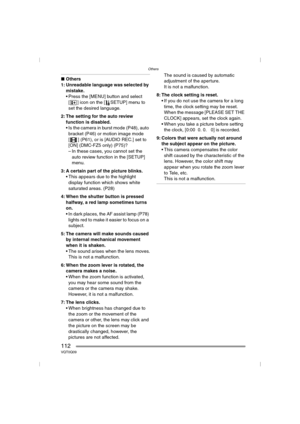

∫Others
1: Unreadable language was selected by
mistake.
 Press the [MENU] button and select
[ ] icon on the [ SETUP] menu to
set the desired language.
2: The setting for the auto review
function is disabled.
 Is the camera in burst mode (P48), auto
bracket (P46) or motion image mode
[ ] (P61), or is [AUDIO REC.] set to
[ON] (DMC-FZ5 only) (P75)?
– In these cases, you cannot set the
auto review function in the [SETUP]
menu.
3: A certain part of the picture blinks.
 This...

Others
113VQT0Q09

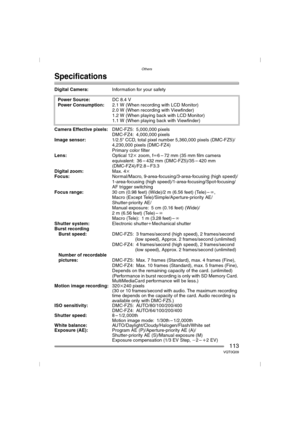

Specifications
Digital Camera:Information for your safety
Camera Effective pixels:DMC-FZ5: 5,000,000 pixels
DMC-FZ4: 4,000,000 pixels
Image sensor:1/2.5q CCD, total pixel number 5,360,000 pixels (DMC-FZ5)/
4,230,000 pixels (DMC-FZ4)
Primary color filter
Lens:Optical 12kzoom, fl6 – 72 mm (35 mm film camera
equivalent: 36 – 432 mm (DMC-FZ5)/35 – 420 mm
(DMC-FZ4)/F2.8 – F3.3
Digital zoom:Max. 4k
Focus:Normal/Macro, 9-area-focusing/3-area-focusing (high speed)/
1-area-focusing (high...

Others
114VQT0Q09

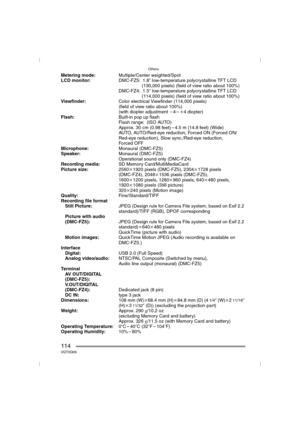

Metering mode:Multiple/Center weighted/Spot
LCD monitor:DMC-FZ5: 1.8qlow-temperature polycrystalline TFT LCD
(130,000 pixels) (field of view ratio about 100%)
DMC-FZ4: 1.5qlow-temperature polycrystalline TFT LCD
(114,000 pixels) (field of view ratio about 100%)
Viewfinder:Color electrical Viewfinder (114,000 pixels)
(field of view ratio about 100%)
(with diopter adjustment j4–i4 diopter)
Flash:Built-in pop up flash
Flash range: (ISO AUTO)
Approx. 30 cm (0.98 feet) – 4.5 m (14.8 feet)...

Others
115VQT0Q09

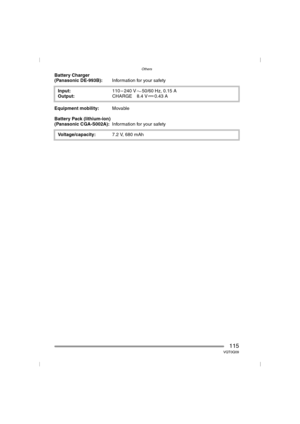

Battery Charger
(Panasonic DE-993B):Information for your safety
Equipment mobility:Movable
Battery Pack (lithium-ion)
(Panasonic CGA-S002A):Information for your safety Input:110 – 240 V 50/60 Hz, 0.15 A
Output:CHARGE 8.4 V 0.43 A
Voltage/capacity:7.2 V, 680 mAh
VQT0Q09ENG.book  115 ページ  ２００５年１月２５日　火曜日　午後８時１７分

Others
116VQT0Q09

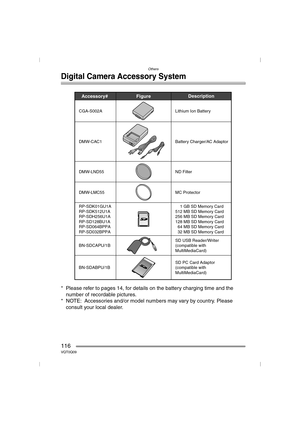

Digital Camera Accessory System
* Please refer to pages 14, for details on the battery charging time and the
number of recordable pictures.
* NOTE: Accessories and/or model numbers may vary by country. Please
consult your local dealer.
Accessory# Description
Figure
BN-SDCAPU/1B
BN-SDABPU/1B    1 GB SD Memory Card
512 MB SD Memory Card
256 MB SD Memory Card
128 MB SD Memory Card
  64 MB SD Memory Card
  32 MB SD Memory Card
SD USB Reader/Writer
(compatible with
MultiMediaCard)...

Others
117VQT0Q09

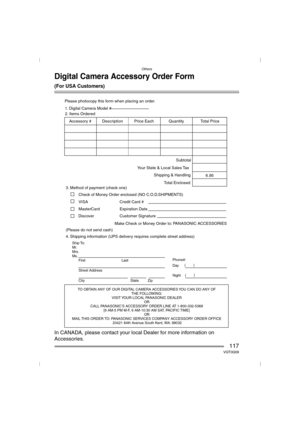

Digital Camera Accessory Order Form
(For USA Customers)
In CANADA, please contact your local Dealer for more information on
Accessories.
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-5 PM M-F, 6 AM-10:30 AM SAT, PACIFIC TIME]
OR
MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032...

Others
118VQT0Q09

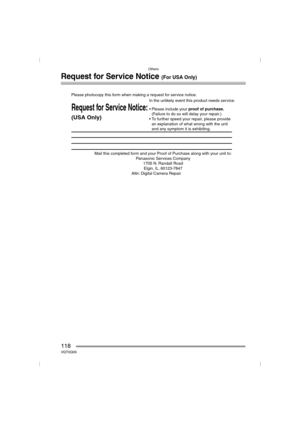

Request for Service Notice (For USA Only)
Mail this completed form and your Proof of Purchase along with your unit to:
Panasonic Services Company
1705 N. Randall Road
Elgin, IL. 60123-7847
Attn: Digital Camera Repair
Request for Service Notice:
(USA Only)
Please photocopy this form when making a request for service notice.
In the unlikely event this product needs service.
Please include your proof of purchase.
(Failure to do so will delay your repair.)
To...

Others
119VQT0Q09

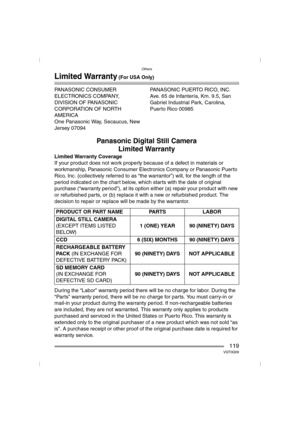

Limited Warranty (For USA Only)
PANASONIC CONSUMER
ELECTRONICS COMPANY,
DIVISION OF PANASONIC
CORPORATION OF NORTH
AMERICA
One Panasonic Way, Secaucus, New
Jersey 07094PANASONIC PUERTO RICO, INC.
Ave. 65 de Infantería, Km. 9.5, San
Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Digital Still Camera
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics...

Others
120VQT0Q09

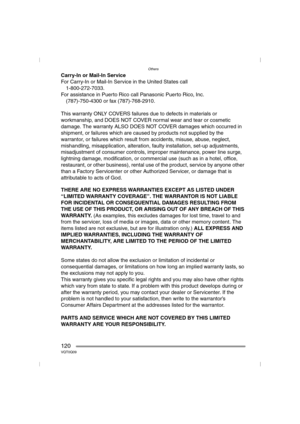

Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call
1-800-272-7033.
For assistance in Puerto Rico call Panasonic Puerto Rico, Inc.
(787)-750-4300 or fax (787)-768-2910.
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the
warrantor, or...
