Panasonic Dmc Fz5 Operating Instructions Manual

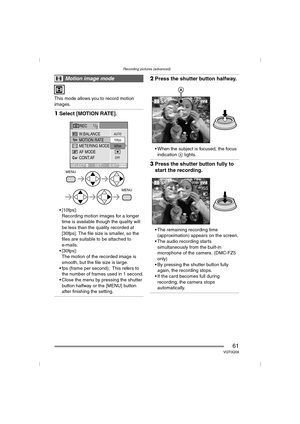

Recording pictures (advanced)
61VQT0Q09
This mode allows you to record motion
images.
1Select [MOTION RATE].
 [10fps]:
Recording motion images for a longer
time is available though the quality will
be less than the quality recorded at
[30fps]. The file size is smaller, so the
files are suitable to be attached to
e-mails.
 [30fps]:
The motion of the recorded image is
smooth, but the file size is large.
 fps (frame per second); This refers to
the number of frames used in 1 second.
 Close the...

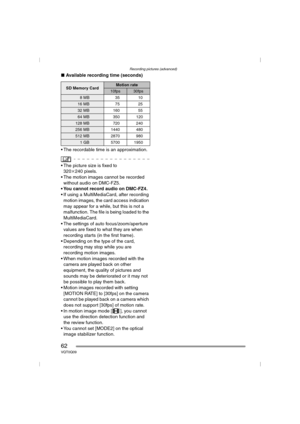

Recording pictures (advanced)
62VQT0Q09
∫Available recording time (seconds)
 The recordable time is an approximation.
 The picture size is fixed to
320k240 pixels.
 The motion images cannot be recorded
without audio on DMC-FZ5.
 You cannot record audio on DMC-FZ4.
 If using a MultiMediaCard, after recording
motion images, the card access indication
may appear for a while, but this is not a
malfunction. The file is being loaded to the
MultiMediaCard.
 The settings of auto focus/zoom/aperture...

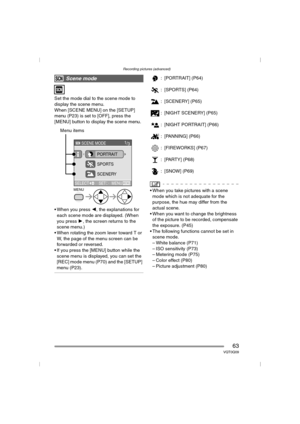

Recording pictures (advanced)
63VQT0Q09
Set the mode dial to the scene mode to
display the scene menu.
When [SCENE MENU] on the [SETUP]
menu (P23) is set to [OFF], press the
[MENU] button to display the scene menu.
 When you press 2, the explanations for
each scene mode are displayed. (When
you press 1, the screen returns to the
scene menu.)
 When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
 If you press the [MENU] button while the
scene...

Recording pictures (advanced)
64VQT0Q09
Select this mode when you want to take
pictures of people.
This mode allows you to make the subject
stand out from an unfocused background
and adjust the exposure and the hue to
achieve a healthy complexion on the
subject.
∫Technique for Portrait mode
To make this mode more effective:
1 Rotate the zoom lever to Tele as far as
possible.
2 To maximize the effect, select a
background as far as possible from the
camera, and get closer to the subject.
 This...

Recording pictures (advanced)
65VQT0Q09
This mode allows you to take a picture of a
wide landscape. The camera focuses on a
distant subject preferentially.
 The focus range is 5 m (16.4 feet) –¶.
 The ISO sensitivity is fixed to [AUTO].
 The flash setting is fixed to Forced OFF
[].
 The setting on the AF assist lamp is
disabled.This mode allows you to take a picture of a
nightscape. The landscape can be
recorded vividly by slowing down the
shutter speed.
∫Technique for Night scenery mode
...

Recording pictures (advanced)
66VQT0Q09
This mode allows you to take pictures
against a night landscape. The subject can
be recorded with brightness in real life by
using the flash and slowing down the
shutter speed.
∫Technique for Night portrait mode
 Open the flash. (P40)
 Since the shutter speed becomes slow,  we recommend using a tripod.
 Keep the subject still for about 1 second
when taking a picture.
 We recommend taking pictures by rotating  the zoom lever to Wide (1 k) and being at
a...

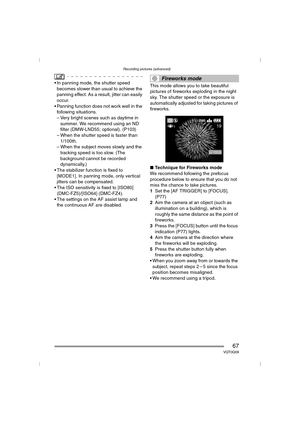

Recording pictures (advanced)
67VQT0Q09
 In panning mode, the shutter speed
becomes slower than usual to achieve the
panning effect. As a result, jitter can easily
occur.
 Panning function does not work well in the
following situations.
– Very bright scenes such as daytime in
summer. We recommend using an ND
filter (DMW-LND55; optional). (P103)
– When the shutter speed is faster than
1/100th.
– When the subject moves slowly and the
tracking speed is too slow. (The
background cannot be recorded...

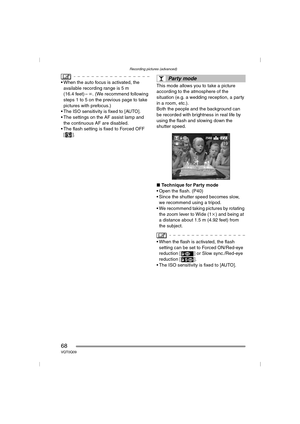

Recording pictures (advanced)
68VQT0Q09
 When the auto focus is activated, the
available recording range is 5 m
(16.4 feet) –¶. (We recommend following
steps 1 to 5 on the previous page to take
pictures with prefocus.)
 The ISO sensitivity is fixed to [AUTO].
 The settings on the AF assist lamp and
the continuous AF are disabled.
 The flash setting is fixed to Forced OFF
[].This mode allows you to take a picture
according to the atmosphere of the
situation (e.g. a wedding reception, a party...

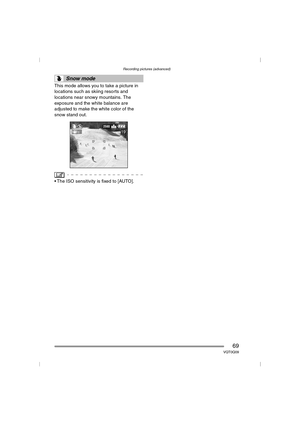

Recording pictures (advanced)
69VQT0Q09
This mode allows you to take a picture in
locations such as skiing resorts and
locations near snowy mountains. The
exposure and the white balance are
adjusted to make the white color of the
snow stand out.
 The ISO sensitivity is fixed to [AUTO].
Snow mode
256019
VQT0Q09ENG.book  69 ページ  ２００５年１月２５日　火曜日　午後８時１７分

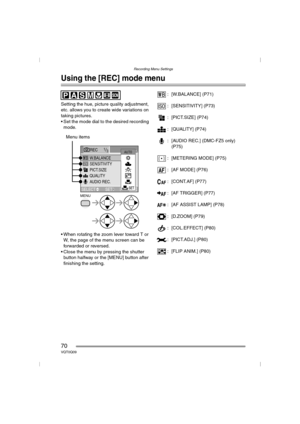

Recording Menu Settings
70VQT0Q09
Recording Menu Settings
Using the [REC] mode menu
Setting the hue, picture quality adjustment,
etc. allows you to create wide variations on
taking pictures.
 Set the mode dial to the desired recording
mode.
 When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
 Close the menu by pressing the shutter
button halfway or the [MENU] button after
finishing the setting.: [W.BALANCE] (P71)
: [SENSITIVITY] (P73)
:...
