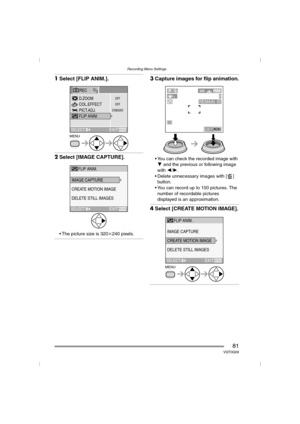

Page 81
![Page 81
Recording Menu Settings
81VQT0Q09
1Select [FLIP ANIM.].
2Select [IMAGE CAPTURE].
The picture size is 320k240 pixels.
3Capture images for flip animation.
You can check the recorded image with
4 and the previous or following image
with 2/1.
Delete unnecessary images with [ ]
button.
You can record up to 100 pictures. The
number of recordable pictures
displayed is an approximation.
4Select [CREATE MOTION IMAGE].
MENU
OFF
STANDARD
OFF
COL.EFFECT
FLIP ANIM. D.ZOOM
PICT.ADJ.
EXITMENUSELECT
REC3/3...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-80.png "Page 81
Recording Menu Settings
81VQT0Q09
1Select [FLIP ANIM.].
2Select [IMAGE CAPTURE].
The picture size is 320k240 pixels.
3Capture images for flip animation.
You can check the recorded image with
4 and the previous or following image
with 2/1.
Delete unnecessary images with [ ]
button.
You can record up to 100 pictures. The
number of recordable pictures
displayed is an approximation.
4Select [CREATE MOTION IMAGE].
MENU
OFF
STANDARD
OFF
COL.EFFECT
FLIP ANIM. D.ZOOM
PICT.ADJ.
EXITMENUSELECT
REC3/3...")
Recording Menu Settings 81VQT0Q09 1Select [FLIP ANIM.]. 2Select [IMAGE CAPTURE]. The picture size is 320k240 pixels. 3Capture images for flip animation. You can check the recorded image with 4 and the previous or following image with 2/1. Delete unnecessary images with [ ] button. You can record up to 100 pictures. The number of recordable pictures displayed is an approximation. 4Select [CREATE MOTION IMAGE]. MENU OFF STANDARD OFF COL.EFFECT FLIP ANIM. D.ZOOM PICT.ADJ. EXITMENUSELECT REC3/3...

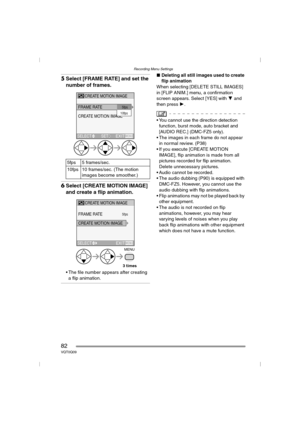

Page 82
![Page 82
Recording Menu Settings
82VQT0Q09
5Select [FRAME RATE] and set the
number of frames.
6Select [CREATE MOTION IMAGE]
and create a flip animation.
The file number appears after creating
a flip animation.
∫Deleting all still images used to create
flip animation
When selecting [DELETE STILL IMAGES]
in [FLIP ANIM.] menu, a confirmation
screen appears. Select [YES] with 4 and
then press 1.
You cannot use the direction detection
function, burst mode, auto bracket and
[AUDIO REC.] (DMC-FZ5 only).
...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-81.png "Page 82
Recording Menu Settings
82VQT0Q09
5Select [FRAME RATE] and set the
number of frames.
6Select [CREATE MOTION IMAGE]
and create a flip animation.
The file number appears after creating
a flip animation.
∫Deleting all still images used to create
flip animation
When selecting [DELETE STILL IMAGES]
in [FLIP ANIM.] menu, a confirmation
screen appears. Select [YES] with 4 and
then press 1.
You cannot use the direction detection
function, burst mode, auto bracket and
[AUDIO REC.] (DMC-FZ5 only).
...")
Recording Menu Settings 82VQT0Q09 5Select [FRAME RATE] and set the number of frames. 6Select [CREATE MOTION IMAGE] and create a flip animation. The file number appears after creating a flip animation. ∫Deleting all still images used to create flip animation When selecting [DELETE STILL IMAGES] in [FLIP ANIM.] menu, a confirmation screen appears. Select [YES] with 4 and then press 1. You cannot use the direction detection function, burst mode, auto bracket and [AUDIO REC.] (DMC-FZ5 only). ...

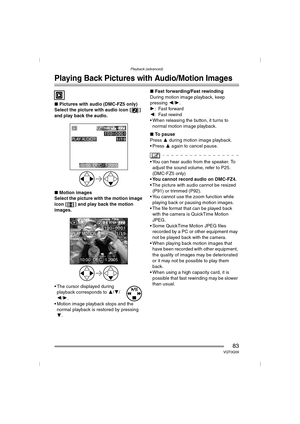

Page 83
![Page 83
Playback (advanced)
83VQT0Q09
Playback (advanced)
Playing Back Pictures with Audio/Motion Images
∫Pictures with audio (DMC-FZ5 only)
Select the picture with audio icon [ ]
and play back the audio.
∫ Motion images
Select the picture with the motion image
icon [ ] and play back the motion
images.
The cursor displayed during playback corresponds to 3/4/
2 /1 .
Motion image playback stops and the normal playback is restored by pressing
4 . ∫
Fast forwarding/Fast rewinding
During motion image...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-82.png "Page 83
Playback (advanced)
83VQT0Q09
Playback (advanced)
Playing Back Pictures with Audio/Motion Images
∫Pictures with audio (DMC-FZ5 only)
Select the picture with audio icon [ ]
and play back the audio.
∫ Motion images
Select the picture with the motion image
icon [ ] and play back the motion
images.
The cursor displayed during playback corresponds to 3/4/
2 /1 .
Motion image playback stops and the normal playback is restored by pressing
4 . ∫
Fast forwarding/Fast rewinding
During motion image...")
Playback (advanced) 83VQT0Q09 Playback (advanced) Playing Back Pictures with Audio/Motion Images ∫Pictures with audio (DMC-FZ5 only) Select the picture with audio icon [ ] and play back the audio. ∫ Motion images Select the picture with the motion image icon [ ] and play back the motion images. The cursor displayed during playback corresponds to 3/4/ 2 /1 . Motion image playback stops and the normal playback is restored by pressing 4 . ∫ Fast forwarding/Fast rewinding During motion image...

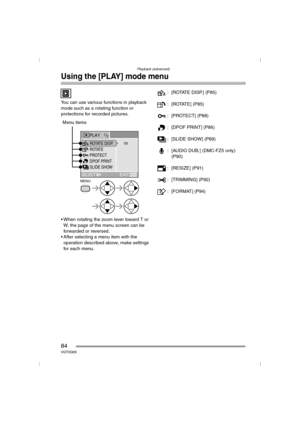

Page 84
![Page 84
Playback (advanced)
84VQT0Q09
Using the [PLAY] mode menu
You can use various functions in playback
mode such as a rotating function or
protections for recorded pictures.
When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
After selecting a menu item with the
operation described above, make settings
for each menu.: [ROTATE DISP.] (P85)
: [ROTATE] (P85)
: [PROTECT] (P88)
: [DPOF PRINT] (P86)
: [SLIDE SHOW] (P89)
: [AUDIO DUB.] (DMC-FZ5 only)...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-83.png "Page 84
Playback (advanced)
84VQT0Q09
Using the [PLAY] mode menu
You can use various functions in playback
mode such as a rotating function or
protections for recorded pictures.
When rotating the zoom lever toward T or
W, the page of the menu screen can be
forwarded or reversed.
After selecting a menu item with the
operation described above, make settings
for each menu.: [ROTATE DISP.] (P85)
: [ROTATE] (P85)
: [PROTECT] (P88)
: [DPOF PRINT] (P86)
: [SLIDE SHOW] (P89)
: [AUDIO DUB.] (DMC-FZ5 only)...")
Playback (advanced) 84VQT0Q09 Using the [PLAY] mode menu You can use various functions in playback mode such as a rotating function or protections for recorded pictures. When rotating the zoom lever toward T or W, the page of the menu screen can be forwarded or reversed. After selecting a menu item with the operation described above, make settings for each menu.: [ROTATE DISP.] (P85) : [ROTATE] (P85) : [PROTECT] (P88) : [DPOF PRINT] (P86) : [SLIDE SHOW] (P89) : [AUDIO DUB.] (DMC-FZ5 only)...

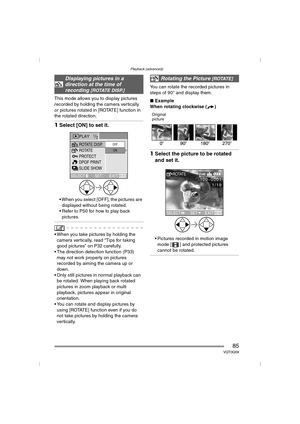

Page 85
![Page 85
Playback (advanced)
85VQT0Q09
This mode allows you to display pictures
recorded by holding the camera vertically
or pictures rotated in [ROTATE] function in
the rotated direction.
1Select [ON] to set it.
When you select [OFF], the pictures are
displayed without being rotated.
Refer to P50 for how to play back
pictures.
When you take pictures by holding the
camera vertically, read “Tips for taking
good pictures” on P32 carefully.
The direction detection function (P33)
may not work properly...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-84.png "Page 85
Playback (advanced)
85VQT0Q09
This mode allows you to display pictures
recorded by holding the camera vertically
or pictures rotated in [ROTATE] function in
the rotated direction.
1Select [ON] to set it.
When you select [OFF], the pictures are
displayed without being rotated.
Refer to P50 for how to play back
pictures.
When you take pictures by holding the
camera vertically, read “Tips for taking
good pictures” on P32 carefully.
The direction detection function (P33)
may not work properly...")
Playback (advanced) 85VQT0Q09 This mode allows you to display pictures recorded by holding the camera vertically or pictures rotated in [ROTATE] function in the rotated direction. 1Select [ON] to set it. When you select [OFF], the pictures are displayed without being rotated. Refer to P50 for how to play back pictures. When you take pictures by holding the camera vertically, read “Tips for taking good pictures” on P32 carefully. The direction detection function (P33) may not work properly...

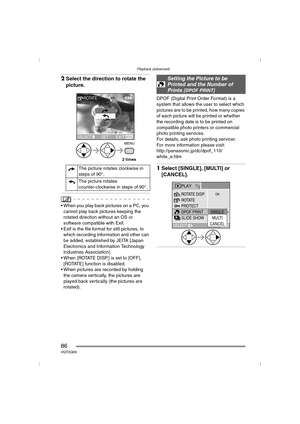

Page 86
![Page 86
Playback (advanced)
86VQT0Q09
2Select the direction to rotate the
picture.
When you play back pictures on a PC, you
cannot play back pictures keeping the
rotated direction without an OS or
software compatible with Exif.
Exif is the file format for still pictures, to
which recording information and other can
be added, established by JEITA [Japan
Electronics and Information Technology
Industries Association].
When [ROTATE DISP.] is set to [OFF],
[ROTATE] function is disabled.
When pictures...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-85.png "Page 86
Playback (advanced)
86VQT0Q09
2Select the direction to rotate the
picture.
When you play back pictures on a PC, you
cannot play back pictures keeping the
rotated direction without an OS or
software compatible with Exif.
Exif is the file format for still pictures, to
which recording information and other can
be added, established by JEITA [Japan
Electronics and Information Technology
Industries Association].
When [ROTATE DISP.] is set to [OFF],
[ROTATE] function is disabled.
When pictures...")
Playback (advanced) 86VQT0Q09 2Select the direction to rotate the picture. When you play back pictures on a PC, you cannot play back pictures keeping the rotated direction without an OS or software compatible with Exif. Exif is the file format for still pictures, to which recording information and other can be added, established by JEITA [Japan Electronics and Information Technology Industries Association]. When [ROTATE DISP.] is set to [OFF], [ROTATE] function is disabled. When pictures...

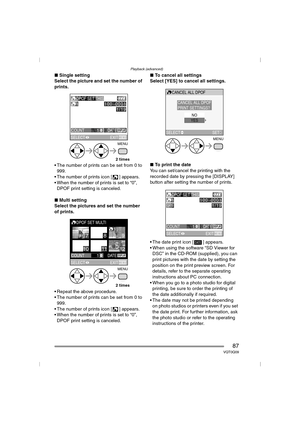

Page 87
![Page 87
Playback (advanced)
87VQT0Q09
∫Single setting
Select the picture and set the number of
prints.
The number of prints can be set from 0 to 999.
The number of prints icon [ ] appears.
When the number of prints is set to “0”, DPOF print setting is canceled.
∫ Multi setting
Select the pictures and set the number
of prints.
Repeat the above procedure.
The number of prints can be set from 0 to 999.
The number of prints icon [ ] appears.
When the number of prints is set to “0”, DPOF print...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-86.png "Page 87
Playback (advanced)
87VQT0Q09
∫Single setting
Select the picture and set the number of
prints.
The number of prints can be set from 0 to 999.
The number of prints icon [ ] appears.
When the number of prints is set to “0”, DPOF print setting is canceled.
∫ Multi setting
Select the pictures and set the number
of prints.
Repeat the above procedure.
The number of prints can be set from 0 to 999.
The number of prints icon [ ] appears.
When the number of prints is set to “0”, DPOF print...")
Playback (advanced) 87VQT0Q09 ∫Single setting Select the picture and set the number of prints. The number of prints can be set from 0 to 999. The number of prints icon [ ] appears. When the number of prints is set to “0”, DPOF print setting is canceled. ∫ Multi setting Select the pictures and set the number of prints. Repeat the above procedure. The number of prints can be set from 0 to 999. The number of prints icon [ ] appears. When the number of prints is set to “0”, DPOF print...

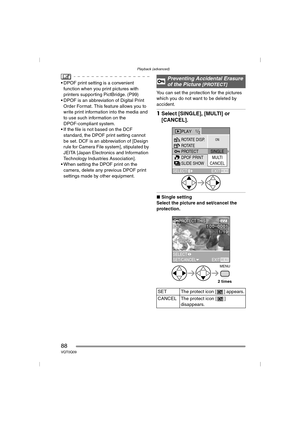

Page 88
![Page 88
Playback (advanced)
88VQT0Q09
DPOF print setting is a convenient
function when you print pictures with
printers supporting PictBridge. (P99)
DPOF is an abbreviation of Digital Print
Order Format. This feature allows you to
write print information into the media and
to use such information on the
DPOF-compliant system.
If the file is not based on the DCF
standard, the DPOF print setting cannot
be set. DCF is an abbreviation of [Design
rule for Camera File system], stipulated by
JEITA...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-87.png "Page 88
Playback (advanced)
88VQT0Q09
DPOF print setting is a convenient
function when you print pictures with
printers supporting PictBridge. (P99)
DPOF is an abbreviation of Digital Print
Order Format. This feature allows you to
write print information into the media and
to use such information on the
DPOF-compliant system.
If the file is not based on the DCF
standard, the DPOF print setting cannot
be set. DCF is an abbreviation of [Design
rule for Camera File system], stipulated by
JEITA...")
Playback (advanced) 88VQT0Q09 DPOF print setting is a convenient function when you print pictures with printers supporting PictBridge. (P99) DPOF is an abbreviation of Digital Print Order Format. This feature allows you to write print information into the media and to use such information on the DPOF-compliant system. If the file is not based on the DCF standard, the DPOF print setting cannot be set. DCF is an abbreviation of [Design rule for Camera File system], stipulated by JEITA...

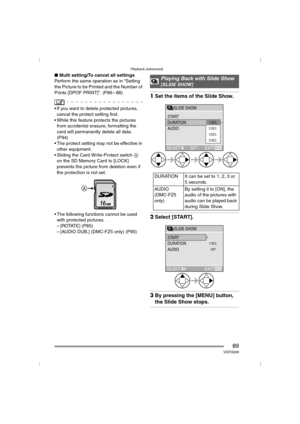

Page 89
![Page 89
Playback (advanced)
89VQT0Q09
∫Multi setting/To cancel all settings
Perform the same operation as in “Setting
the Picture to be Printed and the Number of
Prints [DPOF PRINT]”. (P86 – 88)
If you want to delete protected pictures,
cancel the protect setting first.
While this feature protects the pictures
from accidental erasure, formatting the
card will permanently delete all data.
(P94)
The protect setting may not be effective in
other equipment.
Sliding the Card Write-Protect switch A
on...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-88.png "Page 89
Playback (advanced)
89VQT0Q09
∫Multi setting/To cancel all settings
Perform the same operation as in “Setting
the Picture to be Printed and the Number of
Prints [DPOF PRINT]”. (P86 – 88)
If you want to delete protected pictures,
cancel the protect setting first.
While this feature protects the pictures
from accidental erasure, formatting the
card will permanently delete all data.
(P94)
The protect setting may not be effective in
other equipment.
Sliding the Card Write-Protect switch A
on...")
Playback (advanced) 89VQT0Q09 ∫Multi setting/To cancel all settings Perform the same operation as in “Setting the Picture to be Printed and the Number of Prints [DPOF PRINT]”. (P86 – 88) If you want to delete protected pictures, cancel the protect setting first. While this feature protects the pictures from accidental erasure, formatting the card will permanently delete all data. (P94) The protect setting may not be effective in other equipment. Sliding the Card Write-Protect switch A on...

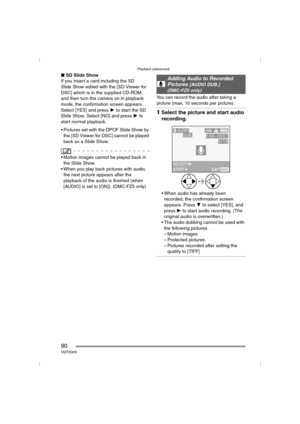

Page 90
![Page 90
Playback (advanced)
90VQT0Q09
∫SD Slide Show
If you insert a card including the SD
Slide Show edited with the [SD Viewer for
DSC] which is in the supplied CD-ROM,
and then turn the camera on in playback
mode, the confirmation screen appears.
Select [YES] and press 1 to start the SD
Slide Show. Select [NO] and press 1 to
start normal playback.
Pictures set with the DPOF Slide Show by
the [SD Viewer for DSC] cannot be played
back as a Slide Show.
Motion images cannot be played back in
the...](http://img.usermanuals.tech/thumb/58/65504/w300_dmc-fz5_en_om_d-89.png "Page 90
Playback (advanced)
90VQT0Q09
∫SD Slide Show
If you insert a card including the SD
Slide Show edited with the [SD Viewer for
DSC] which is in the supplied CD-ROM,
and then turn the camera on in playback
mode, the confirmation screen appears.
Select [YES] and press 1 to start the SD
Slide Show. Select [NO] and press 1 to
start normal playback.
Pictures set with the DPOF Slide Show by
the [SD Viewer for DSC] cannot be played
back as a Slide Show.
Motion images cannot be played back in
the...")
Playback (advanced) 90VQT0Q09 ∫SD Slide Show If you insert a card including the SD Slide Show edited with the [SD Viewer for DSC] which is in the supplied CD-ROM, and then turn the camera on in playback mode, the confirmation screen appears. Select [YES] and press 1 to start the SD Slide Show. Select [NO] and press 1 to start normal playback. Pictures set with the DPOF Slide Show by the [SD Viewer for DSC] cannot be played back as a Slide Show. Motion images cannot be played back in the...
