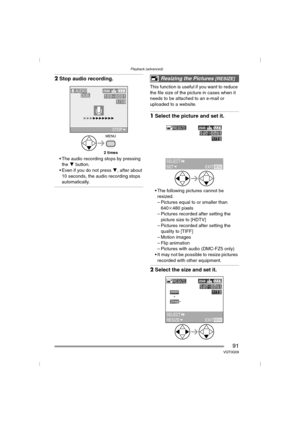

Playback (advanced)
91VQT0Q09
2Stop audio recording.
 The audio recording stops by pressing
the  4 button.
 Even if you do not press  4, after about
10 seconds, the audio recording stops
automatically.
This function is useful if you want to reduce
the file size of the picture in cases when it
needs to be attached to an e-mail or
uploaded to a website.
1 Select the picture and set it.
 The following pictures cannot be
resized.
– Pictures equal to or smaller than
640k 480 pixels
– Pictures...

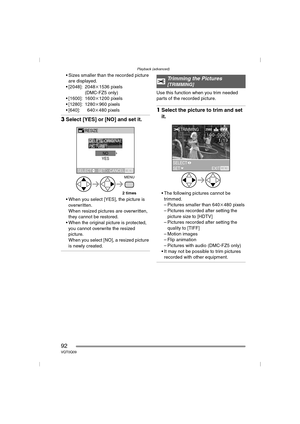

Playback (advanced)
92VQT0Q09
 Sizes smaller than the recorded picture are displayed.
 [2048]: 2048k 1536 pixels
(DMC-FZ5 only)
 [1600]: 1600k 1200 pixels
 [1280]: 1280k 960 pixels
 [640]: 640k 480 pixels
3Select [YES] or [NO] and set it.
 When you select [YES], the picture is
overwritten.
When resized pictures are overwritten,
they cannot be restored.
 When the original picture is protected,  you cannot overwrite the resized
picture.
When you select [NO], a resized picture
is newly created....

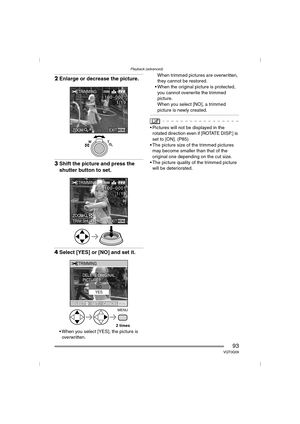

Playback (advanced)
93VQT0Q09
2Enlarge or decrease the picture.
3Shift the picture and press the
shutter button to set.
4Select [YES] or [NO] and set it.
 When you select [YES], the picture is
overwritten.When trimmed pictures are overwritten,
they cannot be restored.
 When the original picture is protected,
you cannot overwrite the trimmed
picture.
When you select [NO], a trimmed
picture is newly created.
 Pictures will not be displayed in the
rotated direction even if [ROTATE DISP.] is
set...

Playback (advanced)
94VQT0Q09

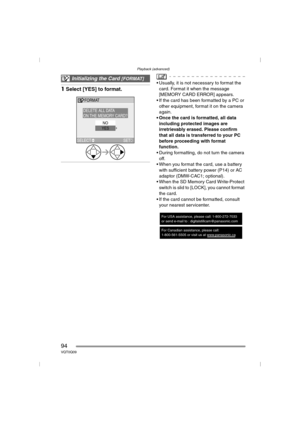

1Select [YES] to format.
 Usually, it is not necessary to format the
card. Format it when the message
[MEMORY CARD ERROR] appears.
 If the card has been formatted by a PC or
other equipment, format it on the camera
again.
 Once the card is formatted, all data
including protected images are
irretrievably erased. Please confirm
that all data is transferred to your PC
before proceeding with format
function.
 During formatting, do not turn the camera
off.
 When...

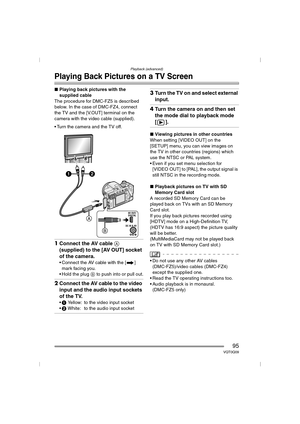

Playback (advanced)
95VQT0Q09
Playing Back Pictures on a TV Screen
∫Playing back pictures with the
supplied cable
The procedure for DMC-FZ5 is described
below. In the case of DMC-FZ4, connect
the TV and the [V.OUT] terminal on the
camera with the video cable (supplied).
 Turn the camera and the TV off.
1Connect the AV cable A
(supplied) to the [AV OUT] socket
of the camera.
 Connect the AV cable with the [ ]
mark facing you.
 Hold the plug B to push into or pull out.
2Connect the AV cable to...

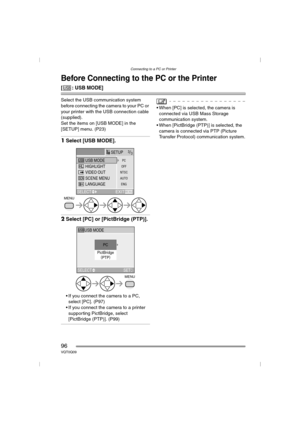

Connecting to a PC or Printer
96VQT0Q09
Connecting to a PC or Printer
Before Connecting to the PC or the Printer
[ : USB MODE]
Select the USB communication system
before connecting the camera to your PC or
your printer with the USB connection cable
(supplied).
Set the items on [USB MODE] in the
[SETUP] menu. (P23)
1Select [USB MODE].
2Select [PC] or [PictBridge (PTP)].
 If you connect the camera to a PC,
select [PC]. (P97)
 If you connect the camera to a printer
supporting PictBridge, select...

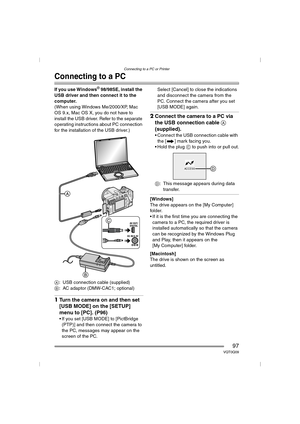

Connecting to a PC or Printer
97VQT0Q09
Connecting to a PC
If you use Windows® 98/98SE, install the
USB driver and then connect it to the
computer.
(When using Windows Me/2000/XP, Mac
OS 9.x, Mac OS X, you do not have to
install the USB driver. Refer to the separate
operating instructions about PC connection
for the installation of the USB driver.)
A: USB connection cable (supplied)
B: AC adaptor (DMW-CAC1; optional)
1Turn the camera on and then set
[USB MODE] on the [SETUP]
menu to [PC]. (P96)
...

Connecting to a PC or Printer
98VQT0Q09

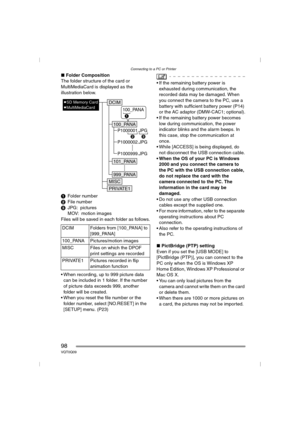

∫Folder Composition
The folder structure of the card or
MultiMediaCard is displayed as the
illustration below.
1Folder number
2File number
3JPG: pictures
MOV: motion images
Files will be saved in each folder as follows.
 When recording, up to 999 picture data
can be included in 1 folder. If the number
of picture data exceeds 999, another
folder will be created.
 When you reset the file number or the
folder number, select [NO.RESET] in the
[SETUP] menu....

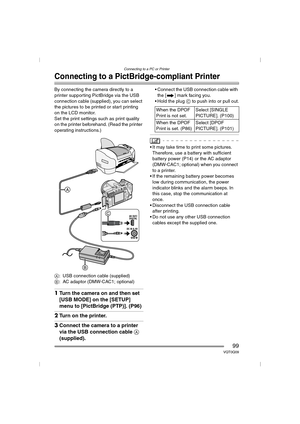

Connecting to a PC or Printer
99VQT0Q09
Connecting to a PictBridge-compliant Printer
By connecting the camera directly to a
printer supporting PictBridge via the USB
connection cable (supplied), you can select
the pictures to be printed or start printing
on the LCD monitor.
Set the print settings such as print quality
on the printer beforehand. (Read the printer
operating instructions.)
A: USB connection cable (supplied)
B: AC adaptor (DMW-CAC1; optional)
1Turn the camera on and then set
[USB...

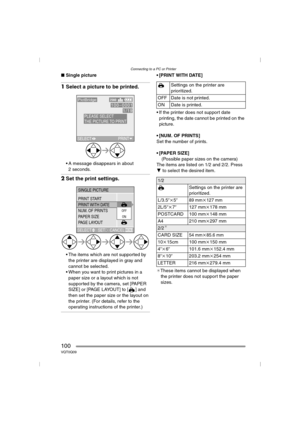

Connecting to a PC or Printer
100VQT0Q09
∫Single picture
1Select a picture to be printed.
 A message disappears in about
2 seconds.
2Set the print settings.
 The items which are not supported by
the printer are displayed in gray and
cannot be selected.
 When you want to print pictures in a
paper size or a layout which is not
supported by the camera, set [PAPER
SIZE] or [PAGE LAYOUT] to [ ] and
then set the paper size or the layout on
the printer. (For details, refer to the
operating...
