Panasonic Dmc Fz5 Operating Instructions Manual

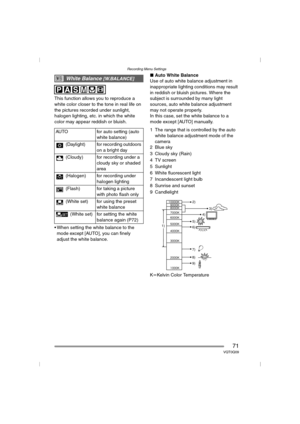

Recording Menu Settings
71VQT0Q09
This function allows you to reproduce a
white color closer to the tone in real life on
the pictures recorded under sunlight,
halogen lighting, etc. in which the white
color may appear reddish or bluish.
 When setting the white balance to the
mode except [AUTO], you can finely
adjust the white balance.∫Auto White Balance
Use of auto white balance adjustment in
inappropriate lighting conditions may result
in reddish or bluish pictures. Where the
subject is...

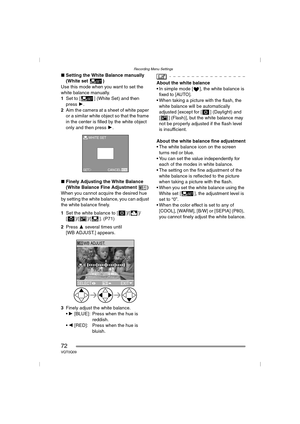

Recording Menu Settings
72VQT0Q09
∫Setting the White Balance manually
(White set )
Use this mode when you want to set the
white balance manually.
1Set to [ ] (White Set) and then
press 1.
2Aim the camera at a sheet of white paper
or a similar white object so that the frame
in the center is filled by the white object
only and then press 1.
∫Finely Adjusting the White Balance
(White Balance Fine Adjustment )
When you cannot acquire the desired hue
by setting the white balance, you can adjust
the...

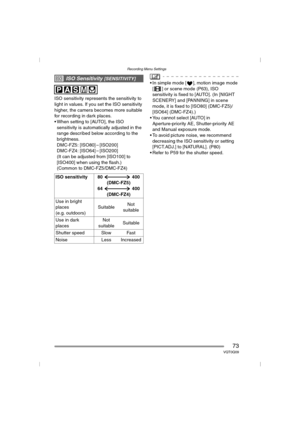

Recording Menu Settings
73VQT0Q09
ISO sensitivity represents the sensitivity to
light in values. If you set the ISO sensitivity
higher, the camera becomes more suitable
for recording in dark places.
 When setting to [AUTO], the ISO
sensitivity is automatically adjusted in the
range described below according to the
brightness.
DMC-FZ5: [ISO80] – [ISO200]
DMC-FZ4: [ISO64] – [ISO200]
(It can be adjusted from [ISO100] to
[ISO400] when using the flash.)
(Common to DMC-FZ5/DMC-FZ4)
 In simple mode [...

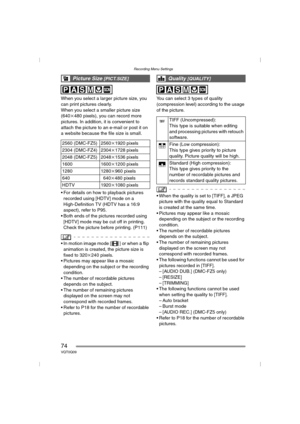

Recording Menu Settings
74VQT0Q09
When you select a larger picture size, you
can print pictures clearly.
When you select a smaller picture size
(640k480 pixels), you can record more
pictures. In addition, it is convenient to
attach the picture to an e-mail or post it on
a website because the file size is small.
 For details on how to playback pictures
recorded using [HDTV] mode on a
High-Definition TV (HDTV has a 16:9
aspect), refer to P95.
 Both ends of the pictures recorded using
[HDTV] mode...

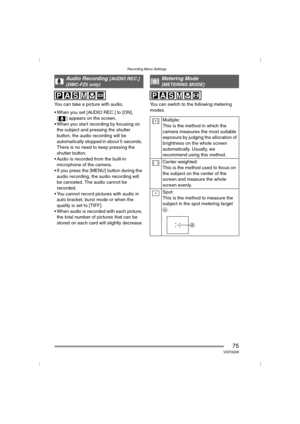

Recording Menu Settings
75VQT0Q09
You can take a picture with audio.
 When you set [AUDIO REC.] to [ON],
[ ] appears on the screen.
 When you start recording by focusing on
the subject and pressing the shutter
button, the audio recording will be
automatically stopped in about 5 seconds.
There is no need to keep pressing the
shutter button.
 Audio is recorded from the built-in
microphone of the camera.
 If you press the [MENU] button during the
audio recording, the audio recording will
be...

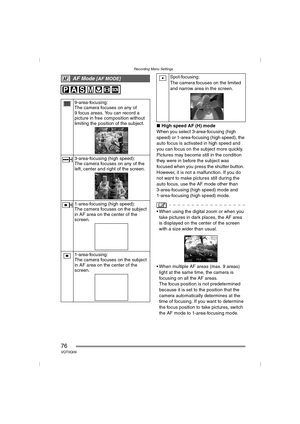

Recording Menu Settings
76VQT0Q09
∫High speed AF (H) mode
When you select 3-area-focusing (high
speed) or 1-area-focusing (high speed), the
auto focus is activated in high speed and
you can focus on the subject more quickly.
Pictures may become still in the condition
they were in before the subject was
focused when you press the shutter button.
However, it is not a malfunction. If you do
not want to make pictures still during the
auto focus, use the AF mode other than
3-area-focusing (high...

Recording Menu Settings

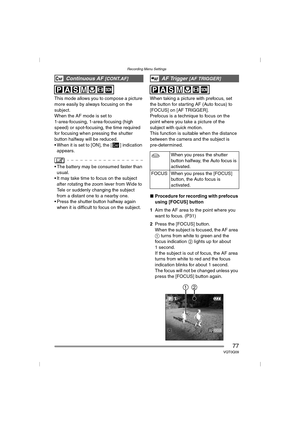

77VQT0Q09
This mode allows you to compose a picture
more easily by always focusing on the
subject.
When the AF mode is set to
1-area-focusing, 1-area-focusing (high
speed) or spot-focusing, the time required
for focusing when pressing the shutter
button halfway will be reduced.
 When it is set to [ON], the [ ] indication
appears.
 The battery may be consumed faster than
usual.
 It may take time to focus on the subject
after rotating the zoom lever from Wide to
Tele or...

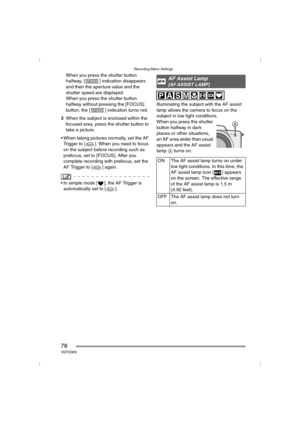

Recording Menu Settings
78VQT0Q09
When you press the shutter button
halfway, [ ] indication disappears
and then the aperture value and the
shutter speed are displayed.
When you press the shutter button
halfway without pressing the [FOCUS]
button, the [ ] indication turns red.
3When the subject is enclosed within the
focused area, press the shutter button to
take a picture.
 When taking pictures normally, set the AF
Trigger to [ ]. When you need to focus
on the subject before recording such as...

Recording Menu Settings

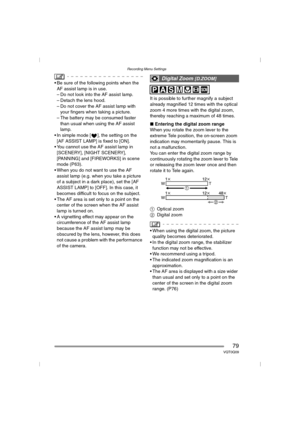

79VQT0Q09
 Be sure of the following points when the
AF assist lamp is in use.
– Do not look into the AF assist lamp.
– Detach the lens hood.
– Do not cover the AF assist lamp with
your fingers when taking a picture.
– The battery may be consumed faster
than usual when using the AF assist
lamp.
 In simple mode [ ], the setting on the
[AF ASSIST LAMP] is fixed to [ON].
 You cannot use the AF assist lamp in
[SCENERY], [NIGHT SCENERY],
[PANNING] and [FIREWORKS] in scene...

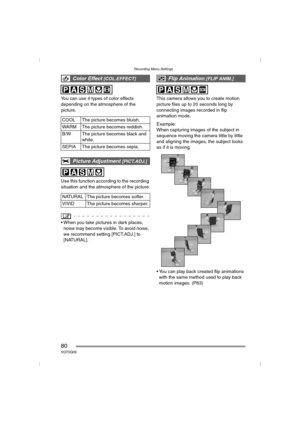

Recording Menu Settings
80VQT0Q09
You can use 4 types of color effects
depending on the atmosphere of the
picture.
Use this function according to the recording
situation and the atmosphere of the picture.
 When you take pictures in dark places,
noise may become visible. To avoid noise,
we recommend setting [PICT.ADJ.] to
[NATURAL].This camera allows you to create motion
picture files up to 20 seconds long by
connecting images recorded in flip
animation mode.
Example:
When capturing images of...
