Connecting to a PC or Printer
101VQT0Q09

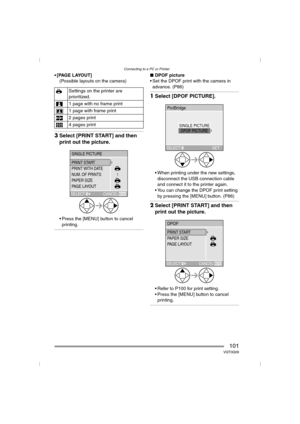

[PAGE LAYOUT]
(Possible layouts on the camera)
3Select [PRINT START] and then
print out the picture.
 Press the [MENU] button to cancel
printing.
∫DPOF picture
 Set the DPOF print with the camera in
advance. (P86)
1Select [DPOF PICTURE].
 When printing under the new settings,
disconnect the USB connection cable
and connect it to the printer again.
 You can change the DPOF print setting
by pressing the [MENU] button. (P86)
2Select [PRINT START] and then...

Connecting to a PC or Printer
102VQT0Q09

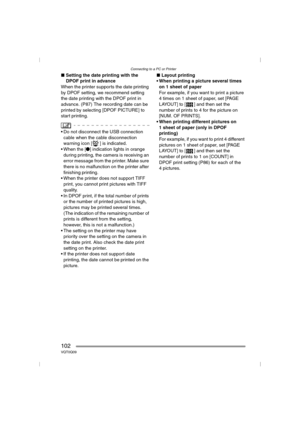

∫Setting the date printing with the
DPOF print in advance
When the printer supports the date printing
by DPOF setting, we recommend setting
the date printing with the DPOF print in
advance. (P87) The recording date can be
printed by selecting [DPOF PICTURE] to
start printing.
 Do not disconnect the USB connection
cable when the cable disconnection
warning icon [ ] is indicated.
 When the [¥] indication lights in orange
during printing, the camera is...

Others
103VQT0Q09
Others

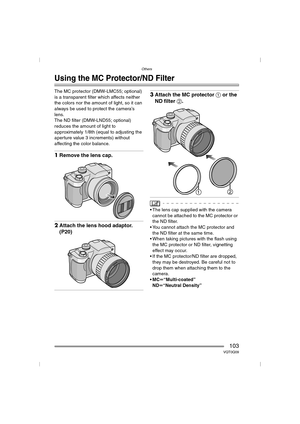

Using the MC Protector/ND Filter
The MC protector (DMW-LMC55; optional)
is a transparent filter which affects neither
the colors nor the amount of light, so it can
always be used to protect the camera’s
lens.
The ND filter (DMW-LND55; optional)
reduces the amount of light to
approximately 1/8th (equal to adjusting the
aperture value 3 increments) without
affecting the color balance.
1Remove the lens cap.
2Attach the lens hood adaptor.
(P20)
3Attach the MC protector 1 or...

Others
104VQT0Q09

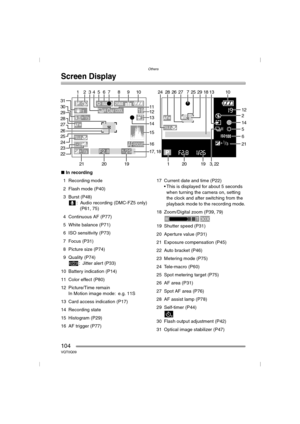

Screen Display
∫In recording
1 Recording mode
2 Flash mode (P40)
3 Burst (P48)
: Audio recording (DMC-FZ5 only)
(P61, 75)
4 Continuous AF (P77)
5 White balance (P71)
6 ISO sensitivity (P73)
7 Focus (P31)
8 Picture size (P74)
9 Quality (P74)
: Jitter alert (P33)
10 Battery indication (P14)
11 Color effect (P80)
12 Picture/Time remain
In Motion image mode: e.g. 11S
13 Card access indication (P17)
14 Recording state
15 Histogram (P29)
16 AF trigger (P77)17 Current date and time (P22)
...

Others
105VQT0Q09

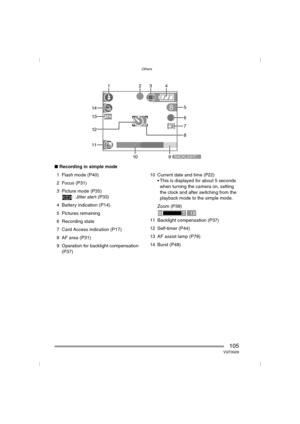

∫Recording in simple mode
1 Flash mode (P40)
2 Focus (P31)
3 Picture mode (P35)
: Jitter alert (P33)
4 Battery indication (P14)
5 Pictures remaining
6 Recording state
7 Card Access indication (P17)
8 AF area (P31)
9 Operation for backlight compensation
(P37)10 Current date and time (
P22)
 This is displayed for about 5 seconds
when turning the camera on, setting
the clock and after switching from the
playback mode to the simple mode.
Zoom (P39)
11 Backlight compensation (P37)
12...

Others
106VQT0Q09

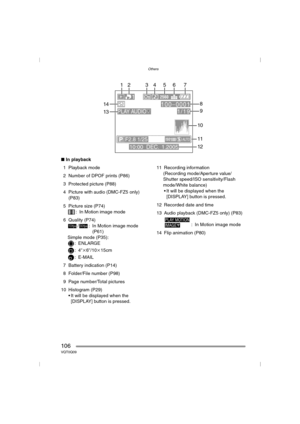

∫In playback
1 Playback mode
2 Number of DPOF prints (P86)
3 Protected picture (P88)
4 Picture with audio (DMC-FZ5 only)
(P83)
5 Picture size (P74)
: In Motion image mode
6 Quality (P74)
/ : In Motion image mode
(P61)
Simple mode (P35):
:ENLARGE
:4qk6q/10k15cm
: E-MAIL
7 Battery indication (P14)
8 Folder/File number (P98)
9 Page number/Total pictures
10 Histogram (P29)
 It will be displayed when the
[DISPLAY] button is pressed.11 Recording information
(Recording mode/Aperture...

Others
107VQT0Q09

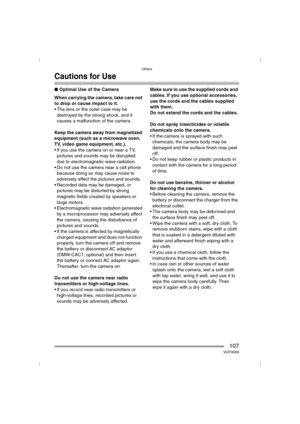

Cautions for Use
∫Optimal Use of the Camera
When carrying the camera, take care not
to drop or cause impact to it.
 The lens or the outer case may be
destroyed by the strong shock, and it
causes a malfunction of the camera.
Keep the camera away from magnetized
equipment (such as a microwave oven,
TV, video game equipment, etc.).
 If you use the camera on or near a TV,
pictures and sounds may be disrupted
due to electromagnetic wave radiation.
 Do not use the camera near a cell...

Others
108VQT0Q09

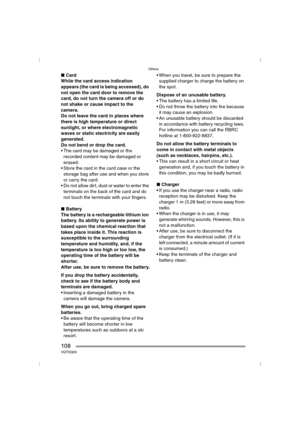

∫Card
While the card access indication
appears (the card is being accessed), do
not open the card door to remove the
card, do not turn the camera off or do
not shake or cause impact to the
camera.
Do not leave the card in places where
there is high temperature or direct
sunlight, or where electromagnetic
waves or static electricity are easily
generated.
Do not bend or drop the card.
 The card may be damaged or the
recorded content may be damaged or
erased.
 Store the card...

Others
109VQT0Q09

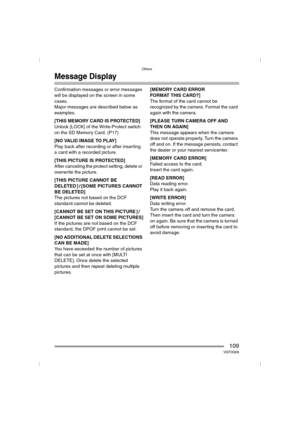

Message Display
Confirmation messages or error messages
will be displayed on the screen in some
cases.
Major messages are described below as
examples.
[THIS MEMORY CARD IS PROTECTED]
Unlock [LOCK] of the Write-Protect switch
on the SD Memory Card. (P17)
[NO VALID IMAGE TO PLAY]
Play back after recording or after inserting
a card with a recorded picture.
[THIS PICTURE IS PROTECTED]
After canceling the protect setting, delete or
overwrite the picture.
[THIS PICTURE CANNOT BE...

Others
110VQT0Q09

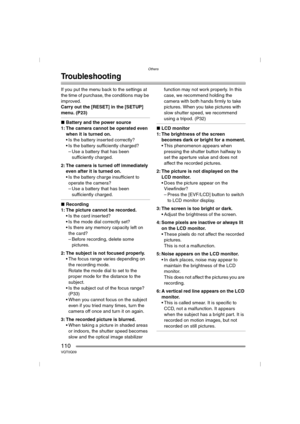

Troubleshooting
If you put the menu back to the settings at
the time of purchase, the conditions may be
improved.
Carry out the [RESET] in the [SETUP]
menu. (P23)
∫Battery and the power source
1: The camera cannot be operated even
when it is turned on.
 Is the battery inserted correctly?
 Is the battery sufficiently charged?
– Use a battery that has been
sufficiently charged.
2: The camera is turned off immediately
even after it is turned on.
 Is the battery charge insufficient...
