Panasonic Dmc Fz5 Operating Instructions Manual

Preparation
11VQT0Q09

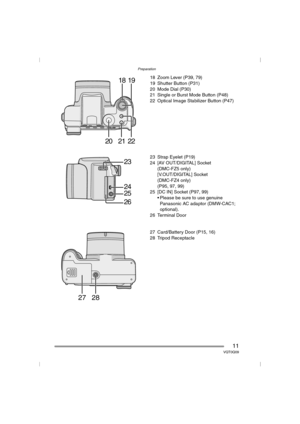

18 Zoom Lever (P39, 79)
19 Shutter Button (P31)
20 Mode Dial (P30)
21 Single or Burst Mode Button (P48)
22 Optical Image Stabilizer Button (P47)
23 Strap Eyelet (P19)
24 [AV OUT/DIGITAL] Socket
(DMC-FZ5 only)
[V.OUT/DIGITAL] Socket
(DMC-FZ4 only)
(P95, 97, 99)
25 [DC IN] Socket (P97, 99)
 Please be sure to use genuine
Panasonic AC adaptor (DMW-CAC1;
optional).
26 Terminal Door
27 Card/Battery Door (P15, 16)
28 Tripod Receptacle
20 21 2218 19
24 23
25
26
27 28
VQT0Q09ENG.book...

Preparation
12VQT0Q09

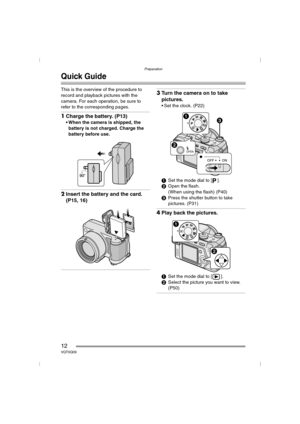

Quick Guide
This is the overview of the procedure to
record and playback pictures with the
camera. For each operation, be sure to
refer to the corresponding pages.
1Charge the battery. (P13)
 When the camera is shipped, the
battery is not charged. Charge the
battery before use.
2Insert the battery and the card.
(P15, 16)
3Turn the camera on to take
pictures.
 Set the clock. (P22)
1Set the mode dial to [ ].
2Open the flash.
(When using the flash) (P40)
3Press the shutter...

Preparation
13VQT0Q09

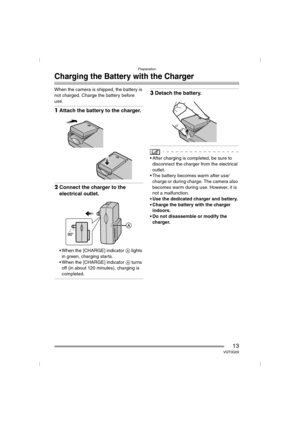

Charging the Battery with the Charger
When the camera is shipped, the battery is
not charged. Charge the battery before
use.
1Attach the battery to the charger.
2Connect the charger to the
electrical outlet.
 When the [CHARGE] indicator A lights
in green, charging starts.
 When the [CHARGE] indicator A turns
off (in about 120 minutes), charging is
completed.
3Detach the battery.
 After charging is completed, be sure to
disconnect the charger from the electrical
outlet.
...

Preparation
14VQT0Q09

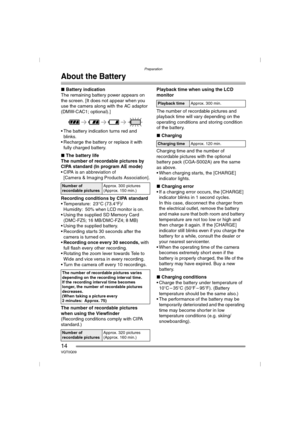

About the Battery
∫Battery indication
The remaining battery power appears on
the screen. [It does not appear when you
use the camera along with the AC adaptor
(DMW-CAC1; optional).]
 The battery indication turns red and
blinks.
 Recharge the battery or replace it with
fully charged battery.
∫The battery life
The number of recordable pictures by
CIPA standard (In program AE mode)
 CIPA is an abbreviation of
[Camera & Imaging Products Association].
Recording conditions by...

Preparation
15VQT0Q09

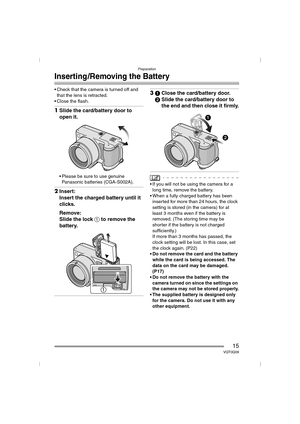

Inserting /Removing the Battery
 Check that the camera is turned off and
that the lens is retracted.
 Close the flash.
1Slide the card/battery door to
open it.
 Please be sure to use genuine
Panasonic batteries (CGA-S002A).
2Insert:
Insert the charged battery until it
clicks.
Remove:
Slide the lock 1 to remove the
battery.
31Close the card/battery door.
2Slide the card/battery door to
the end and then close it firmly.
 If you will not be using the camera for a
long time,...

Preparation
16VQT0Q09

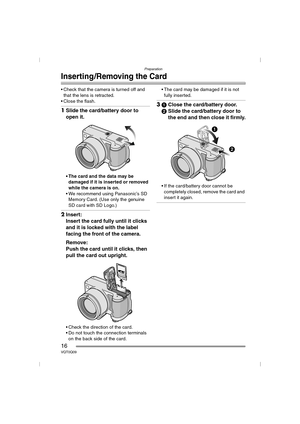

Inserting/Removing the Card
 Check that the camera is turned off and
that the lens is retracted.
 Close the flash.
1Slide the card/battery door to
open it.
 The card and the data may be
damaged if it is inserted or removed
while the camera is on.
 We recommend using Panasonic’s SD
Memory Card. (Use only the genuine
SD card with SD Logo.)
2Insert:
Insert the card fully until it clicks
and it is locked with the label
facing the front of the camera.
Remove:
Push the card...

Preparation
17VQT0Q09

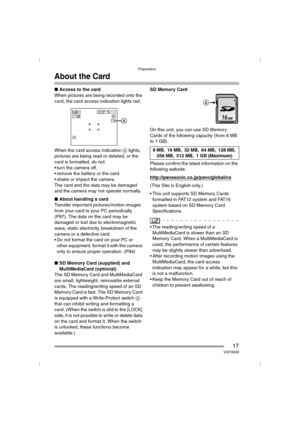

About the Card
∫Access to the card
When pictures are being recorded onto the
card, the card access indication lights red.
When the card access indication A lights,
pictures are being read or deleted, or the
card is formatted, do not:
 turn the camera off.
 remove the battery or the card.
 shake or impact the camera.
The card and the data may be damaged
and the camera may not operate normally.
∫About handling a card
Transfer important pictures/motion images
from your card to...

Preparation
18VQT0Q09

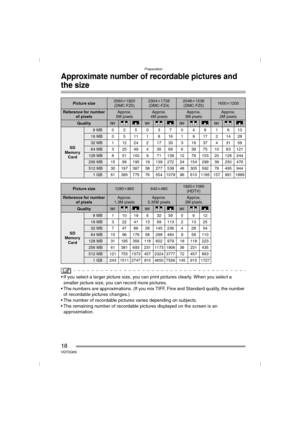

Approximate number of recordable pictures and
the size
 If you select a larger picture size, you can print pictures clearly. When you select a
smaller picture size, you can record more pictures.
 The numbers are approximations. (If you mix TIFF, Fine and Standard quality, the number
of recordable pictures changes.)
 The number of recordable pictures varies depending on subjects.
 The remaining number of recordable pictures displayed on the screen is an
approximation.
Picture...

Preparation
19VQT0Q09

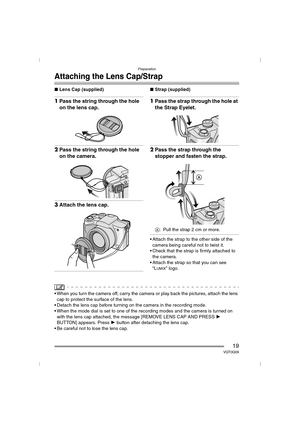

Attaching the Lens Cap/Strap
∫Lens Cap (supplied)
1Pass the string through the hole
on the lens cap.
2Pass the string through the hole
on the camera.
3Attach the lens cap.
∫Strap (supplied)
1Pass the strap through the hole at
the Strap Eyelet.
2Pass the strap through the
stopper and fasten the strap.
A: Pull the strap 2 cm or more.
 Attach the strap to the other side of the
camera being careful not to twist it.
 Check that the strap is firmly attached to
the camera.
 Attach...

Preparation
20VQT0Q09

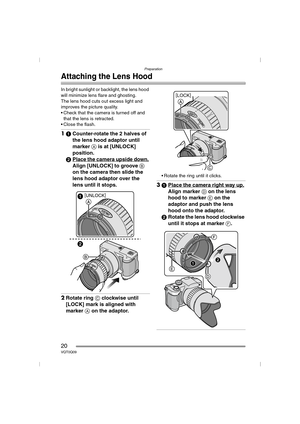

Attaching the Lens Hood
In bright sunlight or backlight, the lens hood
will minimize lens flare and ghosting.
The lens hood cuts out excess light and
improves the picture quality.
 Check that the camera is turned off and
that the lens is retracted.
 Close the flash.
11Counter-rotate the 2 halves of
the lens hood adaptor until
marker A is at [UNLOCK]
position.
2Place the camera upside down.

Align [UNLOCK] to groove B
on the camera then slide the
lens hood adaptor over the...
