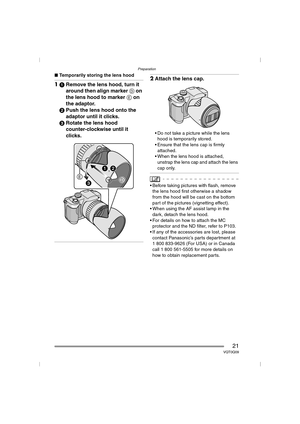

Preparation
21VQT0Q09
∫Temporarily storing the lens hood
11Remove the lens hood, turn it
around then align marker D on
the lens hood to marker E on
the adaptor.
2Push the lens hood onto the
adaptor until it clicks.
3Rotate the lens hood
counter-clockwise until it
clicks.
2Attach the lens cap.
 Do not take a picture while the lens
hood is temporarily stored.
 Ensure that the lens cap is firmly
attached.
 When the lens hood is attached,
unstrap the lens cap and attach the lens
cap only.
...

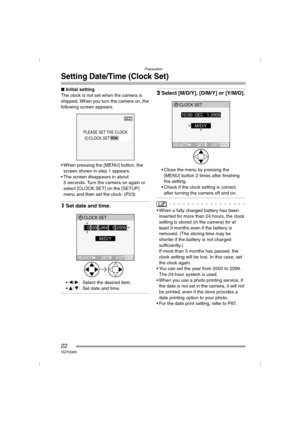

Preparation
22VQT0Q09
Setting Date/Time (Clock Set)
∫Initial setting
The clock is not set when the camera is
shipped. When you turn the camera on, the
following screen appears.
 When pressing the [MENU] button, the
screen shown in step 1 appears.
 The screen disappears in about
5 seconds. Turn the camera on again or
select [CLOCK SET] on the [SETUP]
menu and then set the clock. (P23)
1Set date and time.
2/1: Select the desired item.
3/4: Set date and time.
2Select [M/D/Y], [D/M/Y] or [Y/M/D].
...

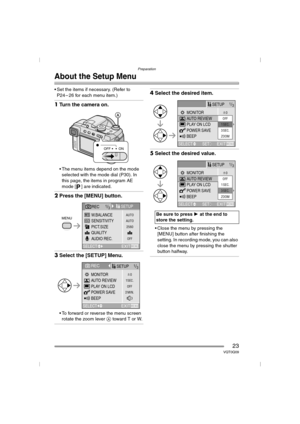

Preparation
23VQT0Q09
About the Setup Menu
 Set the items if necessary. (Refer to
P24 – 26 for each menu item.)
1Turn the camera on.
 The menu items depend on the mode
selected with the mode dial (P30). In
this page, the items in program AE
mode [ ] are indicated.
2Press the [MENU] button.
3Select the [SETUP] Menu.
 To forward or reverse the menu screen
rotate the zoom lever A toward T or W.
4Select the desired item.
5Select the desired value.
 Close the menu by pressing the
[MENU] button after...

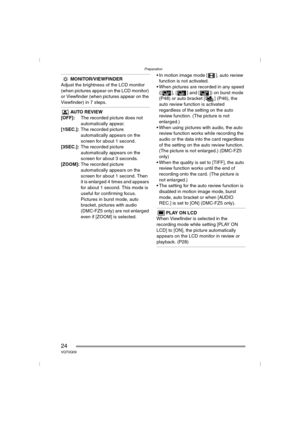

Preparation
24VQT0Q09
MONITOR/VIEWFINDER
Adjust the brightness of the LCD monitor
(when pictures appear on the LCD monitor)
or Viewfinder (when pictures appear on the
Viewfinder) in 7 steps.
AUTO REVIEW
[OFF]:The recorded picture does not
automatically appear.
[1SEC.]:The recorded picture
automatically appears on the
screen for about 1 second.
[3SEC.]:The recorded picture
automatically appears on the
screen for about 3 seconds.
[ZOOM]:The recorded picture
automatically appears on the
screen for...

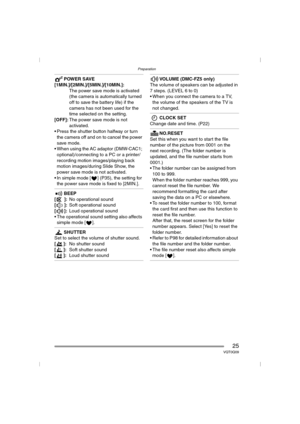

Preparation
25VQT0Q09
POWER SAVE
[1MIN.]/[2MIN.]/[5MIN.]/[10MIN.]:
The power save mode is activated
(the camera is automatically turned
off to save the battery life) if the
camera has not been used for the
time selected on the setting.
[OFF]:The power save mode is not
activated.
 Press the shutter button halfway or turn
the camera off and on to cancel the power
save mode.
 When using the AC adaptor (DMW-CAC1;
optional)/connecting to a PC or a printer/
recording motion images/playing back...

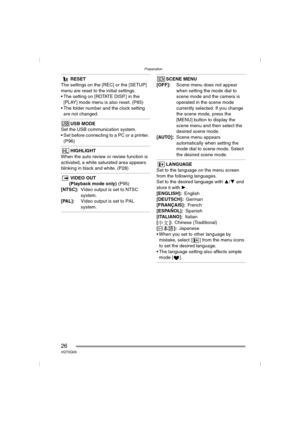

Preparation
26VQT0Q09
RESET
The settings on the [REC] or the [SETUP]
menu are reset to the initial settings.
 The setting on [ROTATE DISP.] in the
[PLAY] mode menu is also reset. (P85)
 The folder number and the clock setting
are not changed.
USB MODE
Set the USB communication system.
 Set before connecting to a PC or a printer.
(P96)
HIGHLIGHT
When the auto review or review function is
activated, a white saturated area appears
blinking in black and white. (P28)
VIDEO OUT
(Playback mode only)...

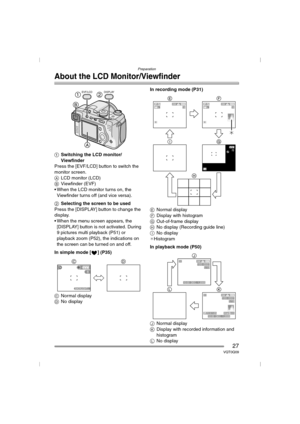

Preparation
27VQT0Q09
About the LCD Monitor/Viewfinder
1Switching the LCD monitor/
Viewfinder
Press the [EVF/LCD] button to switch the
monitor screen.
ALCD monitor (LCD)
BViewfinder (EVF)
 When the LCD monitor turns on, the
Viewfinder turns off (and vice versa).
2Selecting the screen to be used
Press the [DISPLAY] button to change the
display.
 When the menu screen appears, the
[DISPLAY] button is not activated. During
9 pictures multi playback (P51) or
playback zoom (P52), the indications on...

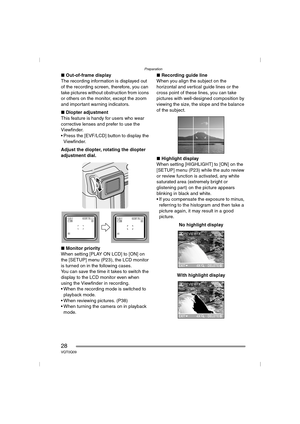

Preparation
28VQT0Q09
∫Out-of-frame display
The recording information is displayed out
of the recording screen, therefore, you can
take pictures without obstruction from icons
or others on the monitor, except the zoom
and important warning indicators.
∫Diopter adjustment
This feature is handy for users who wear
corrective lenses and prefer to use the
Viewfinder.
 Press the [EVF/LCD] button to display the
Viewfinder.
Adjust the diopter, rotating the diopter
adjustment dial.
∫Monitor priority
When...

Preparation
29VQT0Q09
∫Histogram
 A histogram is a graph that displays  brightness along the horizontal axis (black
to white) and the number of pixels at each
brightness level on the vertical axis.
 It allows the camera user to easily check
the way a picture is being exposed.
 It is very useful if manual adjustments of  the lens aperture and shutter speed are
available, especially in those situations
where automatic exposure may be difficult
due to uneven lighting. Using the
histogram feature...

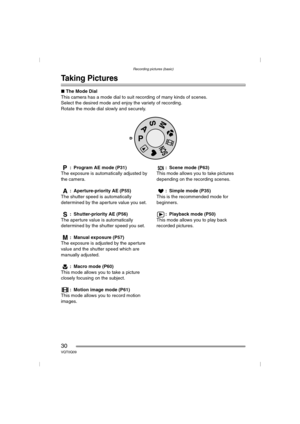

Recording pictures (basic)
30VQT0Q09
Recording pictures (basic)
Taking Pictures
∫The Mode Dial
This camera has a mode dial to suit recording of many kinds of scenes.
Select the desired mode and enjoy the variety of recording.
Rotate the mode dial slowly and securely.
: Program AE mode (P31)
The exposure is automatically adjusted by
the camera.
: Aperture-priority AE (P55)
The shutter speed is automatically
determined by the aperture value you set.
: Shutter-priority AE (P56)
The aperture value is...
