Recording pictures (basic)
41VQT0Q09

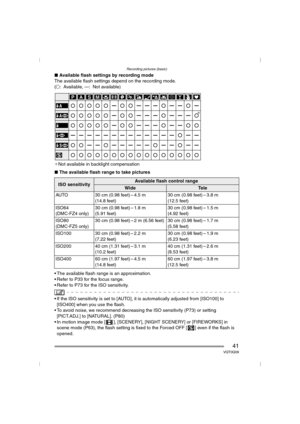

∫Available flash settings by recording mode
The available flash settings depend on the recording mode.
(±: Available, —: Not available)
¢Not available in backlight compensation
∫The available flash range to take pictures
 The available flash range is an approximation.
 Refer to P33 for the focus range.
 Refer to P73 for the ISO sensitivity.
 If the ISO sensitivity is set to [AUTO], it is automatically adjusted from [ISO100] to
[ISO400] when you use the flash.
...

Recording pictures (basic)
42VQT0Q09

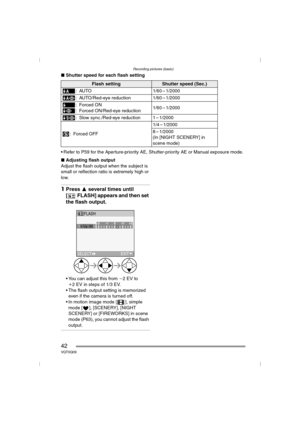

∫Shutter speed for each flash setting
 Refer to P59 for the Aperture-priority AE, Shutter-priority AE or Manual exposure mode.
∫Adjusting flash output
Adjust the flash output when the subject is
small or reflection ratio is extremely high or
low.
1Press 3 several times until
[ FLASH] appears and then set
the flash output.
 You can adjust this from j2EV to
i2 EV in steps of 1/3 EV.
 The flash output setting is memorized
even if the camera is turned off.
 In...

Recording pictures (basic)
43VQT0Q09

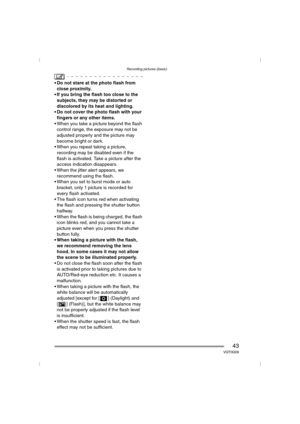

 Do not stare at the photo flash from
close proximity.
 If you bring the flash too close to the
subjects, they may be distorted or
discolored by its heat and lighting.
 Do not cover the photo flash with your
fingers or any other items.
 When you take a picture beyond the flash
control range, the exposure may not be
adjusted properly and the picture may
become bright or dark.
 When you repeat taking a picture,
recording may be disabled even if the
flash...

Recording pictures (basic)
44VQT0Q09

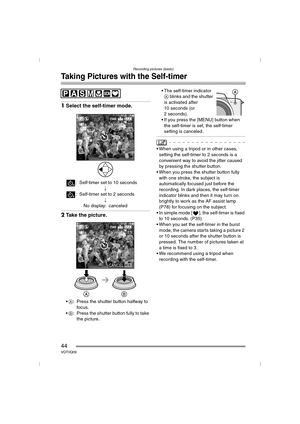

Taking Pictures with the Self-timer
1Select the self-timer mode.
: Self-timer set to 10 seconds
;
: Self-timer set to 2 seconds
;
No display: canceled
2Take the picture.
A: Press the shutter button halfway to
focus.
B: Press the shutter button fully to take
the picture. The self-timer indicator
A blinks and the shutter
is activated after
10 seconds (or
2 seconds).
 If you press the [MENU] button when
the self-timer is set, the self-timer
setting is...

Recording pictures (basic)
45VQT0Q09

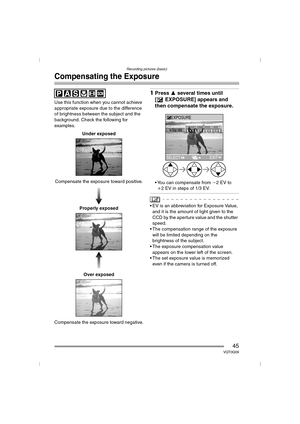

Compensating the Exposure
Use this function when you cannot achieve
appropriate exposure due to the difference
of brightness between the subject and the
background. Check the following for
examples.
Under exposed
Compensate the exposure toward positive.
Properly exposed
Over exposed
Compensate the exposure toward negative.
1Press 3 several times until
[ EXPOSURE] appears and
then compensate the exposure.
 You can compensate from j2EV to
i2 EV in steps of 1/3...

Recording pictures (basic)
46VQT0Q09

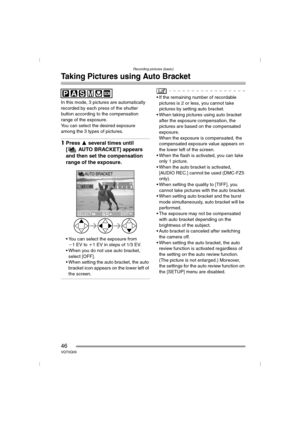

Taking Pictures using Auto Bracket
In this mode, 3 pictures are automatically
recorded by each press of the shutter
button according to the compensation
range of the exposure.
You can select the desired exposure
among the 3 types of pictures.
1Press 3 several times until
[ AUTO BRACKET] appears
and then set the compensation
range of the exposure.
 You can select the exposure from
j1EV to i1 EV in steps of 1/3 EV.
 When you do not use auto bracket,
select...

Recording pictures (basic)
47VQT0Q09

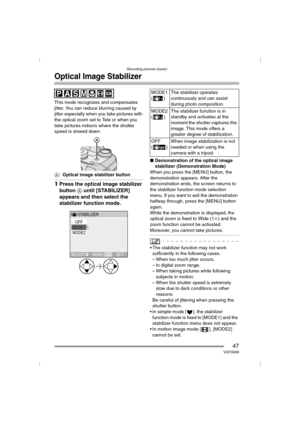

Optical Image Stabilizer
This mode recognizes and compensates
jitter. You can reduce blurring caused by
jitter especially when you take pictures with
the optical zoom set to Tele or when you
take pictures indoors where the shutter
speed is slowed down.
A:Optical image stabilizer button
1Press the optical image stabilizer
button A until [STABILIZER]
appears and then select the
stabilizer function mode.
∫Demonstration of the optical image
stabilizer...

Recording pictures (basic)
48VQT0Q09

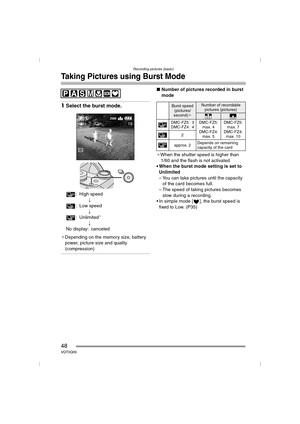

Taking Pictures using Burst Mode
1Select the burst mode.
: High speed
;
: Low speed
;
:Unlimited
¢
;
No display: canceled
¢Depending on the memory size, battery
power, picture size and quality
(compression)
∫Number of pictures recorded in burst
mode
¢When the shutter speed is higher than
1/60 and the flash is not activated
 When the burst mode setting is set to
Unlimited
– You can take pictures until the capacity
of the card becomes full.
– The speed of taking...

Recording pictures (basic)
49VQT0Q09

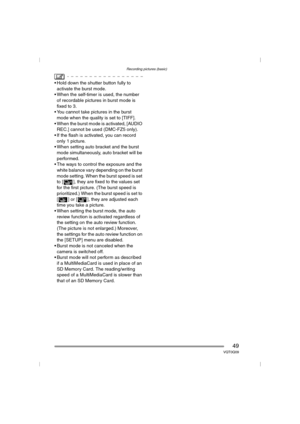

 Hold down the shutter button fully to
activate the burst mode.
 When the self-timer is used, the number
of recordable pictures in burst mode is
fixed to 3.
 You cannot take pictures in the burst
mode when the quality is set to [TIFF].
 When the burst mode is activated, [AUDIO
REC.] cannot be used (DMC-FZ5 only).
 If the flash is activated, you can record
only 1 picture.
 When setting auto bracket and the burst
mode simultaneously, auto bracket will be...

Playback (basic)
50VQT0Q09
Playback (basic)

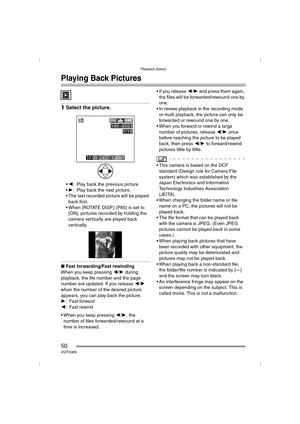

Playing Back Pictures
1Select the picture.
2: Play back the previous picture.
 1: Play back the next picture.
 The last recorded picture will be played
back first.
 When [ROTATE DISP.] (P85) is set to  [ON], pictures recorded by holding the
camera vertically are played back
vertically.
∫ Fast forwarding/Fast rewinding
When you keep pressing  2/1 during
playback, the file number and the page
number are updated. If you release  2/1
when the number of...
