Playback (basic)
51VQT0Q09

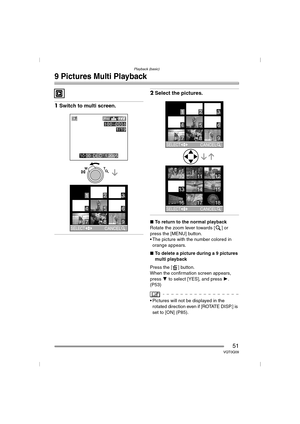

9 Pictures Multi Playback
1Switch to multi screen.
2Select the pictures.
∫ To return to the normal playback
Rotate the zoom lever towards [ ] or
press the [MENU] button.
 The picture with the number colored in  orange appears.
∫ To delete a picture during a 9 pictures
multi playback
Press the [ ] button.
When the confirmation screen appears,
press  4 to select [YES], and press  1.
(P53)
 Pictures will not be displayed in the
rotated direction even if [ROTATE DISP.] is...

Playback (basic)
52VQT0Q09

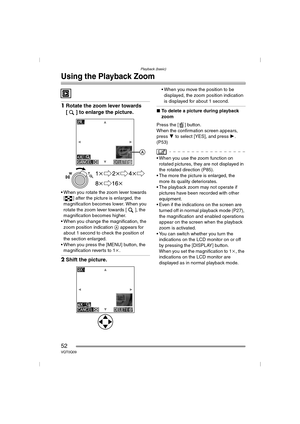

Using the Playback Zoom
1Rotate the zoom lever towards
[ ] to enlarge the picture.
 When you rotate the zoom lever towards
[ ] after the picture is enlarged, the
magnification becomes lower. When you
rotate the zoom lever towards [ ], the
magnification becomes higher.
 When you change the magnification, the
zoom position indication  A appears for
about 1 second to check the position of
the section enlarged.
 When you press the [MENU] button, the  magnification...

Playback (basic)
53VQT0Q09

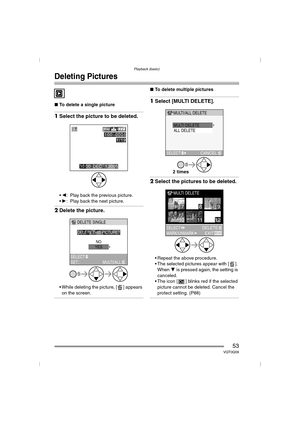

Deleting Pictures
∫To delete a single picture
1Select the picture to be deleted.
2 : Play back the previous picture.
 1 : Play back the next picture.
2Delete the picture.
 While deleting the picture, [ ] appears
on the screen.
∫ To delete multiple pictures
1Select [MULTI DELETE].
2Select the pictures to be deleted.
 Repeat the above procedure.
 The selected pictures appear with [ ].
When  4 is pressed again, the setting is
canceled.
 The icon [ ] blinks red if the...

Playback (basic)
54VQT0Q09

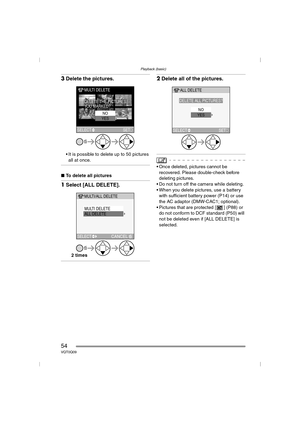

3Delete the pictures.
 It is possible to delete up to 50 pictures
all at once.
∫To delete all pictures
1Select [ALL DELETE].
2Delete all of the pictures.
 Once deleted, pictures cannot be
recovered. Please double-check before
deleting pictures.
 Do not turn off the camera while deleting.
 When you delete pictures, use a battery
with sufficient battery power (P14) or use
the AC adaptor (DMW-CAC1; optional).
 Pictures that are protected [ ] (P88) or
do not conform to...

Recording pictures (advanced)
55VQT0Q09
Recording pictures (advanced)

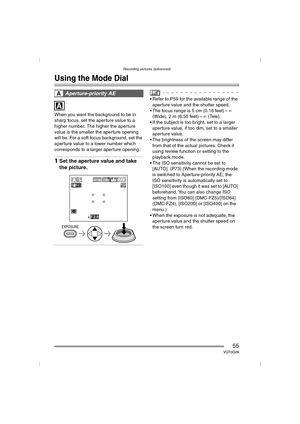

Using the Mode Dial
When you want the background to be in
sharp focus, set the aperture value to a
higher number. The higher the aperture
value is the smaller the aperture opening
will be. For a soft focus background, set the
aperture value to a lower number which
corresponds to a larger aperture opening.
1Set the aperture value and take
the picture.
 Refer to P59 for the available range of the
aperture value and the shutter...

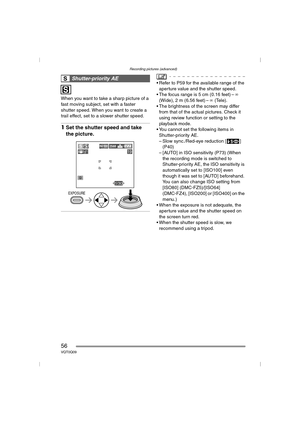

Recording pictures (advanced)
56VQT0Q09
When you want to take a sharp picture of a
fast moving subject, set with a faster
shutter speed. When you want to create a
trail effect, set to a slower shutter speed.
1Set the shutter speed and take
the picture.
 Refer to P59 for the available range of the
aperture value and the shutter speed.
 The focus range is 5 cm (0.16 feet) – ¶
(Wide), 2 m (6.56 feet) – ¶ (Tele).
 The brightness of the screen may differ  from that of the actual pictures. Check it...

Recording pictures (advanced)
57VQT0Q09

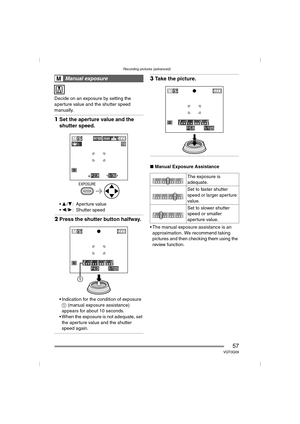

Decide on an exposure by setting the
aperture value and the shutter speed
manually.
1Set the aperture value and the
shutter speed.
3 /4 : Aperture value
 2 /1 : Shutter speed
2Press the shutter button halfway.
 Indication for the condition of exposure
1  (manual exposure assistance)
appears for about 10 seconds.
 When the exposure is not adequate, set
the aperture value and the shutter
speed again.
3 Take the picture.
∫ Manual Exposure Assistance
 The...

Recording pictures (advanced)
58VQT0Q09

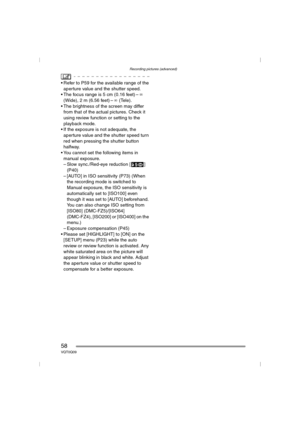

 Refer to P59 for the available range of the
aperture value and the shutter speed.
 The focus range is 5 cm (0.16 feet) –¶
(Wide), 2 m (6.56 feet) –¶ (Tele).
 The brightness of the screen may differ
from that of the actual pictures. Check it
using review function or setting to the
playback mode.
 If the exposure is not adequate, the
aperture value and the shutter speed turn
red when pressing the shutter button
halfway.
 You cannot set the following...

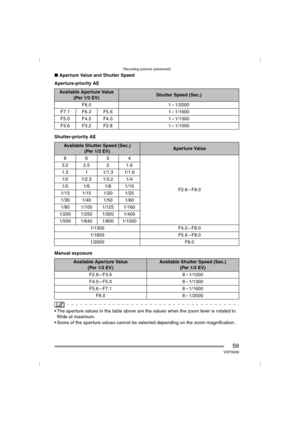

Recording pictures (advanced)
59VQT0Q09
∫Aperture Value and Shutter Speed
Aperture-priority AE
Shutter-priority AE
Manual exposure
 The aperture values in the table above are the values when the zoom lever is rotated to
Wide at maximum.
 Some of the aperture values cannot be selected depending on the zoom magnification.
Available Aperture Value
(Per 1/3 EV)Shutter Speed (Sec.)
F8.0 1 – 1/2000
F7.1 F6.3 F5.6 1 – 1/1600
F5.0 F4.5 F4.0 1 – 1/1300
F3.6 F3.2 F2.8 1 – 1/1000
Available Shutter Speed (Sec.)...

Recording pictures (advanced)
60VQT0Q09

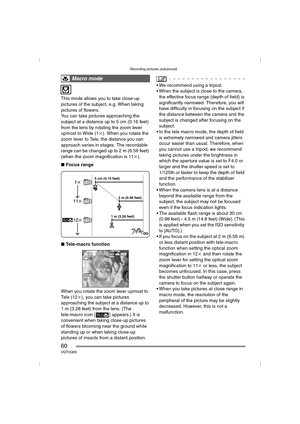

This mode allows you to take close-up
pictures of the subject, e.g. When taking
pictures of flowers.
You can take pictures approaching the
subject at a distance up to 5 cm (0.16 feet)
from the lens by rotating the zoom lever
upmost to Wide (1k). When you rotate the
zoom lever to Tele, the distance you can
approach varies in stages. The recordable
range can be changed up to 2 m (6.56 feet)
(when the zoom magnification is 11k).
∫Focus range
∫Tele-macro...
