Panasonic Dmc Fz5 Operating Instructions Manual

Recording pictures (basic)
31VQT0Q09

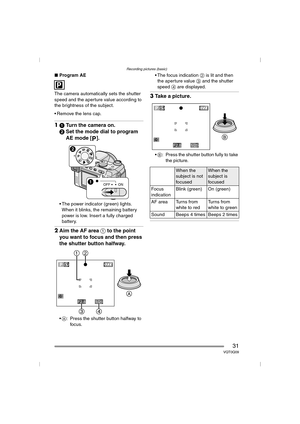

∫Program AE
The camera automatically sets the shutter
speed and the aperture value according to
the brightness of the subject.
 Remove the lens cap.
1 1 Turn the camera on.
2 Set the mode dial to program
AE mode [ ].
 The power indicator (green) lights.
When it blinks, the remaining battery
power is low. Insert a fully charged
battery.
2 Aim the AF area  1 to the point
you want to focus and then press
the shutter button halfway.
 A : Press the shutter...

Recording pictures (basic)

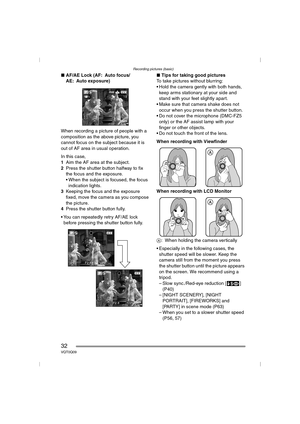

32VQT0Q09
∫AF/AE Lock (AF: Auto focus/
AE: Auto exposure)
When recording a picture of people with a
composition as the above picture, you
cannot focus on the subject because it is
out of AF area in usual operation.
In this case,
1Aim the AF area at the subject.
2Press the shutter button halfway to fix
the focus and the exposure.
 When the subject is focused, the focus
indication lights.
3Keeping the focus and the exposure
fixed, move the camera as you compose
the...

Recording pictures (basic)
33VQT0Q09
∫Focusing
 The focus range is 30 cm (0.98 feet) – ¶
(Wide), 2 m (6.56 feet) – ¶ (Tele).
 When you press the shutter button fully  with one stroke, pictures may be blurry or
unfocused.
 When the focus indication is blinking, the  subject is not focused. Press the shutter
button halfway and focus on the subject
again.
 If the camera will not focus after a few  tries, turn it off and on and try again.
 In the following cases, the camera will not  focus on...

Recording pictures (basic)
34VQT0Q09

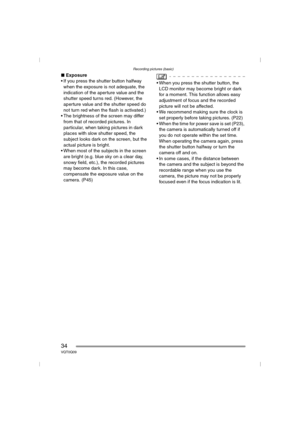

∫Exposure
 If you press the shutter button halfway
when the exposure is not adequate, the
indication of the aperture value and the
shutter speed turns red. (However, the
aperture value and the shutter speed do
not turn red when the flash is activated.)
 The brightness of the screen may differ
from that of recorded pictures. In
particular, when taking pictures in dark
places with slow shutter speed, the
subject looks dark on the screen, but the
actual...

Recording pictures (basic)

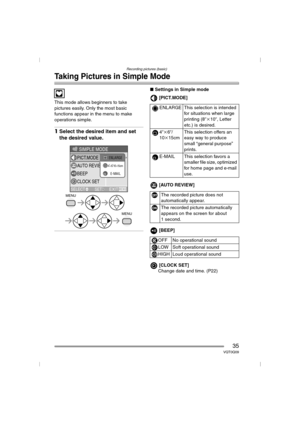

35VQT0Q09
Taking Pictures in Simple Mode
This mode allows beginners to take
pictures easily. Only the most basic
functions appear in the menu to make
operations simple.
1Select the desired item and set
the desired value.
∫Settings in Simple mode
[PICT.MODE]
[AUTO REVIEW]
[BEEP]
[CLOCK SET]
Change date and time. (P22)
SIMPLE MODE
AUTO REVIEW
BEEP
CLOCK SET
EXITMENUSELECT SET
MENU
MENU
PICT.MODEENLARGE
4k6/10k15 cm
E-MAIL
ENLARGE This selection is intended
for situations...

Recording pictures (basic)

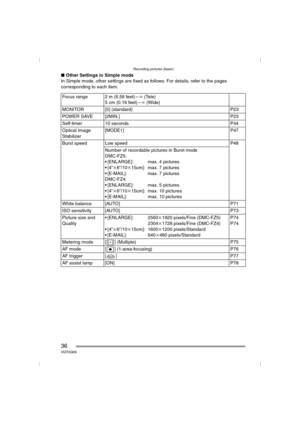

36VQT0Q09
∫Other Settings in Simple mode
In Simple mode, other settings are fixed as follows. For details, refer to the pages
corresponding to each item.
Focus range 2 m (6.56 feet) –¶ (Tele)
5 cm (0.16 feet) –¶ (Wide)
MONITOR [0] (standard) P23
POWER SAVE [2MIN.] P23
Self-timer 10 seconds P44
Optical Image
Stabilizer[MODE1] P47
Burst speed Low speed P48
Number of recordable pictures in Burst mode
DMC-FZ5:
 [ENLARGE]: max. 4 pictures
[4qk6q/10k15cm]: max. 7 pictures
...

Recording pictures (basic)

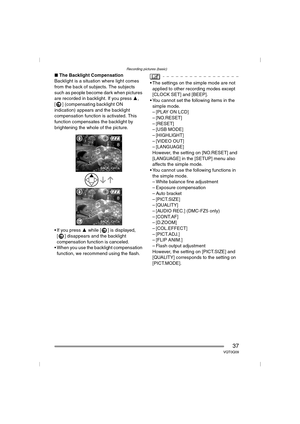

37VQT0Q09
∫The Backlight Compensation
Backlight is a situation where light comes
from the back of subjects. The subjects
such as people become dark when pictures
are recorded in backlight. If you press 3,
[ ] (compensating backlight ON
indication) appears and the backlight
compensation function is activated. This
function compensates the backlight by
brightening the whole of the picture.
 If you press 3 while [ ] is displayed,
[ ] disappears and the backlight...

Recording pictures (basic)

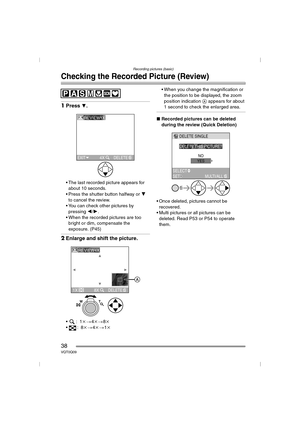

38VQT0Q09
Checking the Recorded Picture (Review)
1Press 4.
 The last recorded picture appears for
about 10 seconds.
 Press the shutter button halfway or  4
to cancel the review.
 You can check other pictures by  pressing  2/1 .
 When the recorded pictures are too  bright or dim, compensate the
exposure. (P45)
2 Enlarge and shift the picture.
:1 k> 4k> 8k
:8 k>4k> 1k  When you change the magnification or
the position to be displayed, the zoom
position indication  A...

Recording pictures (basic)

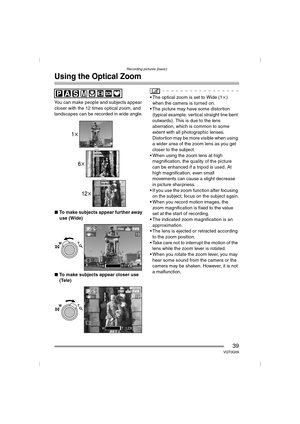

39VQT0Q09
Using the Optical Zoom
You can make people and subjects appear
closer with the 12 times optical zoom, and
landscapes can be recorded in wide angle.
∫To make subjects appear further away
use (Wide)
∫To make subjects appear closer use
(Tele) The optical zoom is set to Wide (1k)
when the camera is turned on.
 The picture may have some distortion
(typical example: vertical straight line bent
outwards). This is due to the lens
aberration, which is common to some...

Recording pictures (basic)

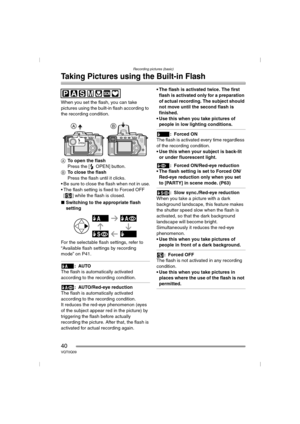

40VQT0Q09
Taking Pictures using the Built-in Flash
When you set the flash, you can take
pictures using the built-in flash according to
the recording condition.
ATo open the flash
Press the [ OPEN] button.
BTo close the flash
Press the flash until it clicks.
 Be sure to close the flash when not in use.
 The flash setting is fixed to Forced OFF
[ ] while the flash is closed.
∫Switching to the appropriate flash
setting
For the selectable flash settings, refer to
“Available...
