Panasonic Dmc Fz8 Operating Instructions Manual

Operating Instructions
Digital Camera
Model No. DMC-FZ8
PP
VQT1B25
Before connecting, operating or
adjusting this product, please read
the instructions completely.
For USA assistance, please call: 1-800-272-7033 or send e-mail to : [email protected]
For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or
                                    send e-mail to: [email protected]
PCP
DMC-FZ8_PP ENG.book  1 ページ  ２００６年１２月２６日　火曜日　午後４時２０分

Before Use
2VQT1B25
Before UseDear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, we’re sure it
will bring you and your family years of
enjoyment. Please take time to fill in the
information on the below.
The serial number is on the tag located on
the underside of your Camera. Be sure to
retain this manual as your convenient
Camera information source.Information for Your
Safety
Carefully...

Before Use
3VQT1B25
 Please note that the actual controls and
components, menu items, etc. of your
Digital Camera may look somewhat
different from those shown in the
illustrations in these Operating
Instructions.
 SDHC Logo is a trademark.
 Leica is a registered trademark of Leica
Microsystems IR GmbH.
 Elmarit is a registered trademark of Leica
Camera AG.
 Other names, company names, and
product names printed in these
instructions are trademarks or registered
trademarks of the companies...

Before Use
4VQT1B25
THE FOLLOWING APPLIES ONLY IN
CANADA
-If you see this symbol-∫About the battery pack
∫About the battery charger Declaration of Conformity
Trade Name: Panasonic
Model No.: DMC-FZ8
Responsible party:PanasonicCorporation of
North America
One Panasonic Way,
Secaucus, NJ 07094
Support Contact: Panasonic
Consumer
Electronics Company
1-800-272-7033
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause...

Before Use
5VQT1B25

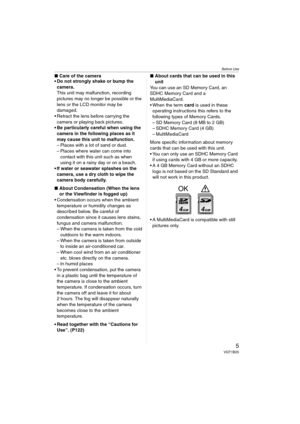

∫Care of the camera
 Do not strongly shake or bump the
camera.
This unit may malfunction, recording
pictures may no longer be possible or the
lens or the LCD monitor may be
damaged.
 Retract the lens before carrying the
camera or playing back pictures.
 Be particularly careful when using the
camera in the following places as it
may cause this unit to malfunction.
– Places with a lot of sand or dust.
– Places where water can come into
contact with this unit such as when...

6VQT1B25

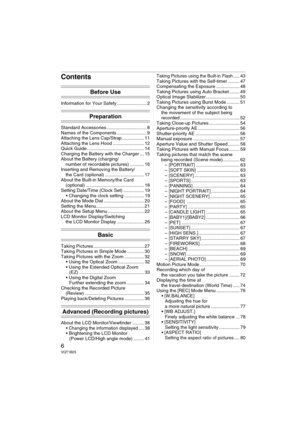

Contents
Before Use
Information for Your Safety ....................... 2
Preparation
Standard Accessories ............................... 8
Names of the Components ....................... 9
Attaching the Lens Cap/Strap ................. 11
Attaching the Lens Hood ........................ 12
Quick Guide ............................................ 14
Charging the Battery with the Charger ... 15
About the Battery (charging/
number of recordable pictures) ........... 16
Inserting and Removing the...

7VQT1B25

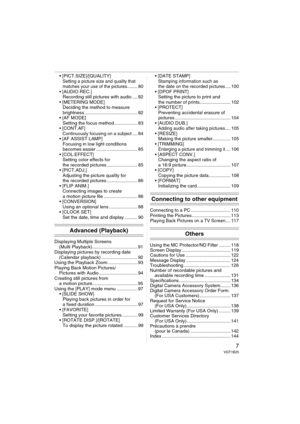

Setting a picture size and quality that
matches your use of the pictures........ 80
 REC.]
Recording still pictures with audio .... 82
 MODE]
Deciding the method to measure
brightness ......................................... 82
 MODE]
Setting the focus method.................. 83

Continuously focusing on a subject.... 84
 ASSIST LAMP]
Focusing in low light conditions
becomes easier ................................ 85

Setting color effects for
the recorded pictures...

Preparation
8VQT1B25
Preparation

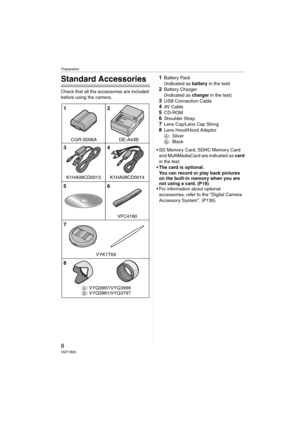

Standard Accessories
Check that all the accessories are included
before using the camera.
1Battery Pack
(Indicated as battery in the text)
2Battery Charger
(Indicated as charger in the text)
3USB Connection Cable4AV  C a b l e5CD-ROM
6Shoulder Strap7Lens Cap/Lens Cap String8Lens Hood/Hood Adaptor
A: Silver
B:Black
 SD Memory Card, SDHC Memory Card
and MultiMediaCard are indicated as card
in the text.
 The card is optional.
You can record or play back pictures
on the...

Preparation
9VQT1B25

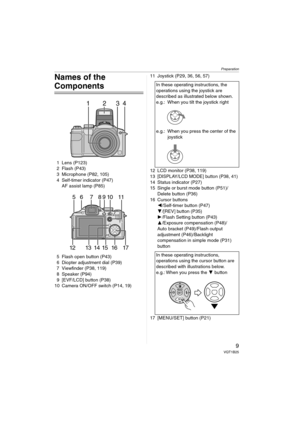

Names of the
Components
1 Lens (P123)
2 Flash (P43)
3 Microphone (P82, 105)
4 Self-timer indicator (P47)
AF assist lamp (P85)
5 Flash open button (P43)
6 Diopter adjustment dial (P39)
7 Viewfinder (P38, 119)
8 Speaker (P94)
9 [EVF/LCD] button (P38)
10 Camera ON/OFF switch (P14, 19)11 Joystick (P29, 36, 56, 57)
12 LCD monitor (P38, 119)
13 [DISPLAY/LCD MODE] button (P38, 41)14 Status indicator (P27)
15 Single or burst mode button (P51)/
Delete button (P36)
16 Cursor buttons...

Preparation
10VQT1B25

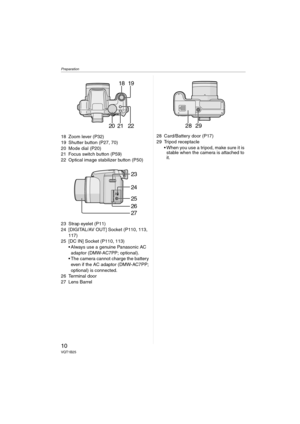

18 Zoom lever (P32)
19 Shutter button (P27, 70)
20 Mode dial (P20)
21 Focus switch button (P59)
22 Optical image stabilizer button (P50)
23 Strap eyelet (P11)
24 [DIGITAL/AV OUT] Socket (P110, 113,
117)
25 [DC IN] Socket (P110, 113)
 Always use a genuine Panasonic AC
adaptor (DMW-AC7PP; optional).
 The camera cannot charge the battery
even if the AC adaptor (DMW-AC7PP;
optional) is connected.
26 Terminal door
27 Lens Barrel28 Card/Battery door (P17)
29 Tripod receptacle
 When...
