Panasonic Dmc Fz8 Operating Instructions Manual

Preparation

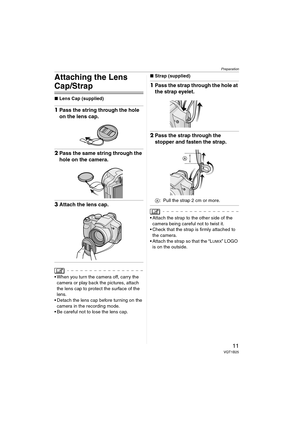

11VQT1B25
Attaching the Lens
Cap/Strap
∫Lens Cap (supplied)
1Pass the string through the hole
on the lens cap.
2Pass the same string through the
hole on the camera.
3Attach the lens cap.
 When you turn the camera off, carry the
camera or play back the pictures, attach
the lens cap to protect the surface of the
lens.
 Detach the lens cap before turning on the
camera in the recording mode.
 Be careful not to lose the lens cap.∫Strap (supplied)
1Pass the strap through the hole at
the...

Preparation

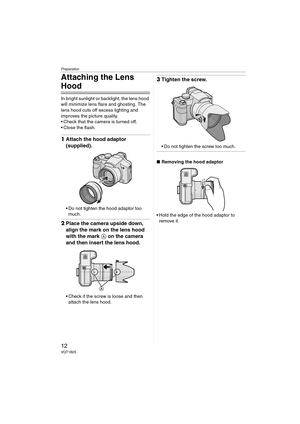

12VQT1B25
Attaching the Lens
Hood
In bright sunlight or backlight, the lens hood
will minimize lens flare and ghosting. The
lens hood cuts off excess lighting and
improves the picture quality.
 Check that the camera is turned off.
 Close the flash.
1Attach the hood adaptor
(supplied).
 Do not tighten the hood adaptor too
much.
2Place the camera upside down,
align the mark on the lens hood
with the mark A on the camera
and then insert the lens hood.
 Check if the screw is loose and...

Preparation

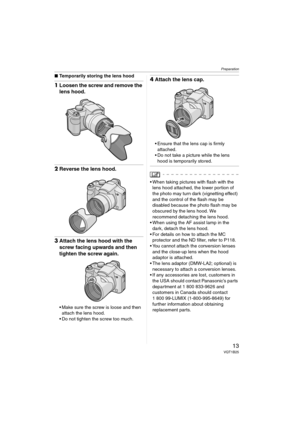

13VQT1B25
∫Temporarily storing the lens hood
1Loosen the screw and remove the
lens hood.
2Reverse the lens hood.
3Attach the lens hood with the
screw facing upwards and then
tighten the screw again.
 Make sure the screw is loose and then
attach the lens hood.
 Do not tighten the screw too much.
4Attach the lens cap.
 Ensure that the lens cap is firmly
attached.
 Do not take a picture while the lens
hood is temporarily stored.
 When taking pictures with flash with the
lens hood...

Preparation
14VQT1B25

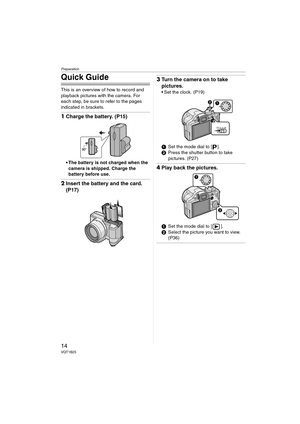

Quick Guide
This is an overview of how to record and
playback pictures with the camera. For
each step, be sure to refer to the pages
indicated in brackets.
1Charge the battery. (P15)
 The battery is not charged when the
camera is shipped. Charge the
battery before use.
2Insert the battery and the card.
(P17)
3Turn the camera on to take
pictures.
 Set the clock. (P19)
1Set the mode dial to [ ].
2Press the shutter button to take
pictures. (P27)
4Play back the pictures.
1Set...

Preparation
15VQT1B25

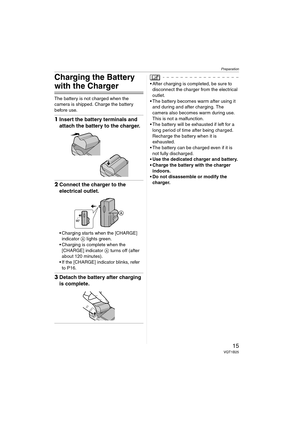

Charging the Battery
with the Charger
The battery is not charged when the
camera is shipped. Charge the battery
before use.
1Insert the battery terminals and
attach the battery to the charger.
2Connect the charger to the
electrical outlet.
 Charging starts when the [CHARGE]
indicator A lights green.
 Charging is complete when the
[CHARGE] indicator A turns off (after
about 120 minutes).
 If the [CHARGE] indicator blinks, refer
to P16.
3Detach the battery after charging
is...

Preparation

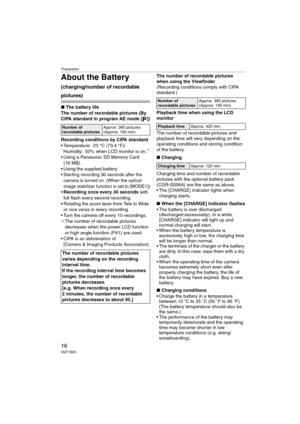

16VQT1B25
About the Battery
(charging/number of recordable
pictures)
∫The battery life
The number of recordable pictures (By
CIPA standard in program AE mode [ ])
Recording conditions by CIPA standard
 Temperature: 23 °C (73.4 °F)/
Humidity: 50% when LCD monitor is on.
¢
 Using a Panasonic SD Memory Card
(16 MB).
 Using the supplied battery.
 Star ting recording 30 seconds after the
camera is turned on. (When the optical
image stabilizer function is set to [MODE1])
Recording once every...

Preparation

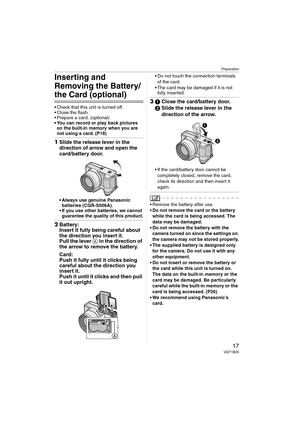

17VQT1B25
Inserting and
Removing the Battery/
the Card (optional)
 Check that this unit is turned off.
 Close the flash.
 Prepare a card. (optional)
 You can record or play back pictures
on the built-in memory when you are
not using a card. (P18)
1Slide the release lever in the
direction of arrow and open the
card/battery door.
 Always use genuine Panasonic
batteries (CGR-S006A).
 If you use other batteries, we cannot
guarantee the quality of this product.
2Battery:
Insert it fully...

Preparation

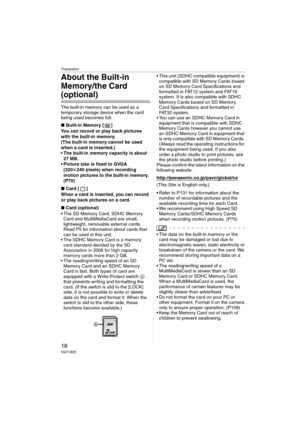

18VQT1B25
About the Built-in
Memory/the Card
(optional)
The built-in memory can be used as a
temporary storage device when the card
being used becomes full.
∫Built-in Memory [ ]
You can record or play back pictures
with the built-in memory.
(The built-in memory cannot be used
when a card is inserted.)
 The built-in memory capacity is about
27 MB.
 Picture size is fixed to QVGA
(320k240 pixels) when recording
motion pictures to the built-in memory.
(P70)
∫Card [ ]
When a card is...

Preparation

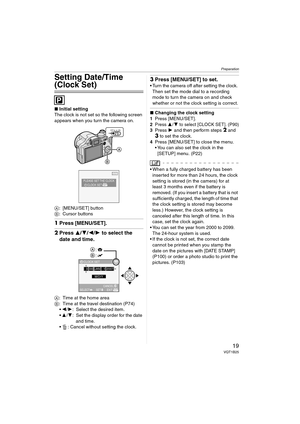

19VQT1B25
Setting Date/Time
(Clock Set)
∫Initial setting
The clock is not set so the following screen
appears when you turn the camera on.
A: [MENU/SET] button
B: Cursor buttons
1Press [MENU/SET].
2Press 3/4/2/1 to select the
date and time.
A: Time at the home area
B: Time at the travel destination (P74)
2/1: Select the desired item
.3/4: Set the display order for the date
and time.
 : Cancel without setting the clock.
3Press [MENU/SET] to set.
 Turn the camera off after setting the...

Preparation

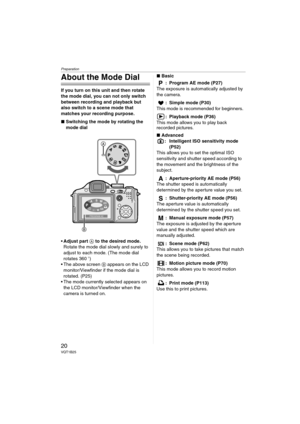

20VQT1B25
About the Mode Dial
If you turn on this unit and then rotate
the mode dial, you can not only switch
between recording and playback but
also switch to a scene mode that
matches your recording purpose.
∫Switching the mode by rotating the
mode dial
Adjust part A to the desired mode.
Rotate the mode dial slowly and surely to
adjust to each mode. (The mode dial
rotates 360o)
 The above screen B appears on the LCD
monitor/Viewfinder if the mode dial is
rotated. (P25)
 The mode...
