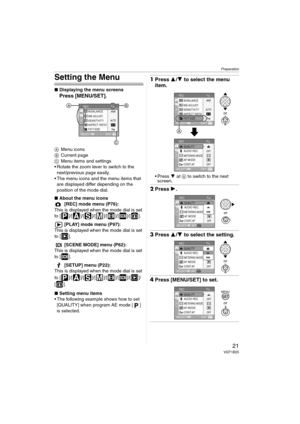

Panasonic Dmc Fz8 Operating Instructions Manual

Preparation
21VQT1B25
Setting the Menu
∫Displaying the menu screens
Press [MENU/SET].
AMenu icons
BCurrent page
CMenu items and settings
 Rotate the zoom lever to switch to the
next/previous page easily.
 The menu icons and the menu items that
are displayed differ depending on the
position of the mode dial.
∫About the menu icons
[REC] mode menu (P76):
This is displayed when the mode dial is set
to [ ]/[ ]/[ ]/[ ]/[ ]/[ ]/[ ].
[PLAY] mode menu (P97):
This is displayed when the mode dial is set
to [...

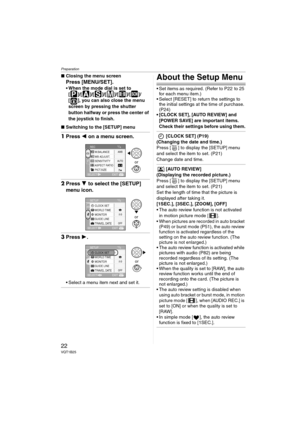

Preparation
22VQT1B25
∫Closing the menu screen
Press [MENU/SET].
 When the mode dial is set to
[ ]/[ ]/[ ]/[ ]/[ ]/[ ]/
[ ], you can also close the menu
screen by pressing the shutter
button halfway or press the center of
the joystick to finish.
∫Switching to the [SETUP] menu
1Press 2 on a menu screen.
2Press 4 to select the [SETUP]
menu icon.
3Press 1.
 Select a menu item next and set it.
About the Setup Menu
 Set items as required. (Refer to P22  to 25
for each menu item.)
 Select [RESET] to...

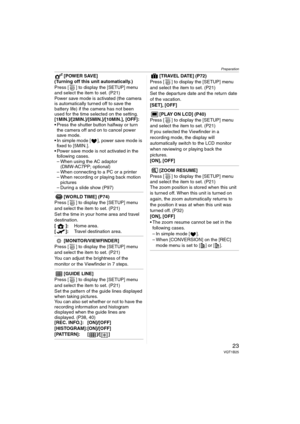

Preparation
23VQT1B25
[POWER SAVE]
(Turning off this unit automatically.)
Press [ ] to display the [SETUP] menu
and select the item to set. (P21)
Power save mode is activated (the camera
is automatically turned off to save the
battery life) if the camera has not been
used for the time selected on the setting.
[1MIN.]/[2MIN.]/[5MIN.]/[10MIN.], [OFF]:
 Press the shutter button halfway or turn
the camera off and on to cancel power
save mode.
 In simple mode [ ], power save mode is
fixed to [5MIN.]....

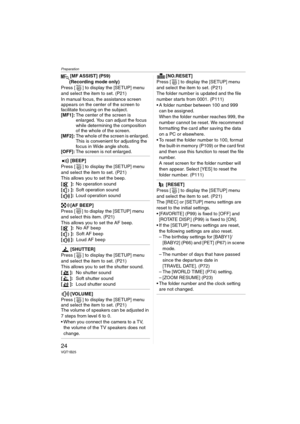

Preparation
24VQT1B25
[MF ASSIST] (P59)
(Recording mode only)
Press [ ] to display the [SETUP] menu
and select the item to set. (P21)
In manual focus, the assistance screen
appears on the center of the screen to
facilitate focusing on the subject.
[MF1]:The center of the screen is
enlarged. You can adjust the focus
while determining the composition
of the whole of the screen.
[MF2]:The whole of the screen is enlarged.
This is convenient for adjusting the
focus in Wide angle shots.
[OFF]:The...

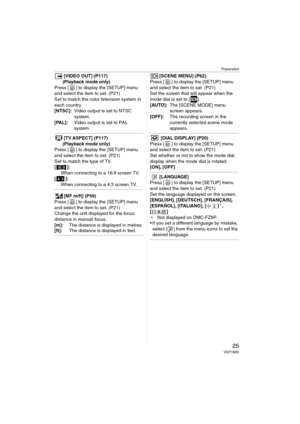

Preparation
25VQT1B25
[VIDEO OUT] (P117)
(Playback mode only)
Press [ ] to display the [SETUP] menu
and select the item to set. (P21)
Set to match the color television system in
each country.
[NTSC]:Video output is set to NTSC
system.
[PAL]:Video output is set to PAL
system.
[TV ASPECT] (P117)
(Playback mode only)
Press [ ] to display the [SETUP] menu
and select the item to set. (P21)
Set to match the type of TV.
[ ]:
When connecting to a 16:9 screen TV.
[]:
When connecting to a 4:3 screen TV.
[MF...

Preparation
26VQT1B25
LCD Monitor Display/
Switching the LCD
Monitor Display
∫Screen display in program AE mode
[ ] (at the time of purchase)
1 Recording mode
2 Flash mode (P43)
3 AF area (P27)
 The AF area displayed is bigger than
usual when taking pictures in dark
places.
4 Focus (P27)
5 Picture size (P80)
6 Quality (P80)
: Jitter alert (P29)
7 Battery indication
 The indication turns red and blinks if
the remaining battery power is
exhausted. (The status indicator blinks
when the LCD monitor...

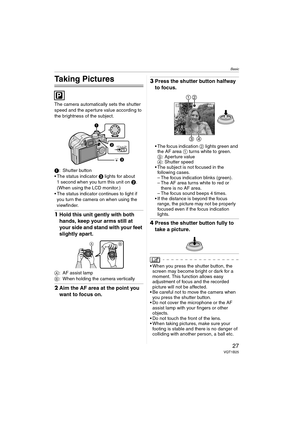

Basic
27VQT1B25
Basic
Taking Pictures
The camera automatically sets the shutter
speed and the aperture value according to
the brightness of the subject.
1: Shutter button
 The status indicator 3 lights for about
1 second when you turn this unit on 2.
(When using the LCD monitor.)
 The status indicator continues to light if
you turn the camera on when using the
viewfinder.
1Hold this unit gently with both
hands, keep your arms still at
your side and stand with your feet
slightly apart.
A: AF...

Basic
28VQT1B25
∫Exposure (P48)
 The exposure is automatically adjusted to
the appropriate exposure on this unit
(AE=Auto Exposure). However,
depending on the recording conditions
such as when there is backlight, the
recorded picture will be dark.
In this case, compensate the exposure.
This allows you to take bright pictures.
∫Focusing (P28, 54, 61)
 The picture is automatically focused on
this unit (AF=Auto Focus). However, the
picture may not be properly focused in the
following cases.
The...

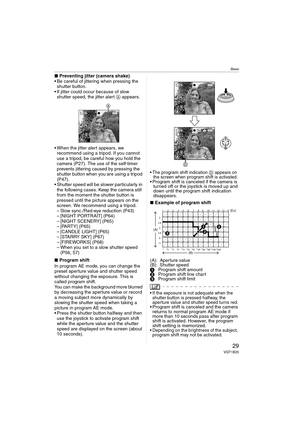

Basic
29VQT1B25
∫Preventing jitter (camera shake)
 Be careful of jittering when pressing the
shutter button.
 If jitter could occur because of slow
shutter speed, the jitter alert A appears.
 When the jitter alert appears, we
recommend using a tripod. If you cannot
use a tripod, be careful how you hold the
camera (P27). The use of the self-timer
prevents jittering caused by pressing the
shutter button when you are using a tripod
(P47).
 Shutter speed will be slower particularly in
the following...

Basic
30VQT1B25
Taking Pictures in
Simple Mode
This mode allows beginners to take
pictures easily. Only the basic functions
appear in the menu to make operations
simple.
∫Basic menu settings
1Press [MENU/SET].
2Press 34 to select the desired
menu item and then press 1.
3Press 34 to select the desired
setting and then press [MENU/
SET].
4Press [MENU/SET] to close the
menu.
 You can also press the shutter
button halfway to close the menu.
 You can also use the joystick to perform
2 to 4....
