Panasonic Dmc Fz8 Operating Instructions Manual

Advanced (Recording pictures)
41VQT1B25
 When the recorded picture and the
histogram do not match each other
under the following conditions, the
histogram is displayed in orange.
– When the manual exposure assistance
is other than [n0EV] during exposure
compensation or in the manual
exposure mode
– When the flash is activated
– In [STARRY SKY] (P67) or
[FIREWORKS] (P68) in scene mode
– When the flash is closed
1When the brightness of the screen is
not correctly displayed in dark places
2When the...

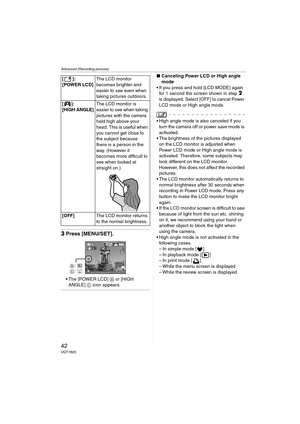

Advanced (Recording pictures)
42VQT1B25
3Press [MENU/SET].
 The [POWER LCD] B or [HIGH
ANGLE] C icon appears.
∫Canceling Power LCD or High angle
mode
 If you press and hold [LCD MODE] again
for 1 second the screen shown in step
2
is displayed. Select [OFF] to cancel Power
LCD mode or High angle mode.
 High angle mode is also canceled if you
turn the camera off or power save mode is
activated.
 The brightness of the pictures displayed
on the LCD monitor is adjusted when
Power LCD mode or High...

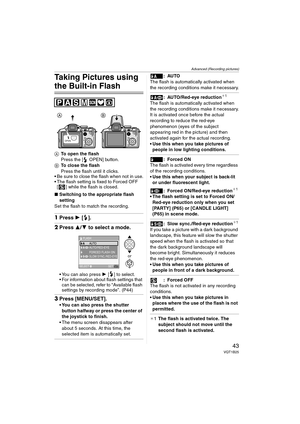

Advanced (Recording pictures)
43VQT1B25
Taking Pictures using
the Built-in Flash
ATo open the flash
Press the [ OPEN] button.
BTo close the flash
Press the flash until it clicks.
 Be sure to close the flash when not in use.
 The flash setting is fixed to Forced OFF
[ ] while the flash is closed.
∫Switching to the appropriate flash
setting
Set the flash to match the recording.
1Press 1 [].
2Press 3/4 to select a mode.
 You can also press 1 [ ] to select.
 For information about flash settings that
can...

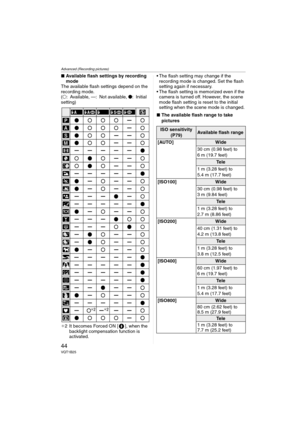

Advanced (Recording pictures)
44VQT1B25
∫Available flash settings by recording
mode
The available flash settings depend on the
recording mode.
(±: Available, —: Not available, ¥: Initial
setting)
¢2 It becomes Forced ON [ ], when the
backlight compensation function is
activated. The flash setting may change if the
recording mode is changed. Set the flash
setting again if necessary.
 The flash setting is memorized even if the
camera is turned off. However, the scene
mode flash setting is reset to...

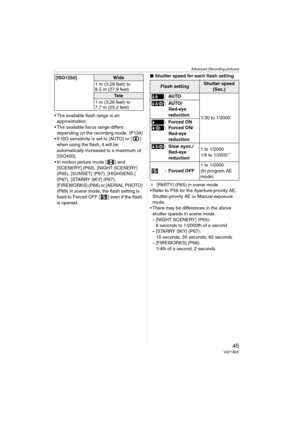

Advanced (Recording pictures)
45VQT1B25
 The available flash range is an
approximation.
 The available focus range differs
depending on the recording mode. (P134)
 If ISO sensitivity is set to [AUTO] or [ ]
when using the flash, it will be
automatically increased to a maximum of
[ISO400].
 In motion picture mode [ ] and
[SCENERY] (P63), [NIGHT SCENERY]
(P65), [SUNSET] (P67), [HIGHSENS.]
(P67), [STARRY SKY] (P67),
[FIREWORKS] (P68) or [AERIAL PHOTO]
(P69) in scene mode, the flash setting is...

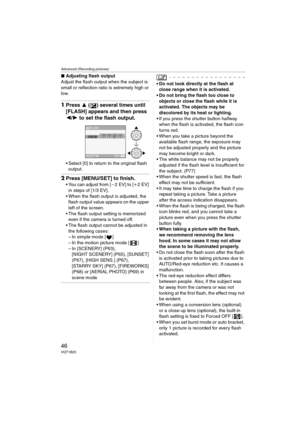

Advanced (Recording pictures)
46VQT1B25
∫Adjusting flash output
Adjust the flash output when the subject is
small or reflection ratio is extremely high or
low.
1Press 3 ( ) several times until
[FLASH] appears and then press
2/1 to set the flash output.
 Select [0] to return to the original flash
output.
2Press [MENU/SET] to finish.
 You can adjust from [j2 EV] to [i2EV]
in steps of [1/3 EV].
 When the flash output is adjusted, the
flash output value appears on the upper
left of the screen.
 The...

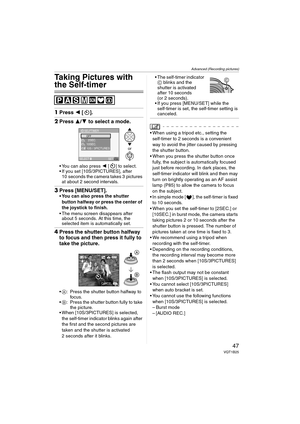

Advanced (Recording pictures)
47VQT1B25
Taking Pictures with
the Self-timer
1Press 2 [].
2Press 3/4 to select a mode.
 You can also press 2 [ ] to select.
 If you set [10S/3PICTURES], after
10 seconds the camera takes 3 pictures
at about 2 second intervals.
3Press [MENU/SET]. You can also press the shutter
button halfway or press the center of
the joystick to finish.
 The menu screen disappears after
about 5 seconds. At this time, the
selected item is automatically set.
4Press the shutter button...

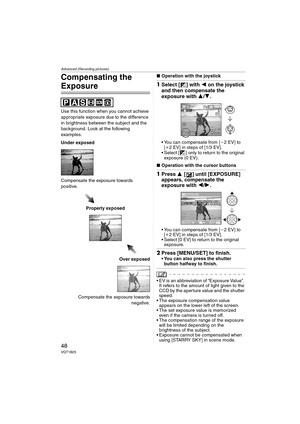

Advanced (Recording pictures)
48VQT1B25
Compensating the
Exposure
Use this function when you cannot achieve
appropriate exposure due to the difference
in brightness between the subject and the
background. Look at the following
examples.
Under exposed
Compensate the exposure towards
positive.
Properly exposed
Over exposed
Compensate the exposure towards
negative.∫Operation with the joystick
1Select [ ] with 2 on the joystick
and then compensate the
exposure with 3/4.
 You can compensate from...

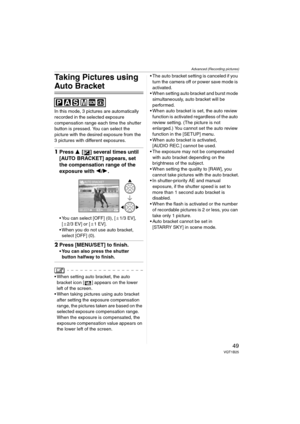

Advanced (Recording pictures)
49VQT1B25
Taking Pictures using
Auto Bracket
In this mode, 3 pictures are automatically
recorded in the selected exposure
compensation range each time the shutter
button is pressed. You can select the
picture with the desired exposure from the
3 pictures with different exposures.
1Press 3 [ ] several times until
[AUTO BRACKET] appears, set
the compensation range of the
exposure with 2/1.
 You can select [OFF] (0), [d1/3 EV],
[d2/3 EV] or [d1EV].
 When you do not...

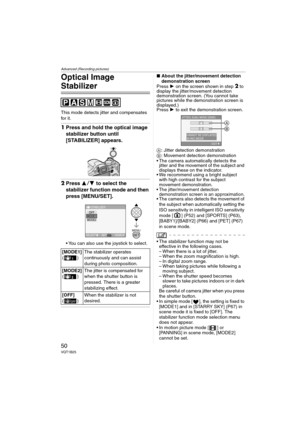

Advanced (Recording pictures)
50VQT1B25
Optical Image
Stabilizer
This mode detects jitter and compensates
for it.
1Press and hold the optical image
stabilizer button until
[STABILIZER] appears.
2Press 34 to select the
stabilizer function mode and then
press [MENU/SET].
 You can also use the joystick to select.
∫About the jitter/movement detection
demonstration screen
Press 1 on the screen shown in step
2 to
display the jitter/movement detection
demonstration screen. (You cannot take
pictures...
