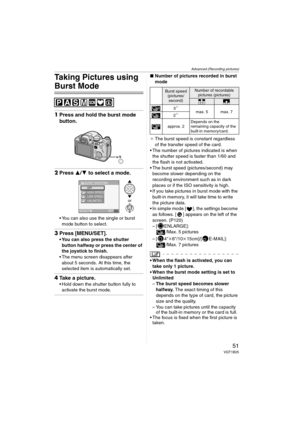

Advanced (Recording pictures)
51VQT1B25
Taking Pictures using
Burst Mode
1Press and hold the burst mode
button.
2Press 3/4 to select a mode.
 You can also use the single or burst
mode button to select.
3Press [MENU/SET].
 You can also press the shutter
button halfway or press the center of
the joystick to finish.
 The menu screen disappears after
about 5 seconds. At this time, the
selected item is automatically set.
4Take a picture.
 Hold down the shutter button fully to
activate the burst mode....

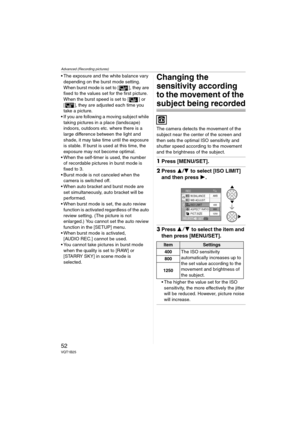

Advanced (Recording pictures)
52VQT1B25
 The exposure and the white balance vary
depending on the burst mode setting.
When burst mode is set to [ ], they are
fixed to the values set for the first picture.
When the burst speed is set to [ ] or
[ ], they are adjusted each time you
take a picture.
 If you are following a moving subject while
taking pictures in a place (landscape)
indoors, outdoors etc. where there is a
large difference between the light and
shade, it may take time until the...

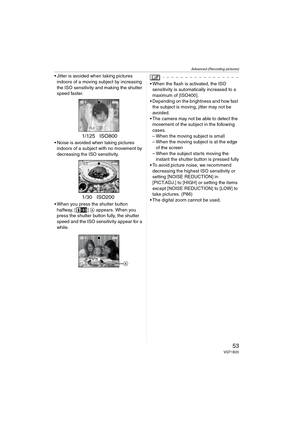

Advanced (Recording pictures)
53VQT1B25
 Jitter is avoided when taking pictures
indoors of a moving subject by increasing
the ISO sensitivity and making the shutter
speed faster.
 Noise is avoided when taking pictures
indoors of a subject with no movement by
decreasing the ISO sensitivity.
 When you press the shutter button
halfway, [ ] A appears. When you
press the shutter button fully, the shutter
speed and the ISO sensitivity appear for a
while.
 When the flash is activated, the ISO...

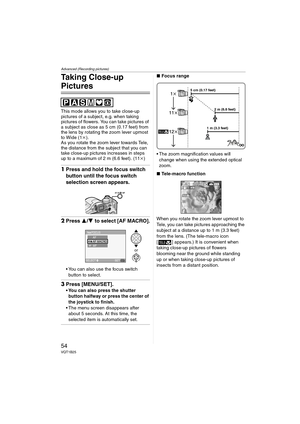

Advanced (Recording pictures)
54VQT1B25
Taking Close-up
Pictures
This mode allows you to take close-up
pictures of a subject, e.g. when taking
pictures of flowers. You can take pictures of
a subject as close as 5 cm (0.17 feet) from
the lens by rotating the zoom lever upmost
to Wide (1k).
As you rotate the zoom lever towards Tele,
the distance from the subject that you can
take close-up pictures increases in steps
up to a maximum of 2 m (6.6 feet). (11k)
1Press and hold the focus switch
button...

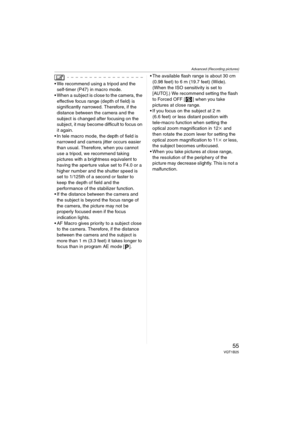

Advanced (Recording pictures)
55VQT1B25
 We recommend using a tripod and the
self-timer (P47) in macro mode.
 When a subject is close to the camera, the
effective focus range (depth of field) is
significantly narrowed. Therefore, if the
distance between the camera and the
subject is changed after focusing on the
subject, it may become difficult to focus on
it again.
 In tele macro mode, the depth of field is
narrowed and camera jitter occurs easier
than usual. Therefore, when you cannot
use a...

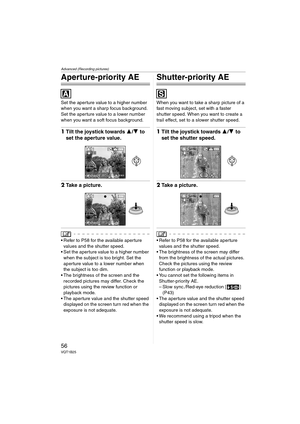

Advanced (Recording pictures)
56VQT1B25
Aperture-priority AE
Set the aperture value to a higher number
when you want a sharp focus background.
Set the aperture value to a lower number
when you want a soft focus background.
1Tilt the joystick towards 3/4 to
set the aperture value.
2Take a picture.
 Refer to P58 for the available aperture
values and the shutter speed.
 Set the aperture value to a higher number
when the subject is too bright. Set the
aperture value to a lower number when
the subject...

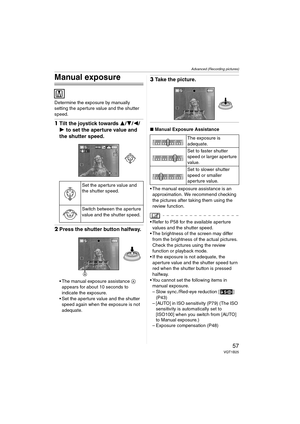

Advanced (Recording pictures)
57VQT1B25
Manual exposure
Determine the exposure by manually
setting the aperture value and the shutter
speed.
1Tilt the joystick towards 3/4/2/
1 to set the aperture value and
the shutter speed.
2Press the shutter button halfway.
 The manual exposure assistance A
appears for about 10 seconds to
indicate the exposure.
 Set the aperture value and the shutter
speed again when the exposure is not
adequate.
3Take the picture.
∫Manual Exposure Assistance
 The manual...

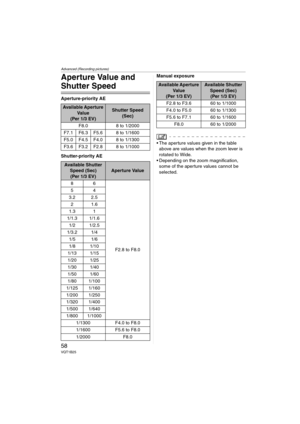

Advanced (Recording pictures)
58VQT1B25
Aperture Value and
Shutter Speed
Aperture-priority AE
Shutter-priority AEManual exposure
 The aperture values given in the table
above are values when the zoom lever is
rotated to Wide.
 Depending on the zoom magnification,
some of the aperture values cannot be
selected.
Available Aperture
Va l u e
(Per 1/3 EV)Shutter Speed
(Sec)
F8.0 8 to 1/2000
F7.1 F6.3 F5.6 8 to 1/1600
F5.0 F4.5 F4.0 8 to 1/1300
F3.6 F3.2 F2.8 8 to 1/1000
Available Shutter
Speed (Sec)...

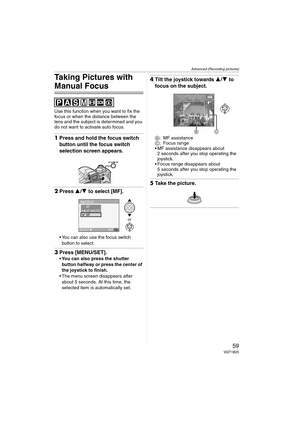

Advanced (Recording pictures)
59VQT1B25
Taking Pictures with
Manual Focus
Use this function when you want to fix the
focus or when the distance between the
lens and the subject is determined and you
do not want to activate auto focus.
1Press and hold the focus switch
button until the focus switch
selection screen appears.
2Press 3/4 to select [MF].
 You can also use the focus switch
button to select.
3Press [MENU/SET].
 You can also press the shutter
button halfway or press the center of
the...

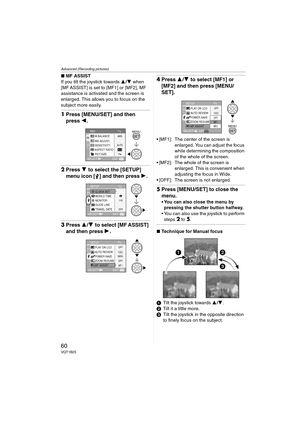

Advanced (Recording pictures)
60VQT1B25
∫MF ASSIST
If you tilt the joystick towards 3/4 when
[MF ASSIST] is set to [MF1] or [MF2], MF
assistance is activated and the screen is
enlarged. This allows you to focus on the
subject more easily.
1Press [MENU/SET] and then
press 2.
2Press 4 to select the [SETUP]
menu icon [ ] and then press 1.
3Press 3/4 to select [MF ASSIST]
and then press 1.
4Press 3/4 to select [MF1] or
[MF2] and then press [MENU/
SET].
 [MF1]:  The center of the screen is
enlarged....
