Panasonic Dmc Fz8 Operating Instructions Manual

Connecting to other equipment
111VQT1B25

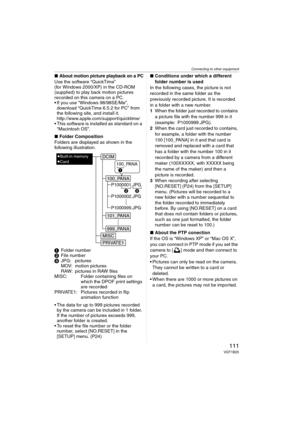

∫About motion picture playback on a PC
Use the software “QuickTime”
(for Windows 2000/XP) in the CD-ROM
(supplied) to play back motion pictures
recorded on this camera on a PC.
 If you use “Windows 98/98SE/Me”,
download “QuickTime 6.5.2 for PC” from
the following site, and install it.
http://www.apple.com/support/quicktime/
 This software is installed as standard on a
“Macintosh OS”.
∫Folder Composition
Folders are displayed as shown in the
following...

Connecting to other equipment
112VQT1B25
 Do not use any other USB connection
cables except the supplied one.
 Do not disconnect the USB connection
cable while [ACCESS] is displayed.
 If there are a lot of pictures on the built-in
memory or a card, it may take time to
transfer them.
 It may not be possible to playback the
motion pictures on the built-in memory or
a card normally when this unit and the PC
are connected. Import the motion picture
files to the PC and then play them back.
 If battery...

Connecting to other equipment
113VQT1B25

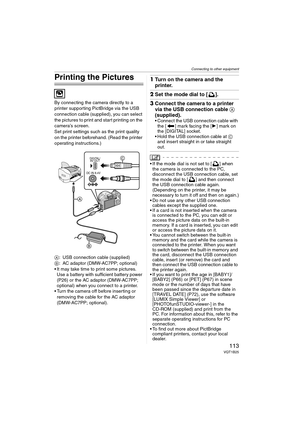

Printing the Pictures
By connecting the camera directly to a
printer supporting PictBridge via the USB
connection cable (supplied), you can select
the pictures to print and start printing on the
camera’s screen.
Set print settings such as the print quality
on the printer beforehand. (Read the printer
operating instructions.)
A: USB connection cable (supplied)
B: AC adaptor (DMW-AC7PP; optional)
 It may take time to print some pictures.
Use a battery with...

Connecting to other equipment
114VQT1B25

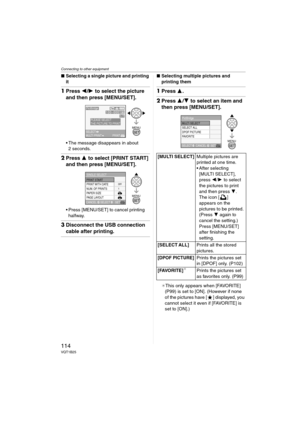

∫Selecting a single picture and printing
it
1Press 2/1 to select the picture
and then press [MENU/SET].
 The message disappears in about
2 seconds.
2Press 3 to select [PRINT START]
and then press [MENU/SET].
 Press [MENU/SET] to cancel printing
halfway.
3Disconnect the USB connection
cable after printing.
∫Selecting multiple pictures and
printing them
1Press 3.
2Press 3/4 to select an item and
then press [MENU/SET].
¢This only appears when [FAVORITE]...

Connecting to other equipment
115VQT1B25

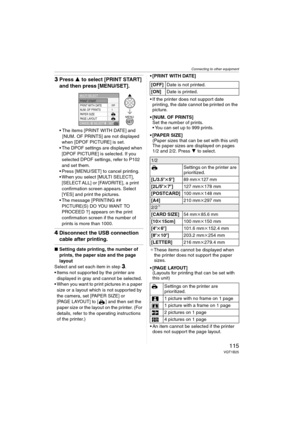

3Press 3 to select [PRINT START]
and then press [MENU/SET].
 The items [PRINT WITH DATE] and
[NUM. OF PRINTS] are not displayed
when [DPOF PICTURE] is set.
 The DPOF settings are displayed when
[DPOF PICTURE] is selected. If you
selected DPOF settings, refer to P102
and set them.
 Press [MENU/SET] to cancel printing.
 When you select [MULTI SELECT],
[SELECT ALL] or [FAVORITE], a print
confirmation screen appears. Select
[YES] and print the pictures.
 The...

Connecting to other equipment

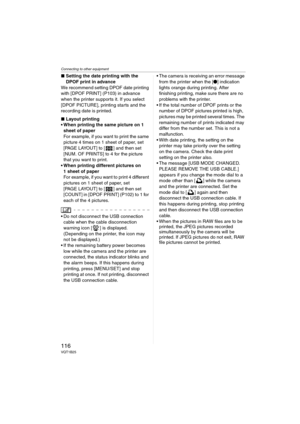

116VQT1B25
∫Setting the date printing with the
DPOF print in advance
We recommend setting DPOF date printing
with [DPOF PRINT] (P103) in advance
when the printer supports it. If you select
[DPOF PICTURE], printing starts and the
recording date is printed.
∫Layout printing
 When printing the same picture on 1
sheet of paper
For example, if you want to print the same
picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ] and then set
[NUM. OF PRINTS] to 4 for...

Connecting to other equipment
117VQT1B25

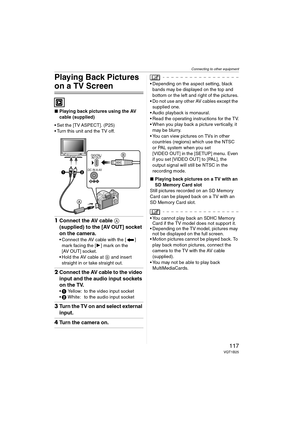

Playing Back Pictures
on a TV Screen
∫Playing back pictures using the AV
cable (supplied)
 Set the [TV ASPECT]. (P25)
 Turn this unit and the TV off.
1Connect the AV cable A
(supplied) to the [AV OUT] socket
on the camera.
 Connect the AV cable with the [ ]
mark facing the [1] mark on the
[AV OUT] socket.
 Hold the AV cable at B and insert
straight in or take straight out.
2Connect the AV cable to the video
input and the audio input sockets
on the TV.
1...

Others
118VQT1B25
Others

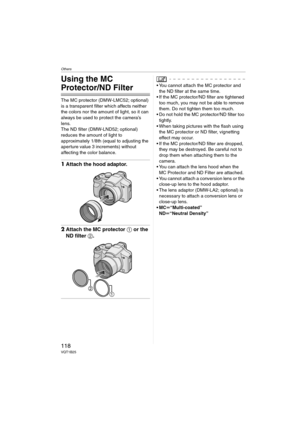

Using the MC
Protector/ND Filter
The MC protector (DMW-LMC52; optional)
is a transparent filter which affects neither
the colors nor the amount of light, so it can
always be used to protect the camera’s
lens.
The ND filter (DMW-LND52; optional)
reduces the amount of light to
approximately 1/8th (equal to adjusting the
aperture value 3 increments) without
affecting the color balance.
1Attach the hood adaptor.
2Attach the MC protector 1 or the
ND filter 2.
 You cannot...

Others
119VQT1B25

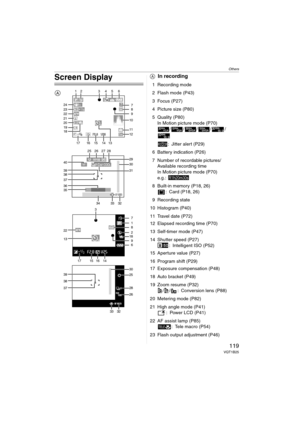

Screen DisplayAIn recording
1 Recording mode
2 Flash mode (P43)
3 Focus (P27)
4 Picture size (P80)
5 Quality (P80)
In Motion picture mode (P70)
//// /
: Jitter alert (P29)
6 Battery indication (P26)
7 Number of recordable pictures/
Available recording time
In Motion picture mode (P70)
e.g.:
8 Built-in memory (P18, 26)
: Card (P18, 26)
9 Recording state
10 Histogram (P40)
11 Travel date (P72)
12 Elapsed recording time (P70)
13 Self-timer mode (P47)
14 Shutter speed (P27)
: Intelligent...

Others
120VQT1B25

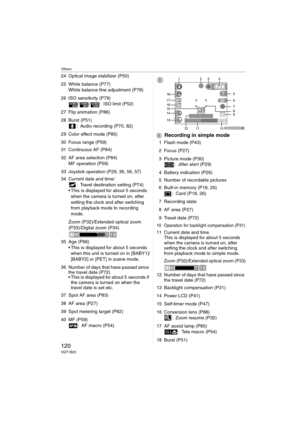

24 Optical image stabilizer (P50)
25 White balance (P77)
White balance fine adjustment (P78)
26 ISO sensitivity (P79)
/ / : ISO limit (P52)
27 Flip animation (P86)
28 Burst (P51)
: Audio recording (P70, 82)
29 Color effect mode (P85)
30 Focus range (P59)
31 Continuous AF (P84)
32 AF area selection (P84)
MF operation (P59)
33 Joystick operation (P29, 36, 56, 57)
34 Current date and time/
: Travel destination setting (P74)
 This is displayed for about 5 seconds
when the camera is turned...
